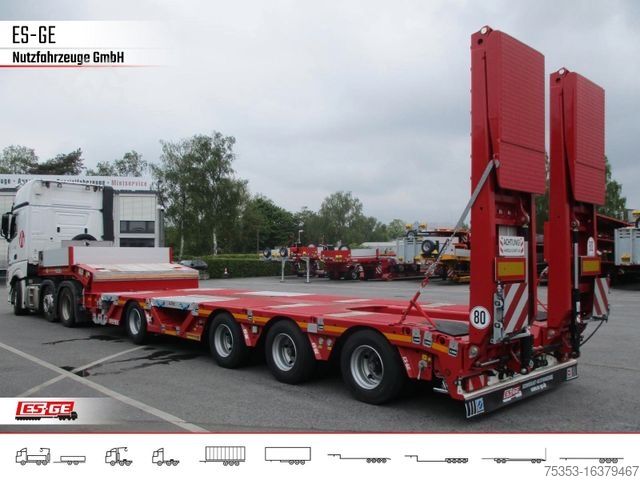

Низкорамный полуприцеп FAYMONVILLE Multimax Satteltieflader (1+3)

Описание

You can find our complete vehicle inventory, including units available immediately and at short notice, on our website.

Excerpt from the equipment list. Full equipment specifications available on request.
Dsc Ed Dstx Nwnedcjwb

GOOSENECK
* Gooseneck in SNT design to optimize loading platform length, approx. 3,700 mm long, with rear bevel approx. 1,000 mm x 10°
* For tractor units: 4 x 2, 6 x 2, and 6 x 4
* Removable steel front wall, approx. 400 mm high
* ASPÖCK-UNIBOX on the front connector strip with sockets
* 3 kW electro-hydraulic unit for controlling hydraulic operations, excluding hydraulic winches
* 1 pair of removable aluminum side boards, approx. 400 mm high, anodized finish
* 1 removable aluminum tailgate, approx. 400 mm high, anodized finish
* Approx. 40 mm thick hardwood floor above gooseneck, checker plate floor above king pin
* 2-inch king pin
* Rear section of gooseneck prepared for aluminum drive-on ramps
* Round NATO socket on the front connection strip (Maeler & Kaege VG 96 917)

LOADING PLATFORM
* Extendable loading platform, approx. 8,800 mm long, with rear bevel approx. 500 mm x 10°
* Recess in the loading platform and bevel for accommodating excavator dipper stick approx. 3,850 x 750 x 210/290 mm (L x W x H)
* TPMS tire pressure monitoring system per ECE R 141
* BPW axles and suspension, 1st axle steerable, all remaining axles hydro-mechanically forced steered
* 1st axle with electromagnetic reverse lockout, activated via reverse gear and manually
* Technical axle load: 12,000 kg each, air suspension with raise and lower valve
* Tires: 235/75 R 17.5, twin tires, 3PMSF
* Mechanical landing legs with 2-speed gearbox and crank, JOST Module B – static test load approx. 50,000 kg
* Continuous 50 mm thick hardwood floor on the loading platform and interrupted between axles (increases coefficient of friction)
* 1 intermediate table, approx. 300 mm wide, for the extension tube with large cross-section
* Extendable (galvanized) side extensions, approx. 230 mm per side (without wooden planks)
* Wheel recesses with square climbing strips, approx. 15 x 15 mm ahead of axles, open through to gooseneck cross member, approx. 700 x 410 mm (W x D)
* Aluminum covers for wheel recesses, usable as bridging elements for extension OR as widening planks
* Aluminum elements lockable on telescopic tubes of the extensions
* Widenable U-profiles for inserting ALU covers: - on the fixed section behind the gooseneck - on the intermediate table - on the extendable platform
* Wheel recesses with square climbing strips, approx. 15 x 15 mm between 1st and 2nd axle, approx. 1,480 x 700 x 410 mm (L x W x D)
* Aluminum covers for the wheel recesses, usable as bridging elements for the extension OR as widening planks
* Aluminum elements lockable on the extension’s telescopic tubes
* 1 pair of mechanical rear supports
* Remote steering from front and rear via cable remote control, with axle tracking, without installation in the tractor unit

HYDRAULIC LOADING RAMPS
* One pair of two-section steel ramps, Type: DR-15/60-900-4350-KG-HV-M, approx. 4,350 mm in length and approx. 900 mm wide each
* Hydraulically foldable ramp tips
* Ramps can be shifted hydraulically approx. 235 mm outward and approx. 215 mm inward individually
* Super Grip rubber surface approx. 25 mm and steel plate surface approx. 5 mm as additional
