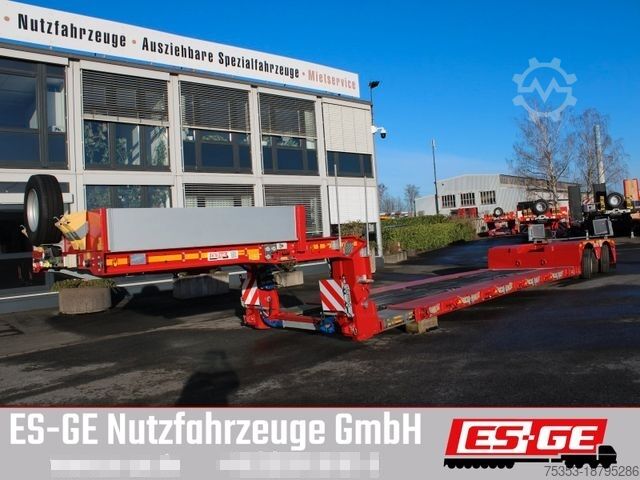

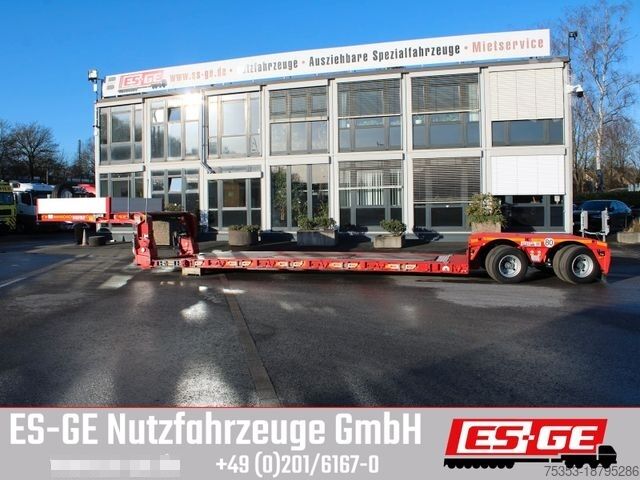

Низкорамный полуприцеп FAYMONVILLE Megamax Tiefbett 2x10 t

Описание

Extract from the equipment. Complete equipment on request.

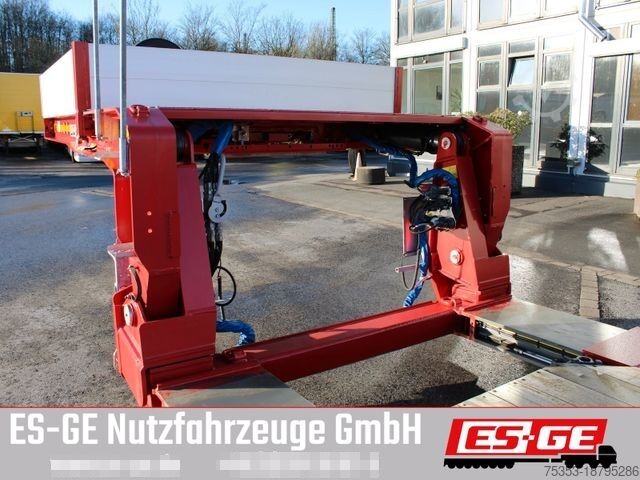

Gooseneck
* Gooseneck in SNT design to optimize the loading area length
* Length approx. 3,750 mm Gooseneck can be raised/lowered hydraulically and can be driven off
* Technical fifth wheel load: 25,000 kg For tractor units: 4 x 2 and 6 x 2
Boiler bridge

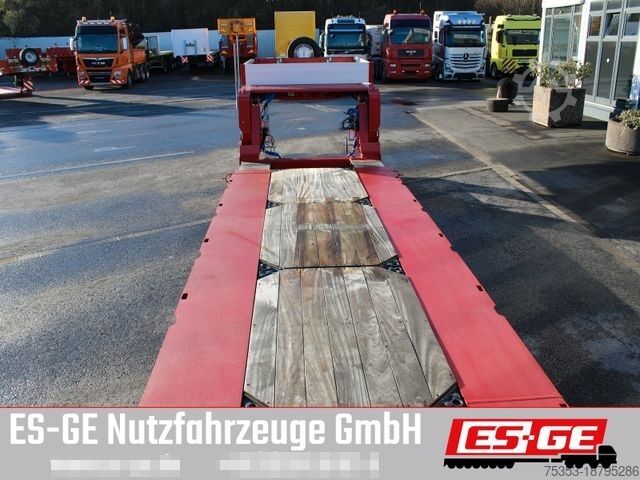

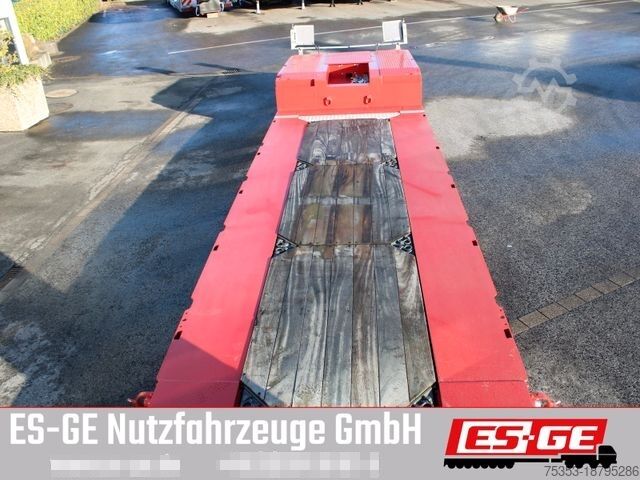

* Low bed designed as an extendable boiler bridge SUPER LOW design
* Length approx. 6,850 mm
* with mechanical locking
* The supply lines are protected in the extendable supports and automatically adjust to the respective low bed length

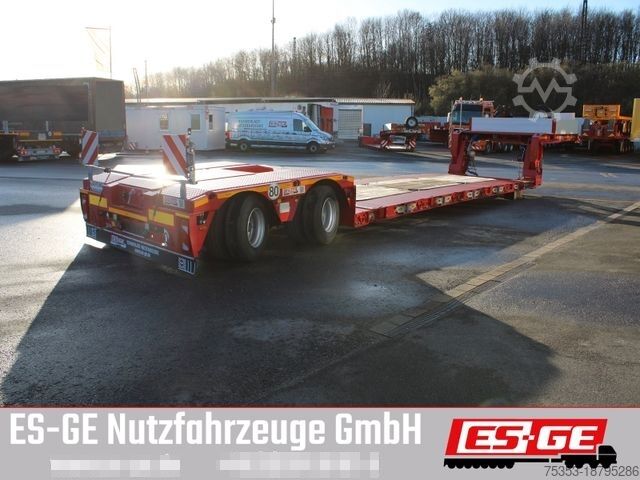

Rear chassis
Pgjc Rsv Sw E As Nc Ifnen
* in short version with closed outer frame and checker plate cover
* Chassis with excavator trough, this is closed in the rear half to accommodate the air tanks
Axles
* BPW axles and suspension, all axles hydro-mechanically forced steered
* Technical axle load: 12,000 kg each
* Air suspension with Raising and lowering valve
Tires
* GOODYEAR KMAX T 3PMSF (M+S) 245/70 R 17.5 twin tires. Load index 143/141J (146/146F)
Braking system
* WABCO brand, EBS-E in accordance with EU regulations, WITHOUT connection cable to the tractor unit
Painting
* 6-K finishing
* Complete steel construction shot blasted after welding
* 1 layer of zinc-based base paint
* 1 layer of adhesion primer. Final painting with 2 layers of 2-component paint (acrylic) in one color, then sealing the cavities with special wax
Color of the trailer
* RAL 3002 carmine red
* Color of the rims silver gray
* Color of the side walls: natural aluminum
Accessories included
* Steel bulkhead, plug-in, approx. 400 mm high
* 3 kW electro-hydraulic unit for controlling the hydraulic processes, with the exception of hydraulic cable winches. Without installation of the supply connections on the tractor unit
* Mounting adapter for 1 spare wheel in front of the bulkhead of the gooseneck
* Outer support of the gooseneck with mounting holes for screwable lashing rings. The first hole is approx. 200 mm from the front, then approx. every 400 mm
* 2 pairs of screw-in lashing rings included (LC 5,000 daN)
* 1 lashing ring on the left and right on the rear bevel of the gooseneck (LC 6,000 daN)
* 2 inch king pin
* Hydraulic crossbeam to support the gooseneck on the tractor unit or a dolly
* Air connection with air gun on the gooseneck
* 1 pair of steel ramps with climbing strips and fastening bolts to bridge the hooks of the low bed
* 1 lashing ring on the left and right on the front cross member (LC 10,000 daN)
* On the outer supports of the loading area, preparation for the removable loading floor
* Lashing rings with retaining spring approx. every 1,200 - 1,300 mm on the outside of the inner supports of the loading area
* Lashing rings with retaining spring approx. every 1,200 - 1,300 mm on the outside of the outer supports of the loading area (LC 10,000 daN)
* Recesses on the upper chord of the outer supports above the lashing rings

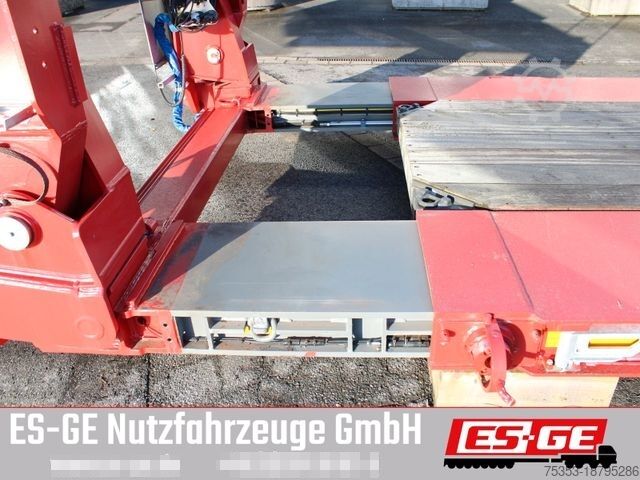

* Mechanical bolt-tab coupling from the low bed to the chassis, for replacing the loading area or installing extension supports. With electro-pneumatic-hydraulic couplings
* The outer supports of the low bed are provided with a painted layer of sand as anti-slip protection
* 2nd driving height for upper driving position, max. ± 50 mm from the normal driving position, without installing the controls from the tractor unit

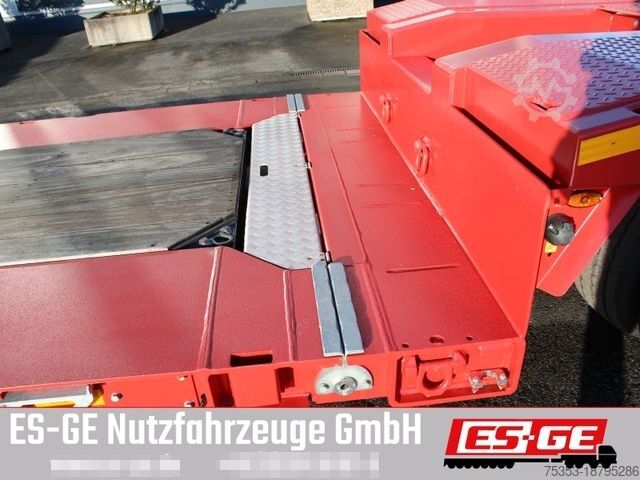

* 1 pair of lashing rings with retaining spring at the transition from the low bed to the excavator trough (LC 10,000 daN)
* Bevel at the front and rear of the chassis, approx. 350 mm x 12°
