Низкорамный полуприцеп FAYMONVILLE MAX100-N-3B-9.30-(CS)-U

Описание

Technical Description
Gooseneck:
Gooseneck with rear bevel of approx. 750 mm x 10°.
3 pairs of lashing rings (LC 5,000 daN).
30 mm thick hardwood flooring.

Loading Platform:
Loading platform behind the gooseneck hydraulically liftable and lowerable, length approx. 2,800 mm, with rear bevel of approx. 1,000 mm x 8°.
6 pairs of outward-folding lashing rings (LC 5,000 daN).
2 pairs of outward-folding lashing rings (LC 10,000 daN).
1 pair of inward-folding lashing rings on the front central beam (LC 10,000 daN).
Grating flooring C40/4 (point load 2.3 t on an area of 20 x 20 cm), over the axles with chequer plate covering.

Djc Ed Dew Dl Hwedcswb

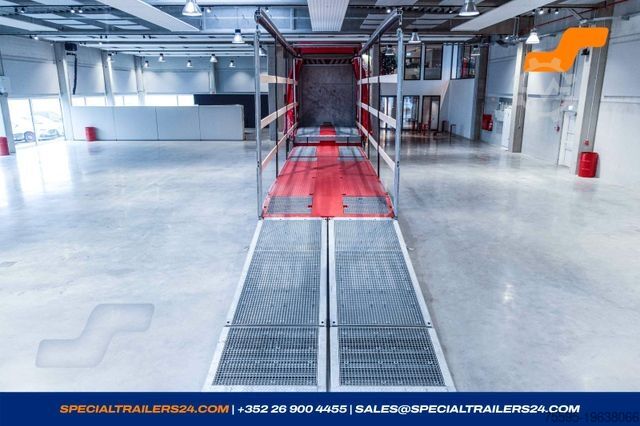

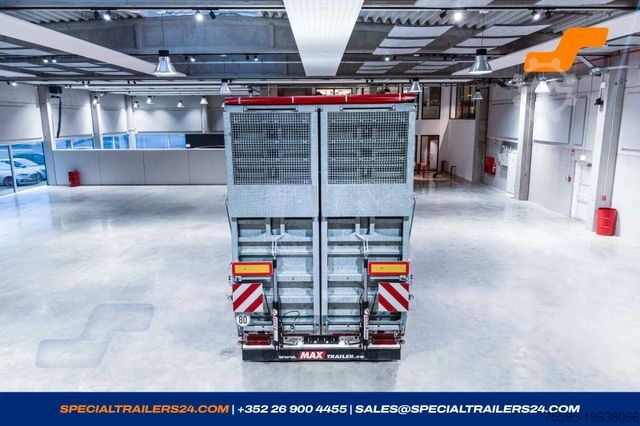

Two-Part Steel Ramps:
One pair of galvanized, two-part steel ramps approx. 3,185 + 1,420 x 1,250 mm with grating flooring C40/5 (point load 8 t on an area of 20 x 20 cm).
Ramp with hydraulically foldable ramp sections and hydraulic lifting system.
Maximum load per pair: 40,000 kg
In accordance with regulation 1230/2012/EU, ramps less than 300 mm in length do not count towards the vehicle length of 16,500 mm in driving position.

Landing Legs:
JOST landing legs (mechanical) with 2-speed gearbox for 24 t lifting capacity (50 t test load).

Tyres:
Tyres 235/75 R17.5 3PMSF as per manufacturer’s choice.

TPMS:
TPMS tyre pressure monitoring system as per ECE R 141.
Data transmission to the tractor unit via the standardized EBS interface according to ISO 11992. For correct display, the tractor unit must be able to receive and display these data.

Axles:
BPW axles and suspension, 2 fixed axles, 1 self-steering trailing axle.
Technical axle load: 12,000 kg
Electromagnetic reverse lock, activated via reverse gear and manually.
Air suspension with raise and lower valve.
Axle tools included.

Brake System:
WABCO braking system compliant with EU regulations with EBS-E (2S2M), without connecting lines to the tractor unit.

Electrical System:
Electrical system compliant with EU regulations, LED lighting 24 Volt ASPÖCK-NORDIK (ASS3).
All LED side marker lights flash with the indicator.
ASPÖCK-UNIBOX on the front connector strip with 24N, 24S & 15-pin sockets.
Connection according to ISO:
24N ISO-1185
24S ISO-3731
15-pin ISO-12098

Steel Structure:
Steel frame made of high-strength fine-grain steels.
Steel grades:
– S355J2+N/S355MC (yield strength 355 MPa)
– S690QL/S700MC (yield strength 690 MPa)

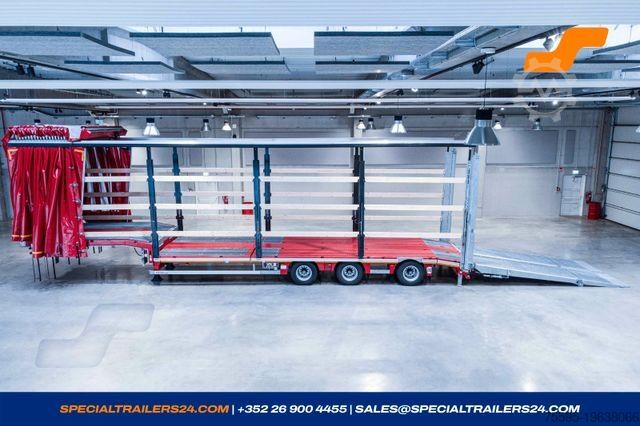

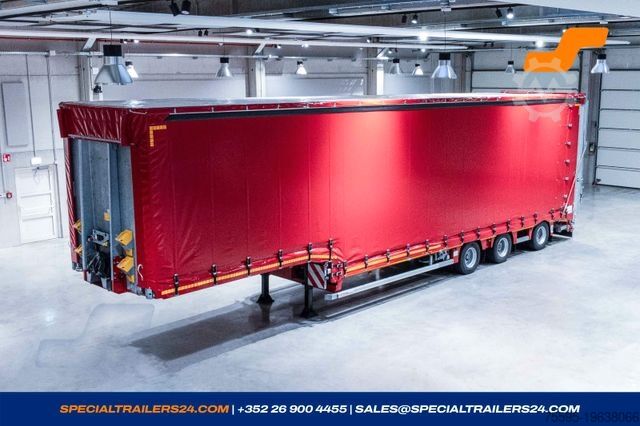

Tarp Structure:
Tarp structure approx. 3,960 mm
– Galvanized front wall with a tensioning mechanism for the sliding curtains.
– “EDSCHA” roof, forward-sliding on aluminum roof rail profiles (bolted to front and rear walls).
– 3 pairs of movable stanchions on the loading platform.
– Body can be hydraulically widened at the rear by approx. 750 mm to the left and right.
– Sliding roof with upward-swinging portal carrier.
– Sliding tarp with 700 mm length reserve and tensioning straps at approx. 600 mm intervals.
Height to top edge of structure approx. 3,960 mm (loaded).
– Driving with open sliding roof is not permitted and will cause damage to the tarp.

Painting:
Entire steel structure is automatically shot-blasted after welding using a blasting wheel system. Second blasting treatment with corundum for optimal coating adhesion.
Full metallizing of the entire chassis with ZINACOR 850 (85% zinc / 15% aluminum) for best corrosion protection.
Top coat with 2 layers of 2K finish, single-color in a shade of your choice according to the RAL 841GL standard.

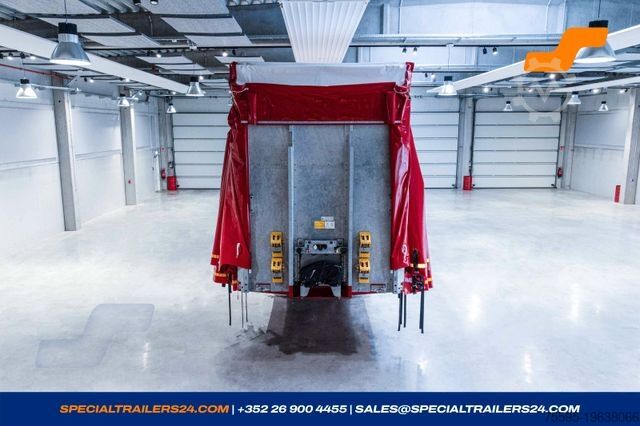

Rear section metallized and coated in RAL 9010 (pure white). No metallic paint.
