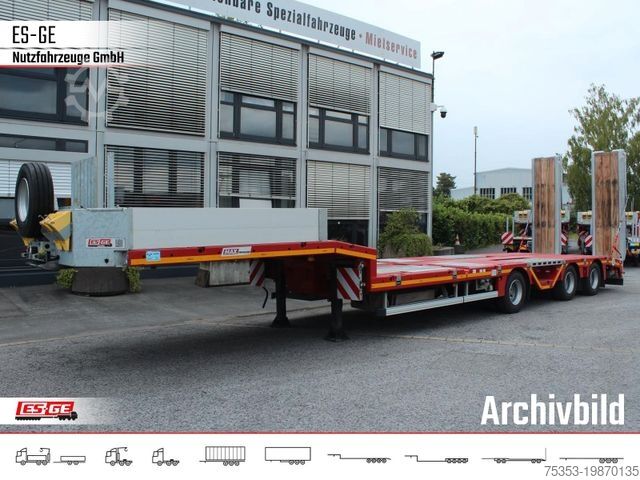

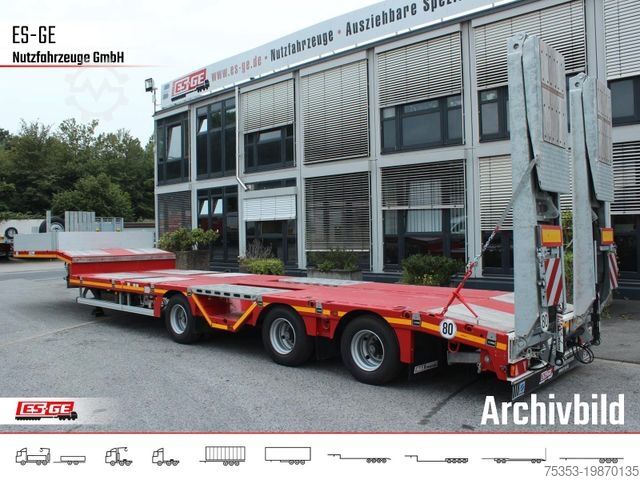

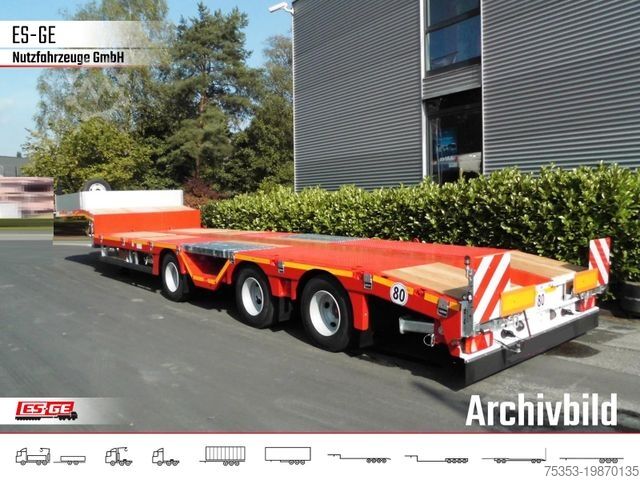

Низкорамный полуприцеп FAYMONVILLE MAX Trailer MAX100 Semi-Tieflader Radmulden

Описание

You can find our complete vehicle inventory, including vehicles available immediately and at short notice, on our website.

Excerpt from equipment. Full equipment details available on request.

Gooseneck:
Dsc Ed Dew Tpq Djdcewb
- Gooseneck with front corners chamfered approx. 45° and rear bevel approx. 750 mm x 10°
- 3 pairs of lashing rings (LC 5,000 daN)
- Hardwood flooring, approx. 30 mm thick

Loading area:
- Telescopic loading area with rear incline approx. 1,000 mm x 8°
- Between 1st and 2nd axle: one pair of fixed wheel recesses, approx. 1,610 x 970 x 400 mm (L x W x D)
- Incl. 3-piece removable galvanized cover over wheel recesses (width approx. 670 mm – max. point load 5 t / pc.)
- 1 pair of flat lashing rings at the front of the loading area (LC 10,000 daN)
- 4 pairs of outward folding lashing rings (LC 5,000 daN)
- 3 pairs of outward folding lashing rings (LC 10,000 daN)
- Cutouts in the outer frame for attaching tie-down straps (LC 2,000 daN)

Landing legs:
- JOST landing legs (manual) with 2-speed gearbox for 24 t lifting capacity (50 t test load)

Tyres:
- Tyres 235/75 R17.5 3PMSF, make at our discretion
- TPMS tyre pressure monitoring system in accordance with ECE R 141
- Data transfer to the towing vehicle via standardised EBS interface as per ISO 11992
- For correct display, the towing vehicle must be able to receive and display this data

Axles:
- BPW axles and suspension, 2 axles rigid, 3rd axle self-steering
- Technical axle load: 12,000 kg
- Electromagnetic reverse lockout activated automatically when reversing and manually
- Air suspension with lifting and lowering valve. Axle tools

Braking system:
- WABCO braking system according to EU regulations with EBS-E (2S2M) without piping to the tractor unit

Electrical system:
- Electrical system per EU regulations
- LED lighting 24 Volt ASPÖCK-NORDIK (ASS3)
- All LED side marker lights flash with the indicator
- ASPÖCK-UNIBOX at front connection strip with 24N, 24S & 15-pin sockets, according to ISO; 24N ISO-1185, 24S ISO-3731, 15-pin ISO-12098

Steel construction:
- Steel structure made of high-strength fine-grained steels
- Steel qualities: S355J2+N/S355MC (yield strength 355 MPa), S690QL/S700MC (yield strength 690 MPa)

Paintwork:
- Complete steel structure automatically shot-blasted after welding in a wheel-blasting system
- Second shot-blasting with corundum for optimum coating adhesion
- HRM metallization of entire chassis with ZINACOR 850 (85% zinc/15% aluminium) for maximum corrosion protection
- Final painting with 2 layers of 2K topcoat, single-colour in RAL 3002 Carmine Red, rear section metallized and painted in RAL 9010 Pure White
- Metallic finish not available
- Paint structure tested in salt spray test according to ISO 9227-NSS
- Internal cavities sealed with special wax

Including the following accessories:
- On the gooseneck and rear, left and right, one holder for warning signs each, including socket
- Spare wheel holder in front of the front wall (without spare wheel)
- 2-inch king pin
- Galvanized steel front wall, approx. 400 mm high
- Yellow-red air couplings on the galvanized front connection bar
- Galvanized folding supports under the inclination at the rear of the loading area
- A hardwood crash protection strip at the rear wall from gooseneck to the loading area
- 1 pair of recessed lashing rings along the central beam at the rear inclination (LC 10,000 daN)
- Aluminium drop sides and tailgate on the gooseneck
