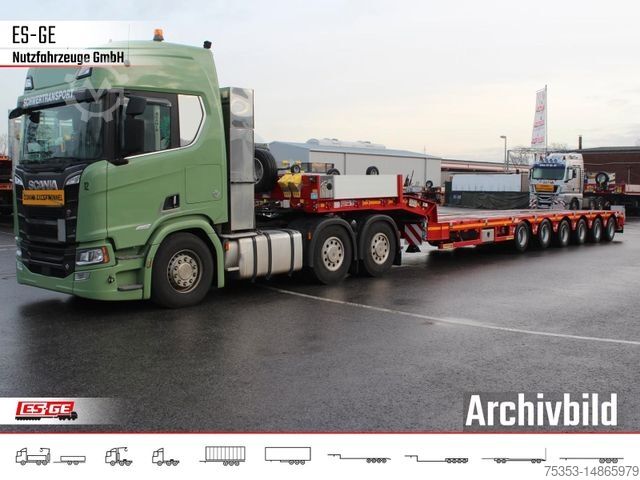

Низкорамный полуприцеп FAYMONVILLE 6-Achs Multimax Satteltieflader

Описание

You can find our complete vehicle inventory, including immediately and short-term available vehicles, on our website.

Excerpts from the equipment. Full specifications available upon request.

GOOSENECK
* Gooseneck in SNT design to optimize load floor length, approx. 3,700 mm long, with rear bevel approx. 1,000 mm x 10°
* For tractors: 6 x 2, 6 x 4, and short 8 x 4
* Detachable steel front wall, approx. 400 mm high
* 3 kW electro-hydraulic power unit for controlling hydraulic functions, except for hydraulic winches
* Outer beams of the gooseneck with mounting holes for bolt-on lashing rings
* 2 pairs of screw-in lashing rings included (LC 5,000 daN)
* 1 pair of flat lashing rings at the rear of the gooseneck (LC 10,000 daN)
* 1 pair of plug-in aluminum side boards, approx. 400 mm high, anodized
* 1 plug-in aluminum rear board, approx. 400 mm high, anodized
* Approx. 40 mm thick hardwood flooring above gooseneck, checker plate flooring above kingpin
* 3.5 inch kingpin
* Gooseneck guide plate for the fifth wheel plate, approx. 500 mm wide
* Round NATO socket at the front connection strip (Maeler & Kaege VG 96 917)
* In addition to the electro-hydraulic unit, a truck hydraulic connection with flow regulator, including bracket for hanging supply lines (Faymonville couplers)
* 2 pairs of stake pockets recessed in the gooseneck, for plug-in stakes approx. 100 x 50 mm

LOAD FLOOR
* Extendable load floor, approx. 11,000 mm long, with rear bevel approx. 500 mm x 10°
* Pneumatic locking with conical locking bolts and reinforced locking positions; supply lines are protected inside the extendable beams and automatically adjust to the respective deck length
* BPW axles and suspension, 1st axle steered, 2nd axle fixed, all other axles hydro-mechanically forced steered
* 1st axle with electro-magnetic reverse lock via reverse gear and manual activation
* Axle load capacity: 12,000 kg each
* Air suspension with lift and lower valve
* 235/75 R 17.5 3PMSF twin tires
* Mechanical landing gears with 2-speed gearbox and crank. JOST Modul B – static test load = approx. 50,000 kg
* Continuous and, between axles, interrupted approx. 50 mm thick hardwood floor on load deck (increases coefficient of friction)
* Slotted holes for attachable and repositionable bridging elements: – at the fixed part behind the gooseneck – on the front of the load floor
* 1 sliding intermediate table, approx. 500 mm wide, for the sliding tube with large cross-section, checker plate flooring, front and rear with slotted holes for attachable and repositionable bridging elements
* 1 pair of recessed flat lashing rings in the front fixed part of the load floor (LC 10,000 daN)
* 9 pairs of recessed lashing rings, foldable outward, in the load floor perimeter frame (LC 10,000 daN)
* 1 pair of mechanical rear supports
* Remote steering from front and rear via cable remote control, with axle tracking control, no installation required in the tractor
* 1st axle with automatic lift axle function and start-up assist according to EU Regulation 2021/535
Dwoc Ed Dsrgzv Nodcjb
* Under the gooseneck and at the rear cross member, left and right, a 7-pin socket each with holder for warning signs
* Factory-applied sand coating on the perimeter frame of the load floor as well as the checker plates and the transition area between load decks
