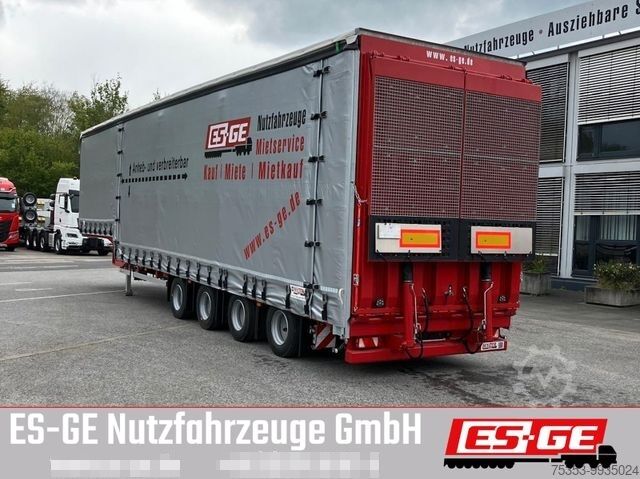

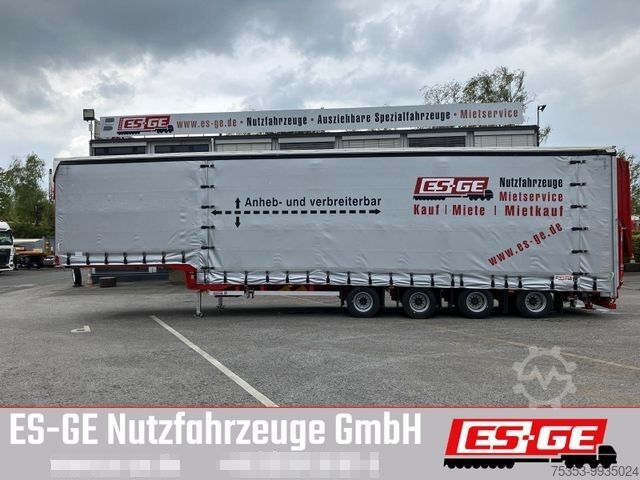

Низкорамный полуприцеп DINKEL 4-Achs-Jumbotieflader

Описание

Extract from the equipment. Complete equipment on request.
Chassis, cranked
* Special steel frame made of high-strength fine-grain steel, electrically welded at the connection points, well-dimensioned outer frame
* 4-axle arrangement. Wheel cover over the axles with spray mist suppression
* All steel parts sandblasted
* Side impact protection made of anodized aluminum mounted
* Increased point load approx. 30,000 kg on approx. 4,000 mm
* Special construction in the cranking area? for the greatest possible low bed length in conjunction with AluLeg drop supports instead of telescopic support winches, max. rear swing radius of the tractor unit approx. 2,100 mm
Special structure with rear stanchion extension
* Self-supporting aluminum roof belt / profile approx. 120 x 100 mm, sliding roof with plastic flaps

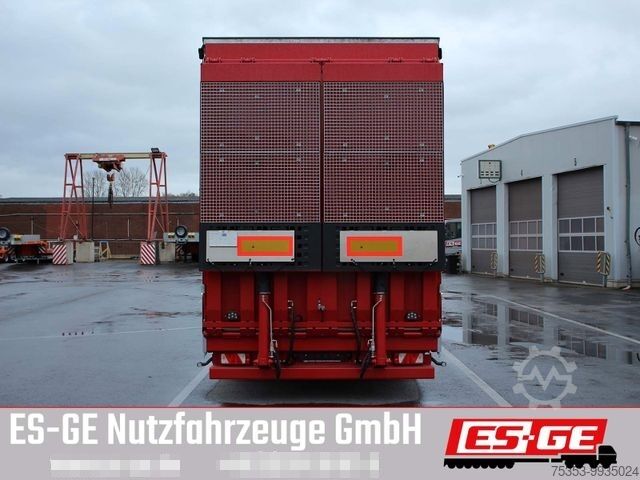

* Rear stanchions can be extended to approx. 4,200 mm
* Three sliding stanchions per side with rubber strain relief
* Additional center stanchion locks in the roof belt and parking position, using a pull rope and spring latch
* Lifting roof mechanically height-adjustable Lifting roof height approx. 400 mm can be operated on both sides or one side, without opening the opposite side or the doors
* Additional height adjustment of approx. 480 mm in approx. 40 mm intervals with height adjustment in the stanchions
* Front cover on the front wall for driving under tarpaulin up to a total height of approx. 4,400 mm
* Four rows of stackable side approx. 150 mm aluminum slats, 450 mm pockets at the bottom, 4 rows of individual pockets above
* Only 3 rows of insert slats in the loft bed. Intermediate spacing evenly distributed
Floor
* approx. 27 mm specially waterproof glued beech screen-printed panels, rough surface
* Sheet steel in the wheel arch area
* Can be driven over by a forklift truck in accordance with DIN? Standard
* Outer frame flush with surface
Pgoc R Nc Islthgusfnsn
Brakes
* WABCO compressed air brake system with EBS in accordance with EC standard 71/320 EEC including PREV (parking release safety valve)
* Spring brake cylinder as parking brake
* Wabco Smart Board with odometer and aggregate load display
Axles
* 4 x 10,000 kg SAF/Sauer with drum brakes in low-loader design
* Air suspension with lifting and lowering device, total stroke approx. 230 mm
* Third and fourth axle as friction-steered trailing axle with electrical and mechanical lock
Twin tires
* 235/75 R 17.5, -16-fold, including e-wheel holder. without electric wheel
Paint finish
* Chassis in RAL 3002 red, single color
* Center stanchions, axles KTL coated black
* Corner stanchions in hot-dip galvanized version
* Plastic parts black
* Hot-dip galvanized parts unpainted
* Rims in factory silver
* Body in RAL color single color
Special equipment incl.
* Air suspension in ECAS version, operated on the trailer
* Extra-wide signage at the front and rear in galvanized, continuously telescopic version with attached marker lights including plug-in bases for rotating beacons (small signs)
* Sliding roof frame unlocking also from the outside
* 4 stanchion adapters for special outer frame profile, for locking the center stanchions as desired
* PVC sliding tarpaulins, color similar to: RAL 9006 silver
* Roof tarpaulin translucent, in extra-wide and extra-high versions, flat hooks, tarpaulin folds, closures with pawl /OCS
* telescopic plug-in base on the rear left for rotating beacon including light
* external frame for machine transport with approx. 64 lashing positions in 2,000 kg, 3,000 kg and 10,0
