Низкорамный полуприцеп DINKEL 4-Achs-Jumbotieflader

Описание

You can find our complete inventory of vehicles available for immediate and short-term delivery on our website.

Excerpt from the equipment list. Full specifications available upon request.

Chassis, stepped:
* Special steel frame made from high-strength fine-grained steels, electrically welded at connection points
* Generously dimensioned outer frame. 4-axle configuration
Dwjc Edewx Dbio Ddcsb
* Wheel covers over the axles with spray suppression
* All steel parts sandblasted
* Side underrun protection made of anodized aluminum mounted
* Increased point load approx. 30,000 kg over approx. 4,000 mm
* Special construction in the stepped area for the longest possible low-bed length in combination with AluLeg drop supports instead of telescopic support legs, maximum rear swing clearance of the tractor unit approx. 2,100 mm

Special body with rear stake extension:
* DINKEL – special body
* Self-supporting aluminum roof beam / profile approx. 120 x 100 mm, sliding roof with plastic flaps
* Rear stakes extendable for loading/unloading up to approx. 4,200 mm
* Three sliding stakes per side with elastic relief
* Additional intermediate stake lockings in roof beam and parked position, via pull cable and spring bolt
* DINKEL – mechanical lift roof, height-adjustable
* Lift roof height approx. 400 mm, operable from both sides or one side without opening the opposite side
* Additional height adjustment of approx. 480 mm in approx. 40 mm increments by adjusting the stakes
* Front cover at bulkhead for driving operation under the tarpaulin up to a total height of approx. 4,400 mm
* Four rows of stackable approx. 150 mm aluminum slats on the side, 450 pockets below, four rows of single pockets above. Only three rows of slats in the raised platform, spacings evenly distributed

Floor:
* Approx. 27 mm special waterproof bonded beech phenolic plywood, rough surface
* Steel sheet in the wheel well area. Suitable for forklift traffic as per DIN standard
* Outer frame flush with deck surface

Brakes:
* WABCO air brake system with EBS according to EC Directive 71/320, including PREV (Parking-Release Safety Valve)
* Spring-loaded brake cylinders as parking brake
* WABCO Smart Board with mileage counter and axle load display
* Including WABCO tire pressure monitoring system

Axles:
* 4 x 10,000 kg SAF with drum brakes in low-loader design
* Air suspension with lift and lower device, total lift approx. 230 mm
* Third and fourth axles as friction-steered trailing axles with electric and mechanical lock

Twin tires:
* 235/75 R 17.5, 16-ply. Make of our choice, including spare wheel holder
* Without spare wheel

Lighting:
* According to EU regulations, including LED side marker lights
* Position lamps in LED design
* 2 additional reversing lights
* 2 work lights on the inside front wall, upper section

Paintwork:
* Chassis and body in one color, RAL 3002 carmine red
* Intermediate stakes, axles KTL-coated black
* Corner stakes hot-dip galvanized
* Plastic parts black
* Galvanized parts unpainted
* Rims in factory silver

Special equipment included:

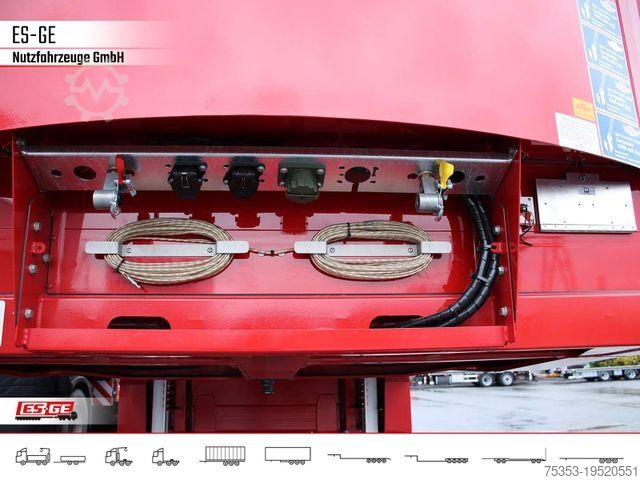

* 15-pin electrical supply cable
* Air suspension in ECAS design, operated on the trailer
* Oversize signage front and rear in galvanized, infinitely telescopic design with installed marker lights, including sockets for rotating beacons (small signs)
* Additional external release for sliding roof frame lock
* 4 stake adapters for special outer frame profile, to lock intermediate stakes as needed
* PVC sliding tarpaulin, color similar to RAL 9
