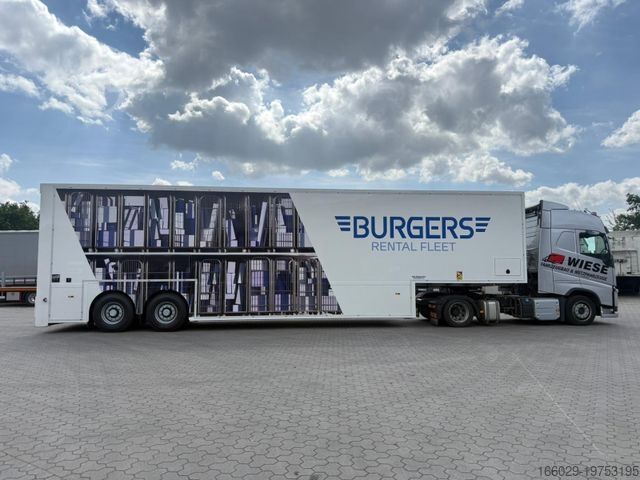

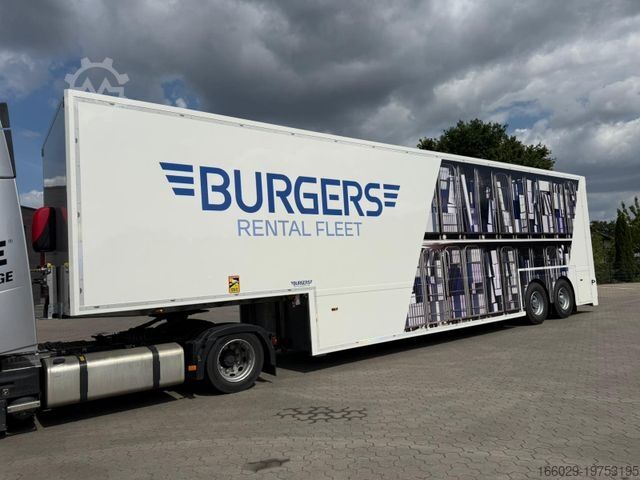

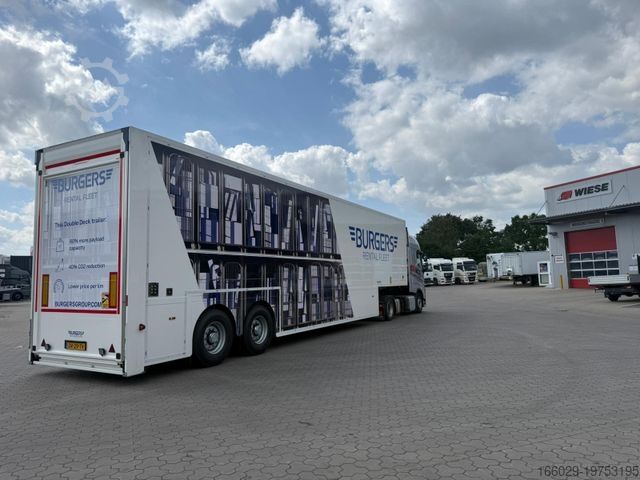

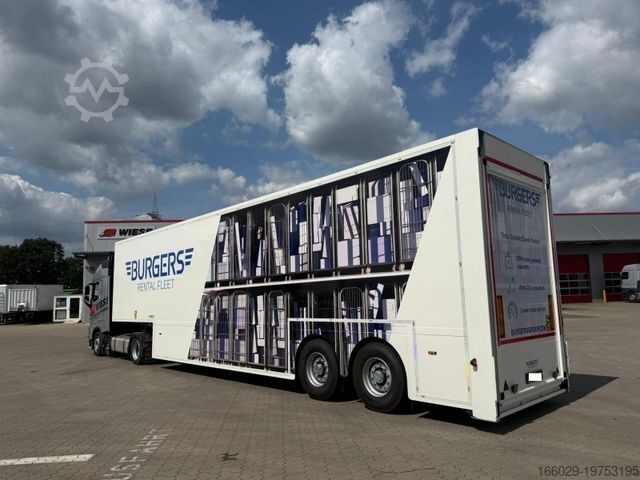

Burgers Double Deck Trailer | 2-Axle Steered NEW

More volume. Lower costs. More sustainable transport.
Up to 60% more loading space compared to standard trailers.
In many cases, replaces 3 trailers with 2 double deckers, reducing CO₂ emissions by up to 40%.

Technical Data (Model: 2-axle steered)

Chassis and Running Gear Design: 2-axle, steered
* Axle system: TRIDEC TF-V02, mechanical steering without electronics
* Air suspension with low-maintenance bushings, lift range +160 mm / -105 mm
* Axle spacing: 1,400 mm
* Axle load: 2 × 9,000 kg = 18,000 kg
* Permissible gross weight: 30,000 kg (12,000 kg kingpin load + 18,000 kg axle load)
* Tyres: 4 × Goodyear 385/65 R22.5 on steel rims
* Wheelbase and axle position adjustable according to loading scheme
* Wheel housings with wear blocks and anti-spray mudflaps
* Fully hot-dip galvanized chassis to ZINQ standard

Brake and Safety Systems WABCO 2-line air brake system
* Drum brakes 420 × 180 mm
* ABS/EBS-E with ECAS (level control), ELEX, and RSS (electronic stability control)
Dec Ejw I Iinod Ddcjwb
* Visible indicator lights for ABS/EBS and ECAS

Dimensions External dimensions (L × W × H): 13,820 × 2,550 × 4,045 mm
* Upper deck internal dimensions: Length 13,590 mm × Width 2,500 mm × Height 1,820 mm

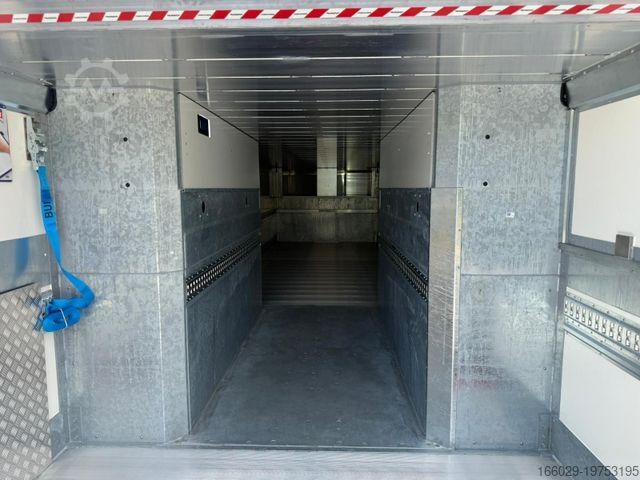

* Lower deck internal dimensions: Length 9,940 mm × Width 2,500 mm × Height 1,820 mm
* Lower deck height from ground: 320 mm

Bodywork and Materials Side walls: 21 mm plywood, coated inside and out with white polyester
* Front wall: 24 mm plywood, both sides polyester white
* Roof: 30 mm insulated polyester panel, white, with rainwater drainage
* Floors: Aluminium profiles (top and bottom), non-slip, grey coated
* Stainless steel front and corner profiles, L-profiles on side flaps

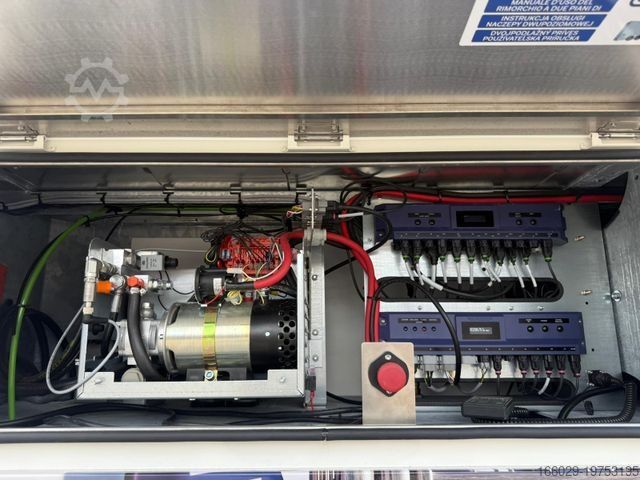

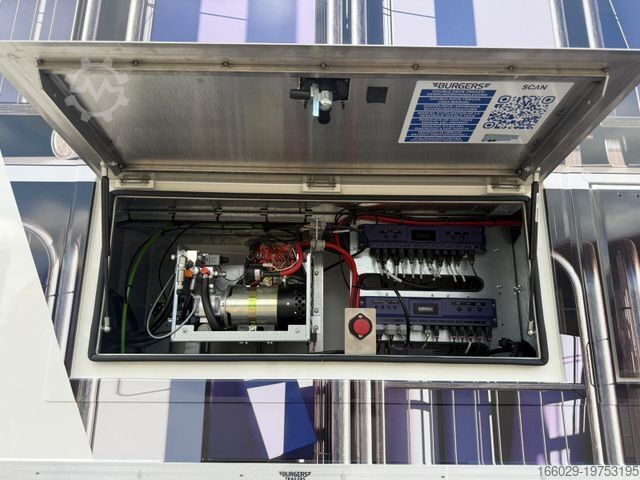

Access and Operation Three side flaps (battery compartment, lift/smartboard control, technical access)

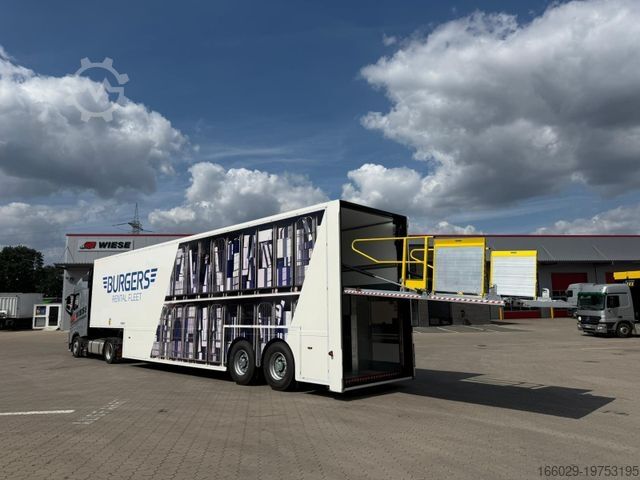

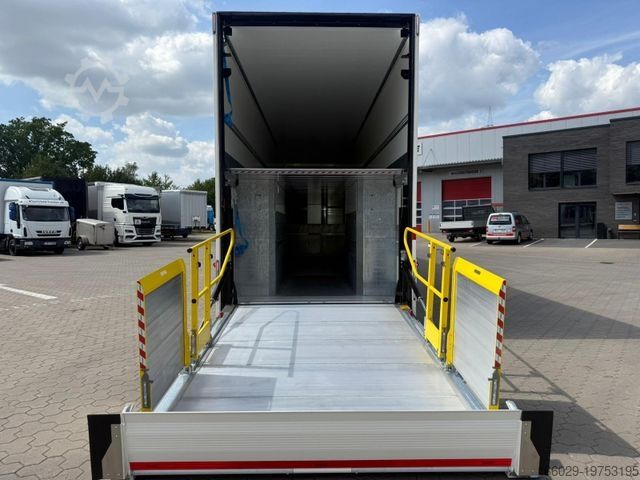

* Multi-deck lift Dhollandia DH-VH (2,500 kg lifting capacity, hydraulic folding tip, LED platform lighting, foldable handrails and ramps)

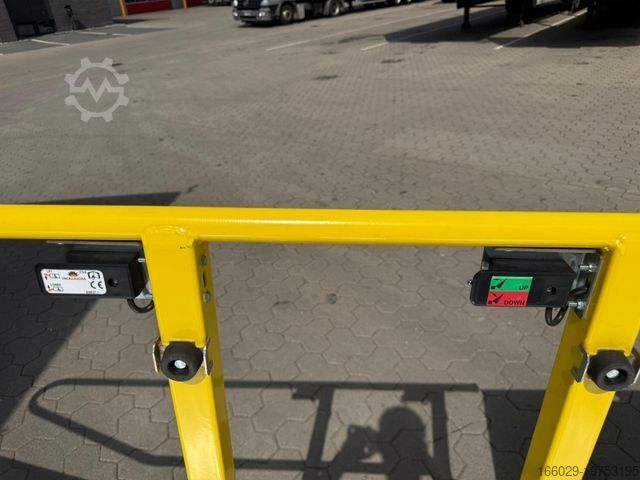

* Lift control: external operation on the right, integrated into the fence
* Spare wheel not included

Electrics and Lighting LED interior lighting upper and lower deck
* Complete LED exterior lighting: position, marker, reverse, and work lights
* Additional LED for platform lighting

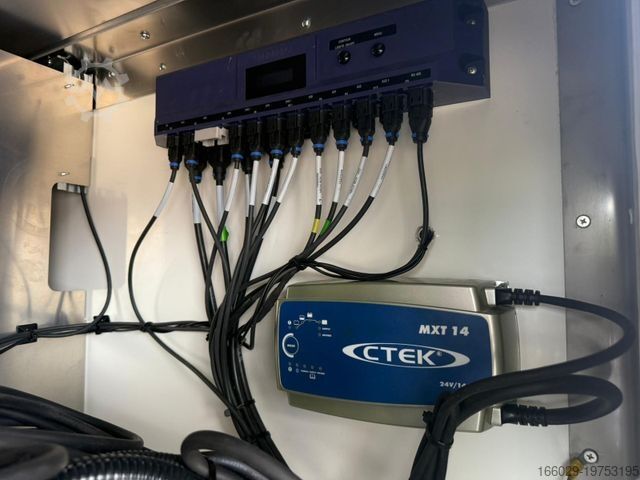

* Power supply via 2 × 230 Ah batteries, charging via tractor unit
* Main switch behind side flap, coupled with lift control
* WABCO Smartboard: weight display, odometer, adjustable loading/unloading heights

Finish and Paintwork External colour: RAL 1003 yellow (non-metallic) including wheel wells, stainless steel front and rear
* Reflectors: 3M partial contour marking (white sides, red rear)
* Advertising space possible (optional)

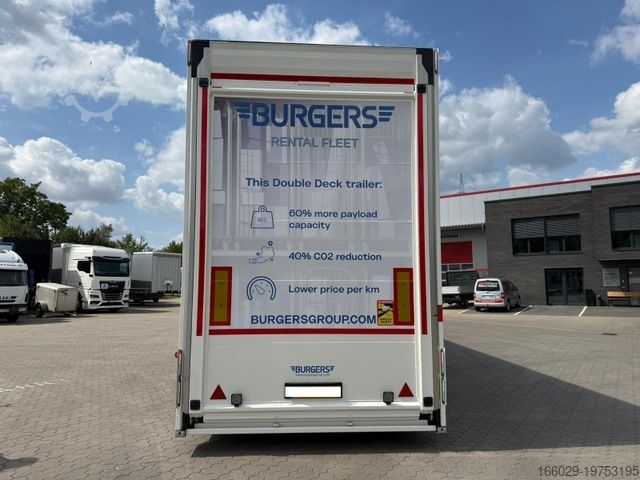

Benefits 60% more loading space – replaces up to 3 standard trailers with 2 double decks
* 40% lower CO₂ emissions – eco-friendly and economical
* ROI often within just 1 year
* Customisable (axles, cooling, dimensions)
* Suitable for long-haul and distribution transport

Available Configurations at Burgers: 2-axle standard – rigid or steered, 13.60 × 2.55 × 4.00 m
* 3-axle standard – rigid or with steered axle
* City trailer – max. 11.50 m, always steered
* Special dimensions – height up to 4.25 m depending on national regulations
* Body: plywood or insulated, optionally with cooling and temperature zones
* Extras: tail lift, hydraulic ramp, solar modules, cameras, aerodynamic profiles, LED packages

For further information, we are happy to assist you.
