Фургон-полуприцеп

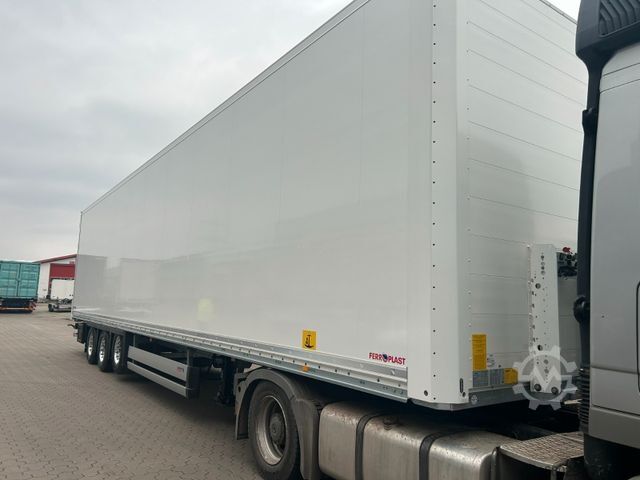

Фургон-полуприцеп SCHMITZ CARGOBULL Mega Koffer - Trockenfrachter FERROPLAST
Год выпуска
2025
Состояние
новое
Цена без учета НДС
8510000.00
Отправить сообщение
Описание
Vehicle information
? Loading space length: mm
? Height: 4000 mm
? Width: 2550 mm
? Loading space length (inside): 13625 mm
? Loading space height (inside): 2900 mm
? Loading space width (inside): 2480 mm
? Fifth wheel height: 950 mm
? Gross vehicle weight: 36000 kg
? Unladen weight: 7240 kg
_____
Axles
? ROTOS SCB running system for 19.5" (disc brake)
? 3 x SCB air spring type: MRH KX 30ME
? Starting aid (liftable front axle), actuation "3x brakes"
? 1st axle lift axle
? 3 x axle SCB 9 t, SP2040, FM1300, ET 120 disc brake 370 mm
? MEGA tires, fifth wheel height approx. 950 mm
? 6-fold 445/45R19.5 (14.00x19.5)
? chrome-plated caps for wheel nuts (3 axles)
_____
Nwsceun Enas R Nc Ifneh
Structure / attachments
? 4 x pair of continuous load securing rails, hole-slot galvanized, recessed into the sidewall (13400)
? en in the middle 1 anchor rail 400 mm
? en b.Mitte 2 anchor rail 1,000 mm
? en b.Mitte 3 anchor rail 1,800 mm
? en b.Mitte 4 anchor rail 2,450 mm
? Plywood panel 12mm on the front wall 1500mm high,
? ALU double-leaf doors
_____
Floor
? 28mm panel floor, multi-axle load 7100 kg strength test according to DIN/EN283
? 400mm wear plate on the last floor panel
? Base rubbing strip 300mm high on the side, 750 high at the front, galvanized steel
? 16 pairs of lashing eyes
? without vertical impact buffers
_____
Lighting / Electrics
? LED interior lighting in full body length, right (DF)
? LED lighting system 24V with multi-chamber light and dynamic indicator
? continuous lamp holder color: white, low version
? 2 reversing lights separately
Характеристики
Общий вес
36 000 кг
Общая ширина
2 550 мм
Общая высота
4 000 мм
Оборудование
ABS
Максимальная грузоподъёмность
31 760 кг
Конфигурация осей
3 оси
Ширина пространства для загрузки
2 480 мм
Длина грузового отсека
13 625 мм
Высота грузового отсека
2 900 мм
