Краны с платформой DAF XD 450 FAN 6X2 Pritsche Kran HMF

Описание

We offer you a ready-to-use XD 450 FAN 6X2 vehicle with WECON bodywork and HMF rear-mounted crane 1920-KJ with Scanreco control.

Warranty: 1 year
Below you will find selected features of the vehicle equipment and body. The complete specification will be sent to you by email upon request.

Engine: MX-11, 6-cylinder high-performance engine with 10.8 L displacement and multi-torque function. Output: 330 kW (449 hp) at 1600 rpm. Maximum torque: 2350 Nm at 900–1125 rpm. – Euro 6 emission standard.

Driveline
–
Eco-Fuel Mode: The vehicle’s shift strategy in Eco-Fuel Mode is optimized for maximum fuel efficiency. The automatically selected most efficient setting can be temporarily deactivated by pressing the Eco-Off button, allowing you to maximize vehicle efficiency considering fuel consumption. – Automatic engine shutoff after 5 minutes of idling.
Transmission: 12-speed automated TraXon 12TX2210 DD.

DAF Infotainment System: Luxury Plus includes an additional 10.1-inch touchscreen for audio and infotainment, including vehicle navigation via the DAF navigation app and internet connectivity. FM/DAB/DAB+ radio is integrated into the system and offers USB and Bluetooth streaming functionality. The Luxury sound system features five speakers: two woofers in the door panels (one in each door), two tweeters in the A-pillars, and a full-range speaker in the center of the dashboard.

Adaptive cruise control (ACC) with forward collision warning (FCW) and AEBS-3 (AEBS: Advanced Emergency Braking System).

Platform body
Dimensions: External Internal
Build length: 6,620 mm 6,510 mm
Build width: 2,550 mm 2,480 mm
Build height: 800 mm
Floor frame: Made of premium St 52-2 steel, fully galvanized, including the internal spaces of the closed profiles – zinc coating thickness 150 µm. Reinforced subframe, appropriately dense supports.

Aluminum side walls, 4-piece – anodized, height 800 mm, without customs profile,
bolted at height with studs. Corner posts made from high-grade steel, bolted to the subframe, KTL-coated.
Center posts: Removable Kinnegrip posts, 800 mm, one per side, powder-coated.

Additional equipment:
• Rear marker plates
• 2 x 600 mm toolboxes
• Plastic mudguards with mud flaps in line with KD
• Water tank
• Steel bumpers
• Entry step front left (driver’s side) at the corner post – enables access to the body.

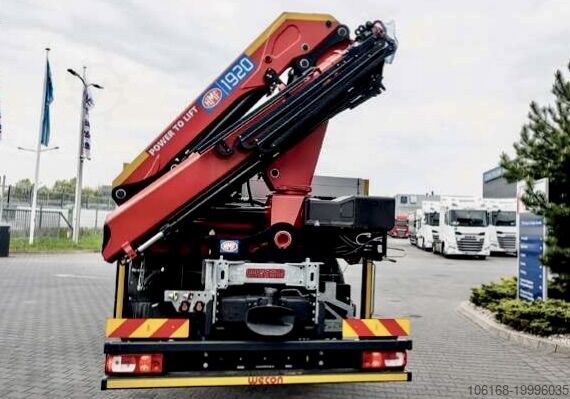

Crane HMF 1920 K3 with Scanreco
Crane with a lifting capacity of 17.2 tm at a reach of 10.5 m
(18.1 tm at 6.2 m)
Three hydraulically extendable arms
High-quality DANFOSS PVG 32 hydraulic valves
Slew angle: 400 degrees
The crane is factory-equipped with an electronic control system, known as CE-RCL 5300, which monitors crane operation.
(Electronic overload protection system – acoustic and visual warning at 80 %, 85 %, 90 %, 95 % and 100 % – emergency stop switch at all control positions)
Additional control function – 5th function for rotator drive. Overextension:
of the boom with hydraulic outriggers relative to the first arm by
15 degrees
Hoc Esxcipdod Ddcsfl

The vehicle is at our partner’s location.

Transport by freight forwarder is available at extra cost.

Please confirm the vehicle inspection by telephone.
