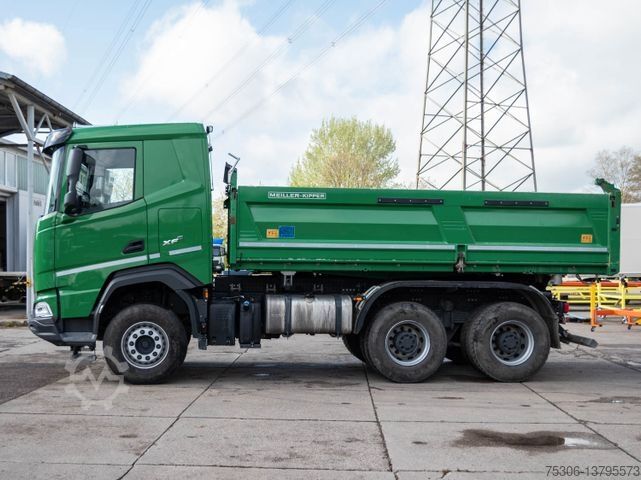

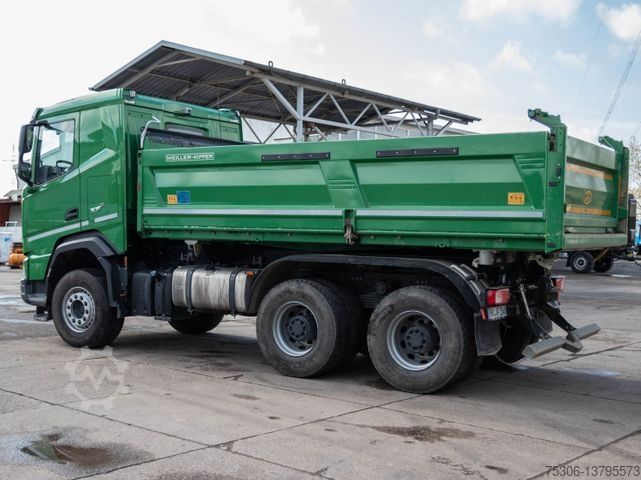

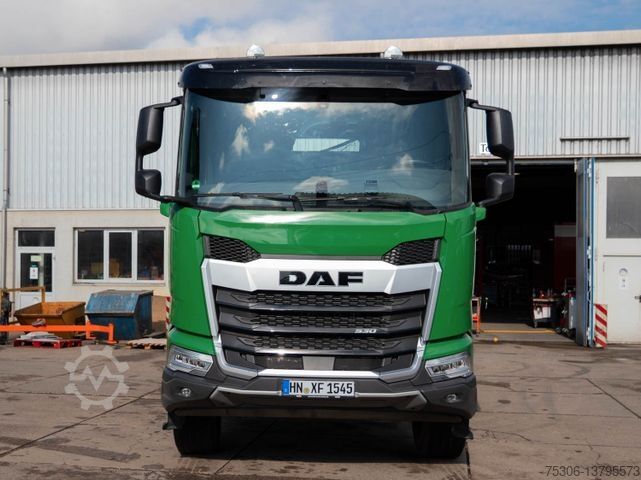

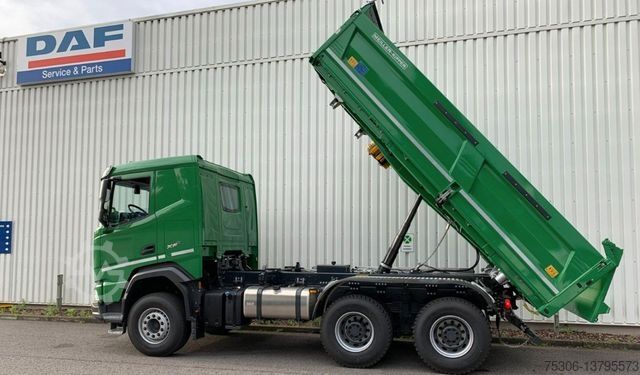

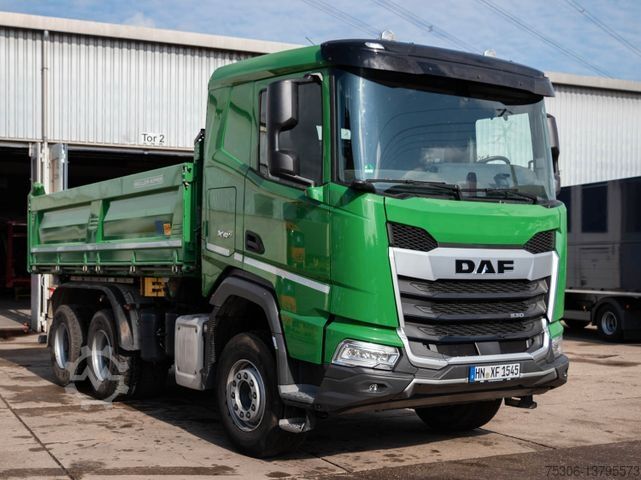

Самосвал DAF FAT XFC 530 SL Meiller TRIGENIUS D 316

Описание

EQUIPMENT:
* Sleeper Cab
* Front chassis design: robust
* Mechanical cab suspension
* Exterior sun visor
* Flexible cab step
* Horns, 1 set
* LED headlights and fog lights
* Two LED headlights for the rear cab wall
* Rotating beacons on the front cab, prepared
* Handle and surround: black, side panels: cab color
* Windshield with sun protection film
* Rear window: double-glazed
* DAF Corner View
* Central locking, 3 keys, 2 remote controls

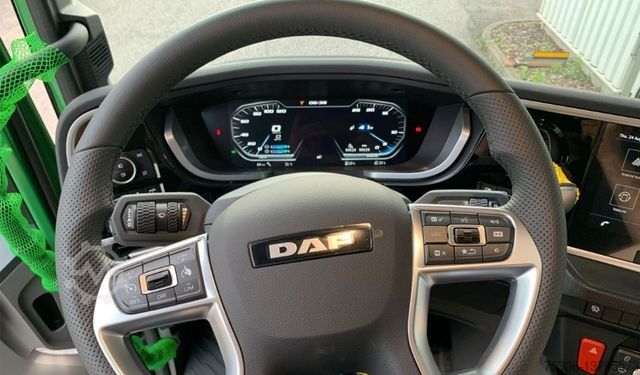

* Leather steering wheel
* Interior trim color: Luxury
* Driver's seat: Luxury Air
* Armrests on both sides of the driver's seat

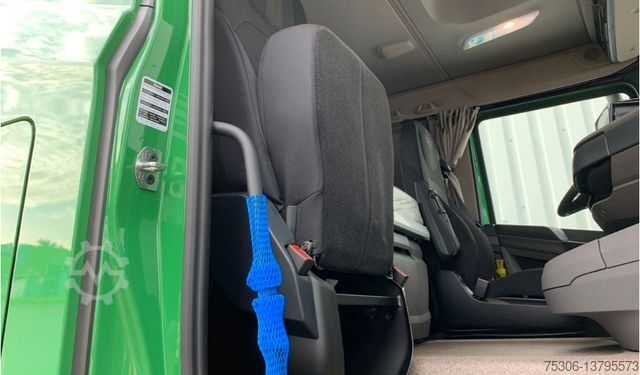

* Passenger seat: Cinema with fabric upholstery
* Dashboard table
* Center storage compartment
* Cooler or refrigerator
* Curtains (without divider)
* LED interior lighting
* Automatic cab climate control
* Auxiliary heating with waste heat pump and timer
* Driver's side roller blind

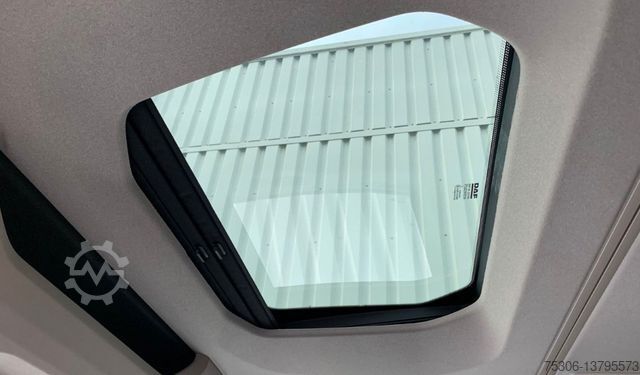

* Electric roof hatch
* FMS connector, extended and prepared
* DAF Connect
* Toll preparation
* Digital tachograph, VDO 1C, version G2V1
* DAF Infotainment Luxury Plus, Luxury speakers
* Antennas: DAB-prepared, radio, 2x mobile antennas GNSS Extra: CB
* Adaptive Cruise Control with FCW and AEBS-3
* Lane Departure Warning System
* Electronic Stability Control (VSC)
* Reverse Alarm
Dec Ed Dsqgaizjdcowb
* Front: 8.00 t, parabolic, 167 N
* Front axle 1, 8,000 kg, load index 156
* Rear suspension 21.0 t/Brakes 21.0 t
* Rear axle load capacity 10.50 t + 10.50 t
* Rear: 21.00 t, trapezoidal, HR1670T
* Rear axle 1, 12,600 kg, load index 148
* Front leaf spring suspension, extra high
* Front axle(s): 385/65R22.5
* Driven rear axle(s): 315/80 R22.5
* Goodyear
* Silver-gray steel disc wheels
* Silver-gray wheel trim rings
* MX-13 engine, 390 kW/530 hp Cab emblem: 530
* Euro 6 emissions class
* ECO performance
* Automatic idle shutoff, 5 minutes
* Automated transmission, TraXon, 12 gears
* 12-speed TraXon transmission 12TX2610 OD, 12.92-0.77
* Maneuvering mode
* Automatic transmission with manual transmission, full version
* Off-road use with rocking function
* Rear axle ratio 3.61
* Mechanical differential lock
* Traction control (ASR)
* ZF Intarder
* Pneumatic control for parking brake
* Spring-loaded brake cylinder, first front axle
* Spring-loaded cylinder on tandem rear axles 1 and 2
* Parking brake assist
* 2-cylinder compressor without clutch
* Driven rear axle with drum brakes
* Wheelbase 4.05 m/rear overhang 1.50 m tipper
* Longitudinal member 310/7.0 mm, with internal adjustment front/rear
* EAS unit right, vertical rear + 45 l exhaust tank left
* Steel compressed air tank
* 340 l aluminum fuel tank left, height 505 mm
* Fuel tank left
* Splash guard
* Use with drawbar, type plate, up to max. GVW
* Cross member D200 + Ringfeder coupling D200
* Pneumatic connection for trailer, swivel coupling
* Trailer electrical connection 24V/15-pin Cable: 15-pin + EBS
* CAN J1939 functions in the body connector
* Air control preparation for tipper use
* Side marker lights
* First transmission PTO NH/4c-R-27/30
* 110 A generator, 2 x 230 Ah batteries
* Heated fuel pre-filter
* Dust shield
* Powertrain Plus Warranty - 3 years - 200,000 km
* Technical inspection before delivery

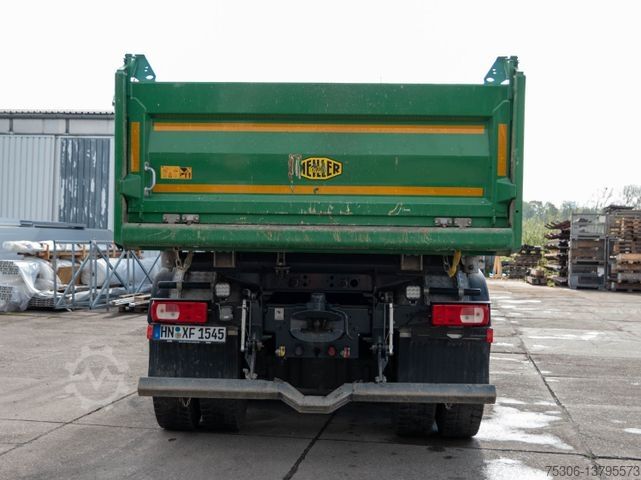

BODY - MEILLER TRIGENIUS D316
- 200 mm higher, welded bulkhead with deflector adapted to the space available

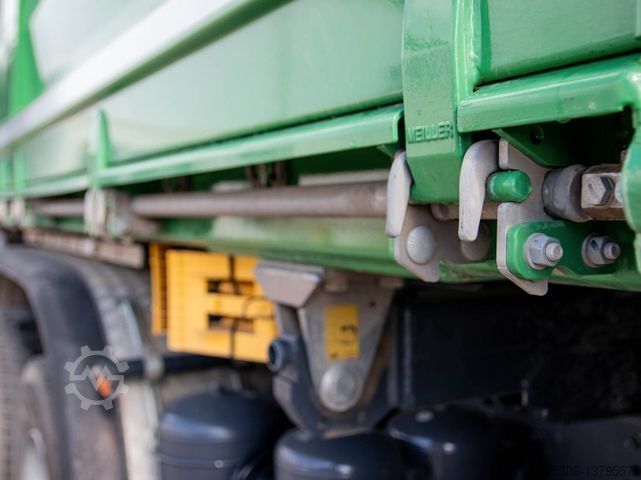

- Bordmatic left (1 Bordmatic cylinder)
- Swinging right side panel with manually operated claw lock
- Swinging
