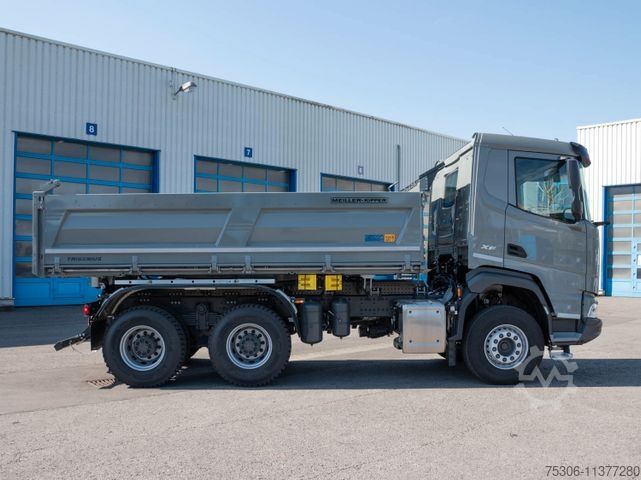

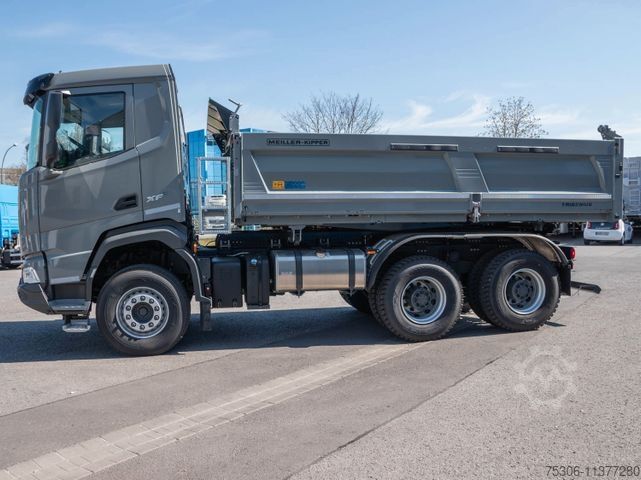

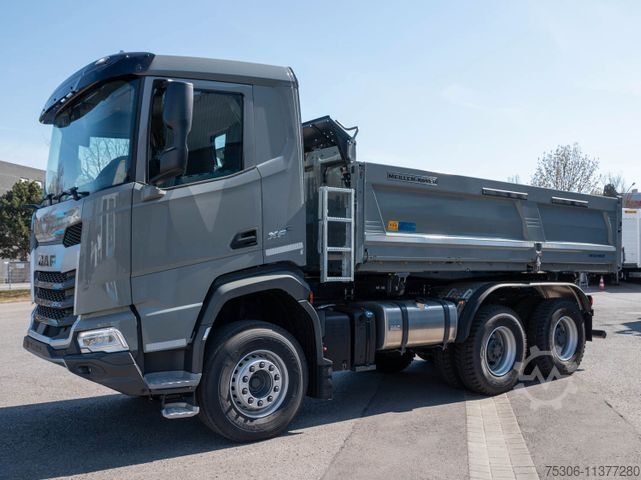

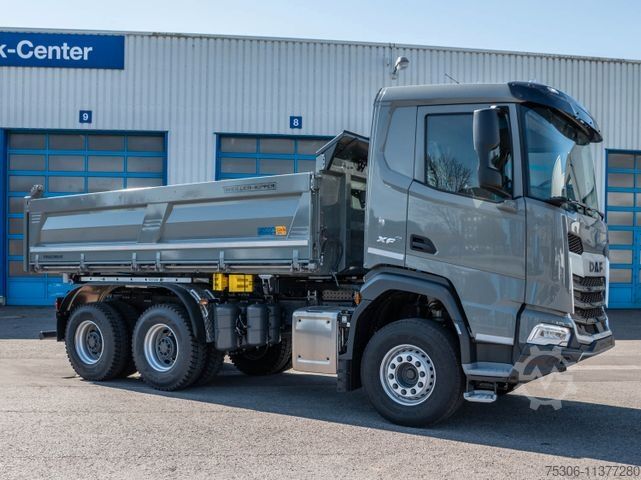

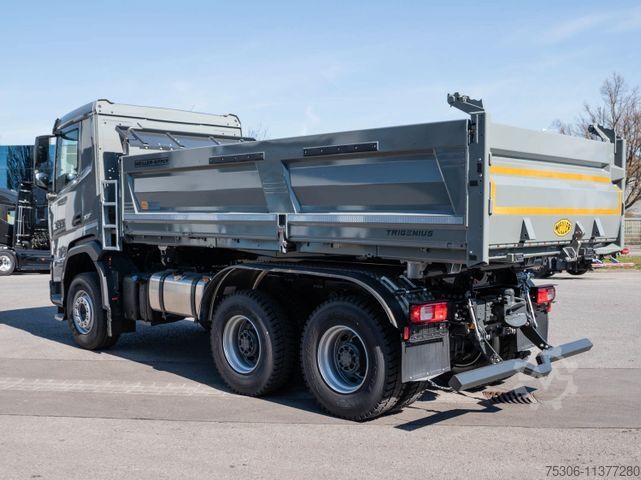

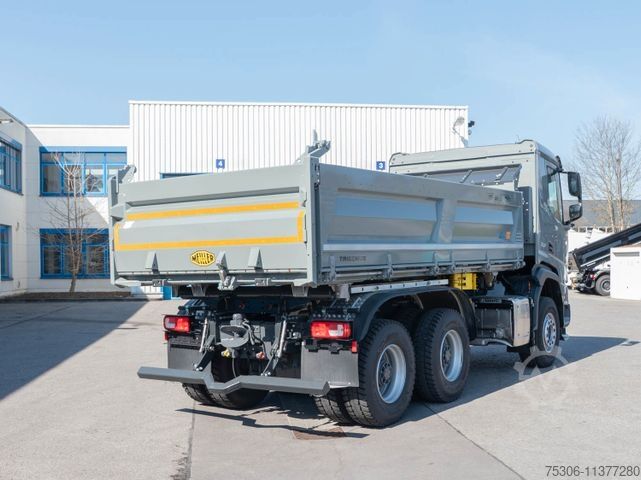

Самосвал DAF FAT XFC 530 Meiller Trigenius D316

Описание

EQUIPMENT:
* Day Cab
* Front chassis design: robust
* Mechanical cab suspension
* Exterior sun visor
* Flexible cab step
* Horns, 1 set
* LED headlights and fog lights
* Headlight beams for right-hand traffic
* Two LED headlights for the rear cab wall
* Rotating beacons on the front cab, prepared
* Handlebar and lamp bezel: black, side panels: cab color
* Windshield with sun protection film
* DAF Corner View
* Central locking, 3 keys, 2 remote controls
* Leather steering wheel
* Interior trim color: Luxury
* Driver's seat: Luxury Air
* Armrests on both sides of the driver's seat
* Passenger seat: Cinema with fabric upholstery
* Dashboard table
* Center storage compartment
* Cooler or refrigerator
* Curtains (without divider)
* LED interior lighting
* Automatic cab climate control
* Auxiliary heating with waste heat pump and timer
* Driver's side roller blind
* Electric roof hatch
* FMS connector, extended and prepared
* DAF Connect

* Digital tachograph, VDO 1C, version G2V1
* DAF Infotainment Luxury Plus, Luxury speakers
* Antennas: DAB-prepared, radio, 2x mobile antennas GNSS Extra: CB
* Adaptive Cruise Control with FCW and AEBS-3
* Wireless Charger
* Lane Departure Warning System
* Electronic Stability Control (VSC)
* Reverse Alarm
* Standard Immobilizer
* Front: 8.00 t, Parabolic, 167 N
* Front axle 1, 8,000 kg, load index 156
* Rear suspension 21.0 t/Brakes 21.0 t
* Rear axle load capacity 10.50 t
* Rear: 21.00 t, Trapezoid, HR1670T
* Rear axle 1, 12,600 kg, load index 148
* Front leaf spring suspension, extra high

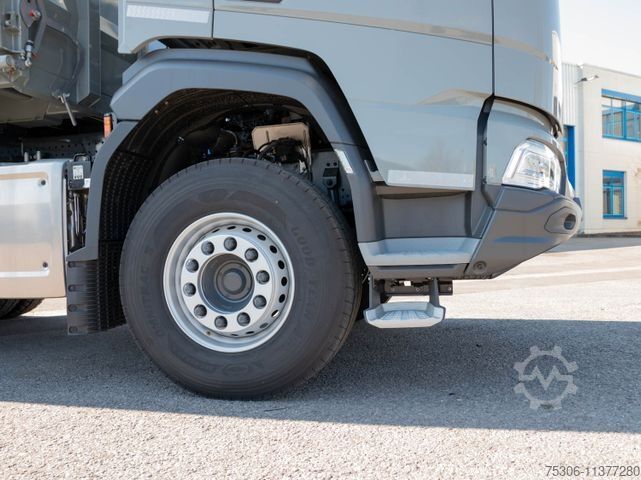

* Front axle(s): 385/65R22.5
* Driven rear axle(s): 315/80 R22.5
* Goodyear
* Steel disc wheels, silver gray
* Silver gray wheel trim rings
* MX-13 engine, 390 kW/530 hp Cab emblem: 530
* Emissions class Euro 6
* ECO performance
* Automatic idle shutdown, 5 minutes
* Automated transmission, TraXon, 12 gears
* 12-speed TraXon transmission 12TX2610 OD, 12.92-0.77
* Maneuvering mode
* Automatic transmission with manual transmission, full version
* Off-road use with rocking function
* Rear axle ratio 3.61
* Mechanical differential lock
* Traction control (ASR)
* ZF Intarder
* Pneumatic control for parking brake
* Spring brake cylinder, first front axle
* Spring brake cylinder on tandem rear axles 1 and 2
* Parking brake assist
* 2-cylinder compressor without clutch
* Driven rear axle with drum brakes
* Wheelbase 4.05 m/rear overhang 1.50 m tipper
* Longitudinal member 310/7.0 mm, with internal adjustment front/rear
* EAS unit right, vertical, 45-liter exhaust tank left
* Steel compressed air tank
* 340-liter aluminum fuel tank left, height 505 mm
* Splash guard
* Use with drawbar, type plate, up to max. GVW
* Cross member D200, Ringfeder coupling D200
* Pneumatic connection for trailer, swivel coupling
* Electrical connection trailer 24V/15-pin cable: 15-pin EBS
* CAN J1939 functions in the body connector
* First transmission PTO NH/4c-R-27/30
* 110 A generator, 2 x 230 Ah batteries
Docom Nhyae Ed Ddcowb
* Heated fuel pre-filter
* Dust shield
* Powertrain Plus Warranty - 3 years - 200,000 km

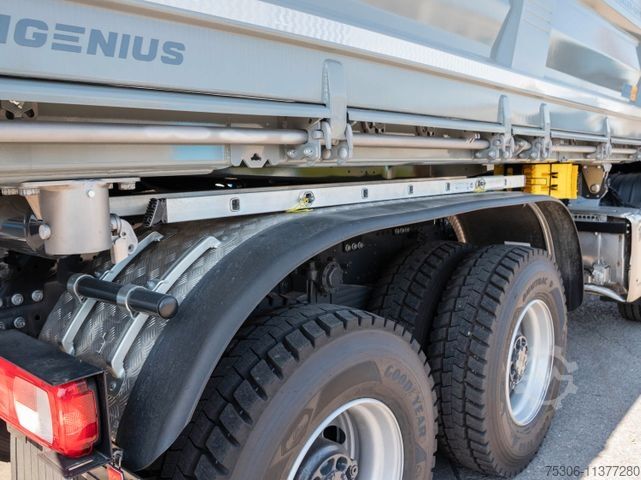

BODY - MEILLER TRIGENIUS D316
- 200 mm higher, welded bulkhead with deflector adapted to the available space
- Bordmatic left-hand side (1 Bordmatic cylinder)
- Pivoting right-hand sidewall with manually operated claw lock

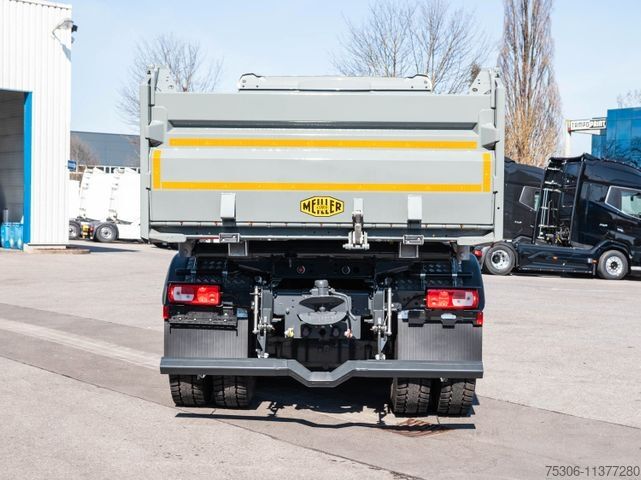

- Pivoting rear wall with automatic cam lock
- Side walls with sturdy, all-round, inwardly inclined O
