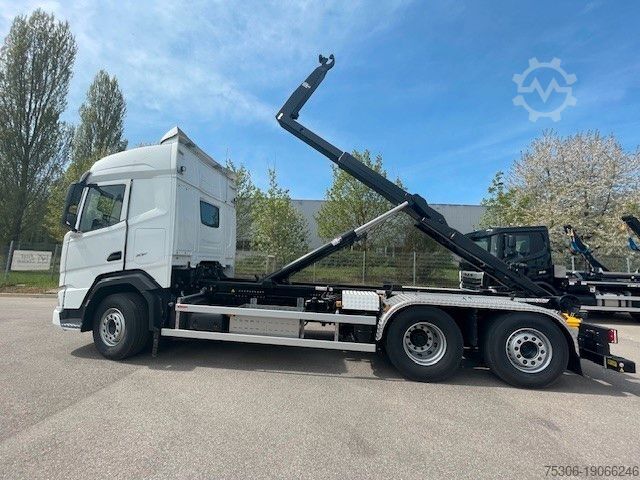

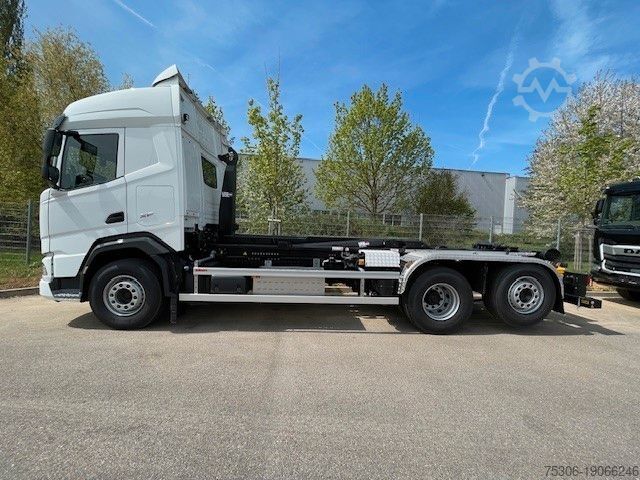

Крюковой мусоровоз DAF FAN XF 480 NGD

Описание

FAN XF 480 NGD
CRYSTAL WHITE
Sleeper High Cab
Laminated glass with sun protection film
Central locking, 3 keys, 2 remote controls
Windshield with sun protection film
Rear window: Double glazed
Horns, 1 set
LED skylights
DAF Corner View
LED headlights and fog lights
Mechanical cab suspension
Rear view camera
Handle and lamp surround: Black. Side panels: Cab color
LED daytime running lights
Adjustable short roof spoiler, Sleeper High Cab
Black spoiler housing for cab suspension Crystal White
CRYSTAL WHITE
Lower cab step: Stone Grey

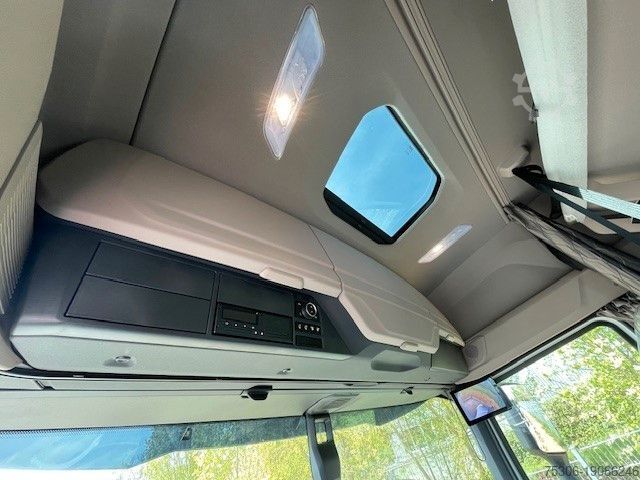

Roof hatch with electric controls
Integrated parking air conditioner

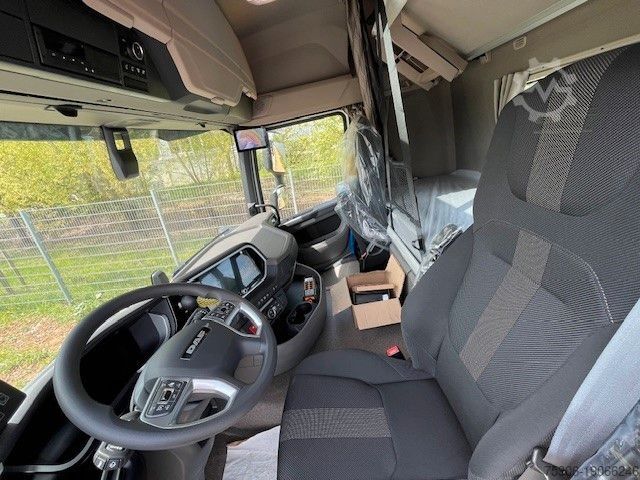

Driver's seat: Luxury Air
Passenger seat: Cinema and/or table, fabric upholstery
Door panel: Loosely woven fabric
Xtra Comfort mattress for lower bunk

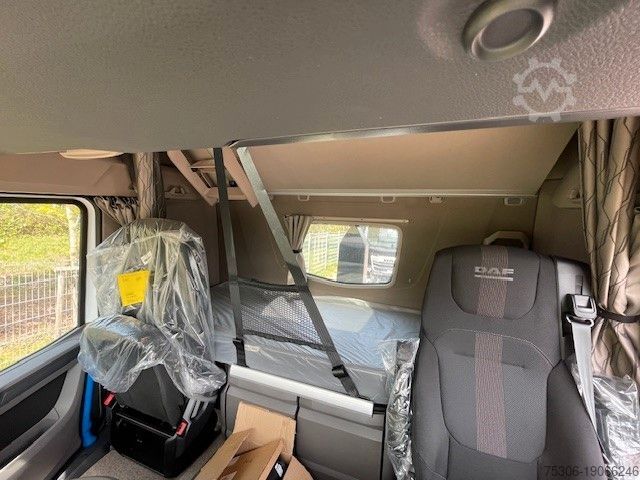

Upper bunk
Safety net on both bunks
Refrigerator and drawer
Armrests on both sides of the driver's seat
Dashboard design: Plateau
Accessory power supply: Standard 2x 40 A

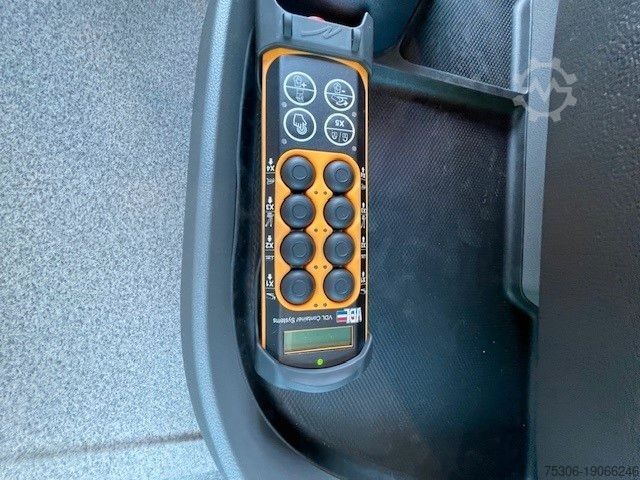

ECAS remote control with extended functions
Parking heater with waste heat pump and timer
Wireless charger
Digital tachograph, VDO 1C, version G2V2
Antennas: Radio, 2x mobile radio, GNSS. Extra: CB
DAF Infotainment Luxury with Exclusive speakers
Dwjc Ed Ddjwg Nphecsb
Adaptive Cruise Control with FCW and AEBS-3
Predictive Cruise Control
Driver Performance Assistant
Lane Departure Warning System
Start-Off Assistant
DAF Side and Turn Assist
Electronic Stability Control (VSC)
Speed Limit Detection
DAF Drowsiness Detection
Compliant with UN regulations R155 and R156
Alcohol interlock, ready
Axle load monitoring
Front leaf spring suspension: medium
Front: 8.00 t, parabolic, 165 N
Rear axle 2, 8000 kg, load index 156
Rear axle load capacity 13.00 t
Trailing axle load 8.0 t
Load limiter 11.5 t
Hand-operated lifting device

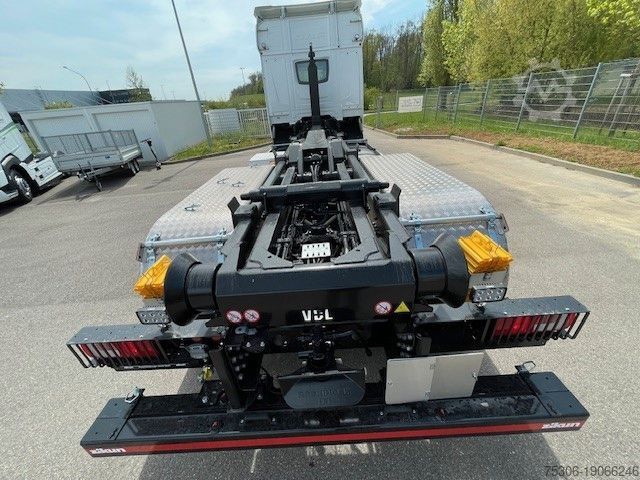

Lifting device
Rear: 20.00 t, air suspension, SR1344
Front axle 1, 8,000 kg, load index 156
Rear axle 1, 11,600 kg, load index 145
Front axle(s): 385/65R22.5
Driven rear axle(s): 315/80 R22.5
2nd driven rear/trailing axle: 385/65R22.5
F1,385/65R22.5GO KMAXS2 160/000 K Steering BBA
R1,315/80R22.5GO KMAXD2 156/150 L Traction DCA
R2,385/65R22.5GO KMAXS2 160/000 K Steering BBA
Tire pressure monitoring system
ECO performance
Rear axle ratio 2.64
Mechanical differential lock
Traction assist 15.0 t
12-speed TraXon transmission 12TX2210 DD, 16.69-1.00
MX-13 engine, 355 kW/483 hp Cab emblem: 480
Emission class Euro 6
Maneuvering mode
Automated transmission, TraXon, 12 gears
Automatic transmission with manual transmission, full version
Traction control (ASR)
OBD-E Engine H6 Fuel B7
ZF Intarder
2-cylinder compressor without clutch
Rear drive axle with disc brakes
Pneumatic parking brake control
EAS unit right, horizontal, 75 l fuel tank left
Longitudinal member 310/7.0 mm, with internal reinforcement front/rear

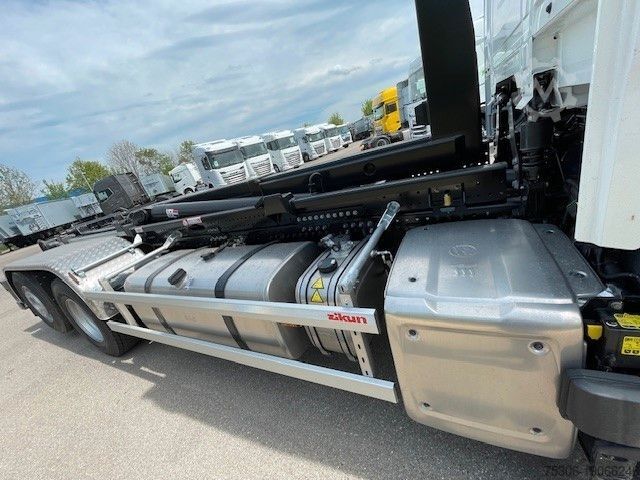

620 l aluminum fuel tank right, height 620 mm
Front underride protection
Steel compressed air tank
Cross member D137 Rockinger coupling D130
Use with drawbar, type plate, up to max. GVW
Pneumatic connection for trailer, swivel coupling
Electrical connection for trailer, 24 V/15-pin
Plug connection, fixed engine speed control, chassis
Hard-wired body signals and warnings
ECAS control
PTO engine rear, 1 o'clock, control without clutch, pump drive
Battery energy monitoring
Generator 130 A, batteries 2 x 210 Ah AGM
Technically permissible chassis weight max. 27,000 kg
Max. gross combination weight, drive system 50,000 kg, class 3
Max. GVW, drawbar/coupling 53,000 kg
Additional cab
