Грузовик для перевозки напитков DAF LF 310 18t Zikun Getränkeaufbau

Описание

SPECIFICATION
* Short-haul cab
* Adaptive Cruise Control with FCW and AEBS-3
* Lane Departure Warning System
* Front: 7.50 t, parabolic, 152 N
* Goodyear
* RR, not applicable
* Euro 6 emission class
* OBD, Euro VI Step E
* Standard component layout
Njc R Nc Ifsp Nnw Djnswh
* EAS unit on the right, right-hand side facing rear.
* Fuel tank on the left
* 30 l AdBlue® tank, right-hand side of the chassis
* Battery box on the left, no spare wheel holder
* DAF Connect
* Powertrain Plus Warranty - 3 years - 200,000 km
* Options
* Mechanically reinforced cab suspension
* Green translucent exterior sun visor
* Halogen headlights
* Fog lights and cornering lights
* Central locking, 3 keys, 2 remote controls
* Pneumatic steering column lock

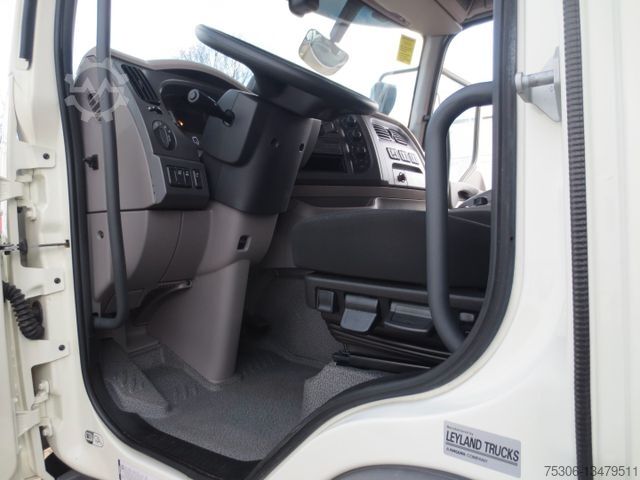

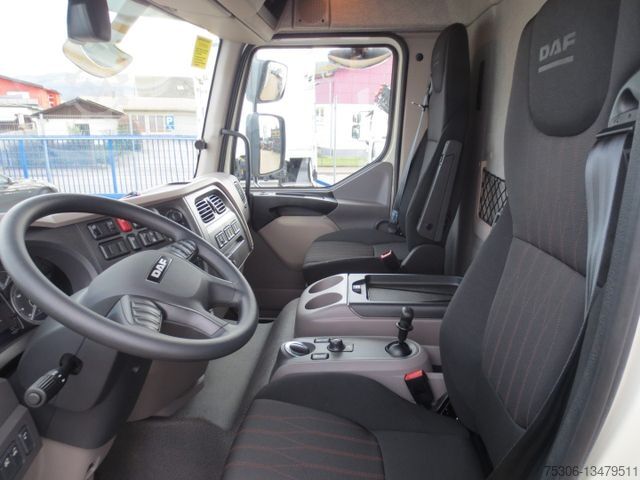

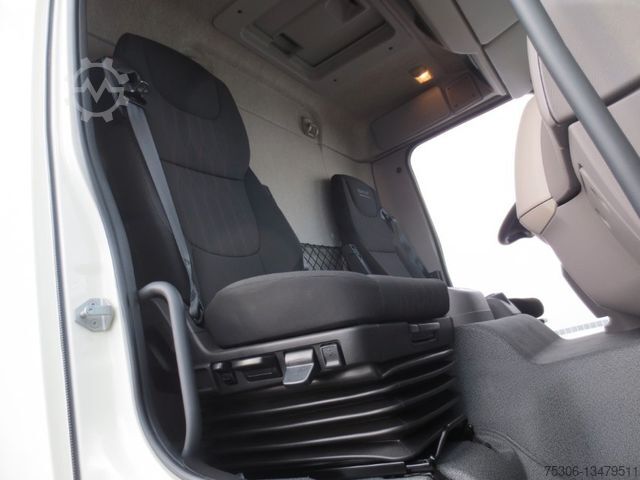

* Driver's seat: Air-suspended luxury driver's seat
* Driver's seat armrest

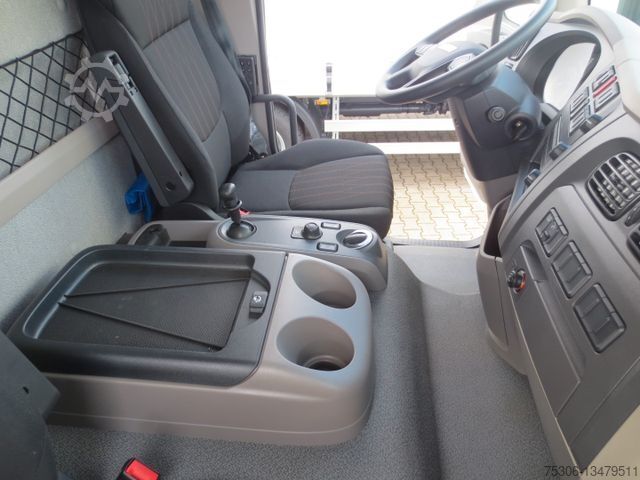

* Passenger seat: Air-suspended
* Passenger seat armrest

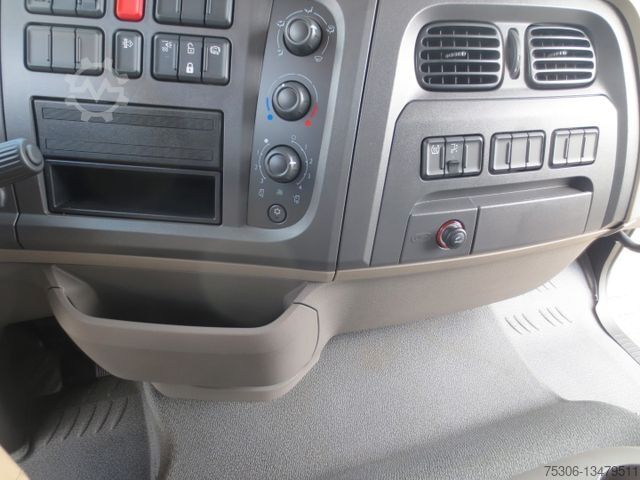

* Air conditioning
* Manually operated roof hatch

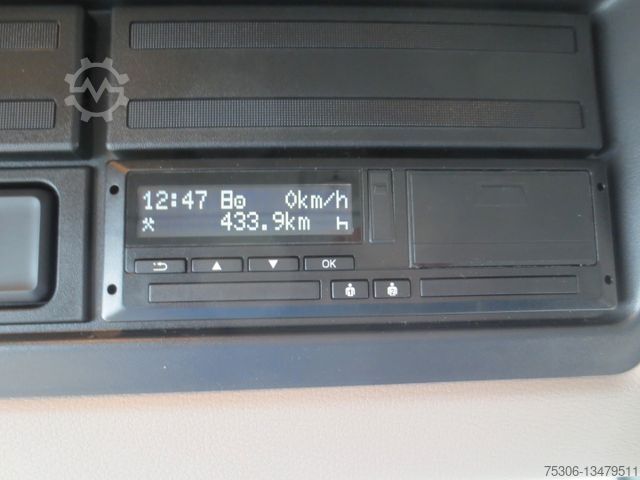

* Digital tachograph, VDO 1C, version G2V1
* Speed limiter setting: 85 km/h (nominal)
* DAB/DAB+ ready, 2 speakers
* Turn assist ready
* Rear: 13.00 t, air suspension, SR1344
* Rear axle 1, 12,600 kg, load index 148
* Front axle(s): 315/70 R22.5
* Driven rear axle(s): 315/70 R22.5
* F1,315/70R22.5GO KMAXS2 156/150 L Steering CBB
* R1,315/70R22.5GO KMAXD2 154/150 L Traction CBA
* PX-7 engine, 227 kW/308 hp. Cab emblem: 310
* 8-speed PowerLine automatic transmission
* 8-speed PowerLine 8AP1200 overdrive transmission, 4.89-0.64
* Rear axle ratio 5.14
* Mechanical differential lock
* Parking brake actuation with test position
* Wheelbase 5.00 m/rear overhang 2.25 m
* Longitudinal member 270/8.0 mm, without internal reinforcement
* Aluminum fuel tank, 340 l
* One wheel chock
* Use with drawbar, type plate, up to max. GVW
* Cross beam D85-Dc70-V25, coupling D85, assembled
* Pneumatic connection for trailer, swivel coupling
* Electrical connection for trailer + EBS, 24V/2x7-pin
* Body plug for tail lift
* Side marker lights
* Attachment of body parts BAM 1, loose brackets
* 100 A generator, 2 x 175 Ah batteries
* Cold climates
Body:

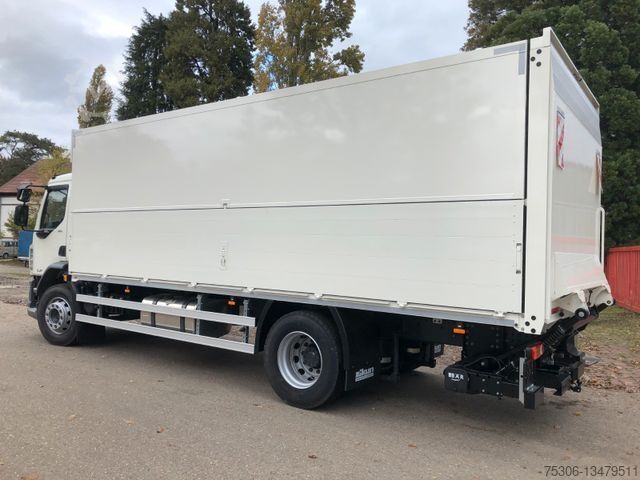

ZUKUN Swing-Board I body
1.2 Technical data: Loading length: 6,600 mm
Loading length: 6,750 mm
Loading width
Rear portal:
2,480 mm
Loading width (L x W): 2,480 mm
External width: 2,550 mm
Loading height: 2,100 mm
Loading height approx.: 1,210 mm
Total height approx.: 3,460 mm
1.3 Substructure: Sturdy, lightweight construction made of pressed steel sheets, neatly electrically welded.
1.4 Floor: Consisting of 24 mm thick vehicle construction panels
1.5 Front wall: Made of special vehicle construction plastic panels, closed up to the roof, inserted flush.
1.6 Side walls: ZIKUN flap pivot mechanism.
Continuous side wall, horizontally divided. By folding down the lower side wall, the
upper wall is mechanically pivoted onto the roof.
1.8 Roof: Fixed roof consisting of steel bows with permanently bonded aluminum sheets.
Powder-coated in RAL 9010 pure white.
1.9 Bumper: Steel bumper strip welded on both sides as bumper protection.
1.10 Accessories:
--Holder for wheel chock
--Red rear position lights as LEDs above the LBW
--Contour markings on the sides in white, rear in red
1.11 Paintwork: The entire body is sandblasted, primed, and painted in a single color.
Substructure and body: DAF H3279WHT
Movable access step
Integrated load securing with CRS system (4-row)
in roof and floor, including 4 locking beams with 6 horizontal spring telescopic rods (CRS system)
Ancra-Jungfalk, DEKRA approved
