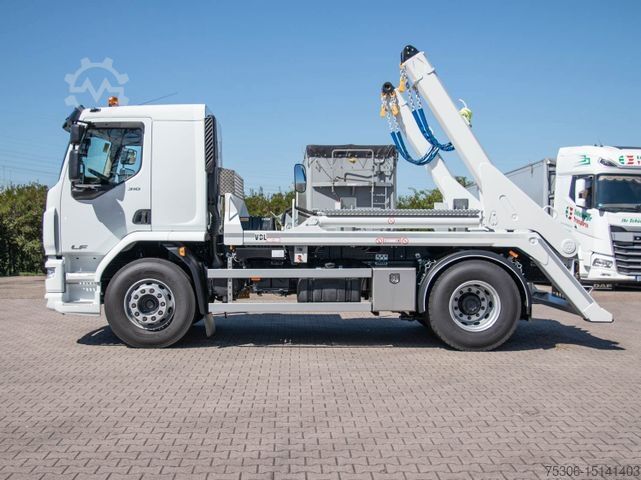

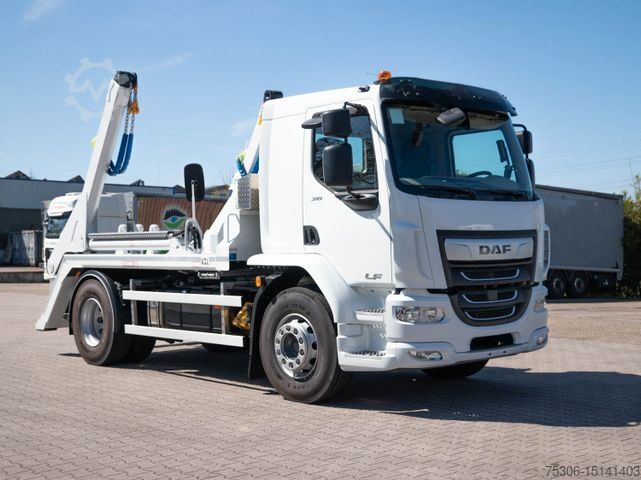

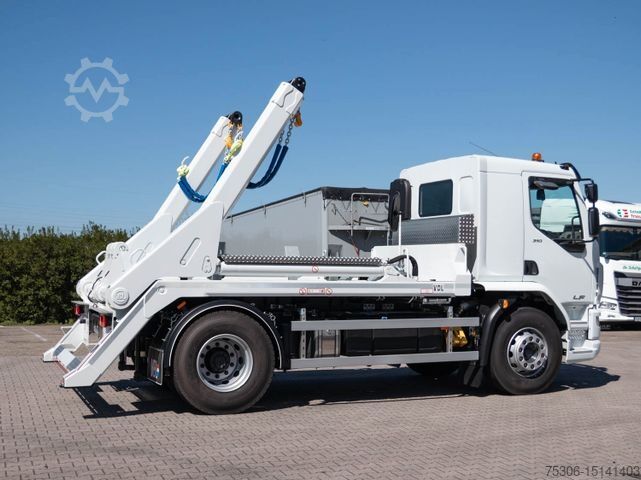

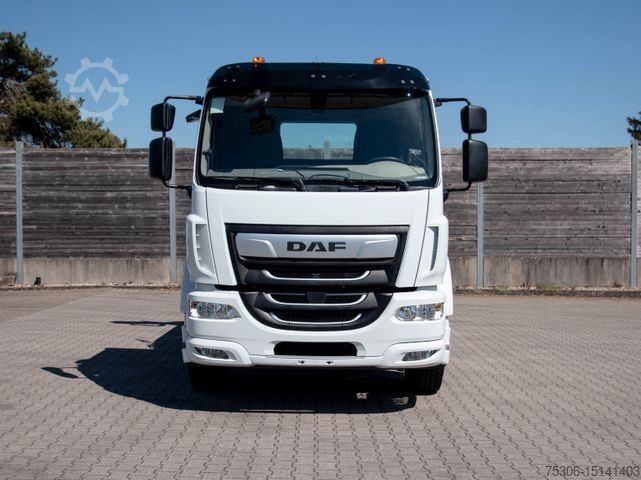

Самосвал DAF FA LF 310 19t Absetzkipper VDL

Описание

FA LF 310 19t Skip Loader VDL
M8870 Ice White
Electrically adjustable mirrors
Front mirrors
Daytime running lights
Mechanically reinforced cab suspension

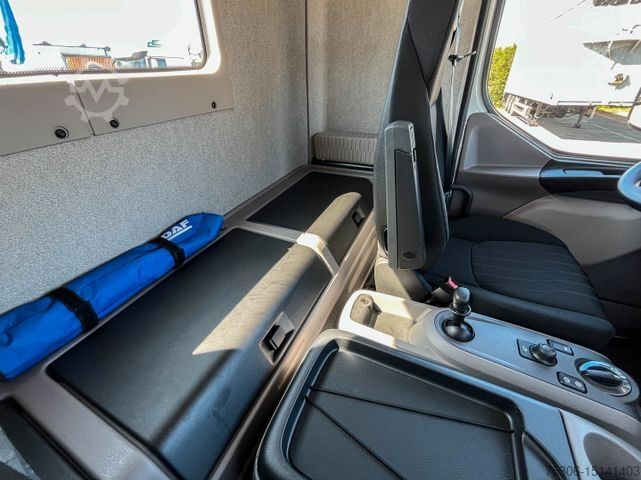

Extended Day Cab
Central locking, 3 keys, 2 remote controls
Mirror mounts, body 2.40 - 2.50 m

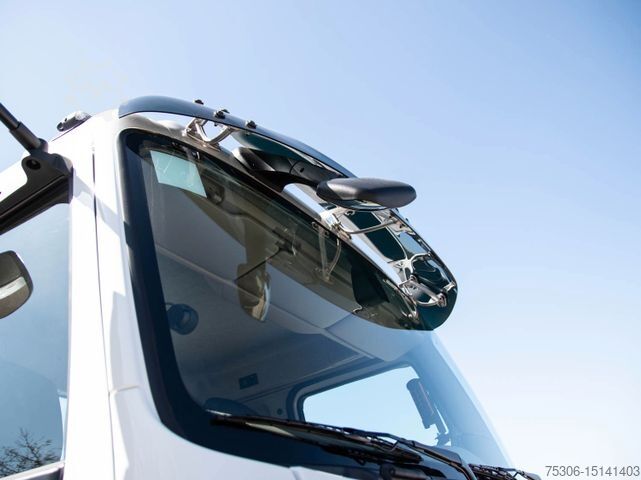

Exterior sun visor, green translucent
Fog lights
2 rotating beacons

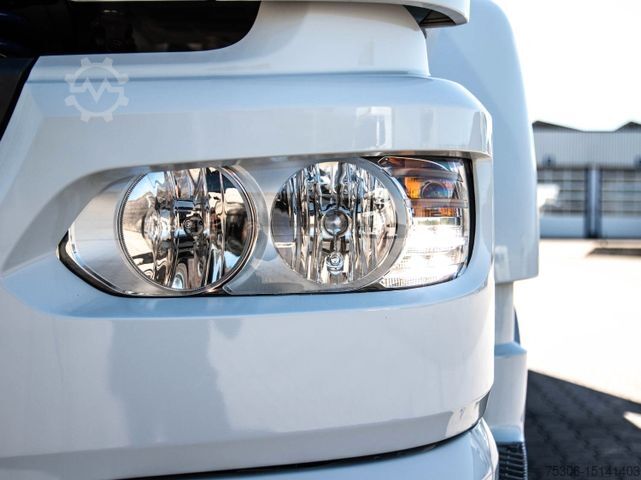

Halogen headlights
Headlight inserts and bumper: cab color
Soft-touch steering wheel, black
Passenger seat: Fixed, velour
Engine tunnel storage compartment
Power windows: Electric
Converter 24 V to 12 V, 15 A, 180 W
Pneumatic steering column lock

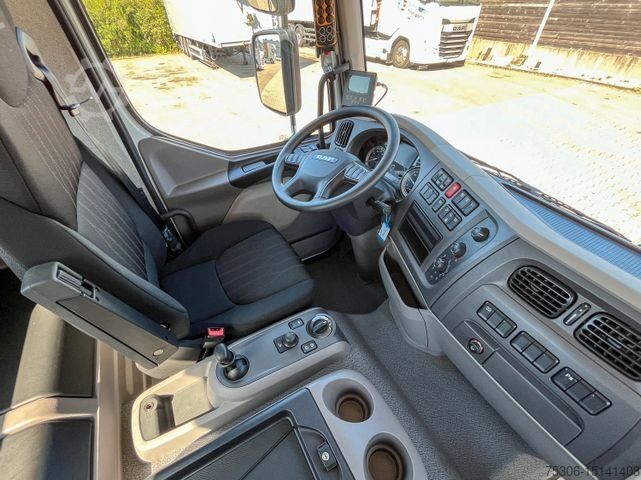

Driver's seat: Air-suspended luxury driver's seat

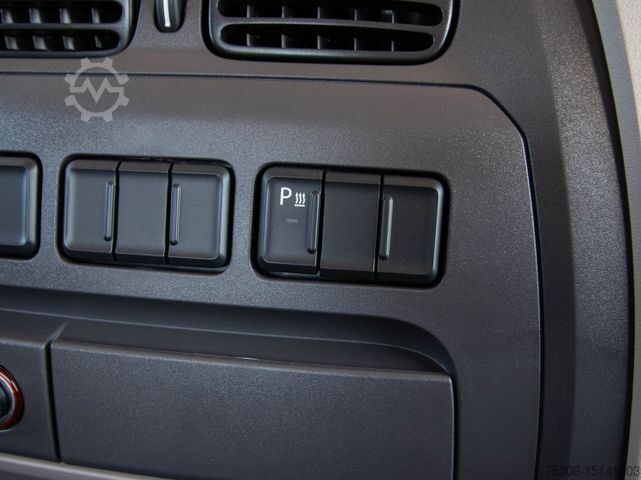

Air Top 2000 auxiliary heating
Air conditioning
Driver's seat armrest

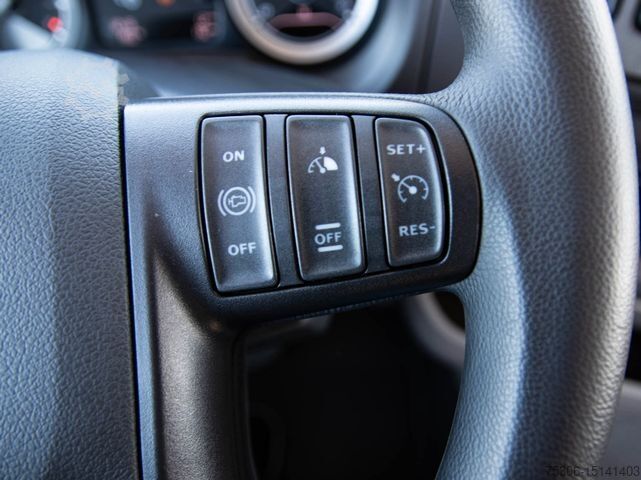

Adaptive Cruise Control with FCW and AEBS-3
Toll preparation
DAF Connect
Antennas: AM/FM GSM GPS
FMS connection, prepared
Driver Performance Assistant
DAB/DAB prepared 2 speakers
Digital tachograph, VDO 1C, version G2V2
Speed limiter setting 85 km/h nom.
Reversing alarm system
Lane change warning system
Basic immobilizer
Electronic stability control (VSC)
Turn assist, prepared
Front: 7.50 t, parabolic, 152 N
Front axle 1, 7,500 kg, load index 154
Rear: 13.00 t, air suspension, SR1344
Rear axle 1, 12,600 kg, load index 148
Silver-gray wheel trim rings
Goodyear
Silver-gray steel disc wheels
Tire pressure indicator
Front axle(s): 315/80 R22.5
Driven rear axle(s): 315/80 R22.5
F1, 315/80R22.5GO KMAXS2 156/150 L Steering CBA
R1, 315/80R22.5GO KMAXD2 156/150 L Traction DCA
Emission class Euro 6
Traction control (ASR)
OBD, Euro VI Step E
8-speed PowerLine automatic transmission
Rear axle ratio 5.57
Mechanical differential lock
8-speed PowerLine 8AP1200 overdrive transmission, 4.89-0.64
PX-7 engine, 227 kW/308 hp. Cab emblem: 310
Parking brake actuation
Exhaust brake
Front underride protection
Standard component layout
Splash guard
30 l AdBlue® tank, right side of the chassis
Left fuel tank
AdBlue® tank filler cap without locking device
Temporary taillight brackets
Taillights with bulbs
Battery box on the left, no spare wheel bracket
EAS unit on the right, outlet on the right facing rear.
Plastic fuel tank, 200 l
Nwoc R Nsrrcu Noc Ifnsh
Wheelbase 3.75 m / rear overhang 1.63 m
One wheel chock
Longitudinal member 270/8.0 mm, without internal reinforcement
Use with solo vehicle type plate, no trailer
Cross member D100-Dc70-V25, without coupling, installed
Body connector on the chassis
BAM 1 body attachment, loose brackets
Chassis with analog connection for engine speed control
Analog body signals and warnings
CAN J1939 functions in the body connector
Side marker lights
ECAS in stop position with PTO activated
1. Gearbox PTO P58-Z1-P25-294 c-R-1/214
100 A alternator, 2 x 175 Ah batteries
Powertrain GVW equal to FGG
Type plate: European (EU)
Maximum chassis weight 19,000 kg
Use category 0
Maximum ambient temperature 38 degrees
Temperate climate
Heated water separator
Standard noise level
Radiator fly screen
Air intake above, behind the cab
Powertrain Plus Warranty - 3 years - 200,000 km
ITS Service
Type approval for complete vehicles (WVTA) EU
Standard fuel capacity 30 liters
Spring brake cylinder, front axle. Application: skip loader
BODYWORK

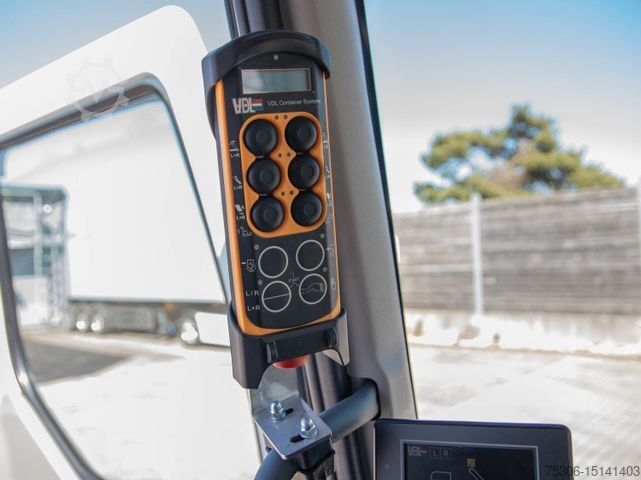

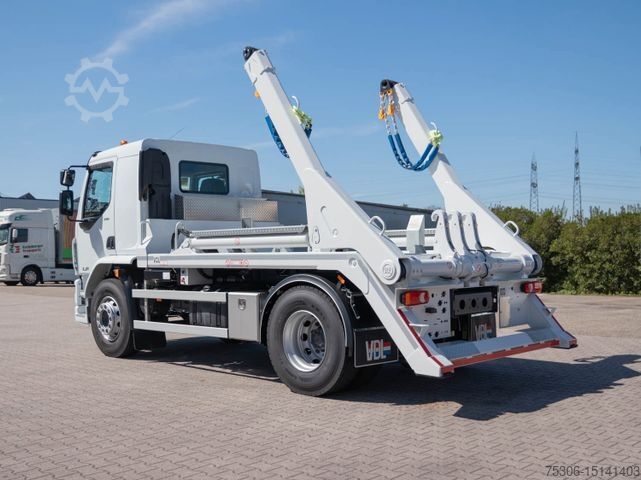

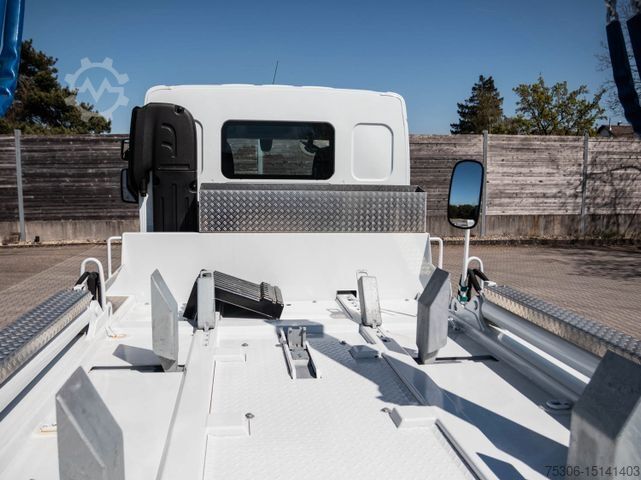

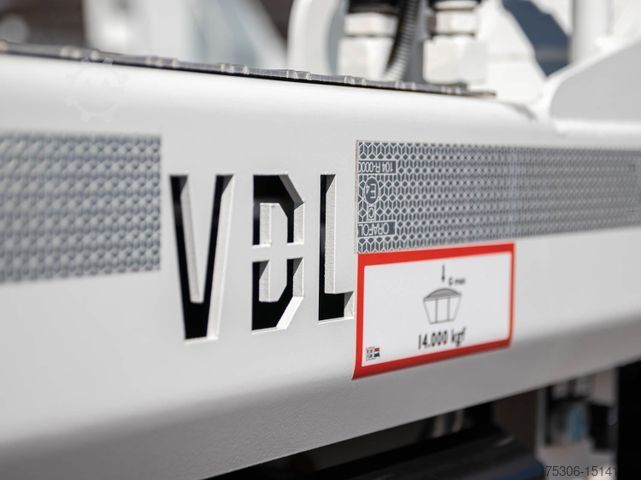

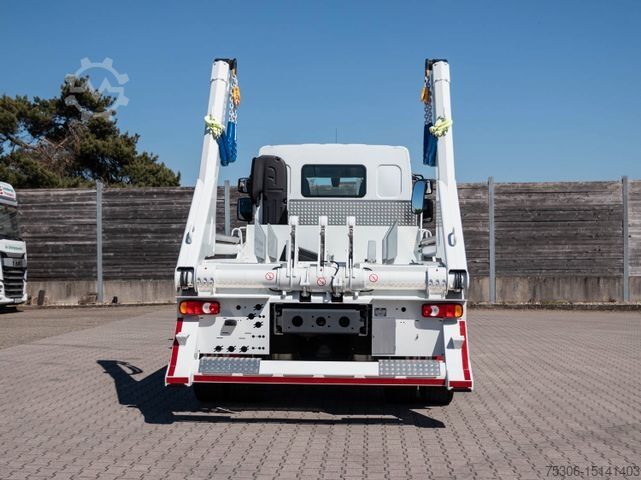

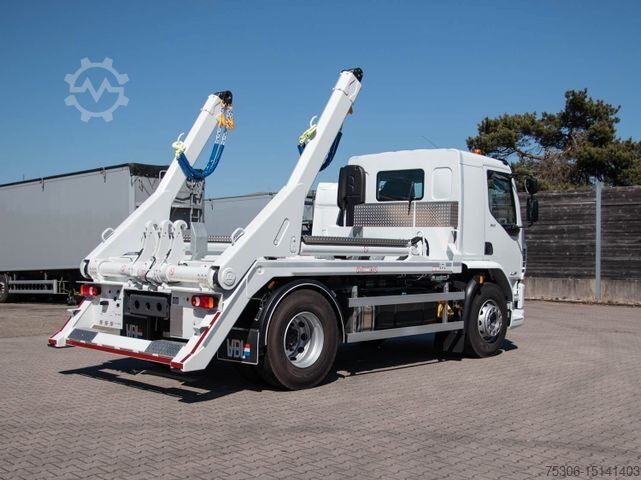

VDL Skip Loader P14
Three tipping hooks, middle and outer ones separate Controllable, all with pneumatically actuated safety latch (only for VDL-P 10, 14 or 18)
4 side connections
