Грузовик для транспортировки древесины MAN TGS 33 520 6x4 3900 Kurzholz Plattform

Описание

Internal number for customer inquiries: 3-039

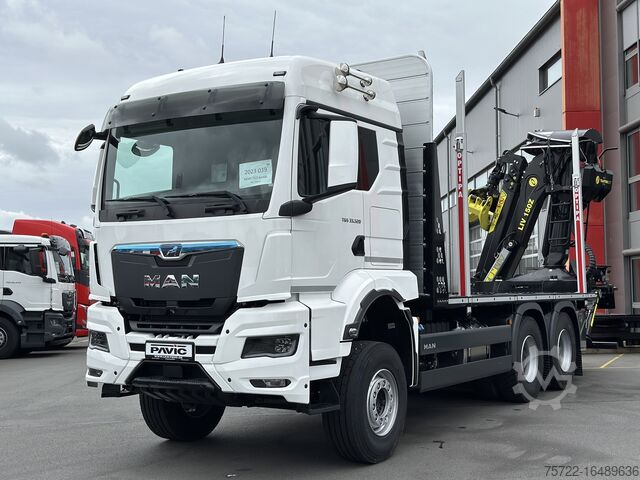

MAN TGS 33.520 6x4 BL short timber platform body with quick-change stanchions and crane of your choice!
Wheelbase 3,900 mm
!! IMMEDIATELY AVAILABLE IN STOCK !!!
*EURO 6E !!!

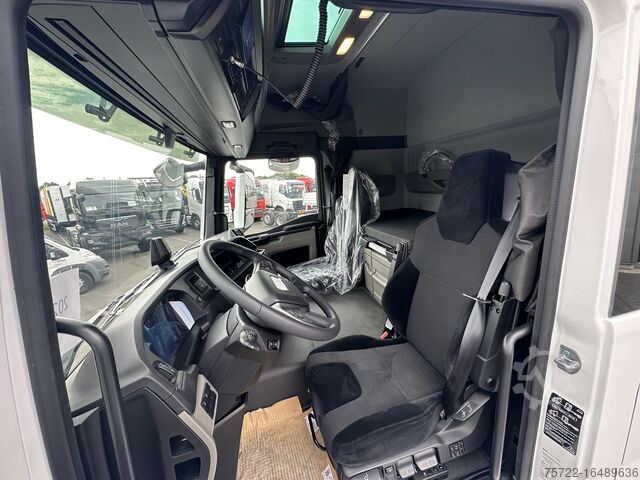

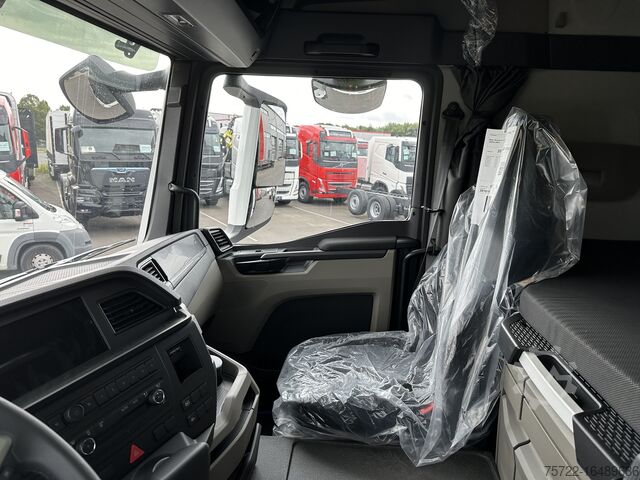

TM cab: the comfortable one (narrow, long, medium height)
All-wheel drive 6x4
Suspension type leaf/air (BL)
3,900 mm main wheelbase, 1,400 mm wheelbase between rear axles
MAN D2676 LF78 diesel engine, 520 hp output, 2,600 Nm torque, Euro 6e
MAN TipMatic 12.28 OD automatic gearbox, with Retarder 35
Eco retarder, speed-dependent, stepless, energy-efficient
MAN EVBec high-performance engine brake, stepless
Differential lock Rear-driven rear axles
Trailer coupling on rear cross member, RINGFEDER type 4040/G150B
MAN EasyControl control panel, 4 functions, can be operated from the outside when the door is open
Driver's comfort seat, air-sprung, with lumbar support, shoulder adjustment and seat heating

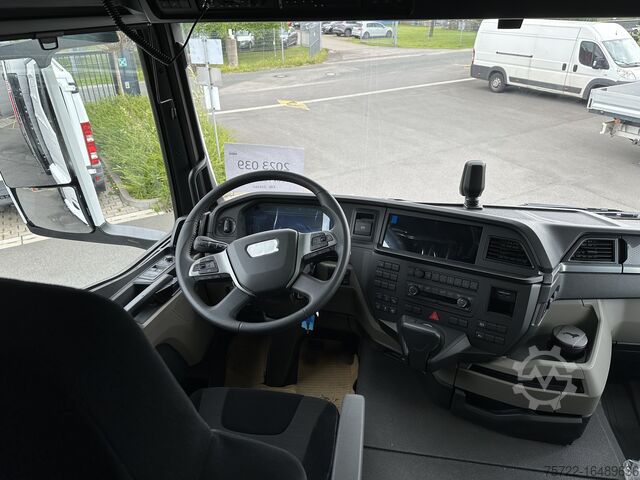

Multifunction steering wheel, leather, height and tilt adjustable
Couch, lower, with slatted frame and head adjustment
Windshield sunblind, inside, electric
Pull-out fridge and drawer
MAN SmartSelect infotainment control with touchpad and direct access
MAN Media System Navigation Professional 12.3 inch
MAN Advanced sound system with subwoofer
Smartphone integration
and much more.

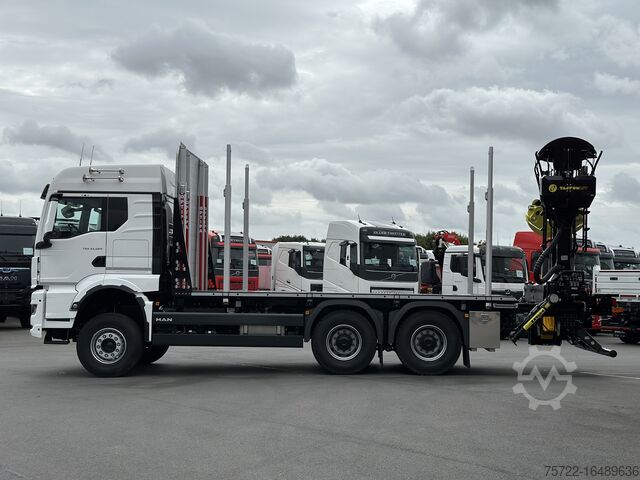

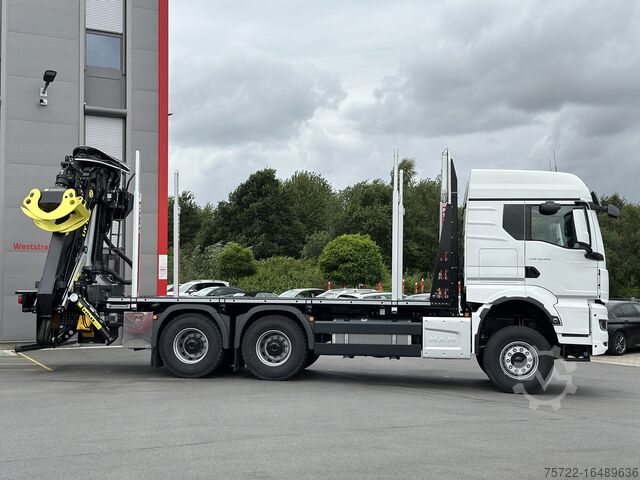

Structure:
Loading length to crane foot 6100mm (Austria and South Tyrol special)
Platform itself has the body dimensions length approx. 5700mm width 2540mm
Platform color : Black
8x OPTIPA ALU10 stanchions with quick-change wedges, so the stanchions can be removed at any time (e.g. for transporting sawn timber, straw, hay or silage)
The stanchions are stored upright in front of the front wall
Toothed strips between the pockets
Lashing points in the outer frame
Sturdy steel bulkhead
Pull-out ladder at the front and rear to get up onto the platform
Preparation for manual belt tensioners (Autonordic) or alternatively Luftmann (ExTe TU)
Stainless steel toolbox under the cargo bed

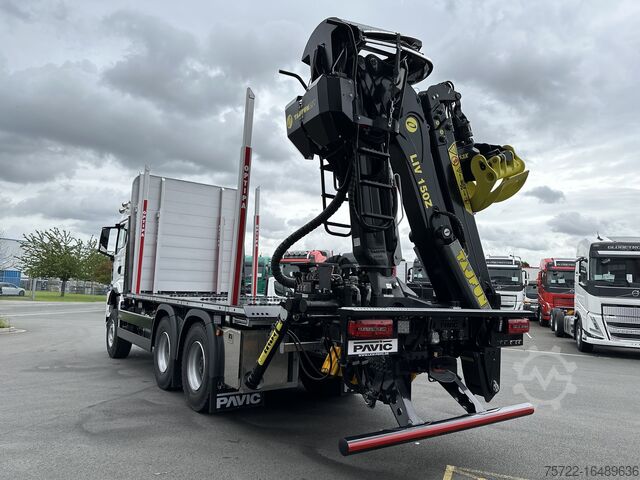

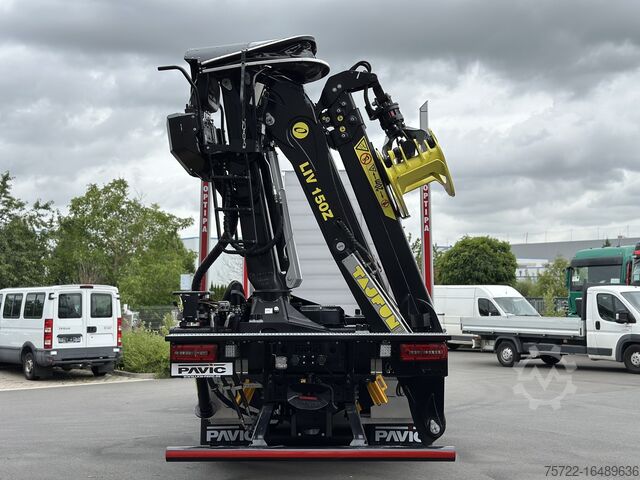

Crane:
According to choice:
Njc R Nc Iet Digfefnjwh
- Palfinger Epsilon M12Z Classic 10.5
- Palfinger Epsilon Q150Z 9.6
- TajfunLIV 150Z 9.6
- TajfunLIB 150Z 9.6 Cabin crane
Financing / installment plan, as well as leasing / partial amortization leasing is possible with our leasing partner.
Our sales team will be happy to answer any further questions you may have.
This is a non-binding offer. Subject to prior sale, errors and changes.
