Internal reference number for customer inquiries: 3-374

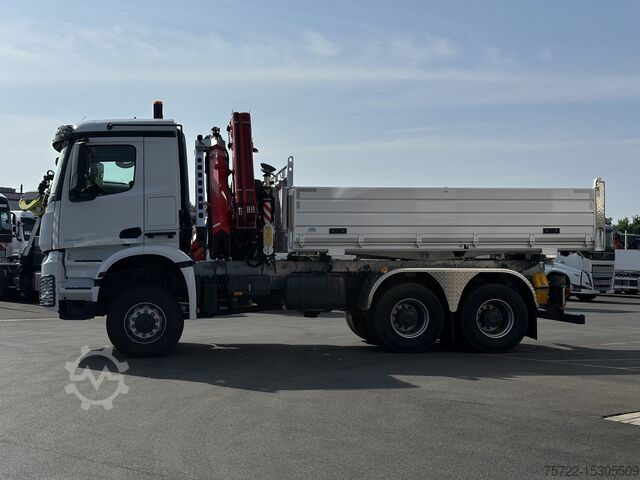

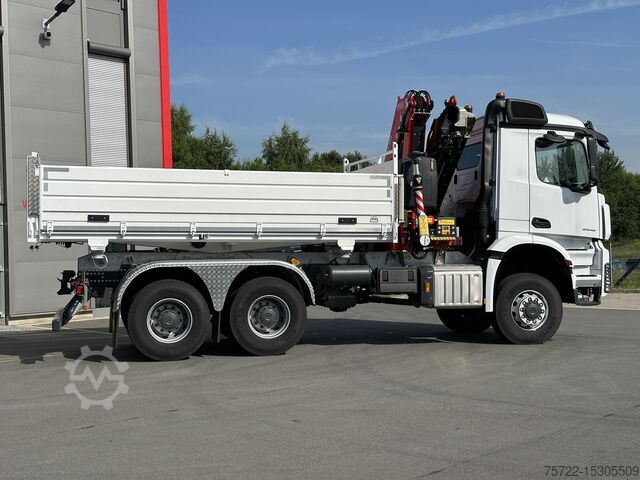

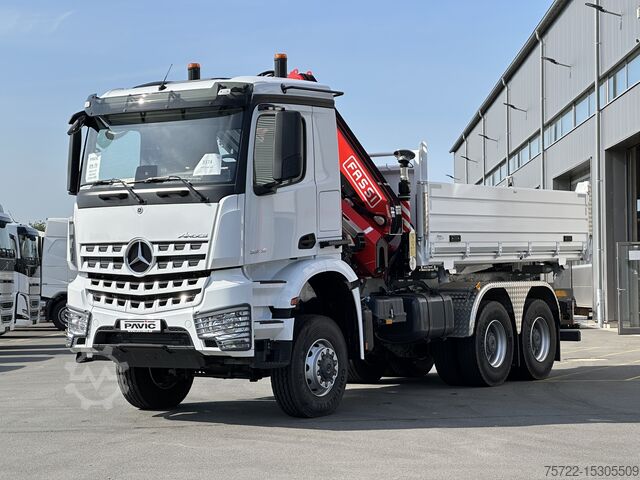

Mercedes Benz Arocs 3348 AK 6x6 Tipper truck with Fassi F195A.2.24 crane
Mercedes Benz engine OM471, inline 6-cylinder, 12.8 L, 350 kW (476 hp), 2300 Nm, 3rd generation OM471 engine
Automatic transmission G 330-12/11,63-0,77 MERCEDES POWERSHIFT 3
OFFROAD driving program
6x6 drive
Leaf/air suspension
Differential locks on driven rear axles
Wheelbase 3600 mm
Fuel tank capacity 290L, AdBlue tank capacity 60L
Electronic braking system with ABS and ASR
ABS, switchable
M-CAB CLASSICSPACE, 2.30 m, 320 mm tunnel
Cab rear wall with window
Cab tilting device, mechanical-hydraulic
Roof hatch/ventilation flap
Digital tachograph, 2nd generation, ADR
Interactive multimedia cockpit
Navigation system
24 V/15 A socket, passenger footwell
Additional hot water heater, cab
Air conditioning
Compressed air connection in the cab

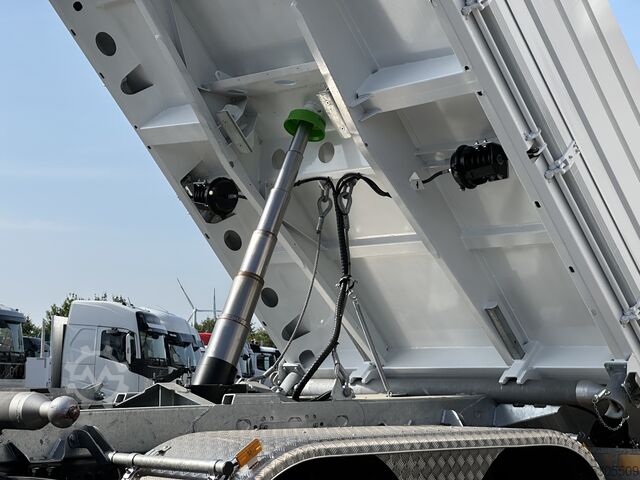

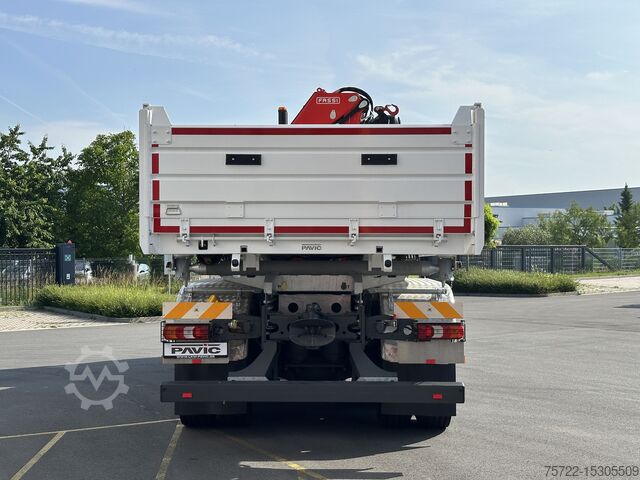

Subframe: Solid steel welded construction with two longitudinal and cross members for mounting the 5 mm thick tipper profile and the 4 mm floor plate made of Hardox or Naxtra. Rear and side walls made of aluminum hollow profiles, side walls foldable and swinging with lifting aid. Tailgate also foldable, swinging with central locking. Tipper floor plate neatly welded to the cross members. Tipping outrigger and press traverse integrated into the longitudinal member. Four lashing rings per side distributed on the outer floor.
Auxiliary frame: Auxiliary frame for mounting the front and rear tipping outriggers, with press traverse and cross members. In the crane assembly area, closed as a box profile with side crane mounting plates. Plastic mudguards are fitted on the vehicle and will be retained or modified as required.
Hydraulics: Installation of the pneumatic control valve in the cab for tipper/crane/trailer and the complete hydraulic system including all piping work, related to the three-way tipper bridge, trailer tipper hydraulics, and the loading crane. Delivery and installation of the corresponding axial piston pump as a fixed displacement pump.
Special equipment:
- Fixed rear corner posts
- Lifting aids for the side walls
- Eight lashing rings recessed into the floor left and right (4 per side)
- Hydraulic system for crane/tipper/trailer switchable via valve in cab
- Positioning of underrun protection, tail lights and supply lines on the left
- Central locking for lower locks pneumatically controllable from the cab
- 2-circuit trailer tipping hydraulics
Loading crane:

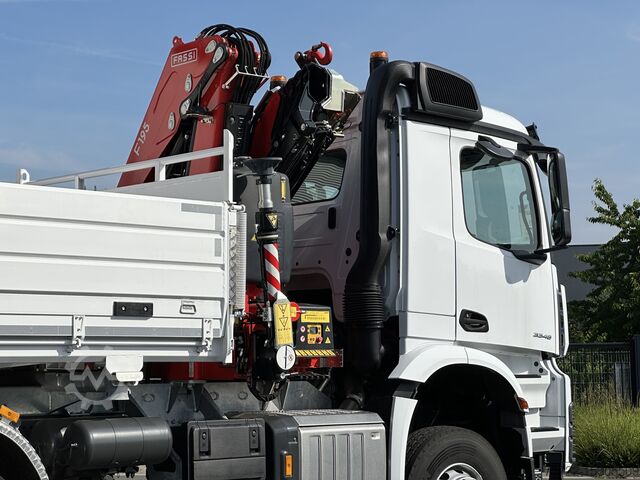

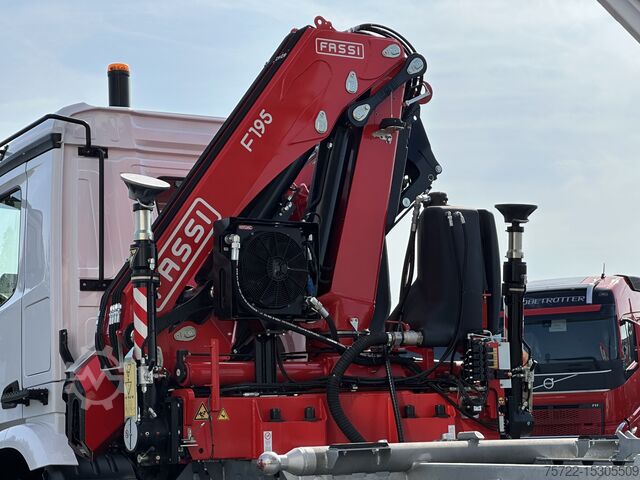

FASSI F195A.2.24 e-dynamic
Lifting moment 162 kNm (16.51 mt)
Hydraulic fourfold extension 12.7 m
Slewing range 400°
Double linkage system with PROLINK (articulated arm extendable up to 15°)
FASSI Stability Control FSC incl. LMB II
Fassi RCS radio remote maxi - 6 functions with 3 joysticks (2-2-2)
Special outriggers, outrigger span 6.64 m hydraulically extendable incl. FSC
Outriggers operable by remote control
FL-System (Full Lift) switchable fast acting valve for outriggers
LED work lights
and much more.
Financing / hire purchase, as well as leasing / partial amortization leasing are possible with our leasing partner.
For further questions, our sales team is at your disposal.
Noc Rsrxc Hgo Nc Ifnewh
This is a non-binding offer. Subject to prior sale, errors and changes.
