3-сторонний самосвал MAN TGS 26.400 6x4 Krankipper Fassi/SOFORT VERFÜGBAR

Описание

Internal number for customer inquiries: 1-694
IMMEDIATELY AVAILABLE

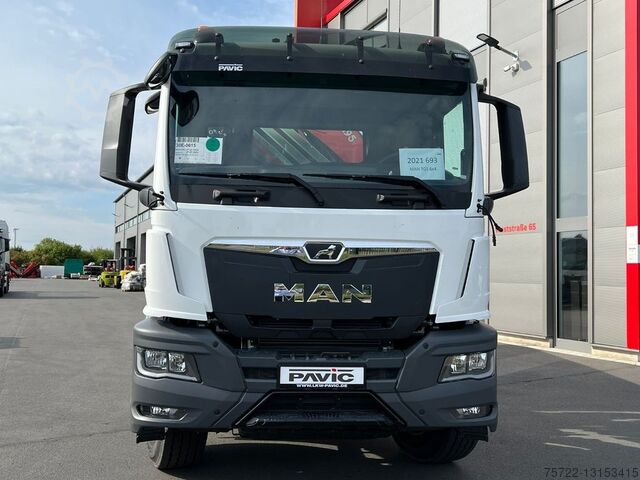

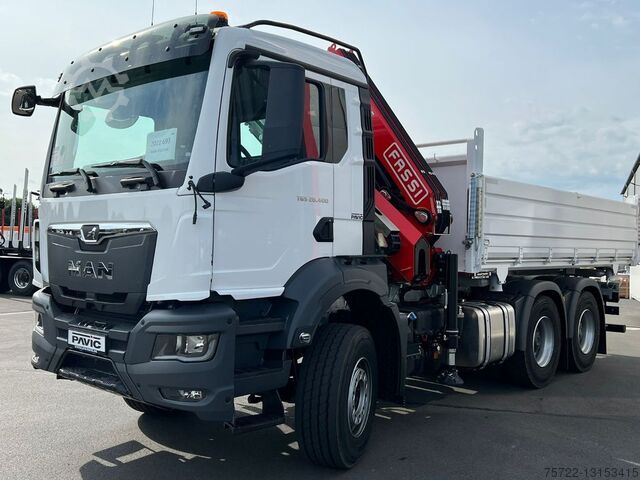

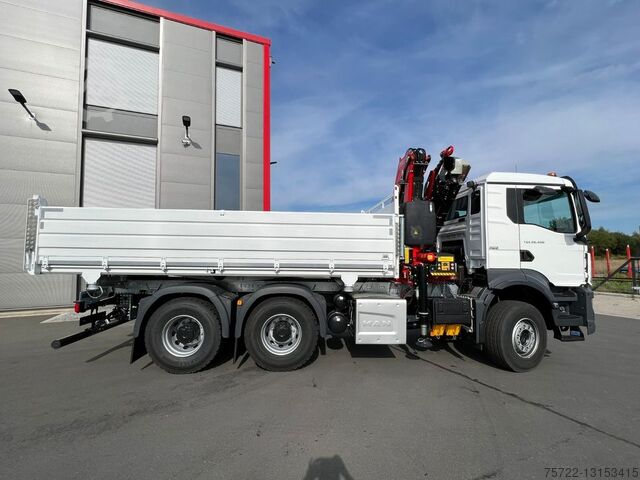

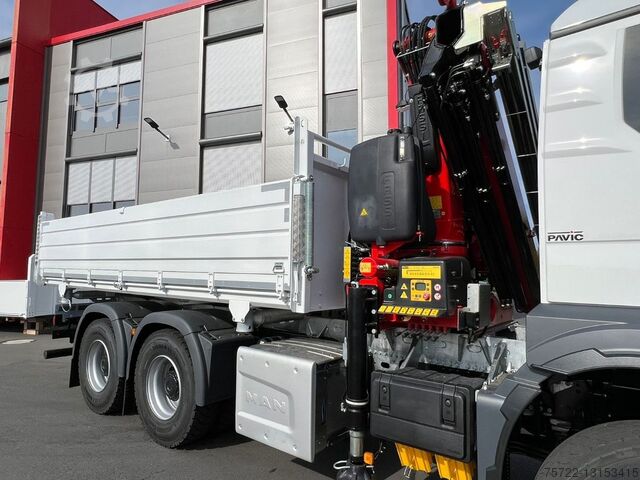

MAN TGS 26.400 6x4 three-way tipper with loading crane FASSI F195A.2.24 E-DYNAMIC
Loading crane:
Noc R Njpvqfiec Ifnjwh
* FASSI F195A.2.24 e-dynamic
* Lifting torque 162 kNm (16.51 mt)
* Hydraulic quadruple extension 12.7 m
* e-dynamic hose equipment for 2 attachments
* 400° swivel range
* Double toggle lever system with PROLINK (articulated arm can be extended up to 15°)
* Electronic overload cut-off device with FX 500
* FASSI stability control FSC incl. LMB II

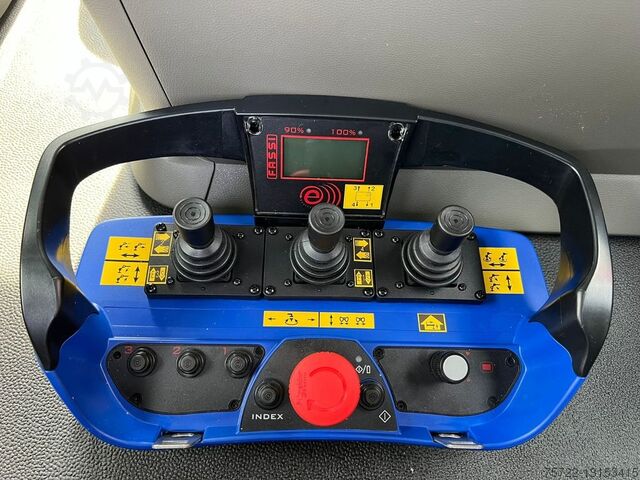

* Fassi RCS radio maxi - 6 functions with 3 joysticks (2-2-2)
* Special outriggers, outrigger width 6.64m hydraulically extendable incl. FSC
* Outriggers can be operated via radio
* FL system (Full Lift) switchable high-speed valve for the extensions
* LED work lights
Vehicle:
* MAN D1556 LF17 diesel engine, 294 kW (400 hp) output, 1,800 Nm torque, Euro 6e
* MAN TipMatic 12.26 OD automatic transmission
* MAN TipMatic Performance, Efficiency and Offroad drive program, up to 70,000 kg
* 6x4 drive
* Leaf/air suspension
* Differential locks driven rear axles
* 3,600 mm main wheelbase, 1,400 mm wheelbase between rear axles
* 310 l tank capacity fuel tank, 60 l tank capacity AdBlue tank
* Full brake assist
* MAN EVBec high-performance engine brake, stepless
* Disc brakes on front axle, drum brakes on rear axles
* Trailer coupling RINGFEDER type 4040/G150A
* NN cab: the practical one (narrow, medium length, normal height)
* Lifting roof, mechanical
* Driver's comfort seat, air-sprung, with lumbar support, shoulder adjustment and seat heating
* MAN EasyControl control panel, 4 functions, can be operated from the outside when the door is open
* Windshield sunblind, inside, electric
* Cool box

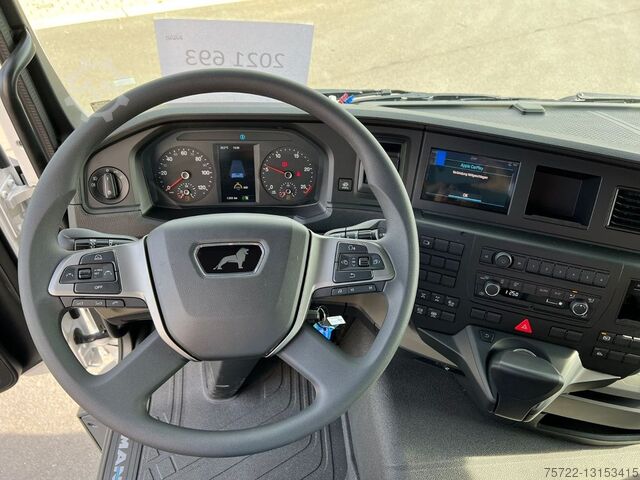

* MAN SmartSelect infotainment control with touchpad and direct entry buttons

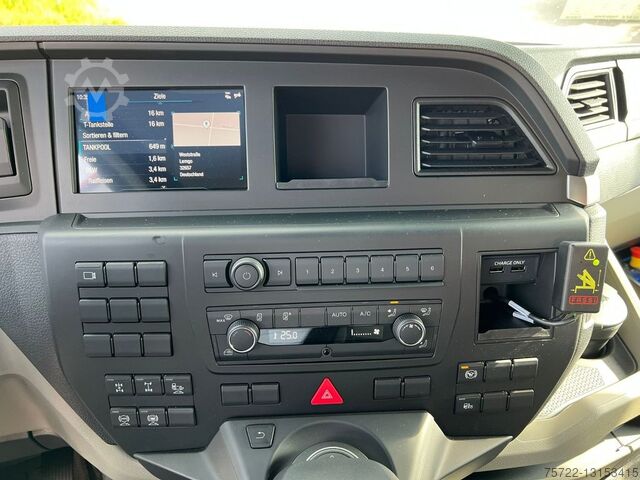

* MAN Media System Navigation Advanced 7-inch
* MAN sound system Advanced
* Navigation map Europe and Russia
* Online Traffic for navigation function
* Standard follow-up warranty for driveline for 3rd year of operation up to 450,000 km, see maintenance certificate for conditions

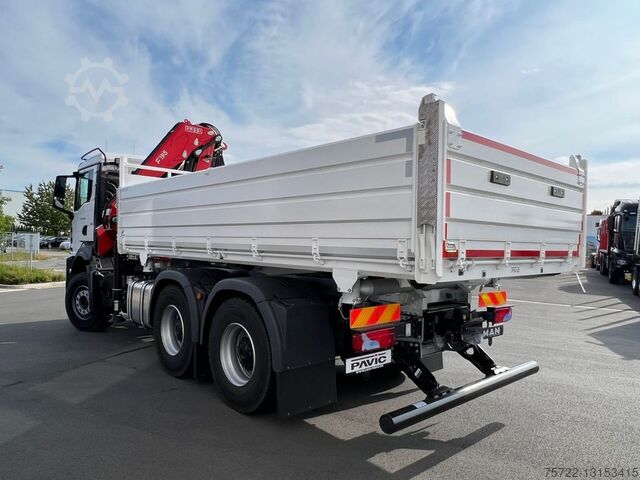

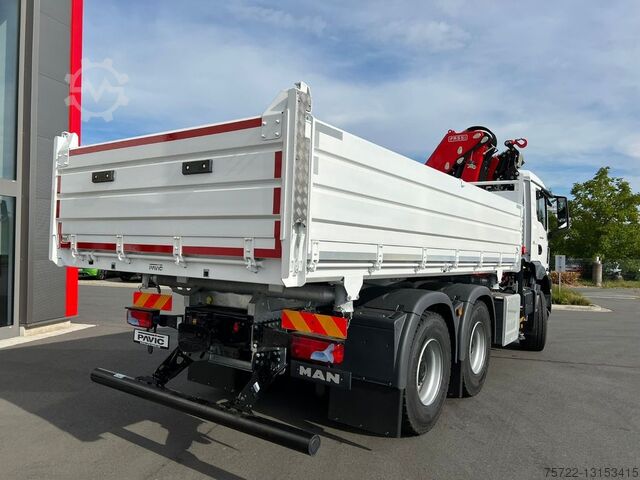

3-sided tipper body PAVIC:
* Dimensions LxWxH 5,200 mm x 2,420 mm x 800 mm
* (Alternatively also available with similar equipment: loading space length 4,800 mm x 2,420 mm x 800 mm)
* Side walls made of special aluminum profile for tipper operation
* 4 retractable lashing eyes embedded in the floor profile on each side
* Front wall 1,000 mm high
* Pneumatic dropside locking system
* Extendable and lockable support tubes at the rear to store the rear dropside in a horizontal position
* Trailer tipping hydraulics (pneumatically switchable in the cab)
* Tool box for e.g. tension belts
* and much more.
