Бортовой грузовик VOLVO FH 540 mit Fassi F2150RAL Fly Jib + Winde

Описание

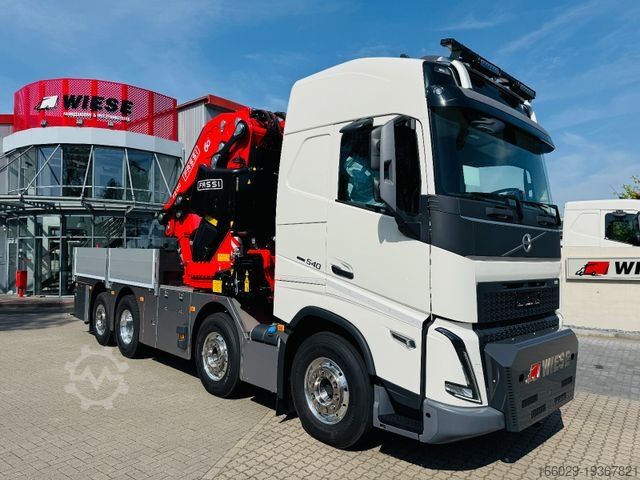

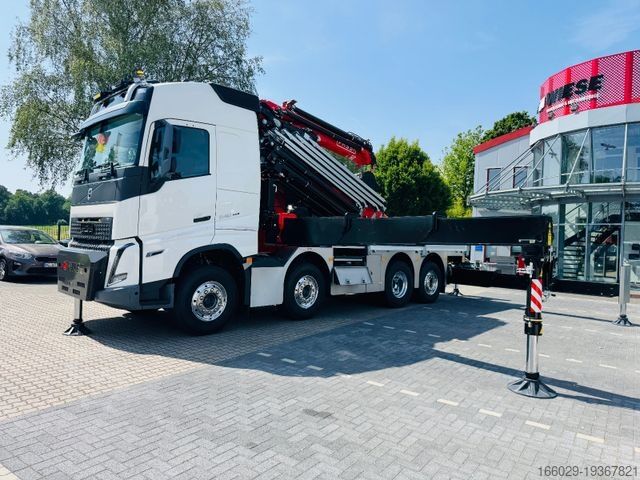

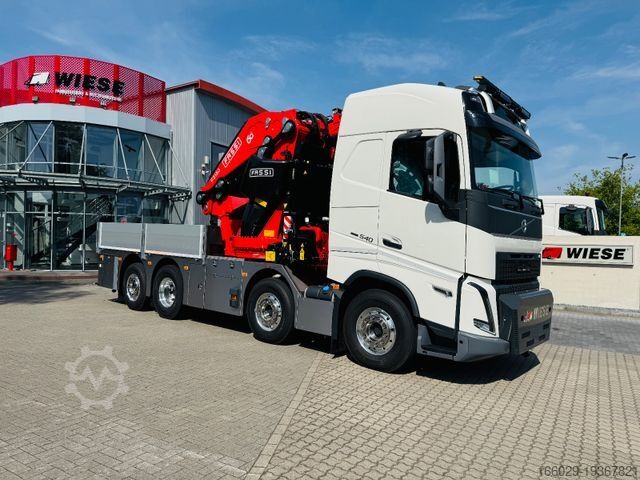

Brand new Volvo 8x2 with an F2150RAL Fassi loading crane including fly jib and hydraulic winch
Equipment as per building description

Chassis: (New model 2024)
Dwec Edjwtb Rqj Ddceb

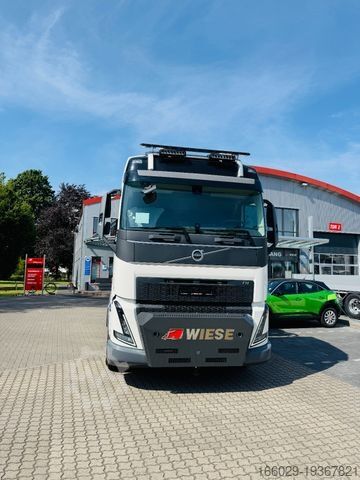

• Manufacturer/Type: Volvo FH 540 8x2, wheelbase 4900 mm
• For detailed vehicle equipment, please refer to the enclosed documents.

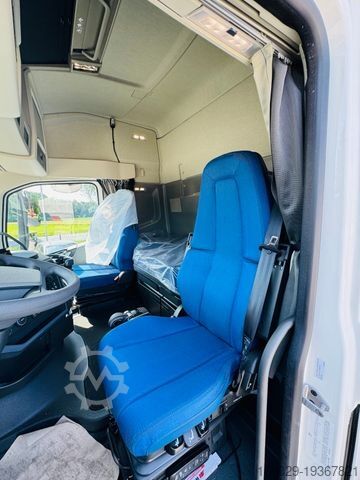

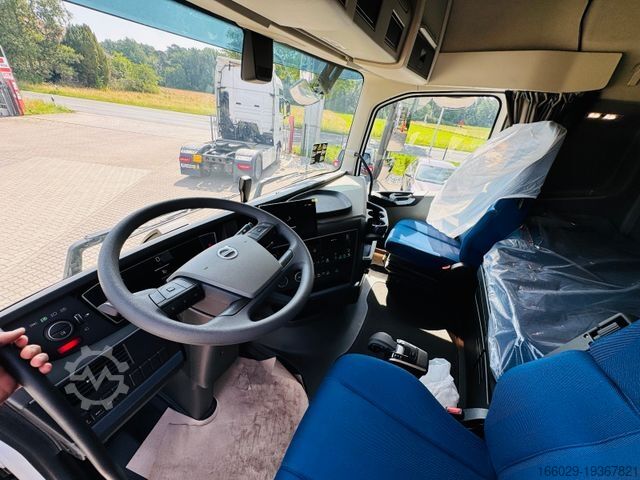

• Driver’s cab GLOBE
• 1 x oil pump type: Sunfub
• New MOT / emissions test
• Initial inspection, error reading, and parameterization of the vehicle.
• If necessary, day registration with all entries.
• Light bar
• LED brown/brown
• LED
• Rotating beacons on the roof
• Complete control of the warning lighting (heavy transport/tow truck type)

Superstructure:
• Carrying out all chassis work required for crane installation, disassembly and assembly of attachments, exhaust system, tanks, etc. Adaptation of the vehicle frame.
• All chassis and bodywork are carried out in accordance with the installation guidelines of each chassis manufacturer and in the best quality.
• Complete assembly of a specially designed and manufactured auxiliary frame made from fine-grained steel for crane and body. The auxiliary frame, welded and bolted to the vehicle chassis frame, guarantees extremely high torsional rigidity and perfect stability of the crane vehicle. The unique feature is the design of the auxiliary frame. Produced to the highest quality and painted in an RAL colour to be specified during order clarification.
• Mounting/bolting the crane and main support carrier to the auxiliary frame. Installation of all hydraulic and electrical connections. Installation location: Front

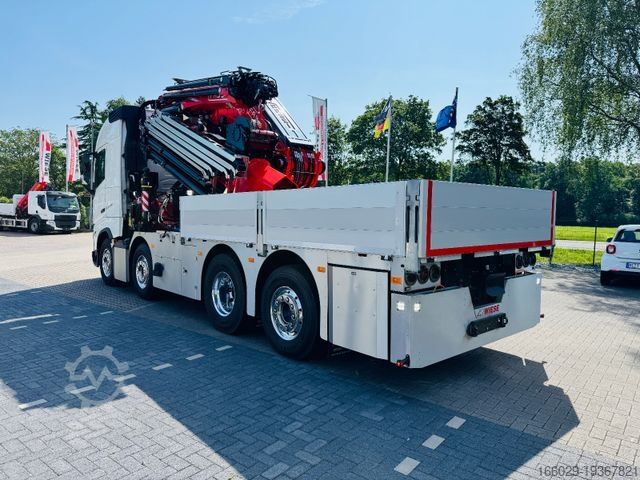

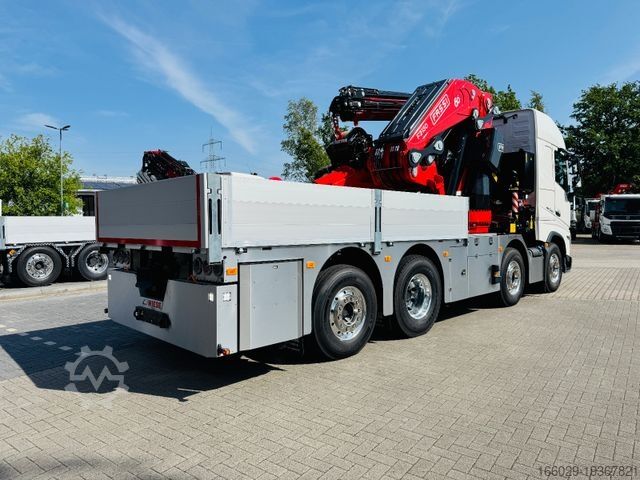

• Platform configuration as steel/welded construction, REMOVABLE platform,
• Length approx. 4000 mm x width x 2480 mm.
• Platform body steel / sandblasted / repainted,
• RAL colour to be specified during order clarification.
• Detachable aluminium side panels Brand Suer, 400 mm high, anodized version
• Standard platform floor with welded steel checker plate, 4 mm, painted.
• 8 x retractable lashing eyes per side 2000 daN, flexible profile/arrangement.

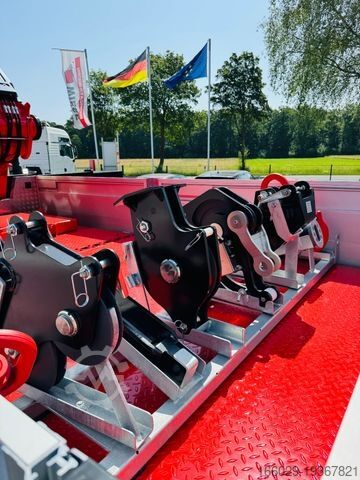

• 2 x MULTISAFE stake pocket rows per approx 600 mm (per side)
• 2 x retractable lashing eyes per side 6500 daN
• Sturdy front wall made from welded frame, welded-on 4 mm steel plate and 5x accessory hooks, front wall height 1300 mm, steel finish/repainted.
• Trim panels, mudguards, version aluminium checker plate, sandblasted, powder-coated and painted. RAL colour to be specified during order clarification.

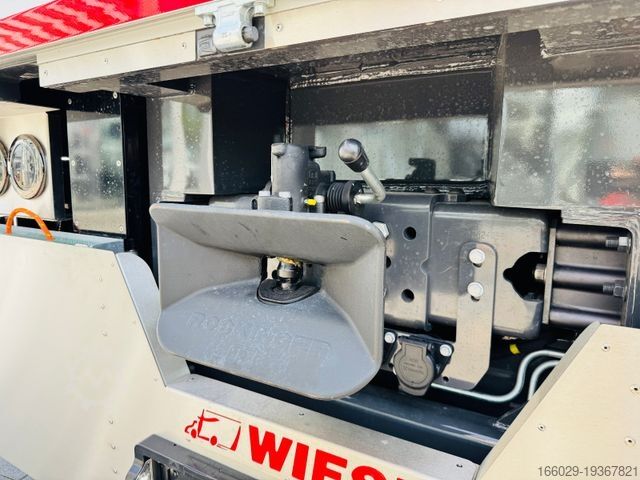

• 3 pcs. toolboxes, version aluminium checker plate, sandblasted, powder-coated and painted. Size and arrangement depend on wheelbase or available space. Mounting of underride protection at the rear and additional support, with installation of all hydraulic and electrical connections. Arrangement of sockets/pneumatics
• 2x container locks in front of the front wall

• Company FASSI is a renowned Italian crane manufacturer that has been developing, manufacturing and marketing loading cranes from 1.0 TM to 215 TM worldwide for more than 50 years.

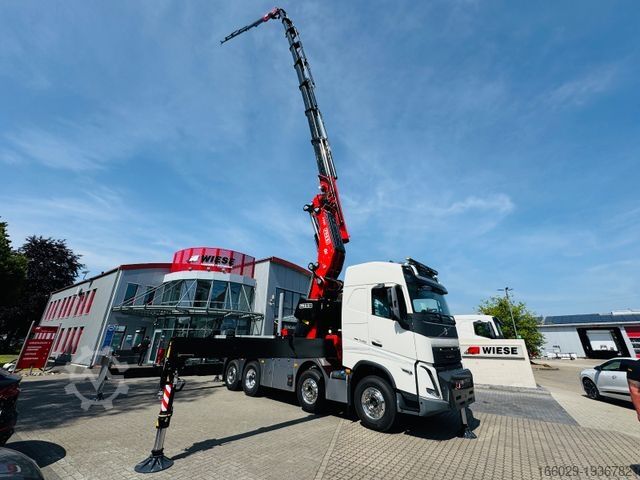

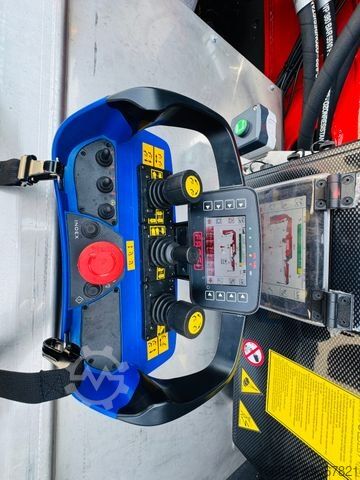

• New crane type FASSI F2150RAL 2.28RAL, endlessly rotating, fully assembled, installed, and parameterized, with 8 hydraulic extensions on the knuckle boom and Fly-JIB L816L with 6 extensions.
• For detailed crane equipment, please refer to the enclosed documents.
• Initial inspection and parameterization of the crane are carried out according to the technical regulations and load diagrams of FASSI loading cranes.

Lighting:
• 1 x LED AS, each 1x on
