Бортовой грузовик VOLVO FH 500 8x2 Kran F710 RA2.26

Описание

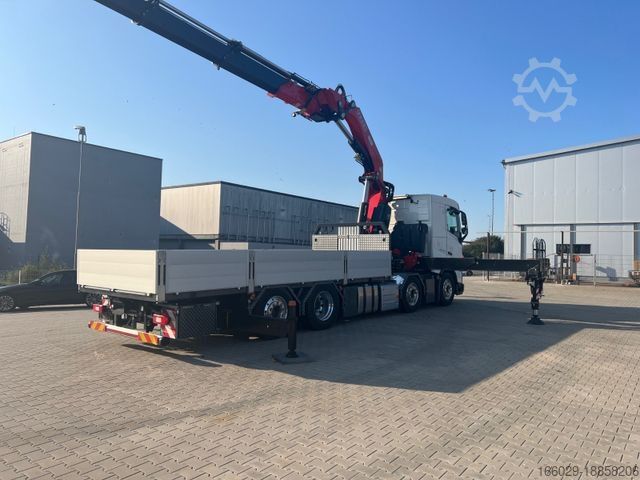

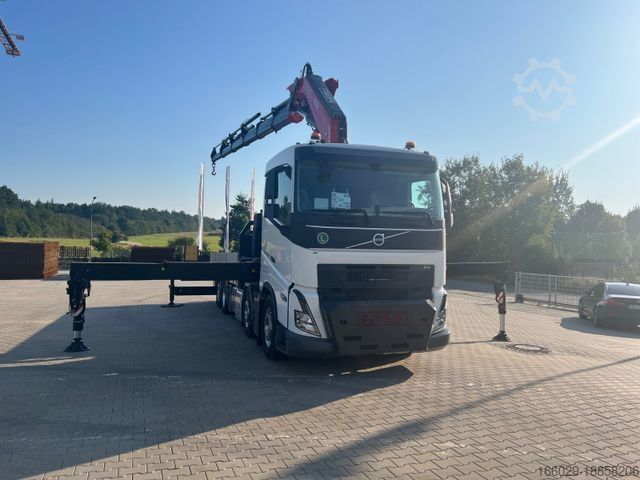

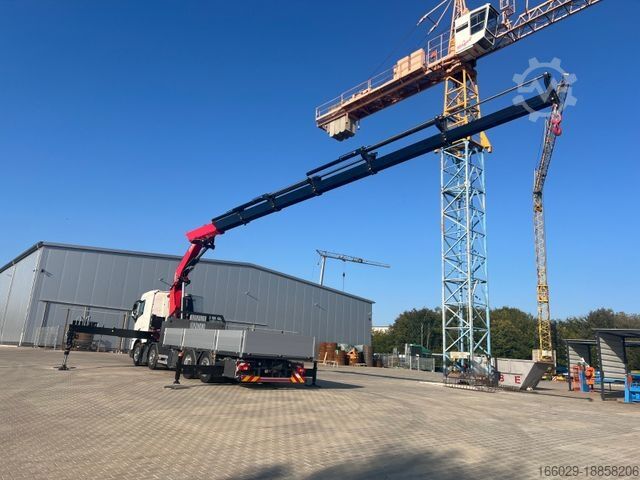

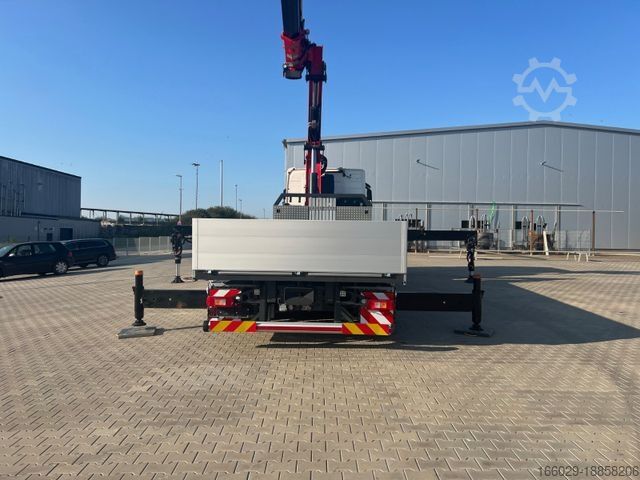

Volvo FH 500 8x2 crane F710 RA2.26 Winch preparation available

Volvo:

New model
* Electro-hydraulically steered trailing axle, single tires
* FH sleeper cab
* 5600 mm wheelbase
* Exhaust emissions according to Euro 6 Stage E, with SCR, particulate filter and exhaust gas recirculation
* Diesel engine 12.8 l, 510 hp/375 kW, 2,550 Nm
* Volvo Engine Brake+ (VEB+). Braking power 510 hp/375 kW (D13K)
* Complies with ADR braking regulations
* I-Shift AT2612F, automated 12-speed transmission (direct gear), max. input torque: 2,652 Nm
* Liftable axle
* Rear axle RSS1370A, single ratio, 13 t axle load, GZG 70 t
* AA tires 315/70R22.5
* Drive axle ratio 2.85 : 1
* Diesel fuel
* Driver comfort package
* Air conditioning with automatic temperature control and sun sensor
* Info and media package with navigation
* Radio reception: AM/FM
* USB connection, 3-way
* 8 loudspeakers
* High instruments: digital driver info display, 12'' with 4 views
* Second driver info display, 9" bdisplay
* TOMTO navigation system
* AGM batteries, 2 x 210 Ah
* Battery indicator in the display (volts, amps and battery status with warning function)
Dwjc Edev Uuh Te Ddcsb
* Main switch on the chassis
* 330 L aluminum tank on the right, D-shaped, 710 mm high, 830 mm long
* Fuel tank, normal ground clearance
* AdBlue tank on the left, usable capacity 64 liters
* Lockable fuel filler cap
* Tank filler neck, spill protection
* Exhaust direction to the rear
* 2 foldable wheel chocks, transport mounting
* Rear and side marker lights
* Trailer cross member with D-value = 190 kN for G-150/G-260 hole pattern
* Trailer cross member to frame end 85 mm
* Frame length rear 4395 mm, measured from drive axle/1st drive axle
* Trailer coupling Rockinger 400 G-150 (note D-value/max. trailer load!)
* Electrical connection for semitrailer/trailer, 15-pin
* Trailer/semitrailer connection Duomatic
* Trailer connections in the middle
* Stationary trailer brake (active up to 7 km/h)
* Underride guard hi, aluminum, fixed, thin
* 4x VA tires 385/55R22.5 Continental, Hybrid HS3+, rolling resistance class: C, steering axle
4x AA tires 315/70R22.5 Continental, Hybrid HD3, rolling resistance class: C, drive axle
2x NLA tires 385/55R22.5 Continental, Hybrid HS3+, rolling resistance class: C, trailing axle
* Electric bleed pump
* Transmission/I-Shift operation via control unit on the driver's seat
* I-Shift driving mode: Standard, Performance and Economy
* Autoreturn in Economy mode
* No manual intervention in automatic mode, without kickdown
* Cruise Control (cruise control)
* Transmission oil cooler, basic, water/oil
* 2-cylinder air compressor, 1100 l/min, for vehicles/combinations with increased air requirement
* Front air intake with normal air filter
* Alternator 150A/4200W
* External noise in accordance with ECE R51.03 Phase 2, with low-noise certificate and L plate
* Closed crankcase ventilation
* Double fuel filter on the engine, large for poor fuel quality, e.g. in Eastern Europe
* Fuel filter with water separator
* PTO (medium-speed PTR-DM), on transmission side, connection: 1 DIN at rear for pump
* NA on gearbox, max. output 600 Nm
* Dynamic equipment: seats in fabric, yl (blue/dark blue) with interior in gray fabric
Comfort driver's seat, air suspension, heated, seat belt in seat
* Standard front passenger seat, air suspension
* Lower bunk, foldable, 2000x815/740/660 mm (center, top, bottom) with safety net
* Cab heater, 2 kW
* Storage space under the bunk
* Cool box with freezer compartment 33 L under the couch
*
