Бортовой грузовик TATRA 41.500 8x8 Phoenix Fassi F710 Kran

Описание

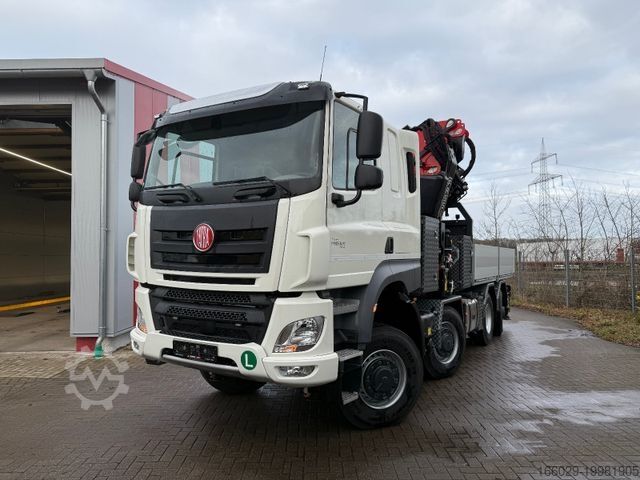

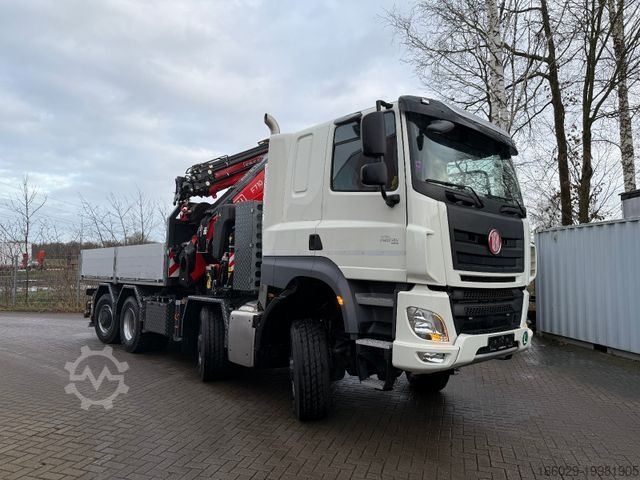

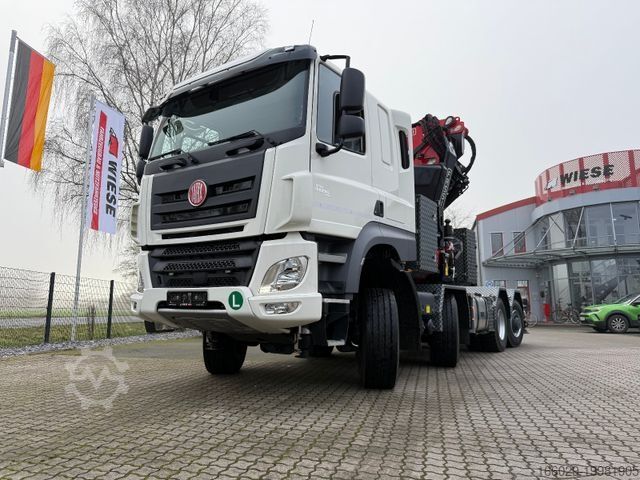

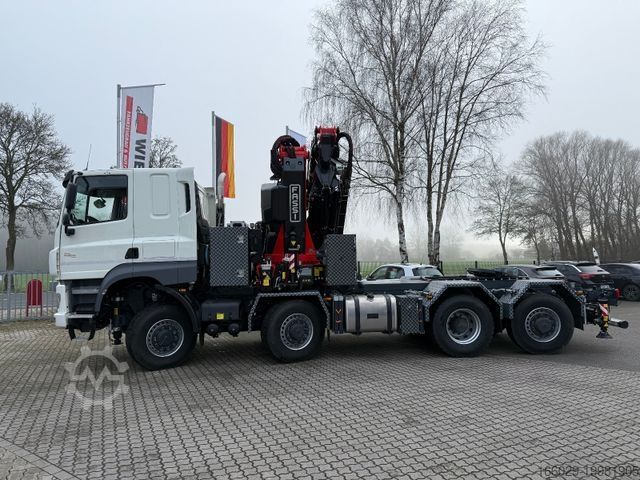

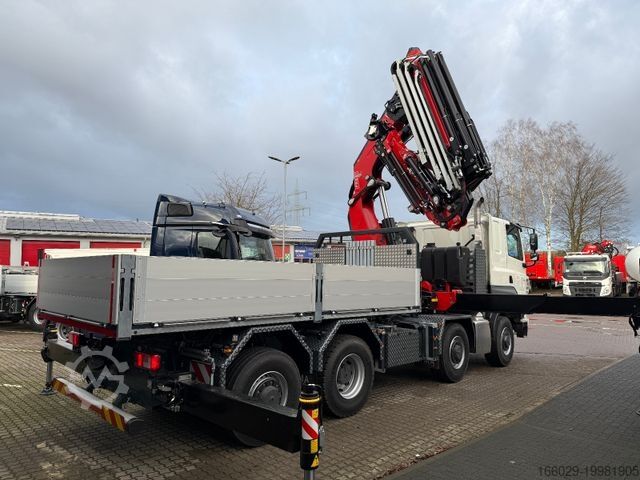

Tatra Phoenix 41.500 8x8 All-wheel drive with Fassi crane, jib, and winch
New vehicle with day registration 06/2025
Long-distance driver's cab

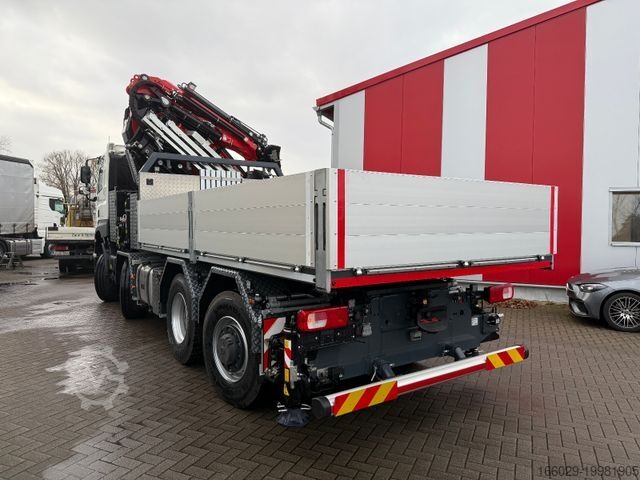

Removable platform body
Possible use as a tractor unit

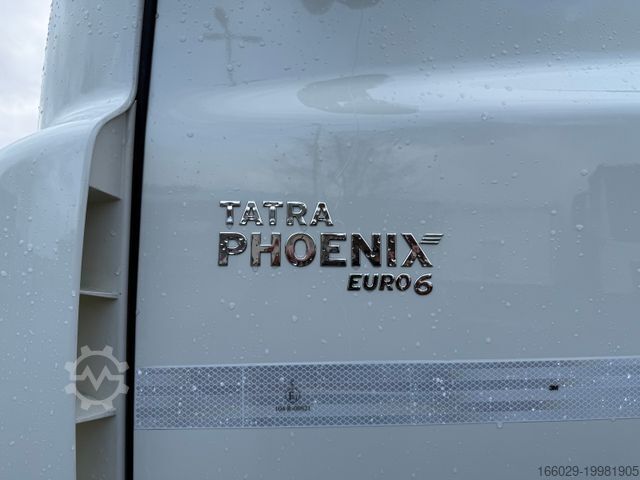

* Model: TATRA PHOENIX
* Drive: 8x8/6, last axle driven and steered, AP axles
* Engine: MX13, 390 kW (530 hp) at 1675 rpm, 2500 Nm
* 1000–1425 rpm
* Transmission: Automated ZF TraXon 16TX2640 gearbox, 16-speed
* Steering: Left-hand drive
* Cab: Long-distance driver's cab, H3279WHTE
* Gross vehicle weight: 41,500 kg
* Long-distance driver's cab
* Side fenders
* External sun visor (green, translucent)
* Non-heated windshield
* Side/rear without glazing
* Electrically adjustable mirrors
* Convex mirrors
* With front curb mirror
* Central locking with remote control, 2 keys
Cab – interior:
* Luxury Air
* Storage compartment under dashboard console, long
* Mattress lower bunk, standard
* Lower bed raised 250 mm (sleeping cab, storage space 260 liters)
* No upper bed (long cab)
* Couplings without center section
* Cool box or refrigerator (sleeping cab)
* Aluminum roof hatch, manual operation
* Manual control for cab air conditioning
* Dashboard – Black Rock
* Cab wall cladding textile
* Interior trim color: "DARK SAND"
* 5-minute immobilizer SCM BV03-B1
* Standard accessory power supply
Communication and driving management:
* ALPINE communication system with camera
* Antennas: AM/FM + 2x GSM + GPS
* Digital tachograph
* With cruise control
* Toll preparation (Germany only)

Rims:
* Continental 385/65R22.5 HSC1 XL TL[4] (10t) + 315/80R22.5 HDC1 ED TL[9], mixed operation
* Spare wheel mounted on the frame in transport position

Drive unit:
* MX13, 390 kW (530 hp) at 1675 rpm, 2500 Nm
* 1000–1425 rpm
* ZF 16TX2640TO TraXon, MX13 engine (355 kW, 390 kW)
* 2-stage ratio 2.30 TRK 0.61/1.44 H8, downshifting, shiftable from standstill

Chassis:
* Driven axles, axle load capacity 10t, small wheels
* 8x8/6

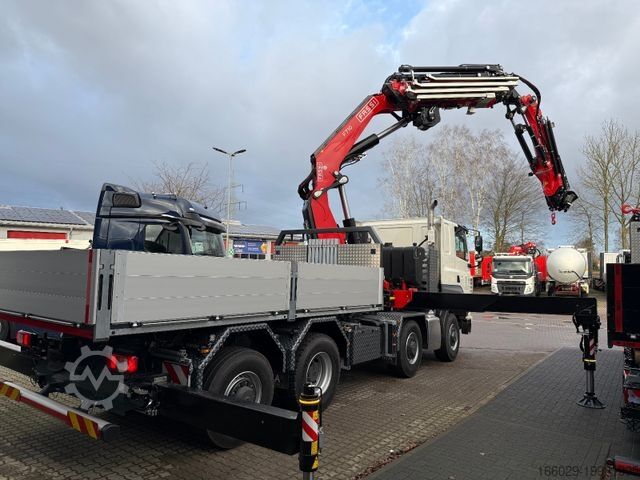

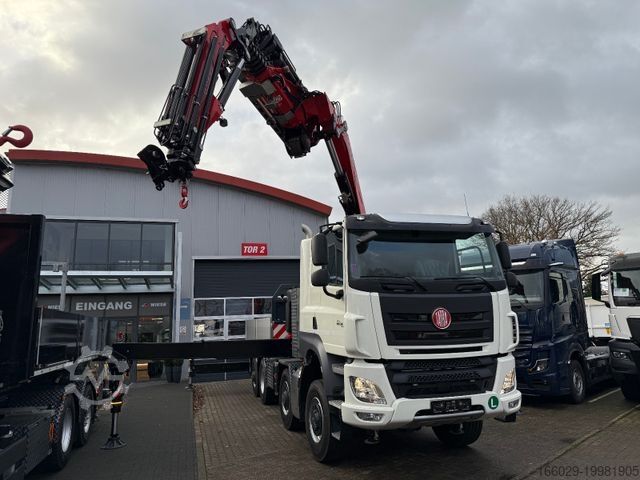

Crane:
- Type: F710RA.2 xhe-dynamic
- Endless slewing range
- All hydraulic cylinders double-acting
- Piston rods hard-chromed
- Dual linkage system with PROLINK (overbending knuckle boom up to 10 degrees)
- Electronic overload protection with FX900
Hfjcsxb Hwvo Ed Ddcel
- FASSI stability control FSC-SII including LMB II
- Emergency stop function and optical alarm (90% and 100%)
- Pressure relief and load-holding valves
- XF system (Extra Fast), XP system (Extra Power), FL system (Full Lift)
- RCH or RCS FASSI remote control with linear levers and display of
- Pressure values (in bar and %) and 90% + 100% warning on the display
- Danfoss D900 valve block with 4 control valves
mounted on the crane pillar
- Emergency control for crane operation
- High-pressure filter supplied piped
- Separate hydraulic tank (260 l) with filter and
oil cooler mounted at crane base

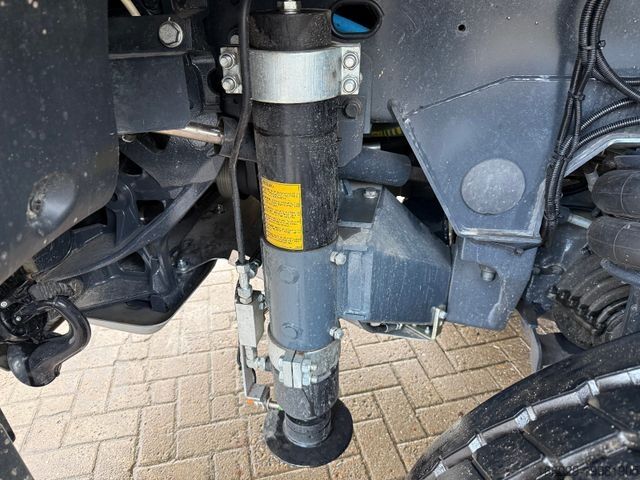

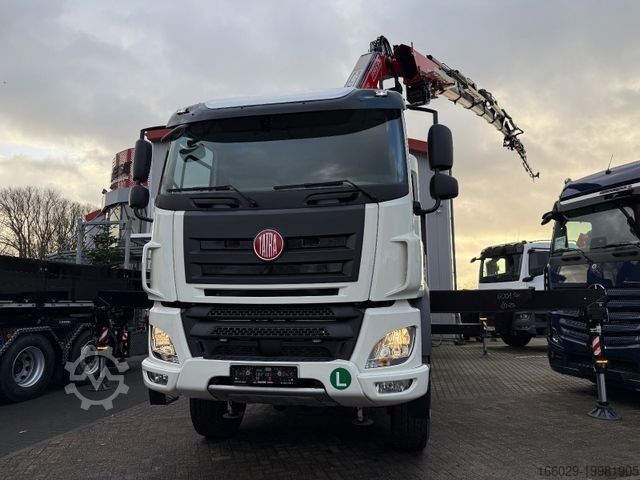

- Hydraulic outriggers, hydraulically extendable on both sides,
support width 8.29 m
- Outriggers operable by remote control (black/white)
- IMC system (Integral Machine Control) and
ADC (Automatic Dynamic Control) =
load-dependent speed control
- Standard color RAL 3020 traffic red –
all cylinders painted black
- Load hook and mounting brackets (short / 500 mm)
- Transport position: folded crosswise to direction of travel
- Note: observe on-board voltage / 12V or 24V, standard 24V
- FASSI stability control FSC-S/II
- IE742 connection box
- Prepared for operation with variable displacement pump (LS)
- Prop
