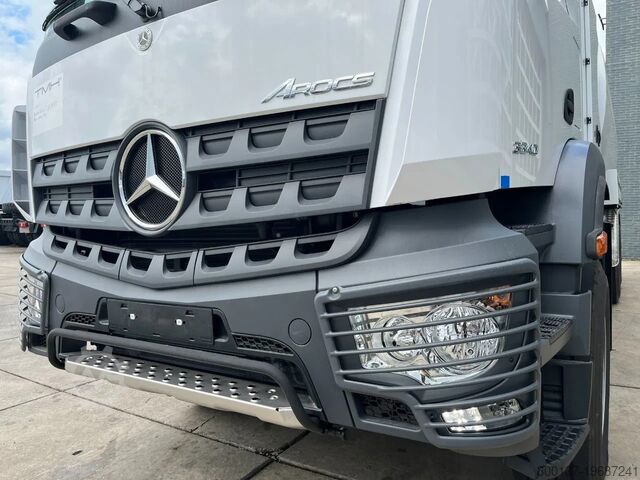

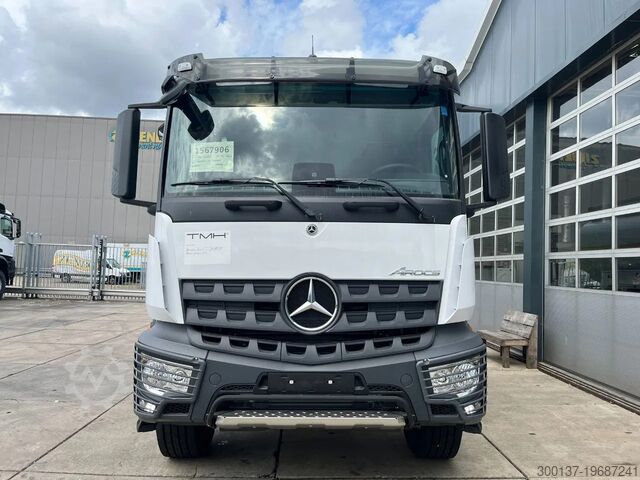

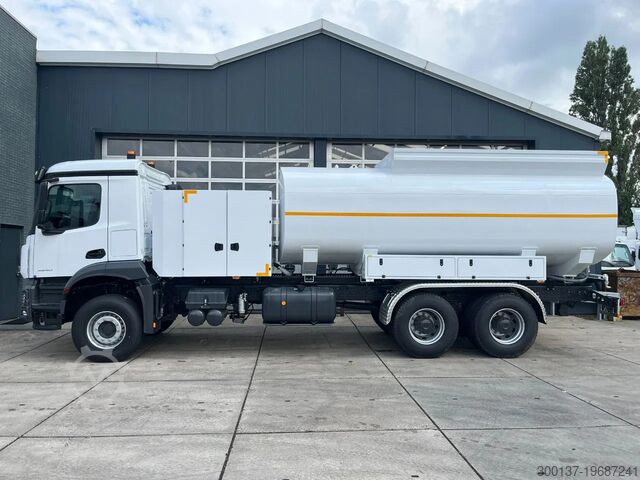

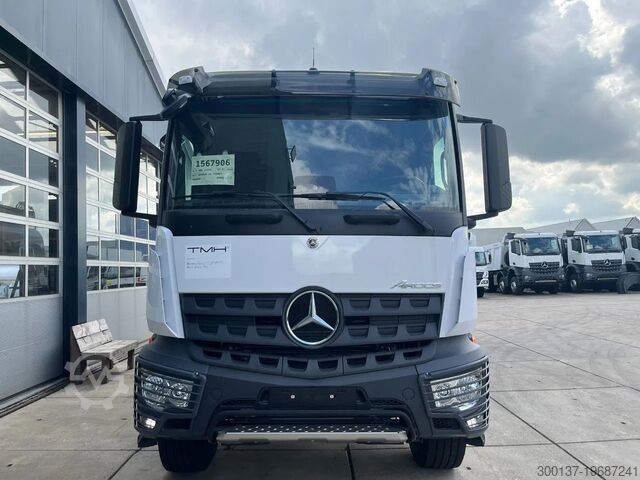

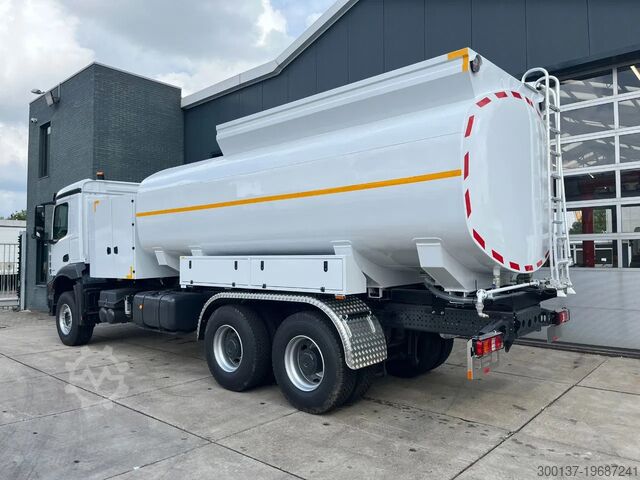

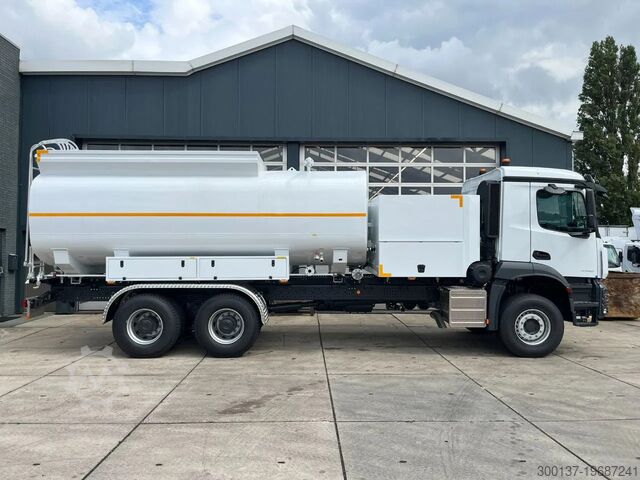

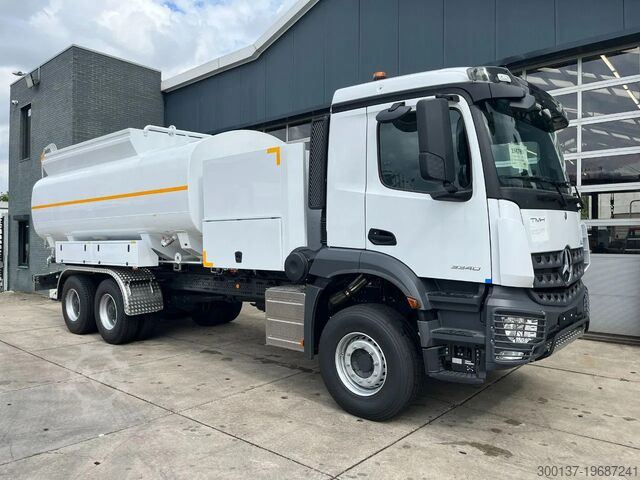

Танкер Mercedes-Benz Arocs 3340 6x4 Water Tank Truck

Описание

= Further options and accessories =

- Leaf suspension
- Radio/CD player
- Sunshade flap
- Power take-off (PTO)

= Notes =

The Mercedes-Benz Arocs 3340 6x4 water tank is a robust and reliable truck, specially designed for heavy-duty transport and off-road use. This configuration is ideal for demanding environments such as mining, construction sites, and remote areas where water supply is essential.

Specifications Mercedes-Benz Arocs 3340 6x4 Water Tank:
- Model: Mercedes-Benz Arocs 3340
- Drive: 6x4 (two driven rear axles)
- Engine: Inline six-cylinder, 12.8 liters, 290 kW (394 hp), 1900 Nm
- Transmission: Mercedes PowerShift 3 automatic
- Tank capacity: Water tank up to 20,000 liters, depending on chassis and configuration
- Pump system: Water pump MAX. 500–600 l per minute, 6-7 BAR
- Chassis: High-performance chassis suitable for off-road terrain

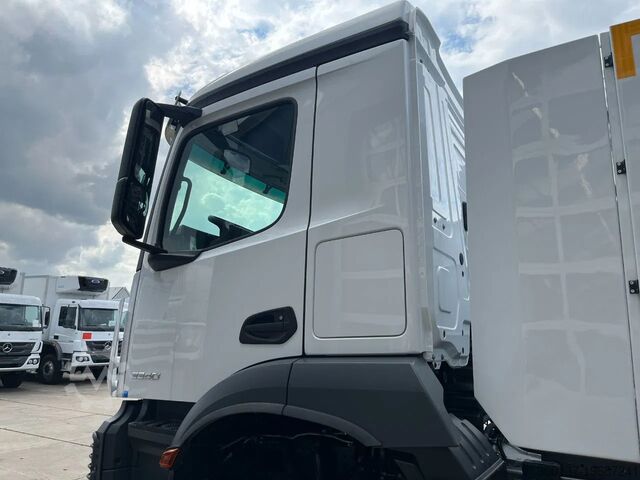

- Cabin: Spacious cabin with comfort and safety options such as air conditioning
- Tank container: Made from 4 mm thick, high-quality stainless steel, suitable for drinking water.

Options:

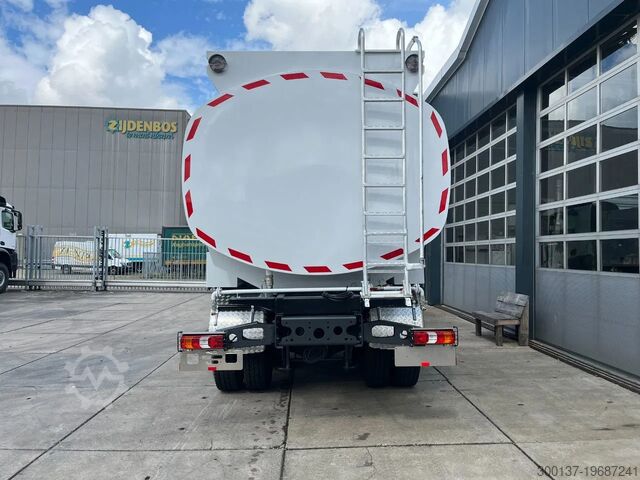

- Designed in double “D”, cylindrical, or elliptical shape
- Stainless steel AISI 304 with longitudinal and transverse sealing plates to prevent deformation
- One manhole with dome cover, 500 mm diameter, lockable, with vent valve
- Water pump for drinking water, hydraulically driven, 500-600 lt./min 6-7 BAR
- On/off alarm for low water level at the rear and front spray bars

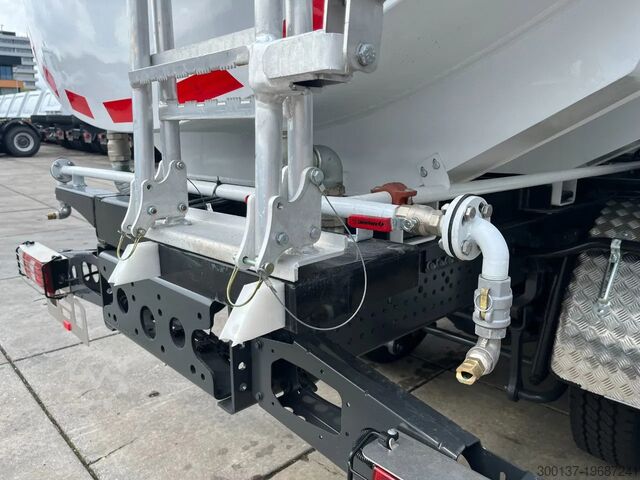

- Pressurized discharge via rear spray bar, operated from the control panel in the truck cabin
- Pressurized discharge via spray bars, operated from the control panel in the truck cabin

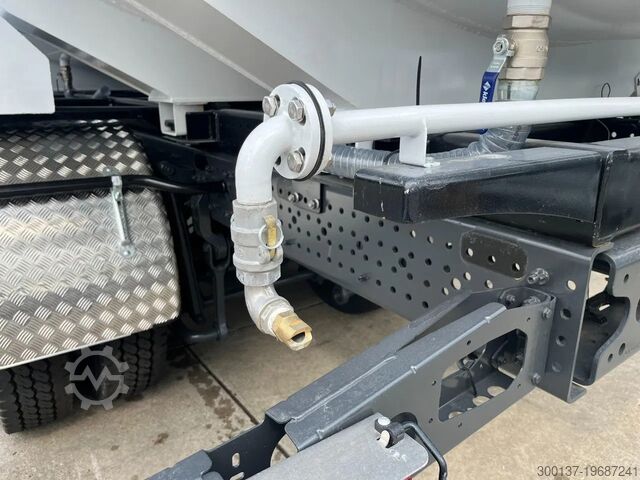

- External suction line pump with 3-inch inlet with mesh, Storz coupling, and valve
- Each nozzle has a capacity of approx. 250–350 l/min
- The total spray range is approx. 8 meters, both front and rear, with 360° rotation

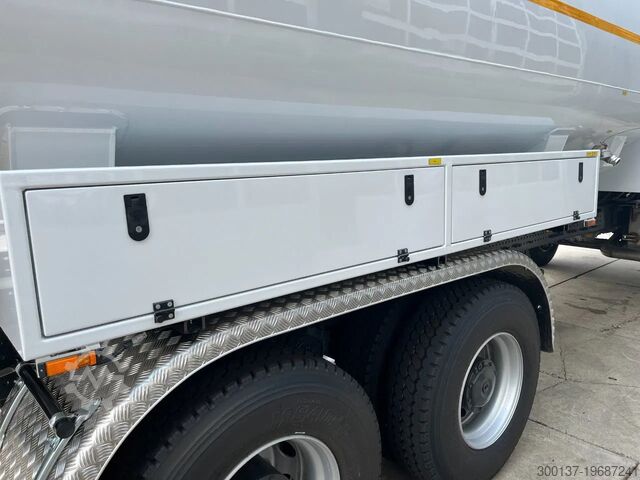

- Lockable hose boxes on both sides made of aluminum, 4 pieces

Applications:
- Construction and infrastructure projects
- Mining and remote industrial sites
- Agriculture and irrigation
- Municipal water distribution or emergency facilities

This water truck offers a combination of durability, efficiency, and flexibility for various water transport applications. Let us know if you need more information or wish to discuss specific customizations!

= Further information =

General information
Year of manufacture: 2025

Technical information
Number of cylinders: 6
Engine displacement: 12,800 cc
gross vehicle weight: 33,000 kg

Transmission
Transmission: 12 speeds, automatic

Axle configuration
Brakes: Drum brakes
Suspension: Leaf spring suspension

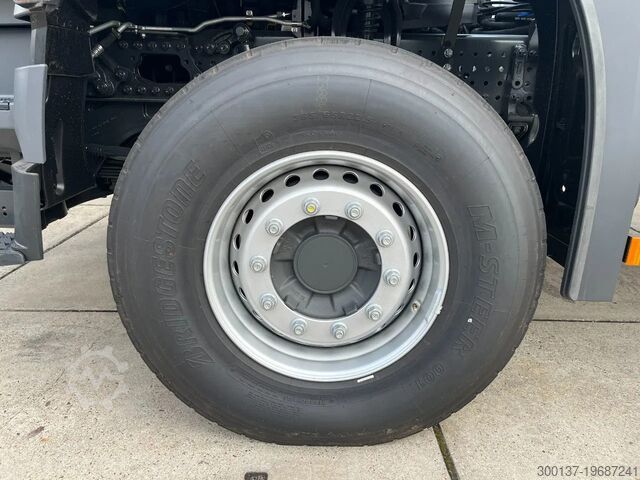

Front axle: Tire size: 385/65 R 22.5; Steered
Rear axle 1: Tire size: 315/80 R 22.5; Twin tires
Rear axle 2: Tire size: 315/80 R 22.5; Twin tires

Functional
Number of chambers: 1
Dwec Ed Dew E H Ilsdceb
Pump: Yes
High-pressure pump: Yes
