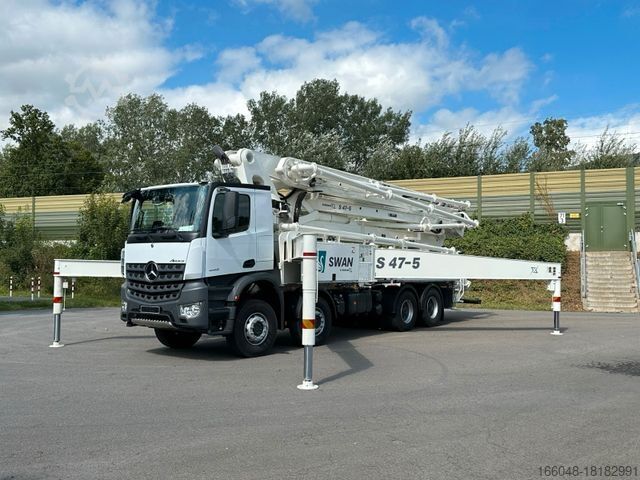

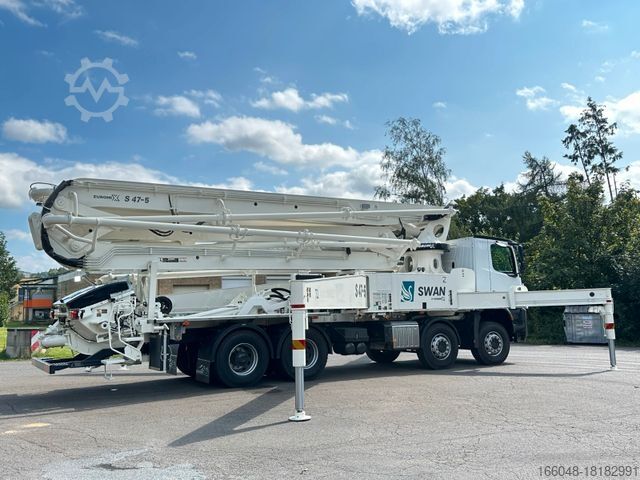

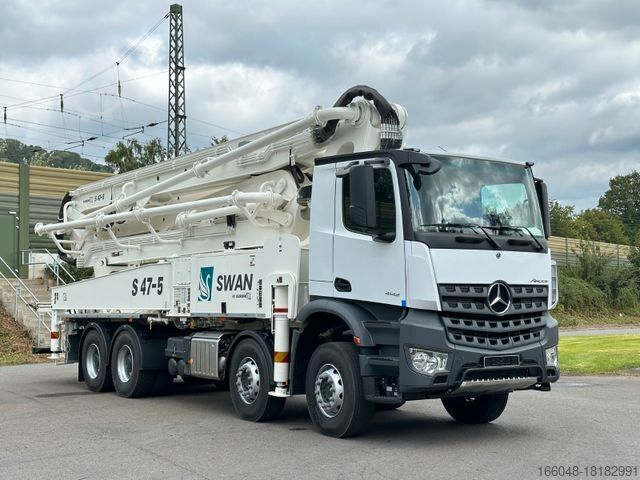

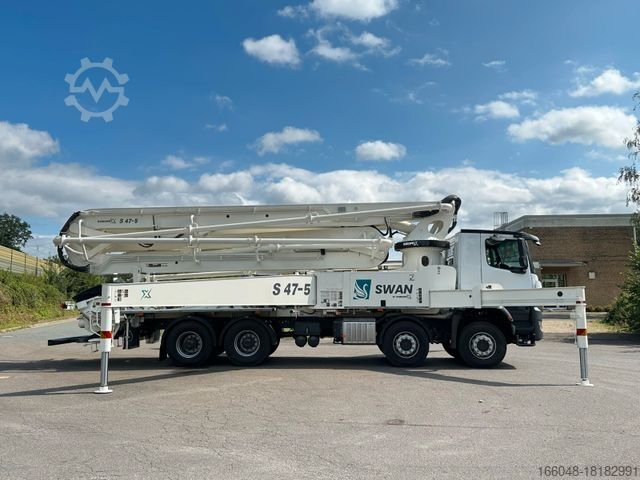

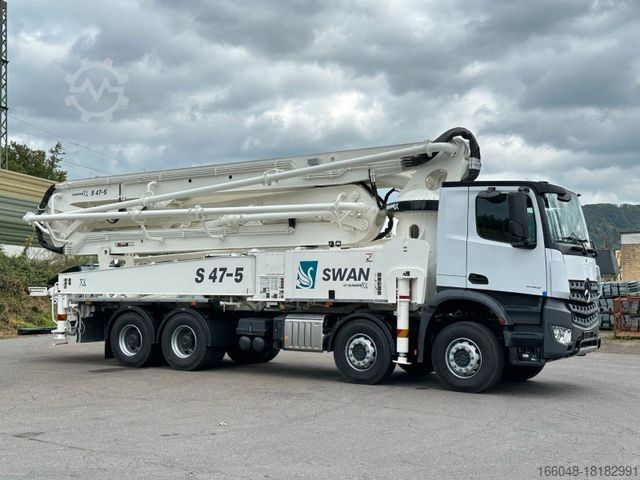

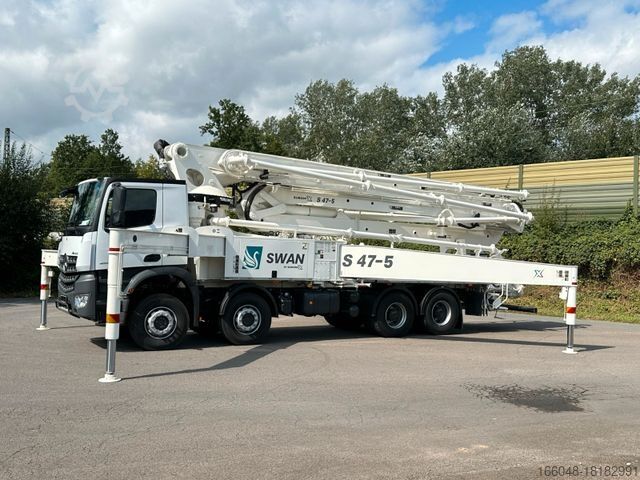

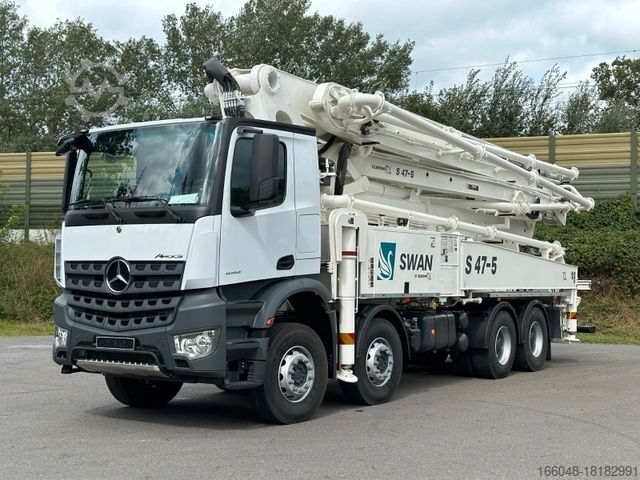

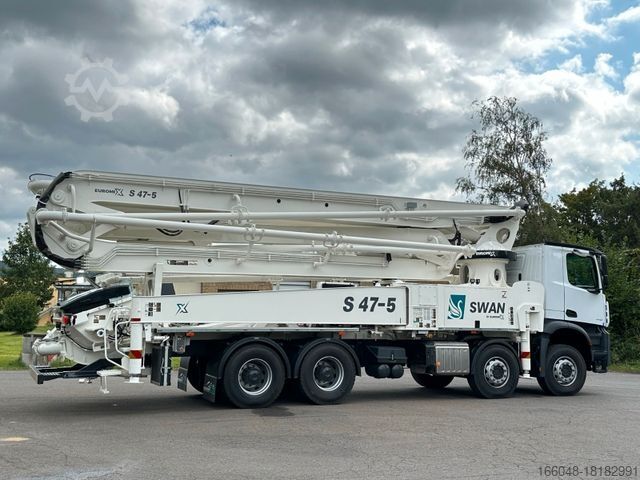

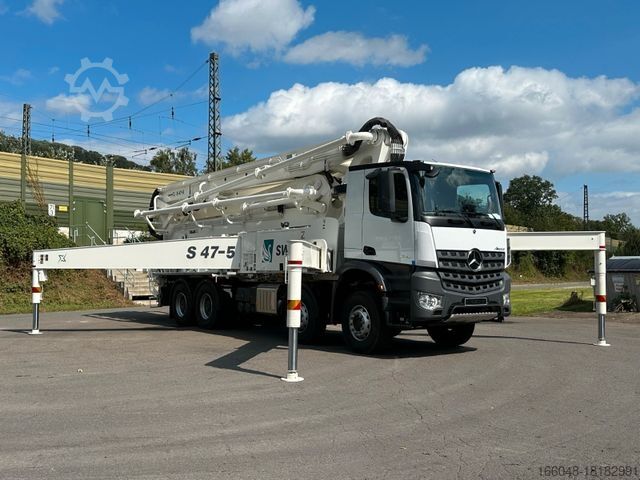

Автобетоносмеситель MERCEDES-BENZ Arocs 5 4142 8x4 SWAN TSP 47-5 160RZ ( 47m )

Описание

X TO GO?EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES, FROM OUR LOCATION IN PORTA WESTFALICA/GERMANY.
FOR ALL CUSTOMERS WHO ARE IN AN ACUTE DEMAND SITUATION. (SHORT-TERM CAPACITY EXTENSION OR REPLACEMENT INVESTMENT)Your advantages:
* immediately usable complete vehicles (concrete mixer/tipper)immediate availability directly from the manufacturer
* body, assembly, commercial vehicle
* Best price/performance ratio
* Financing options
* Trade-in of your old vehicles
Mercedes-Benz Arocs 5 4142 8x4 Euro 6e
Concrete pump EuromixMTP
SWAN TSP 47-5 160RZ
* ( rental possible )
- NEW NEW - withaut registration - without registration -
Vehicle equipment:
* Engine OM471, R6, 12.8 l, 308 kW (420 hp), 2500 Nm
* Transmission G 330-12/11.63-0.77 Drive program offroad PowerShift 3 automatic
* Front axle 7.5 t Rear axle Disc wheel 300 planetary, 13.4 t
* Tires front axle tires 315/80 R 22.5 rear axle tires 315/80 R 22.5
* Wheelbase 5450 mm
* S-cab ClassicSpace, 2.30 m, tunnel 170 mm
* Disc brakes, on VA and HA
* 290 l tank, left, 650 x 565 x 950 mm, steel AdBlue tank 25 l
* Rear cab wall, with window - tinted windshield
* Steering, Servotwin, 4-axle and 9t VA, air
* Electronic brake system with ABS and ASR ABS
* Parking brake, electronic
* Rear cab wall, with window
* Rain sensor
* Pre-fitting for reversing camera
* Digital tachograph, 2nd generation, ADR
* Radio, with USB port and Bluetooth
* Reversing alarm
* Air conditioning
* LED daytime running lights
* Internal cruise control
* ATS warranty according to AGB, 3 years/250,000 km
EUROMIX MTP - Concrete pump SWAN TSP 47-5 160RZ
Model: SWAN TSP 47-5 160 RZ
Section: Concrete pump:
* Max. theoretical concrete capacity : 160 m³/hr
* Max. theoretical concrete pressure : 85 bar
* Stroke 30 per min
* Delivery cylinder: Ø2100 mm x Ø230 mm
* Hydraulic main cylinder: Ø2100 mm x Ø140 x Ø80 mm
* Concrete valve: S-valve water pump: 20 l/min - 170 bar
* Water tank: 800 l, 12 m hose with spray gun
* Concrete hopper: 600 liters
* Lubrication : Lincoln automatic lubrication for hopper group
* Hydraulic pumps : Rexroth 2xA4VG145, Rexroth A10VO28
* Rexroth A17FO045, Blue Ascend AP 20.140/115
* Switching system : Magnetic sensor (proximity switch)
* Switch box : DIGITEX, waterproof
* Remote control : Scanreco remote control + 30 m cable

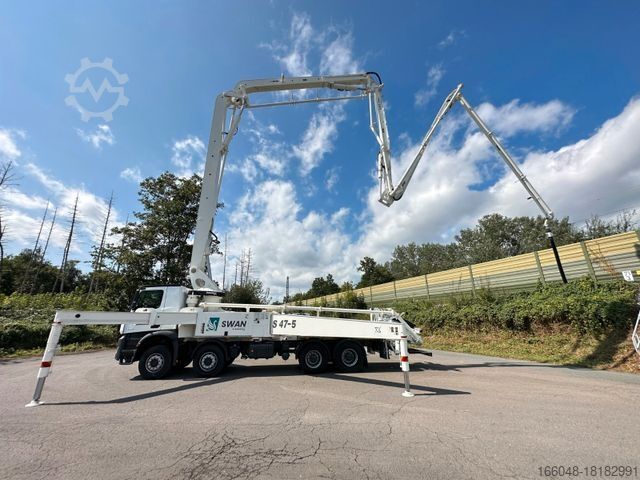

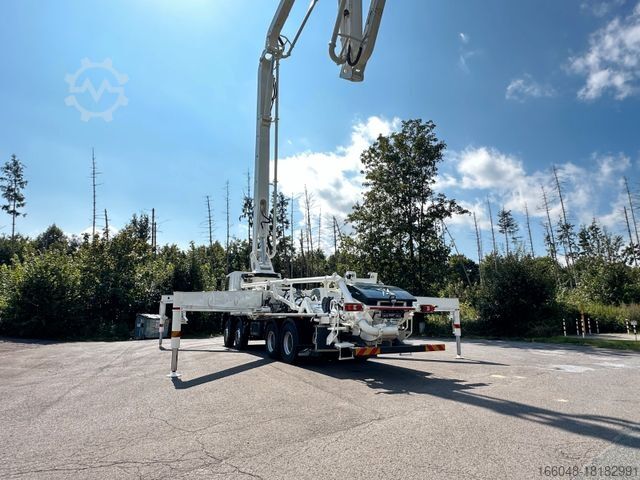

Section: Boom:

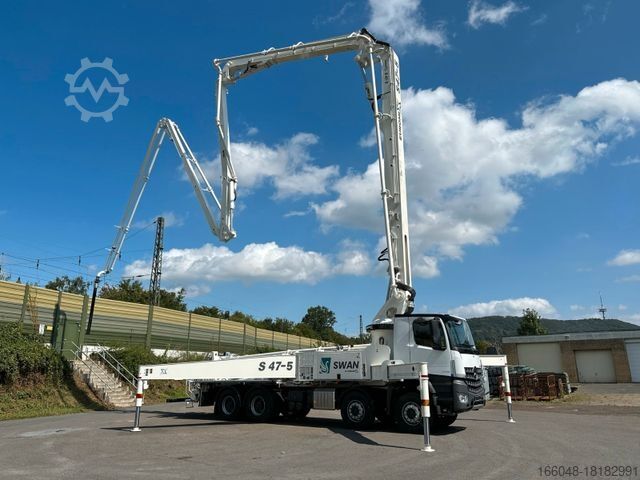

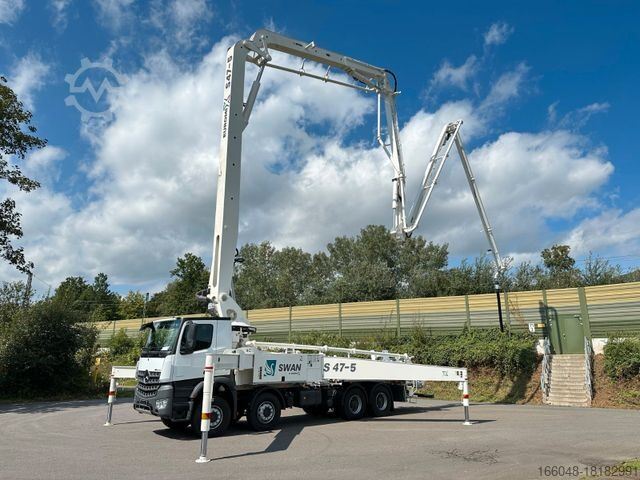

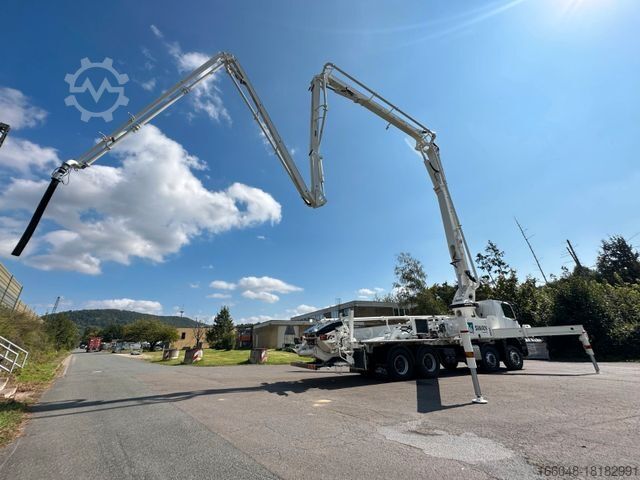

* Boom S 47-5 ( boom 5 sections, RZ folding )
* Type : RZ-folding
* Max. Vertical reach : 46,8 m (without end hose)
Nwscsvm R Ite R Nc Ifnoh
* Max. Horizontal reach : 42.8 m (without end hose)
* End hose : 3m single flange, DN 125
* Platform type: X-type
* Swivel head: 365 degrees
* Rotation speed: 0.3 RPM
* Conveyor pipe diameter: 125 mm (outer diameter 132 mm) 5.5" flanges & couplingsControl system

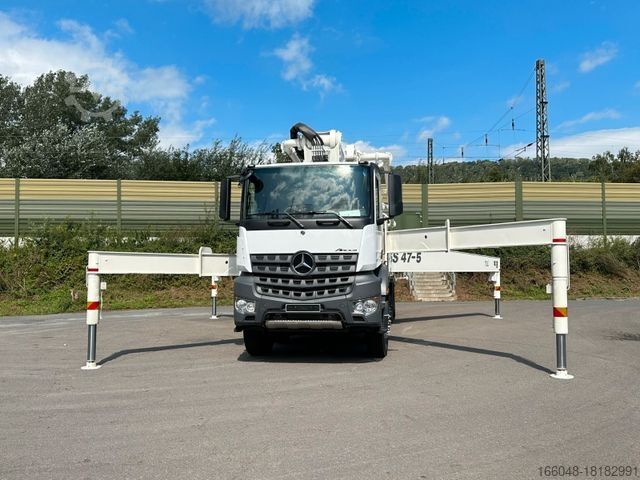

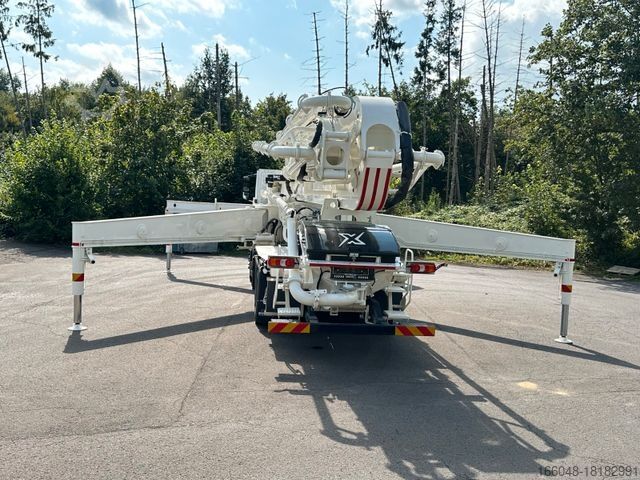

* Distance between the front legs: 8.6 m
* Distance between the rear legs: 8.7 m
