X TO GO?EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES, FROM OUR LOCATION IN PORTA WESTFALICA/GERMANY.
FOR ALL CUSTOMERS WHO ARE IN AN ACUTE DEMAND SITUATION. (SHORT-TERM CAPACITY EXTENSION OR REPLACEMENT INVESTMENT)Your advantages:
Complete vehicles ready for immediate use (concrete mixer/tipper)Immediate availability directly from the manufacturer
* body, assembly, commercial vehicle
* Best price/performance ratio
* Financing options
* Trade-in of your old vehicles

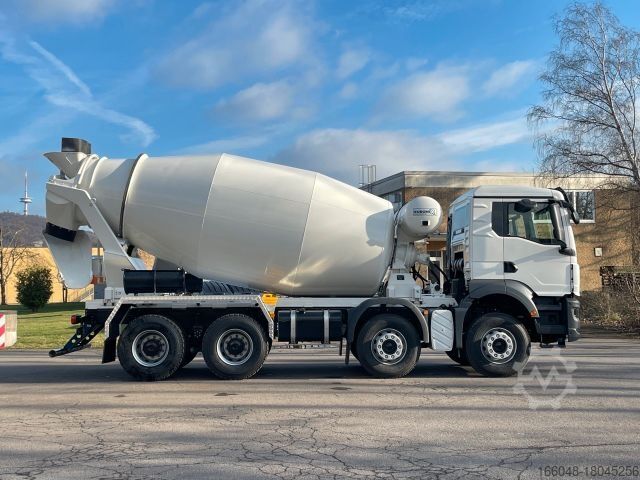

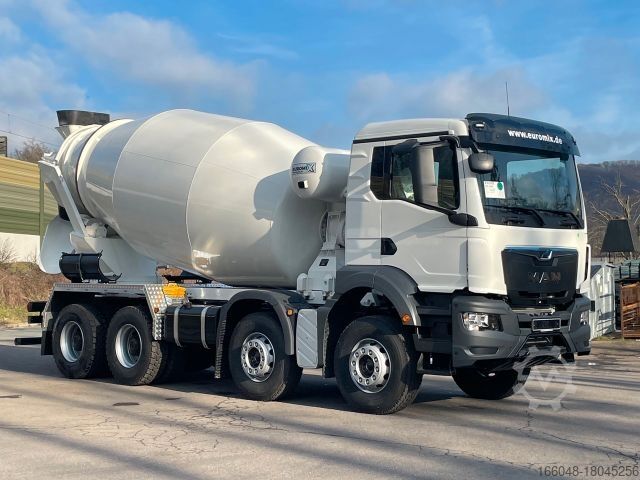

MAN TGS 41.400 BB 8x4 EURO 2 EuromixMTP EM 10m³ R
- NEW NEW - withaut registration - without registration -
Vehicle equipment
* Engine D2066LF41 - 400 HP / 294 KW
* Transmission ZF 16 S 223 OD ( manual gearbox )
* Tires front axle 315/80 R22,5 rear axle 315/80 R 22,5
* Front axle 8000kg - rear axle 13000 kg
* Wheelbase 1795+2505+1400 mm

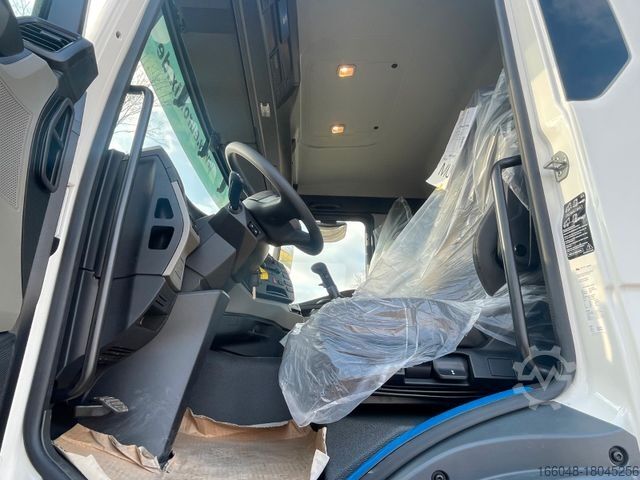

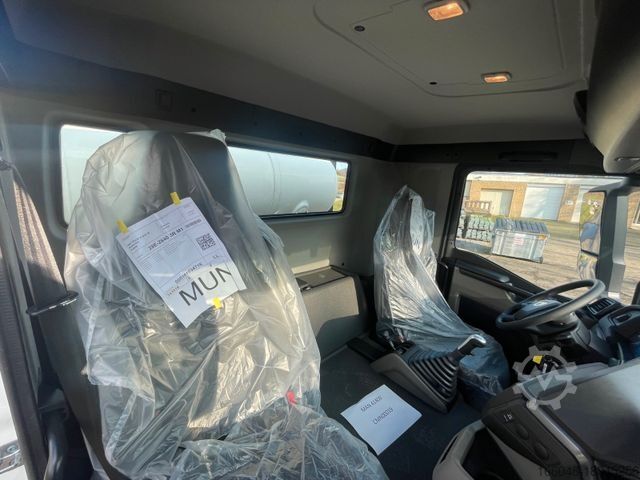

* Cab M medium length
* Air deflector to prevent dust swirling upwards
* Cruise control
* Air conditioning
* Noise measure 80 dB (92/97EWG)
* AP axle ratio rear axle AP HPD 1382/HP-
* Air intake raised with dry air filter / pre-separator
* Differential lock
* Fuel tank 300l left
* Three-piece steel bumper
* MAN BrakeMatic ( electronic brake system )
* Disc brakes rear axle and front axle
* Central locking
* Sun visor

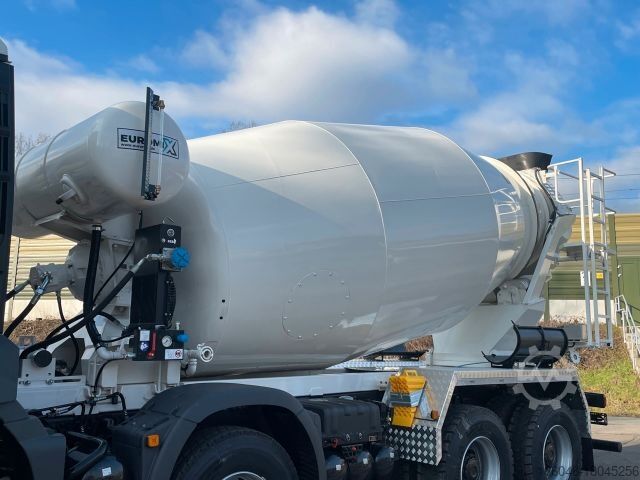

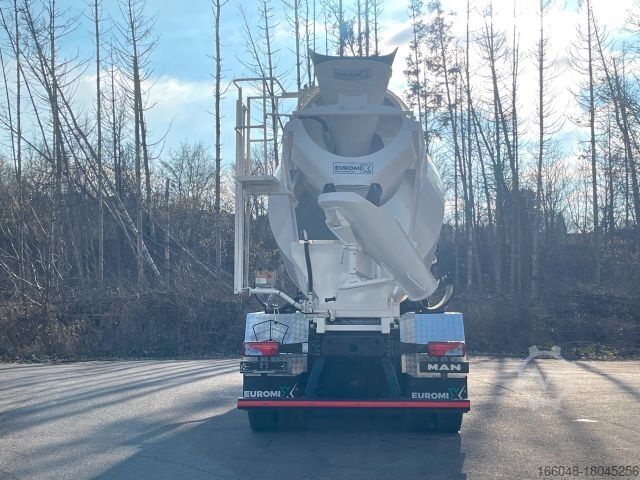

EUROMIXMTP - Truck mixer body EM 10 R - Regular
* Model: EM 10 R
* Nominal volume 10m³ ready-mixed concrete
* Mixing drum in regular design
* Mixing drum in regular design made of material S355
* Mixing spirals in regular design made of material S420 MC
* Optional ZF-P5300 gearbox
* Hydraulic pump make Bosch Rexroth
* Hydraulic motor made by Bosch Rexroth
* Integrated oil cooling system
* Mechanical mixing control and electrical start/stop
* Compressed air water system
* Water connection on the stand platform with hose line
* Water filling line, with C-coupling on one side
* Mixing drum with a service flap
* Climbing ladder with platform
* Rubber attachment on the hopper
* Swivel-mounted, single-arm discharge chute made of steel
* Wear plates in the feed hopper, discharge chute and swivel chute
* Drum lock to secure the drum during maintenance work
* Polyurethane primer
* Weight approx. 3,965kg, deviations +/- 5%
* With emergency stop function in accordance with EU safety technology
* Steel mudguards above the rear axles
* 2x extension gutters made of steel or plastic
* Water system
* Water tank 650l compressed air
* Steel water tank
* Shut-off valve mounted below the water tank in the filling line
* Water connection ?C? coupling,
* Operation & electrics
* Mixer operation ? mechanical rear
* Start-stop system (with EDC)
* Geometric volume 17361 L
* Water tank volume 11121 L
* Inclination of the tank 11.3
* Length 7080 mm
* Width 2300 mm
* Height 2750 mm
Special equipment:
* Extension chute plastic - steel - aluminum
* Plastic (or steel) folding chute
* Retention flap Swivel chute
* Plastic box
* Stainless steel storage box
* Unpressurized additive container
* Pressurized additive container
* Trowel holder
* ? Drum lock
* Reversing camera
* LED working lights
* EuromixMTP intelligent drum control ( electronic mixer control )
* Step on underride guard with grab handle
* Water meter
* Pressure gauge
* Frame cover
* Fire extinguisher
* Holder for flowing concrete pipe (5 m long)
Nwjc R Nc Ifevh Amkensh
* Transition piece to the flowing concrete pipe (reducing chute)
* Hydraulic chute support
