Автобетоносмеситель MAN TGS 33.440 / 6X4 Euro6e Euromix MTP EM 7 L

Описание

X TO GO? EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES FROM OUR LOCATION IN PORTA WESTFALICA, GERMANY.

FOR ALL CUSTOMERS IN URGENT NEED (SHORT-TERM CAPACITY EXPANSION OR REPLACEMENT INVESTMENT). Your benefits:

• Ready-for-use complete vehicles (concrete mixer/tipper)
• Immediate availability directly from the manufacturer
• Assembly, installation, commercial vehicle
• Best price-performance ratio
• Financing options
• Trade-in of your used vehicles

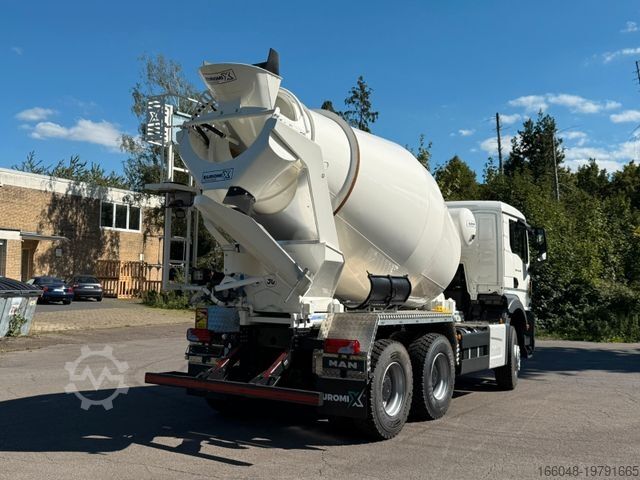

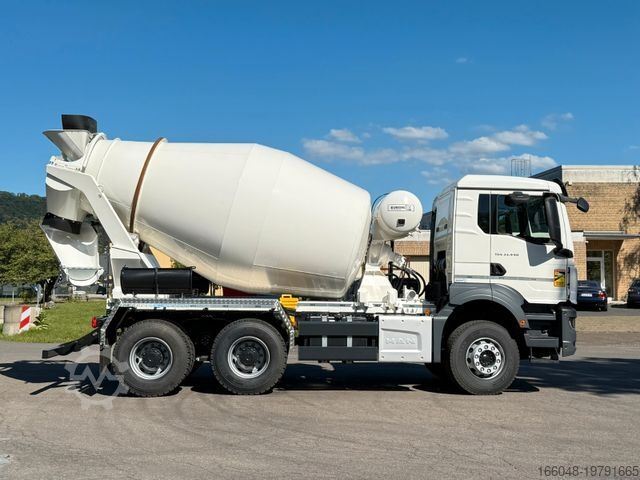

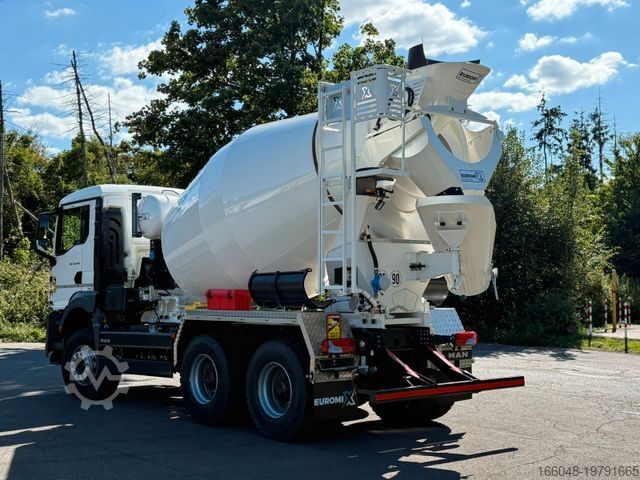

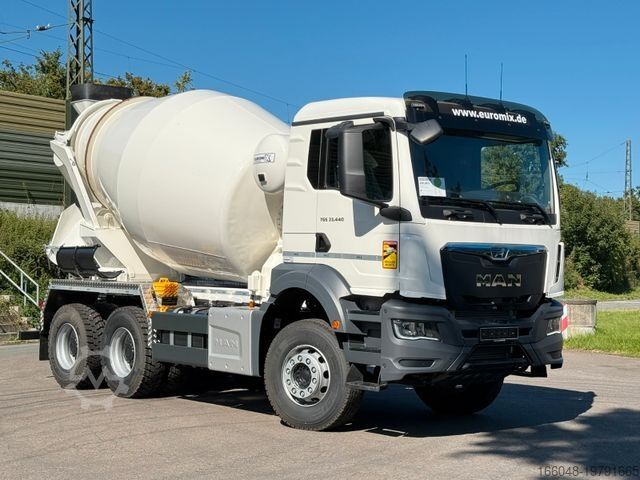

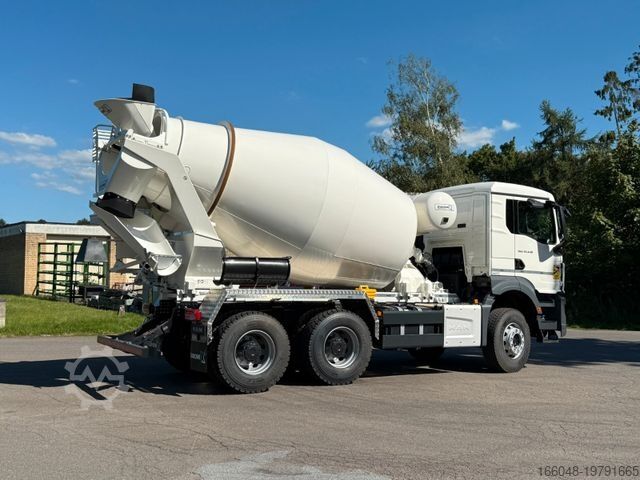

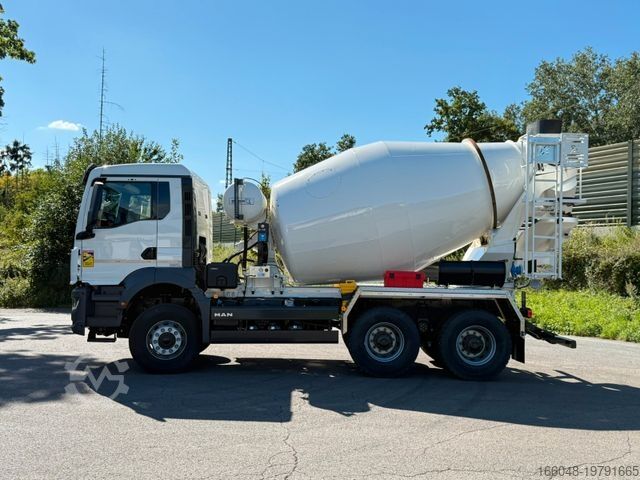

MAN 33.440 BB 6x4 EURO 6e Euromix MTP EM 7 L Concrete Mixer

(Also available as 6x6)

- NEW - without registration -

* (RENTAL AVAILABLE)

Vehicle Equipment:

• MAN D2676 LFAZ diesel engine, 324 kW (440 hp) output, 2,250 Nm torque, Euro 6e
• MAN TipMatic 12.28 OD gearbox - MAN TipMatic Offroad driving program, up to 70,000 kg
Djc Ed Djw N U Hvsdcowb
• Front axle tires, choice of 315/80R22.5 steer-S+G TL
• Rear axle tires, choice of 315/80R22.5 drive-S+G
• Front axle, 9,000 kg, AP axle non-driven, straight, steered
• Rear axle HP-1352, 13,000 kg, AP axle non-driven, straight, non-steered
• Axle ratio i=3.63
• 3,300 mm main wheelbase
• Suspension type leaf/leaf (BB)
• Trailer hitch on rear crossmember, RINGFEDER type RF50 A

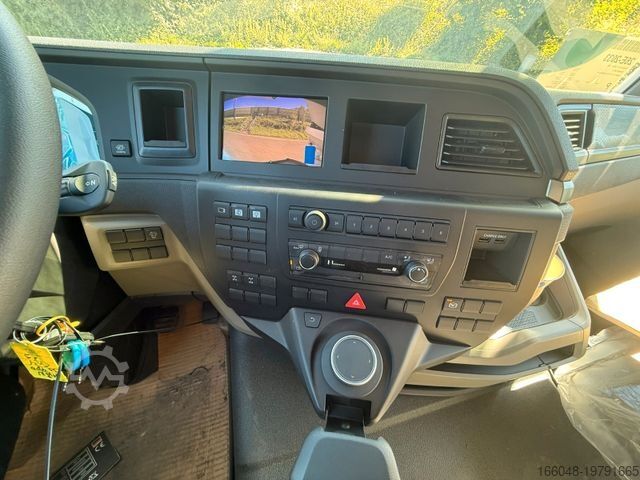

• MAN Media System Advanced Navigation 7-inch
• LED daytime running lights

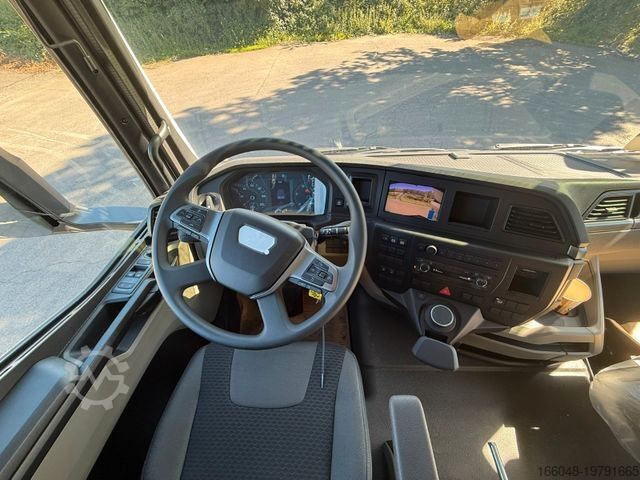

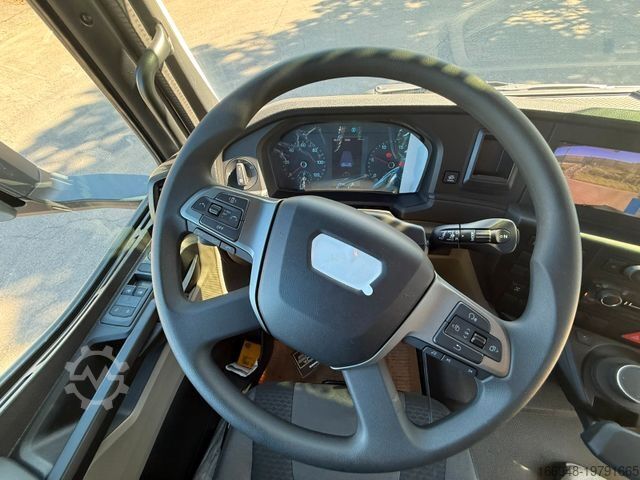

• Multifunction steering wheel, height and tilt adjustable

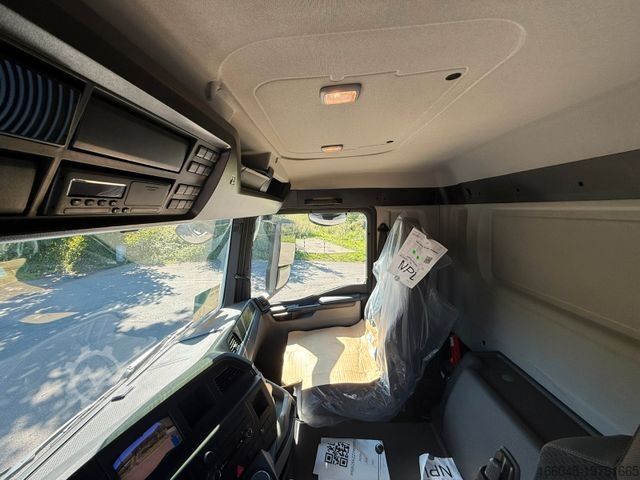

• M-length cab (mid-length)
• Air deflector to reduce dust turbulence
• Cruise control (FGR)
• Air conditioning
• Noise reduction to 80 dB (92/97EWG)
• Raised air intake with dry air filter / pre-separator
• Differential lock
• Fuel tank 300l left and 35l AdBlue
• Three-part steel bumper
• MAN BrakeMatic (electronic brake system)
• Central locking
• Sun visor

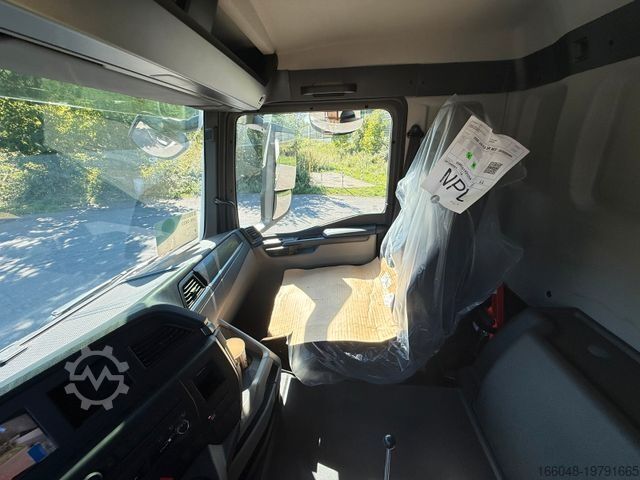

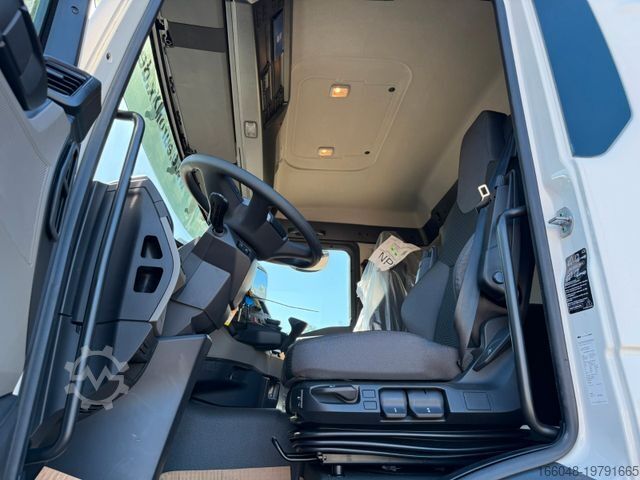

• Air-sprung comfort driver seat
• AUX-in/USB in dashboard

EUROMIX MTP - Mixer Superstructure EM 7 L

• Model: EM 7 L
• Nominal capacity 7m³ ready-mix concrete
• Lightweight mixer drum design
• Mixer drum in lightweight design made of HARDOX S450
• Mixing spirals in lightweight design made of HARDOX S500
• Gearbox make ZF-P5300
• Hydraulic pump make Bosch Rexroth
• Hydraulic motor make Bosch Rexroth
• Integrated oil cooling system make ASA
• Mixing control mechanical and start-stop electrical
• Compressed-air water system
• Water connection on platform with hose line
• Water filling pipe on one side with C-coupling
• Mixer drum with service hatch
• Access ladder with platform
• Rubber extension on charging hopper
• Swiveling, single-arm discharge chute made of steel
• Wear plates in charging hopper, discharge tray, and swivel chute
• Drum locking for securing drum during maintenance
• Polyurethane primer
• Weight approx. 3,120 kg, tolerance +/- 5%
• With emergency stop function according to EU safety standards
• Aluminum mudguards over rear axles
• 2x extension chutes, steel or plastic
• Water system
• Water tank 500L (compressed air)
• Steel water tank
• Shut-off valve mounted below the water tank in the filling line
• Water connection 'C'-coupling
• Controls & electrics
• Mixer controls – mechanical, rear
• Start-stop system (for EDC)
• Geometric volume 12,000 L
• Water tank volume 7,310 L
• Tank inclination 13.6°
• Length 6041 mm
• Width 2300 mm
• Height 2628 mm

Optional equipment:

• Extension chute plastic – steel – aluminum
