Автобетоносмеситель EUROMIX MTP

Описание

X TO GO?EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES, FROM OUR LOCATION IN PORTA WESTFALICA/GERMANY.
FOR ALL CUSTOMERS WHO ARE IN AN ACUTE DEMAND SITUATION. (SHORT-TERM CAPACITY EXTENSION OR REPLACEMENT INVESTMENT)Your advantages:
Complete vehicles ready for immediate use (concrete mixer/tipper)Immediate availability directly from the manufacturer
Nsc R Nc Iovh Ac Eofnswh
* body, assembly, commercial vehicle
* Best price/performance ratio
* Financing options
* Trade-in of your old vehicles

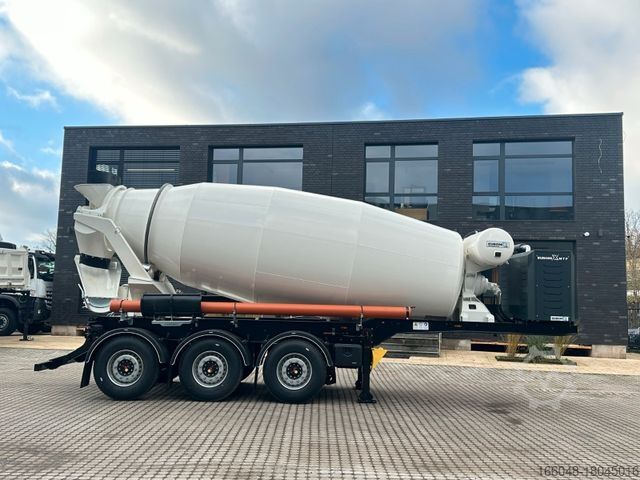

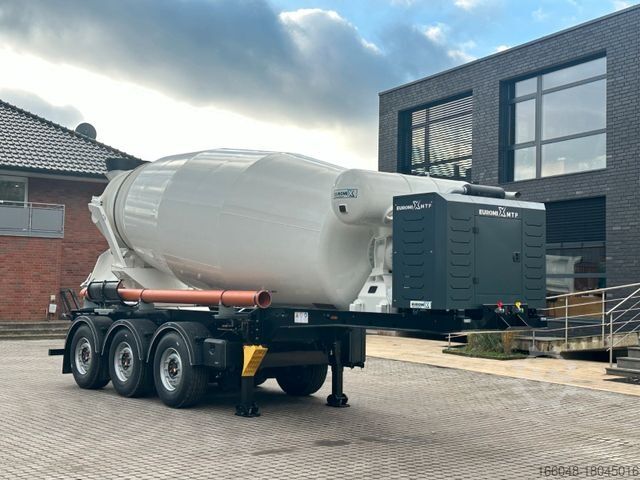

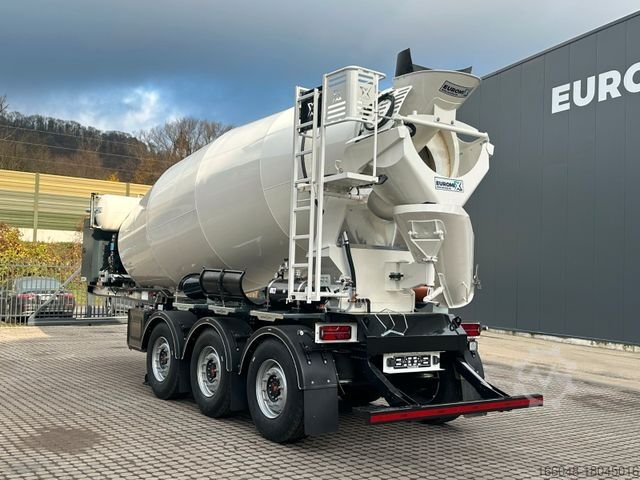

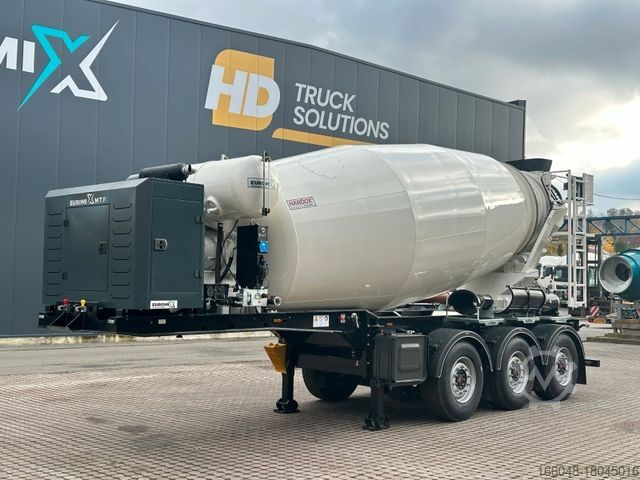

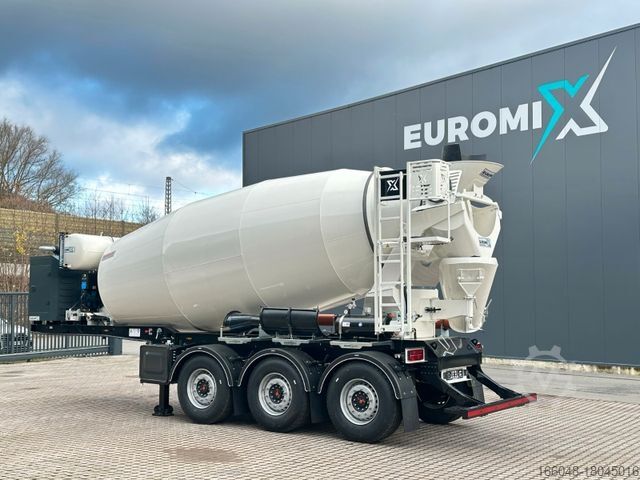

EUROMIX MTP 12 cbm mixing trailer
EUROMIX MTP - Truck mixer body EM 12 R - Regular
* Model: EM 12 R
* Nominal volume 12m³ ready-mixed concrete
* Mixing drum in regular design
* Mixing drum in regular design made of the material S355
* Mixing spirals in regular design made of material S420 MC
* ZF P5300 gearbox
* Hydraulic pump Bosch Rexroth
* Hydraulic motor Bosch Rexroth
* Integrated oil cooling system
* Mechanical mixing control and electrical start/stop
* Compressed air water system
* Water connection on the stand platform with hose line
* Water filling line, with C-coupling on one side
* Mixing drum with a service flap
* Climbing ladder with platform
* Rubber attachment on the hopper

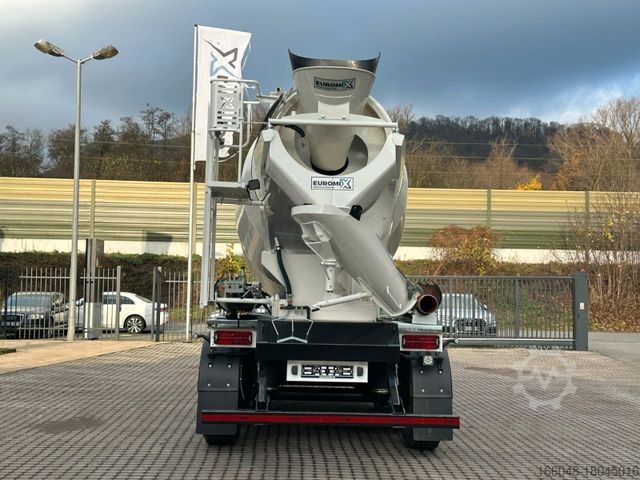

* Swivel-mounted, single-arm discharge chute made of steel
* Wear plates in the feed hopper, discharge chute and swivel chute
* Drum lock to secure the drum during maintenance work
* Polyurethane primer
* Weight approx. 4,725 kg, deviations +/- 5%
* With emergency stop function in accordance with EU safety technology
* Steel wing above the rear axles

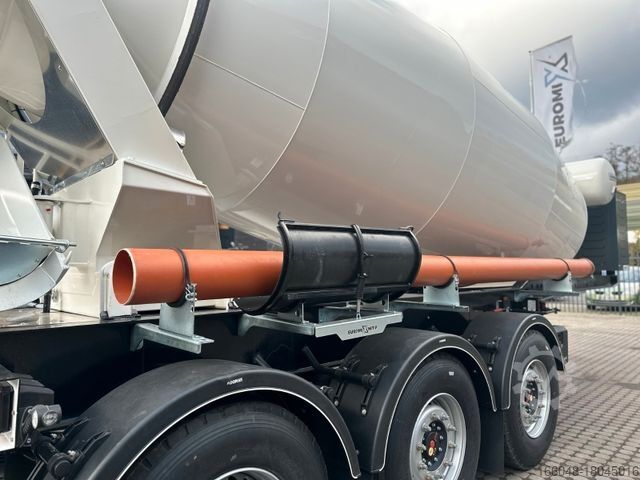

* 2x extension chutes made of steel or plastic
* Water system
* 650l water tank (compressed air)
* Steel water tank
* Shut-off valve mounted below the water tank in the filling line
* Water connection ?C? coupling,
* Operation & electrics
* Mixer operation ? mechanical at the rear
* Start-stop system (with EDC)
* Geometric volume 19420 L
* Water tank volume 12787L
* Inclination of the tank 10.5
* Length 7545 mm
* Width 2300 mm
* Height 2765 mm
Motor: FTP 55 kw
Mounted on Euromix MTP 3-axle semi-trailer
Vehicle type: EuromixMTP KIS 24 3-axle truck mixer chassis
Axles with short link ratio (310/340) for prefabricated use 1 including
Axle 9to SAF 22.5" disc brake, single tires for air suspension 3 including
Track width of the axles: 2040 mm (standard dimension) 3 including
Axle spacing approx. 1400 mm / 1400 mm 1 including
EBS brake system
385/65 R 22.5 tires
Plastic mudguards, 180 degrees, above each axle (for 3 axles) 1 including
Chassis painted in RAL 9005 deep black 1 including
KTL with zinc phosphating plus powder, maximum corrosion protection (only with 1 including
color availability in powder)
Tire pressure monitoring basic version, connected to CAN bus system of EBS 1 including
24 t telescopic support winch with single-sided operation and 1 including
Half-round with base plate
Axle loads: 24 000 kg (3 x 8000 kg, technical: 3x 9000 kg) 1 including
Chassis length approx. 8570 mm 1 including
