Автобетононасос MERCEDES-BENZ 3243B 8x4/Pumi FBP Stetter 29-4/7m3/100er/ALCOA

Описание

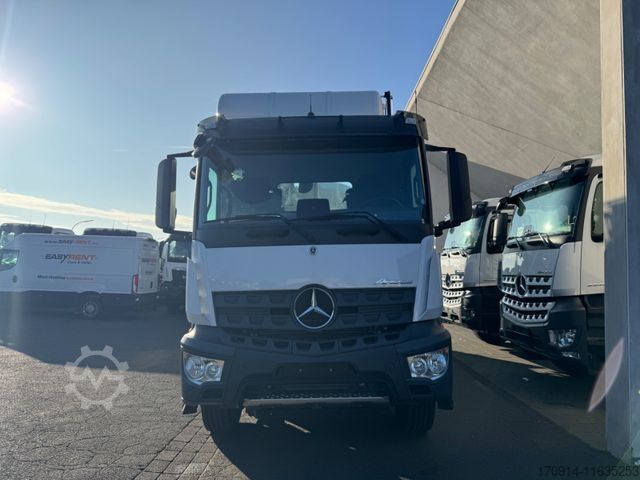

Mercedes Benz Arocs 5 3243B 8x4 EURO6 OBD-E with Stetter FBP 29-4 with 7m3 and 100mm piping (PUMI)
?ALUMINUM rims, Dura-Flange, Alcoa?
First registration: without registration
Km: 500
Color: Arctic white
Technical data
* KW 315
* HP 428
* Tires front and rear 315/80R22.5
* Total weight 32000
* Emissions class Euro 6, OBD-E
* Gearbox: automatic, Mercedes Powershift 3
* Condition new vehicle
Chassis equipment
* M cab Classic-Space, 2.30m, tunnel 320mm
* Cab suspension comfort
* Front axle 7.5t straight version
* Front spring 2x 7.5t 4-leaf
* Rear axle, crown gear 233, planets 13.4t
* Rear spring 2x 10t, hard
* ALU rims, Dura-Flange, Alcoa
* Gearbox oil cooling
* High Performance Engine Brake
* Air intake from the front

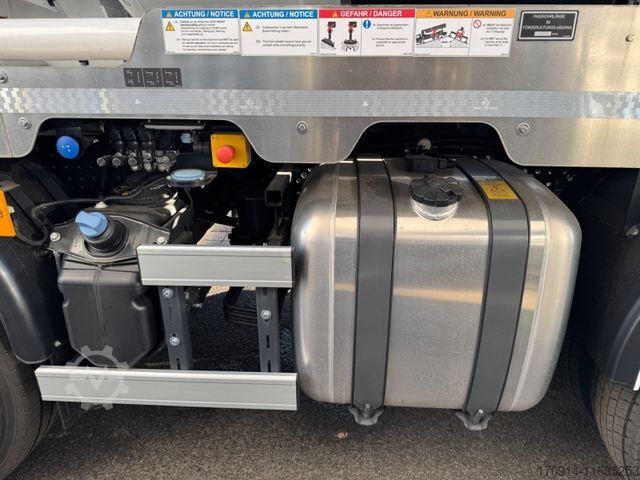

* Tank 320L aluminum + 25L AdBlue
* Disc brakes front and rear
* Sun visor
* Air conditioning
* ABS + ASR
* Driver comfort suspension seat, velour leather

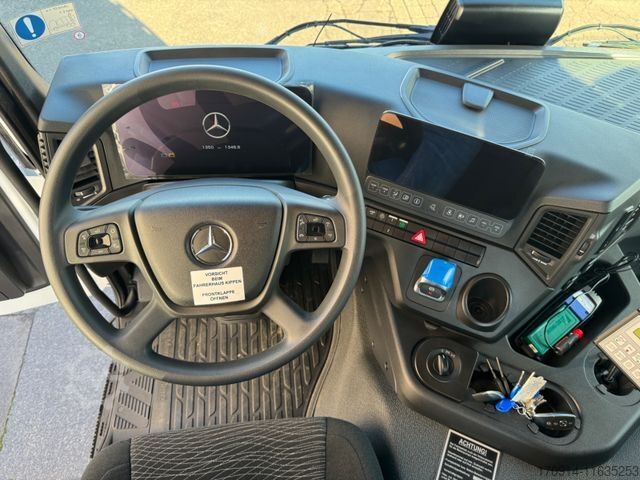

* Multimedia interactive including navigation and Bluetooth
* Reversing alarm
* Pre-installation for CB radio and toll collection
* Daytime running lights
* Pre-installation for rotating beacons
Structure equipment

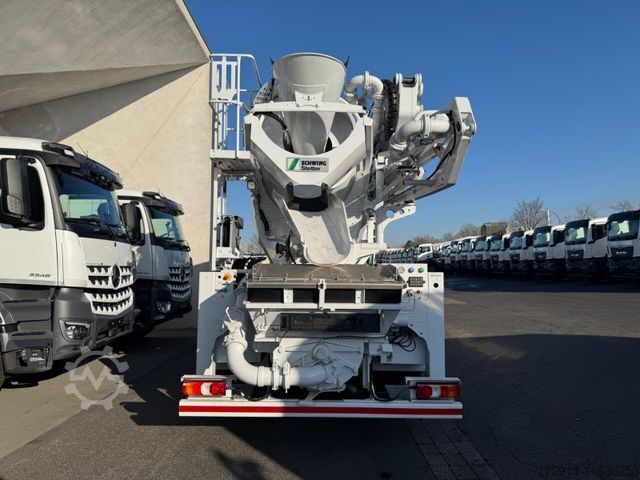

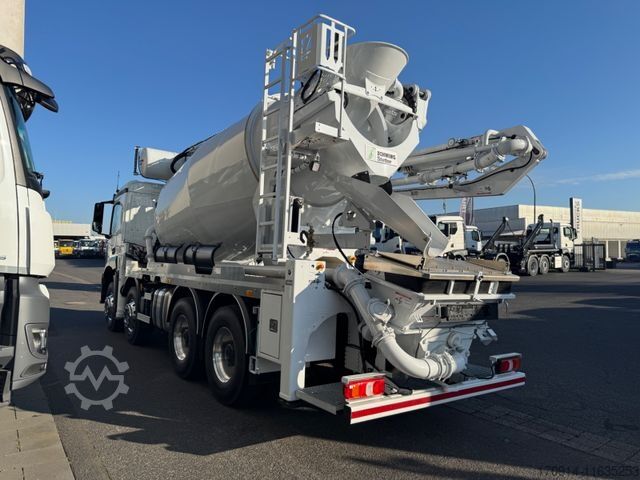

* Schwing-Stetter truck mixer concrete pump FBP 29-4 with 7m3 drum
* Concrete delivery line: Super 2000
* Pipe diameter: 100mm
* Range: 23.70m
* Reach height: 28.26m
* Distribution boom FBP 29/4
* 4-arm distribution boom
* Swivel range 380°
* Pump type: P1020-90/50
* Theoretical delivery rate: 61m3/h
* Vector control
* Filling height approx. 1350mm
* Conveyor cylinder diameter 200mm
* Water tank 650l with clock

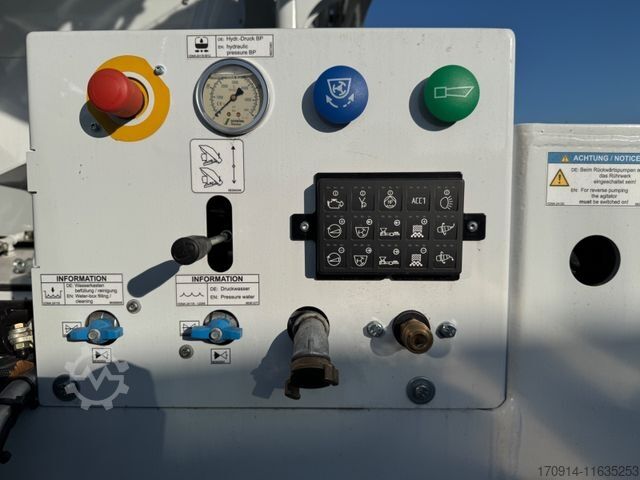

* Radio remote control
* Work lights
* Truck mixer AM 7 C4 FBP
* Material: Hardox 500 TUF (Hardox 500 TUF spirals)
* Nominal filling: 7m3
Technical specs
* KW 315
* HP 428
* Front+rear tires 315/80R22.5
* kg total weight 32000
* Emission class Euro 6, OBD-E
* Transmission: automatic, Mercedes Powershift 3
* Condition new
Equipment chassis
* M Cabine Classic Space, 2.30m, tunnel 320mm
* Cabin's suspension comfort
* Front axle 7.5t, straight, springs 2x 7.5t
* Rear axle, 13.4t, springs 2x 10t
* Oil gearbox cooling
* Aloy rims, Alcoa
* High performance engine brake
* Tank 320L aluminum + 25L AdBlue
* Sun visor
* Air conditioning
* Disc brakes front + rear
* ABS + ASR
* Driver?s seat comfort
* Multimedia Interavtive, including Navigation and Bluetooth
* Warning signal in reverse gear
* Pre-preparation for CB Radio and Toll Collect
* Daylight
* Pre-preparation for 2 signal lights on roof
Nwec R Nc Ifjndcvzensh
Equipment construction
* Schwing-Stetter pump-mixer unit FBP 29-4 with 7m3 concrete mixer
* Pipes: Super 2000
* Diameter: 100mm
* Vertical reach: 23.70m
* width: 28.26m
* Placing boom FBP 29/4
* 4 arms
* Pump type: P1020-90/50
* Theoretical concrete delivery rate: 61m3/h
* Control system VECTOR
* Swivel range 380°
* Filling height aprox. 1350mm
* Conveying cylinder 200mm
* Watertank 650l, water measure clock
* Control system
* Working lights
* Concrete mixer AM 7 C4 FBP
* Material Hardox 500 TUF (spirals Hardox 500 TUF)
* Volume: 7m3
Non-binding offer ex Cologne.
Subject to prior sale and errors. Sale to businesses only.
Non-binding offer EXW Cologne.
Intermediate and mistakes excepted. Sale to businesses only.
