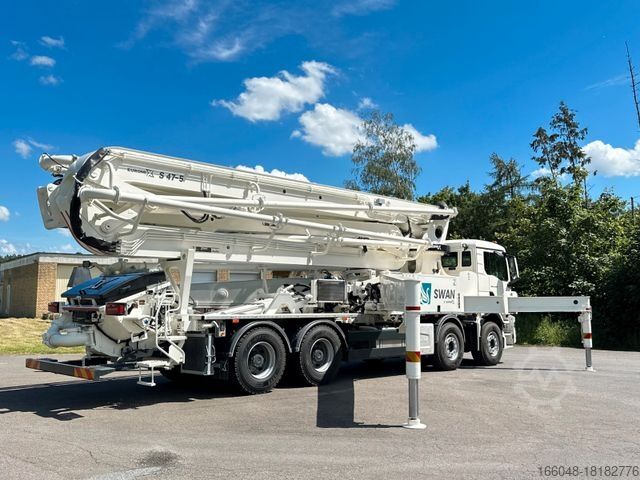

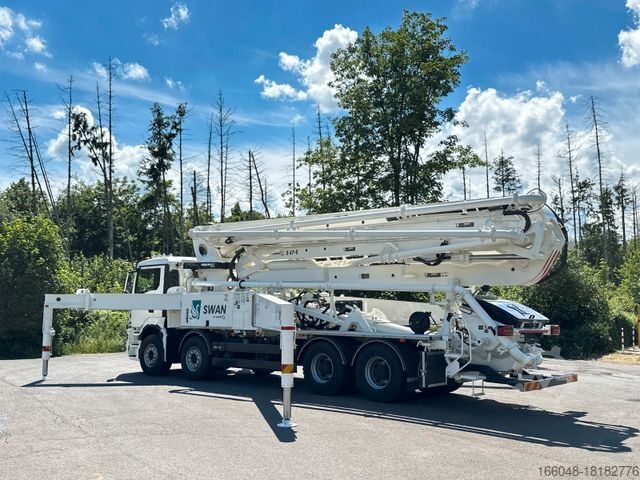

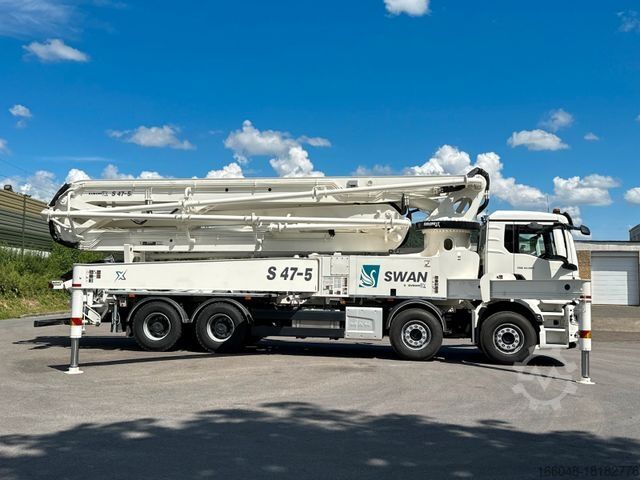

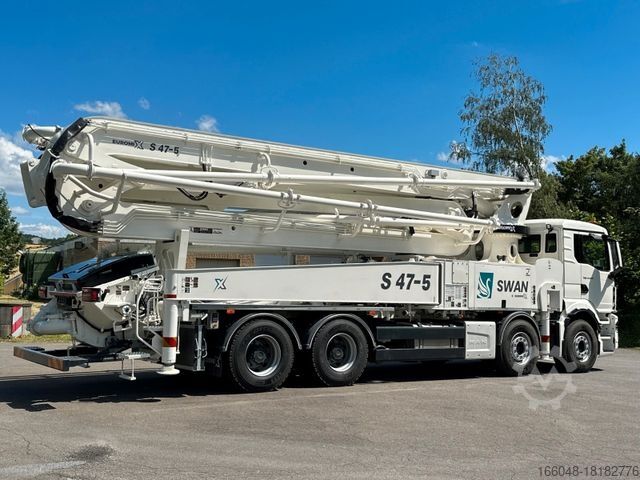

Автобетононасос MAN TGS 41.520 8x4 SWAN TSP 47-5 160RZ ( 47m )

Описание

X TO GO?EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES, FROM OUR LOCATION IN PORTA WESTFALICA/GERMANY.
FOR ALL CUSTOMERS WHO ARE IN AN ACUTE DEMAND SITUATION. (SHORT-TERM CAPACITY EXTENSION OR REPLACEMENT INVESTMENT)Your advantages:
* Complete vehicles ready for immediate use (concrete mixer/tipper)Immediate availability directly from the manufacturer
* body, assembly, commercial vehicle
* Best price/performance ratio
* Financing options
* Trade-in of your old vehicles

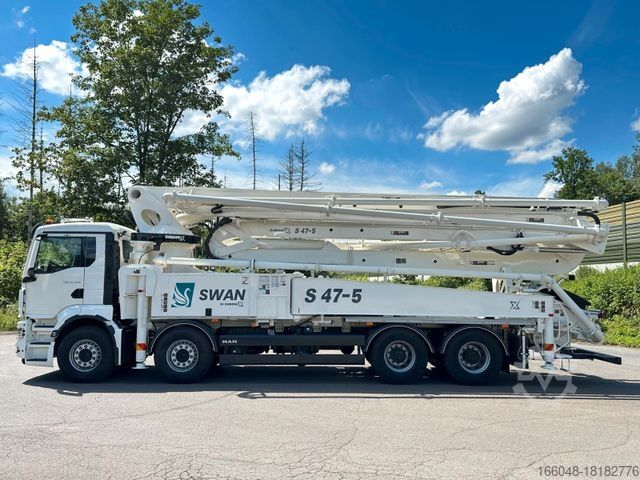

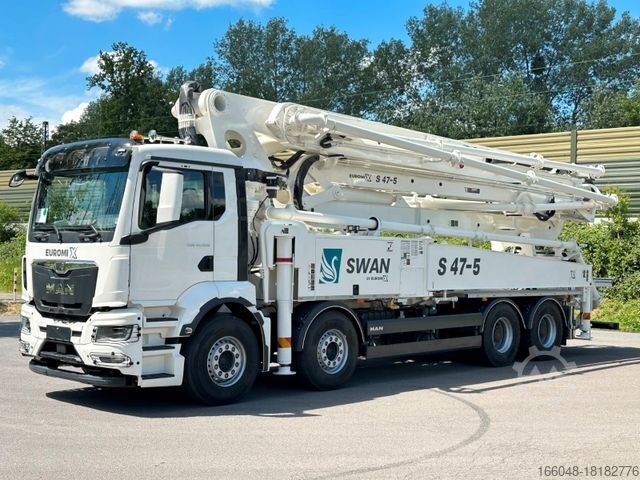

MAN TGS 41.520 BB 8x4 EURO 6e
Concrete pump EuromixMTP
SWAN TSP 47-5 160RZ
* ( rental possible )
- NEW NEW - withaut registration - without registration -
Vehicle equipment:
* MAN D2676 LFBA diesel engine, 382 kW (520 hp) output, 2,500 Nm torque, Euro 6e
* Manual gearbox, MAN 16.25 OD
* Front axle, 9,200 kg, non-driven, cranked, steered, non-liftable
* Rear axle, 13,000 kg, AP axle with through drive, straight, non-steered, non-liftable
* Suspension type leaf/leaf (BB) on front axles and driven rear axles
* Optional front axle tires 385/65R22.5 Steering S+G TL (160 K)
* Rear axle tires optionally 315/80R22.5 drive S+G TL (154/150 K)
* 4,105 mm main wheelbase - 1,795 mm wheelbase between front axles
* L-plate and low-noise certificate (in accordance with KDV 1967)
* 390 l tank capacity fuel tank, 35 l tank capacity AdBlue tank,
* ABS - EBS - ESP - FGR - EBA - LDW
* MAN EVBec high-performance engine brake, steppable
* Drum brakes on 2nd front axle - Drum brakes on rear axle
* Multifunction steering wheel, height and tilt adjustable
* Professional 12.3-inch instrument cluster
* Air conditioning, Climatronic
* Additional water heater, 4 kW
* Cool box partition grille and multiple cool box lid lock
* MAN Media System Professional Navigation 12.3 inch
* MAN sound system
* Europe navigation map

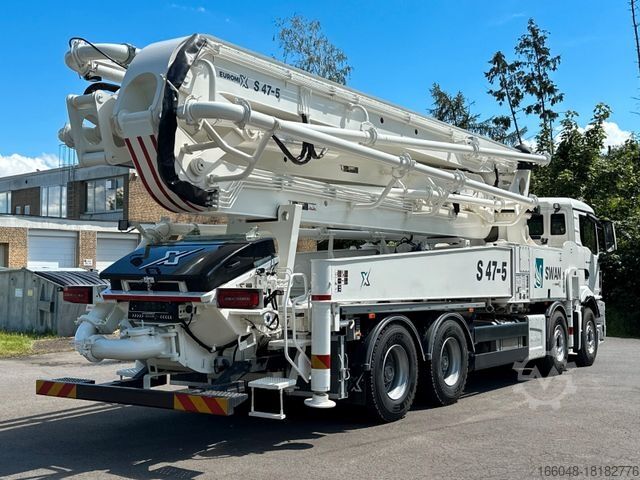

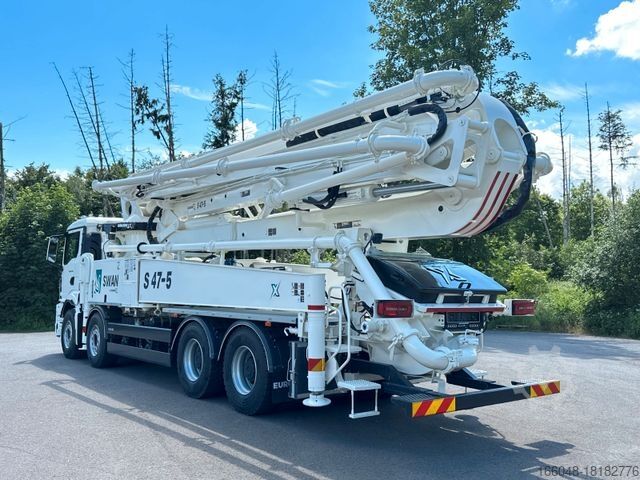

EUROMIX MTP - Concrete pump SWAN TSP 47-5 160RZ
Model: SWAN TSP 47-5 160 RZ
Section: Concrete pump:
Max. theoretical concrete capacity : 160 m³/hr
Max. theoretical concrete pressure : 85 bar
Stroke 30 per min
Delivery cylinder: Ø2100 mm x Ø230 mm
Hydraulic main cylinder : Ø2100 mm x Ø140 x Ø80 mm
Nwoc R Ncevm Rx Eo Ifnsh
Concrete valve: S-valve water pump: 20 l/min - 170 bar
Water tank: 800 l, 12 m hose with spray gun
Concrete hopper : 600 liters
Lubrication : Lincoln automatic lubrication for hopper group
Hydraulic pumps : Rexroth 2xA4VG145, Rexroth A10VO28
Rexroth A17FO045, Blue Ascend AP 20.140/115
Switching system : Magnetic sensor (proximity switch)
Control box : DIGITEX, waterproof
Remote control : Scanreco remote control + 30 m cable

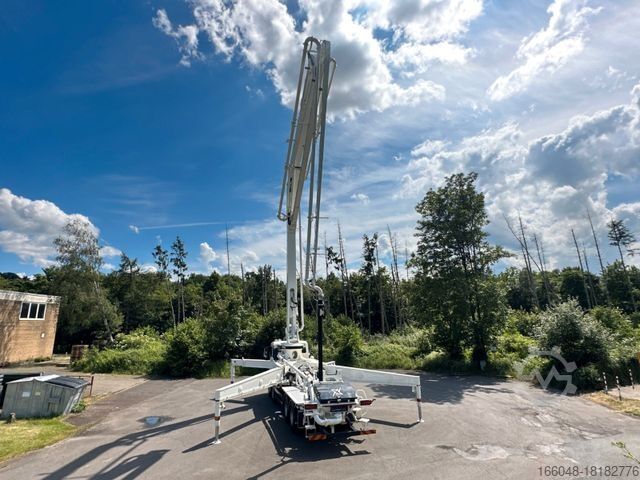

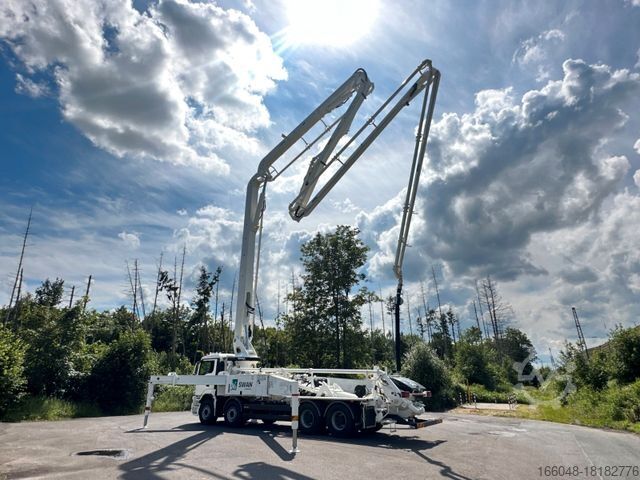

Section : Boom:

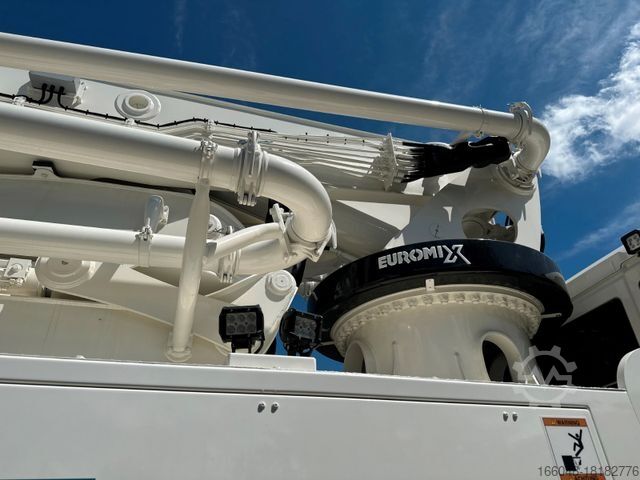

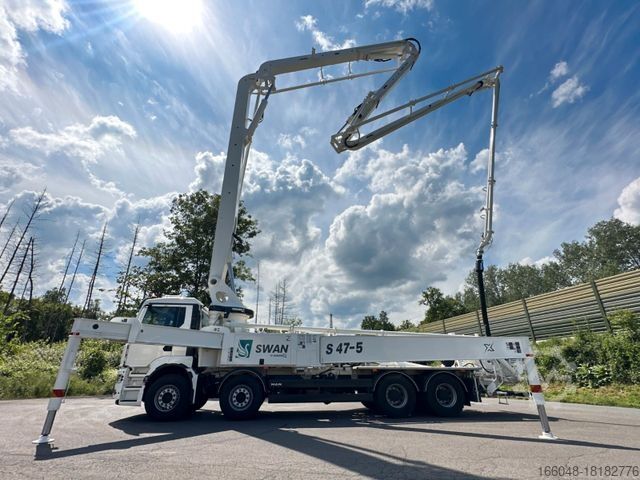

Boom S 47-5 ( boom 5 sections, RZ folding )
Type : RZ-folding

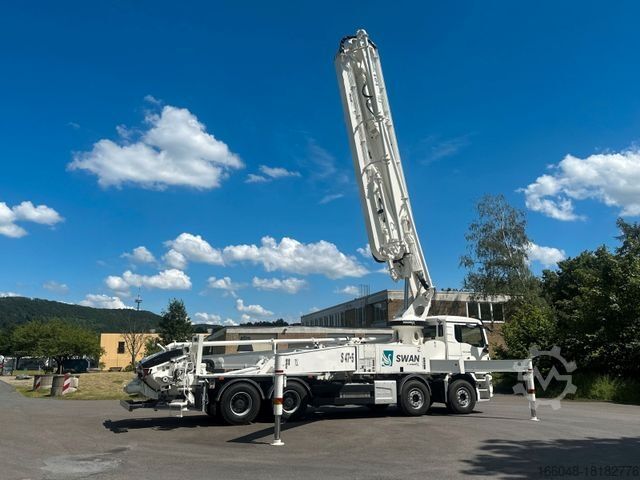

Max. Vertical reach : 46.8 m (without end hose)
Max. Horizontal reach : 42,8 m (without end hose)
End hose : 3m single flange, DN 125
Platform type: X-type
Swivel head: 365 degrees
Rotation speed: 0.3 RPM
Delivery line diameter: 125 mm (outer diameter 132 mm) 5.5" flanges & couplingsControl system

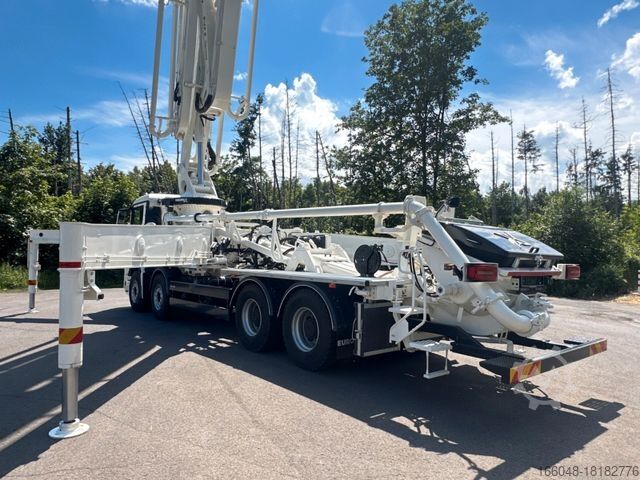

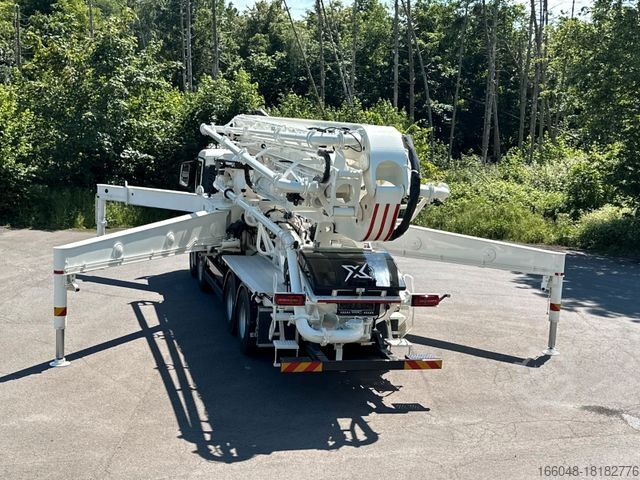

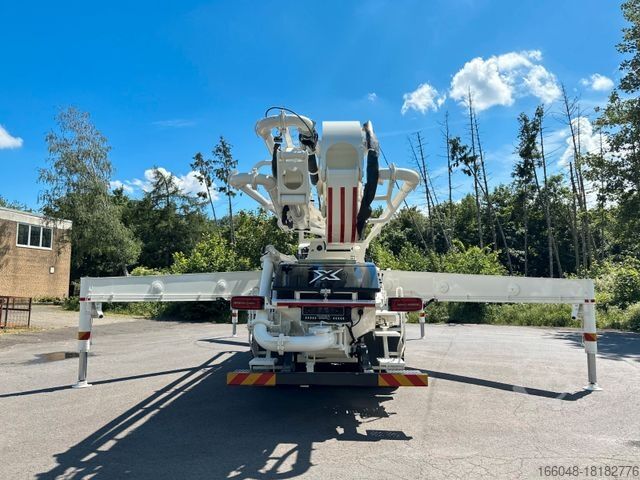

Distance between the front legs: 8.6 m
Distance between the rear legs: 8.7 m
