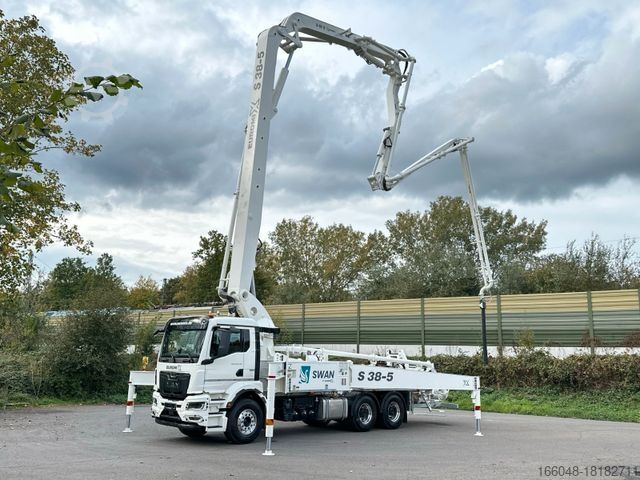

Автобетононасос MAN TGS 26.510 6x4 SWAN TSP 38-5 160RZ ( 38m )

Описание

X TO GO?EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES FROM OUR LOCATION IN PORTA WESTFALICA/GERMANY.
FOR ALL CUSTOMERS WHO ARE IN AN ACUTE NEED SITUATION. (SHORT-TERM CAPACITY EXPANSION OR REPLACEMENT INVESTMENT)Your advantages:
* Complete vehicles ready for immediate use (concrete mixer/tipper)Immediate availability directly from the manufacturer
* Construction, assembly, commercial vehicle
* Best price/performance ratio
* Financing options
* Trade-in of your old vehicles
MAN TGS 26.510 BB 6x4 EURO 6e
Concrete pump EuromixMTP
SWAN TSP 38-5 160RZ
* (Rental possible)
Njc R Nc Ifsvm Rv Donswh
- NEW - without registration -
Vehicle equipment:
* MAN TipMatic 12.28 OD - MAN TipMatic Offroad,-TipMatic Efficiency,
* 300 l tank volume - 35 l tank volume AdBlue tank
* High-performance engine brake MAN EVBec, adjustable
* Roll-off lock MAN EasyStart
* Differential locks driven rear axles
* Leaf/leaf suspension type (BB) on front axles and driven rear axles
* Sun visor, in front of the windshield
* Windshield wiper operation, automatic, with rain sensor (automatic wiper)
* Daytime running lights, LED - high beam assistant - work lights on the rear cab,
* Exterior rear view mirror, electrically adjustable, heated
* Driver's comfort seat, air-suspended - driver's seat armrests
* Multifunction steering wheel, height and inclination adjustable
* Preparation for toll collection system Toll Collect
* Tachograph, digital, with remote communication (according to DSRC), CONTINENTAL
* Color ambience Moon Grey for the driver's cab interior
* Air conditioning, manual
* Lifting roof, mechanical - rear wall of the driver's cab, with window
* 2 sockets, driver's cab roof shelf, 12 V and 24 V
* Traction control (ASR)
* Cruise control (vehicle speed control FGR)
* Lane departure warning system LDW
* MAN Mediasystem Advanced 7 inch
* MAN Soundsystem Advanced - smartphone Integration
EUROMIX MTP - Concrete pump SWAN TSP 38-5 160 RZ
Model: SWAN TSP 38-5 160 RZ
Section: Concrete pump:
Max. theoretical concrete capacity: 160 m³/hr
Max. theoretical concrete pressure: 85 bar
Stroke 30 per min
Feed cylinder: Ø2100 mm x Ø230 mm
Hydraulic main cylinder: Ø2100 mm x Ø140 x Ø80 mm
Concrete valve: S-valveWater pump: 20 l/min - 170 bar
Water tank: 600 l, 12 m hose with spray gun

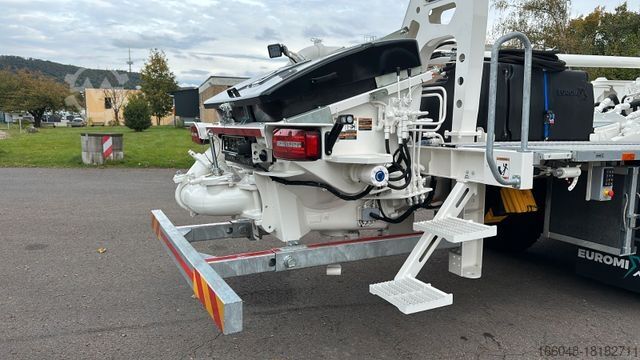

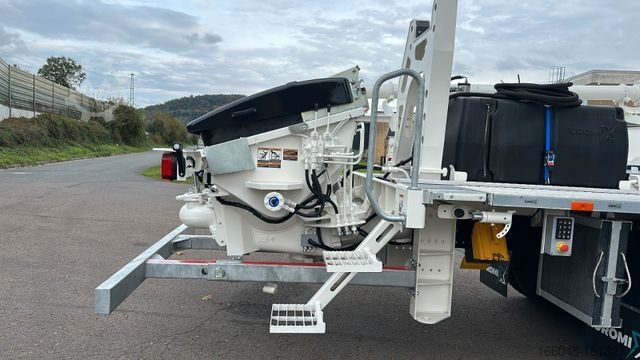

Concrete hopper: 600 liters

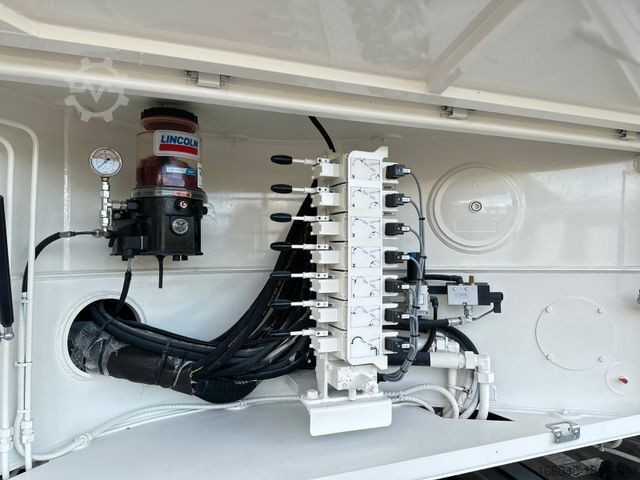

Lubrication: Lincoln Automatic lubrication for hopper group
Hydraulic pumps: Rexroth 2xA4VG145, Rexroth A10VO28
Rexroth A17FO045, Blue Ascend AP 20.140/115
Switching system : Magnetic sensor (proximity switch)

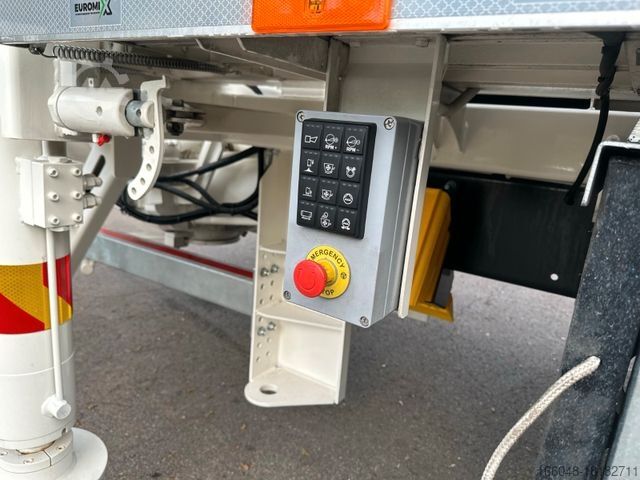

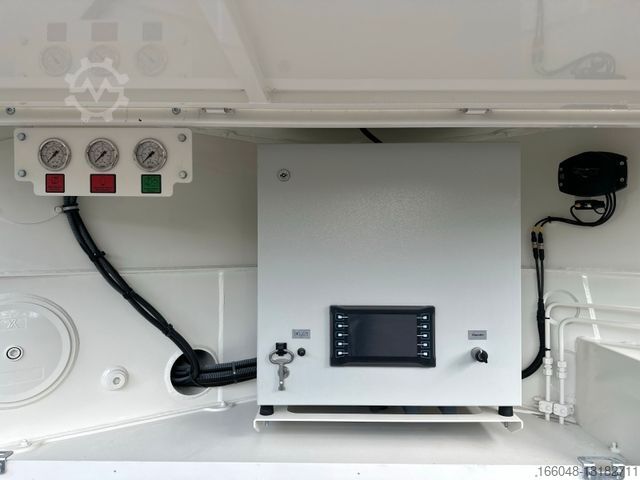

Control box : DIGITEX, waterproof

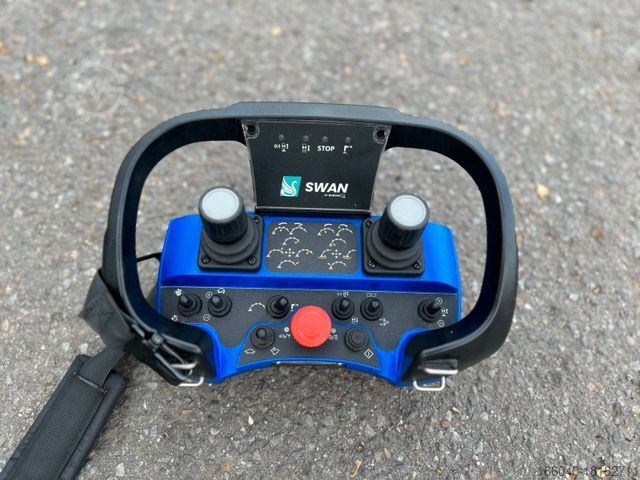

Remote control : Scanreco remote control + 30 m cable
Section : Boom :

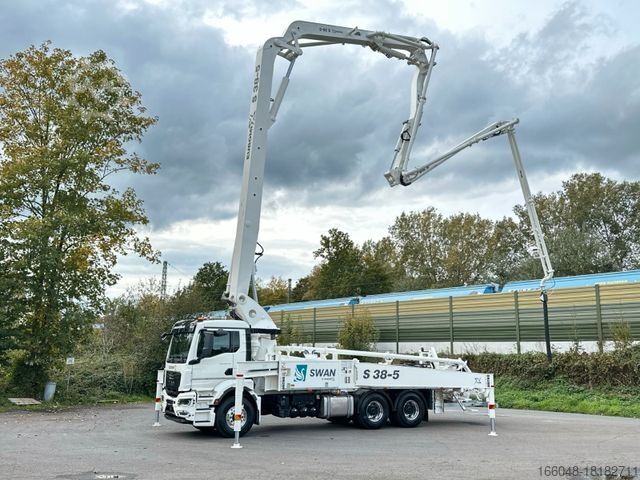

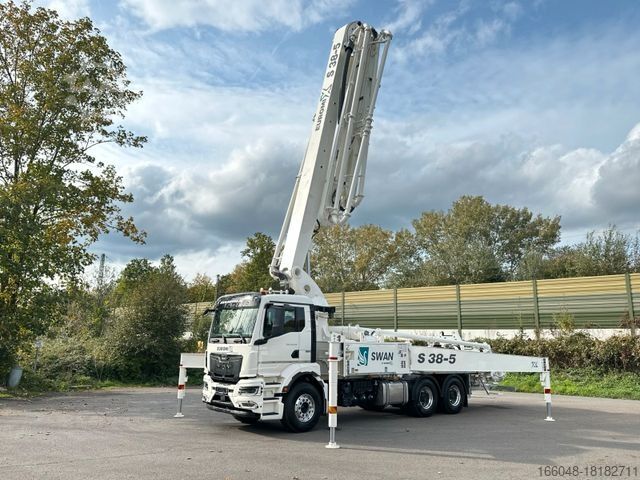

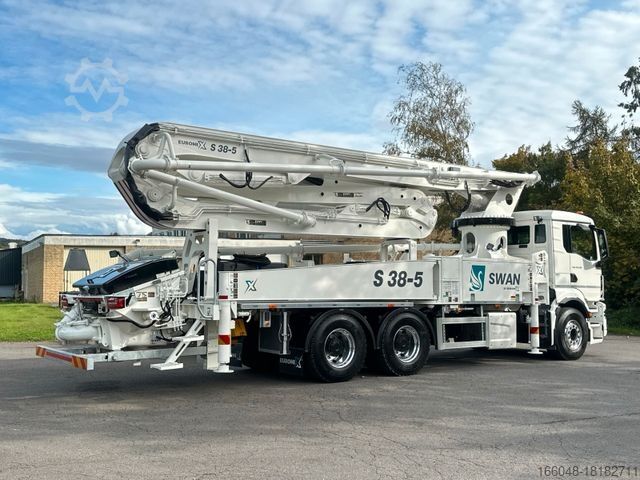

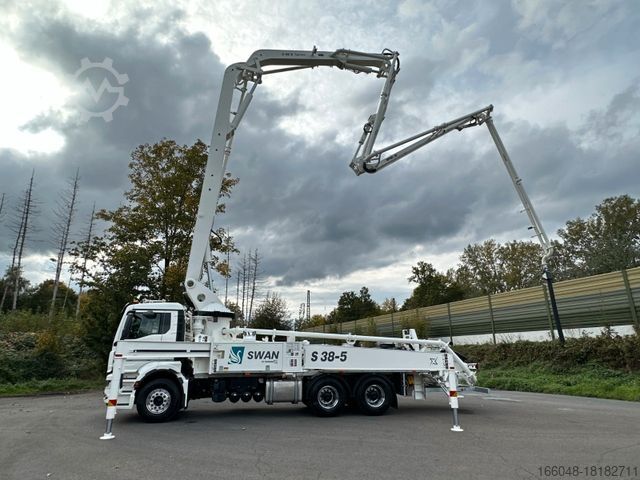

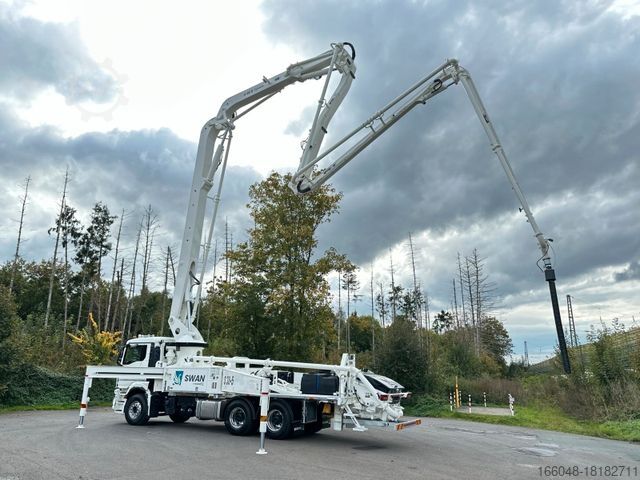

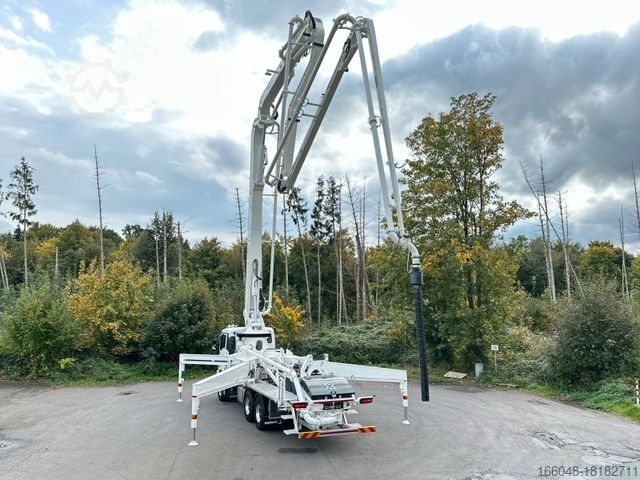

Boom S 38-5 (Boom 5 sections, RZ folding)
Type : RZ folding
Max. vertical reach : 37.5 m (without end hose)
Max. horizontal reach : 32.7 m (without end hose)
End hose : 3m single flange, DN 125
Pedestrian type : X-type
Rotary ring : 365 degrees
Rotation speed : 0.3 RPM
Diameter of the conveyor line : 125 mm (outer diameter 132 mm) 5.5" flanges & CouplingsControl system
Distance between the front legs: 6.3 m
Distance between the rear legs: 8.2 m
