Кран-манипулятор на шасси грузовика VOLVO FH 540 6x2 Container Fassi F545 Heck

Описание

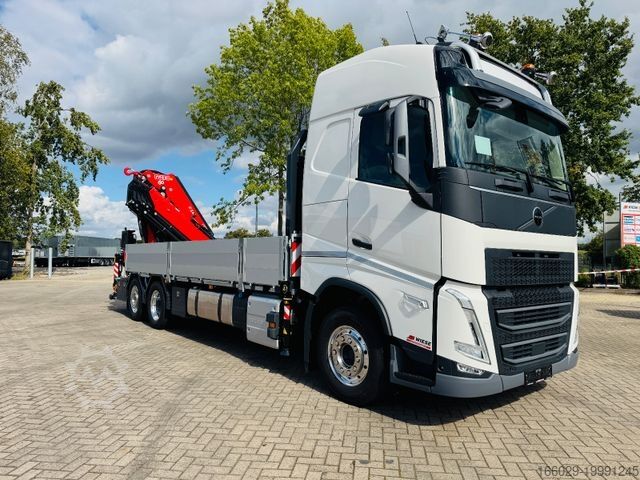

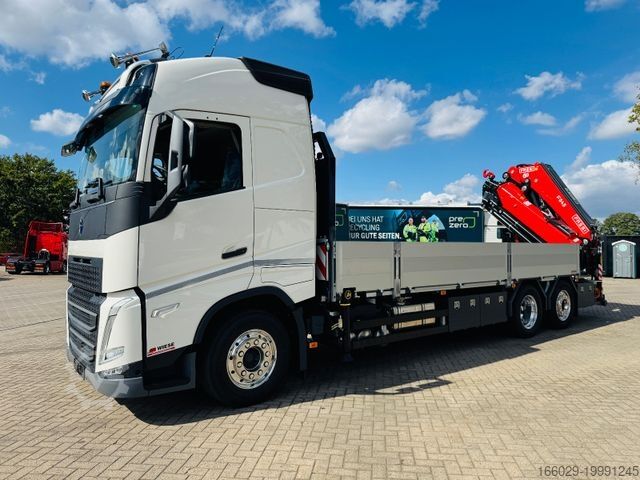

Volvo FH 540 6x2 container platform with Fassi F545 2.26 rear crane

A-dimension 10770 mm
Loading height 1150 mm
Drop sides 600 mm
FH 540 6x2 chassis CHH-MED, NLA hydr. steered, single ber.
* New model
* Electro-hydraulically steered trailing axle, single tires
* Globetrotter safety cab
* Wheelbase 4,900 mm
* Euro 6
* Diesel engine 12.8 l, 551 hp/405 kW, 2652 Nm
* Volvo Engine Brake+ (VEB+)
* Liftable axle
* AA tires 315/60R22.5
* FH rest package, one bed
* Auxiliary heating cab 2 KW
* Cool box with freezer compartment33 L
* Info and media package with navigation
* Light and visibility package plus
* Rain sensor
* LED main headlights
* Automatic headlight range adjustment
* Headlight cleaning system
* Air suspension on front axle
* Volvo dynamic Steering(VDS)
* Disc brakes
* EBS
* Rear air suspension
* 505 L aluminum tank right

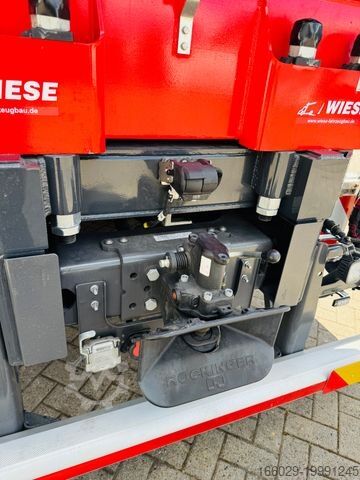

* Rockinger 400 G-150 trailer coupling
* Aluminum air tank
* LED rear lights
* VA tires 385/55R22.5
* AA tires 315/60R22.5
* Double fuel filter on engine, large for poor fuel quality with water separator
* Radio reception: AM/FM and DAB/DAB +
* USB connection, 3-way

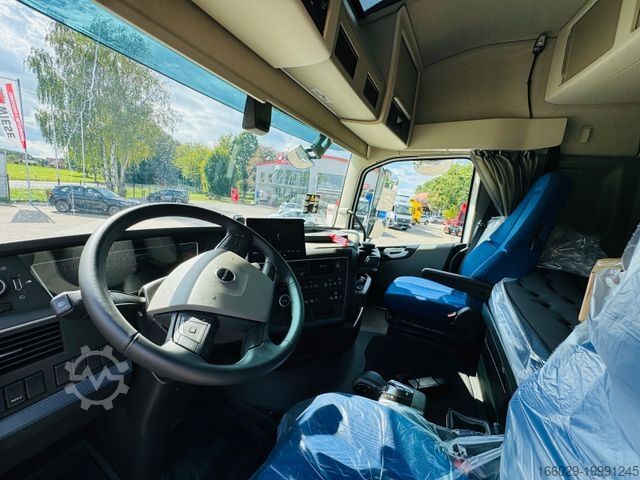

* Steering wheel adjustment, height and tilt with additional steering shaft adjustment
* ESP
* Adaptive cruise control (ACC) with collision warning and emergency braking function
* Lane departure warning with steering assistance
* Air conditioning with automatic temperature control and sun sensor
* Interior sun visor, electric roller blind
* Charge/axle load indicator in the vehicle display

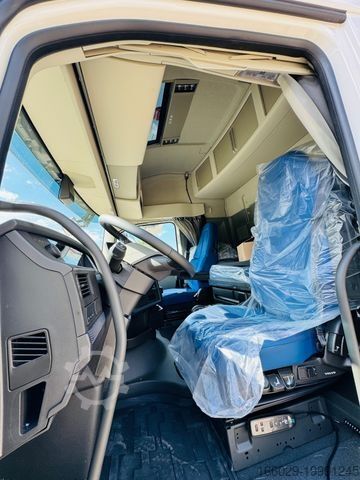

* Comfort driver's seat, air suspension, heated
* Standard front passenger seat, air suspension
* Switch console (luxury) on couch c(interior light, auxiliary heating/air conditioning, roof hatch ...
* Roof window and emergency exit can be opened electrically
* Tinted windows
* Black cab color
* Central locking with remote control
* Exterior sun visor
Hsc Edsxcc Aqe Ddcofl
* Two orange LED rotating beacons on the cab roof

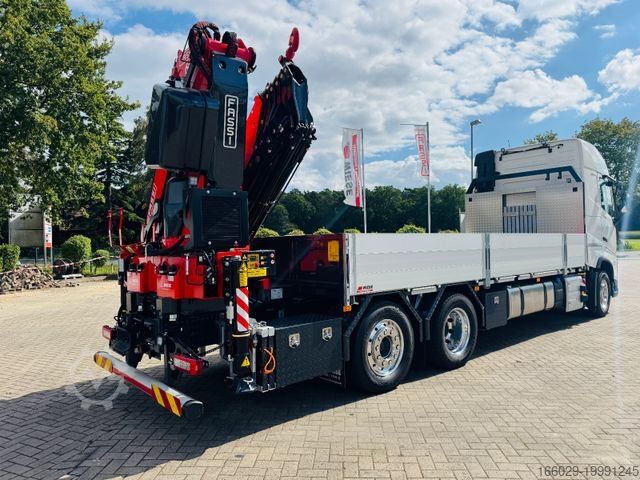

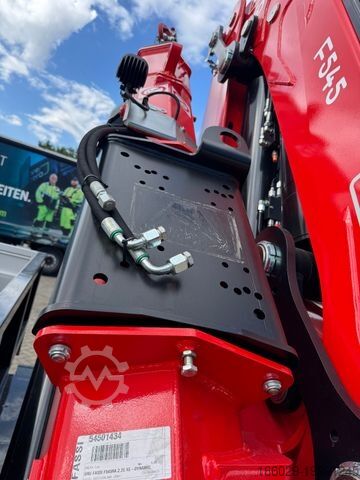

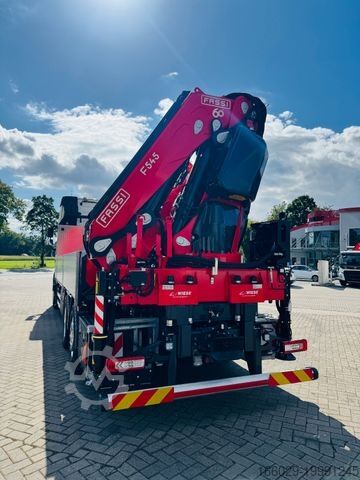

FASSI loading crane F545RA.2.26 xe-dynamic
* Endless slewing range
* All hydraulic cylinders double-acting
* XF system (extra fast) + XP system (extra power)

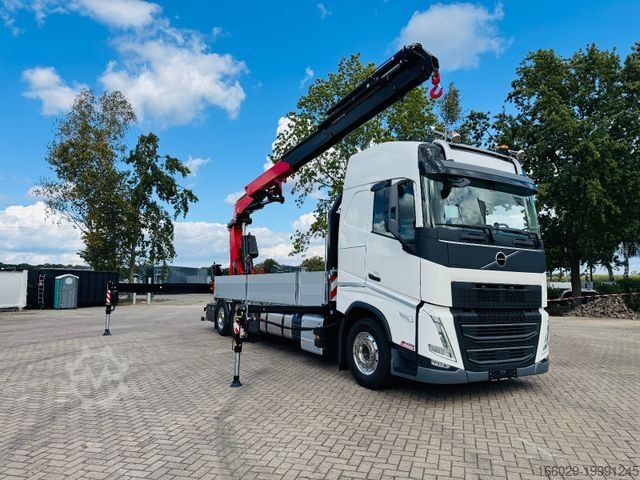

* Hydraulic outriggers, can be extended hydraulically on both sides, outrigger width 7.79 m
* Outriggers can be operated by radio

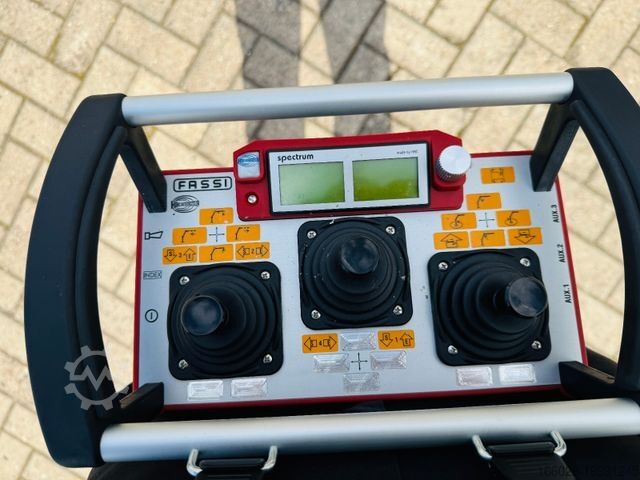

* Joystick control for 8 functions V7
* 1 LED work light on the articulated arm

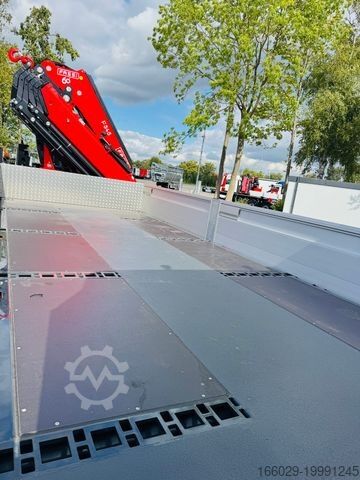

Container platform body in low design
* Straight perforated outer frame as plateau
* 2 pairs of container locks extendable to 3 for mounting 20 foot containers
* Side plywood floor 30 mm, sanded central module

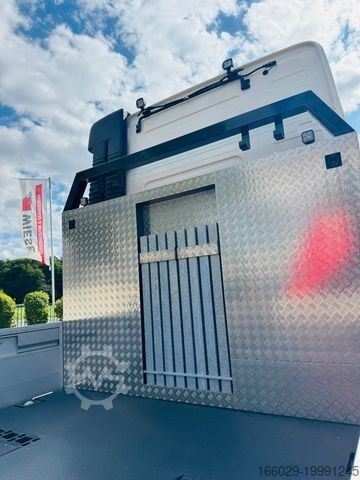

* Front wall 2,000 mm high, made of 5.5 mm thick sheet steel
* 4 warning panels with lighting, extendable to 3 meters
* Inner plateau dimensions: 6,400 x 2,470 x 2,000 mm

Cable winch available as an option

A suitable trailer would also be available, price on request.

The detailed vehicle equipment is available on request.
