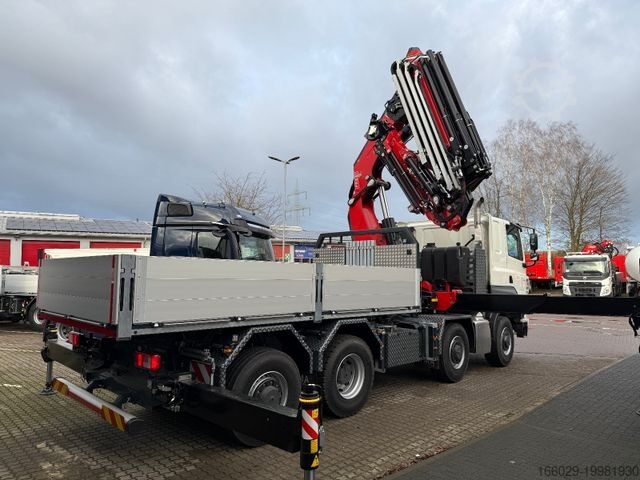

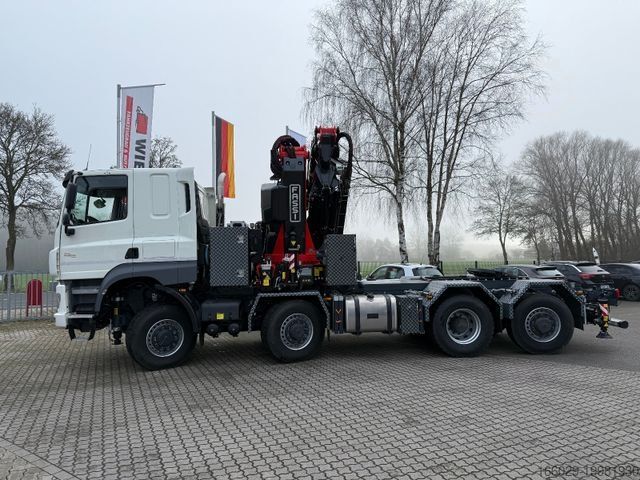

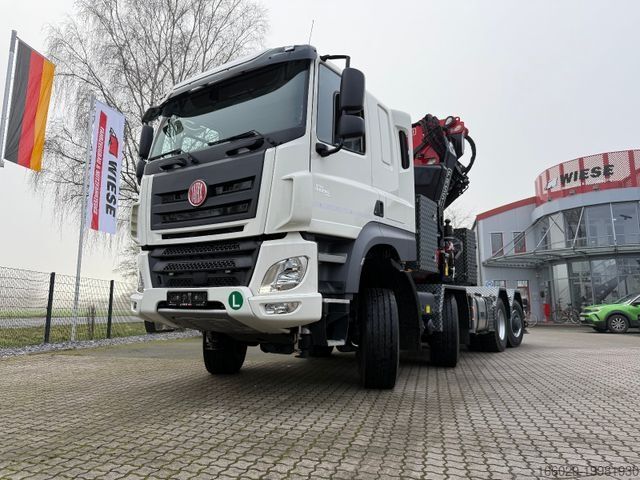

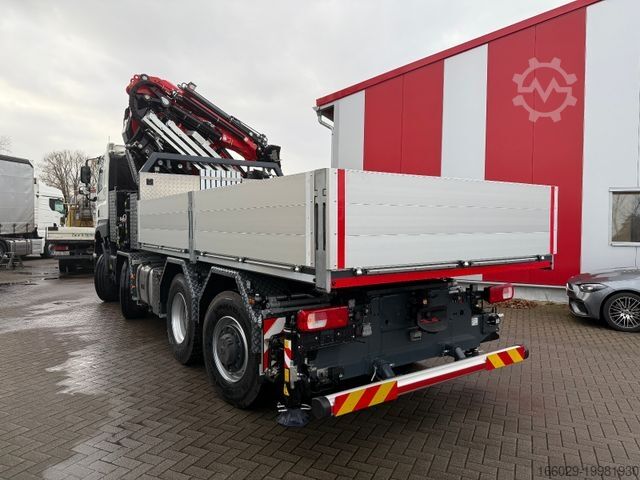

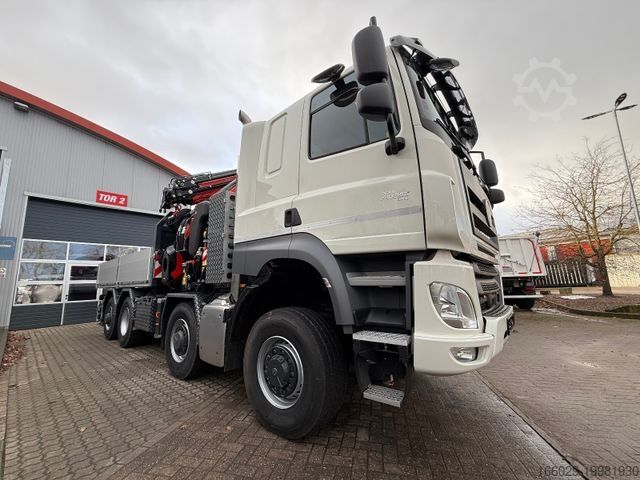

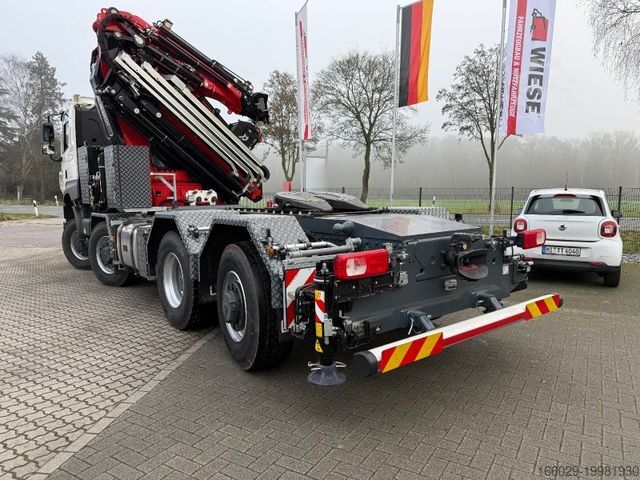

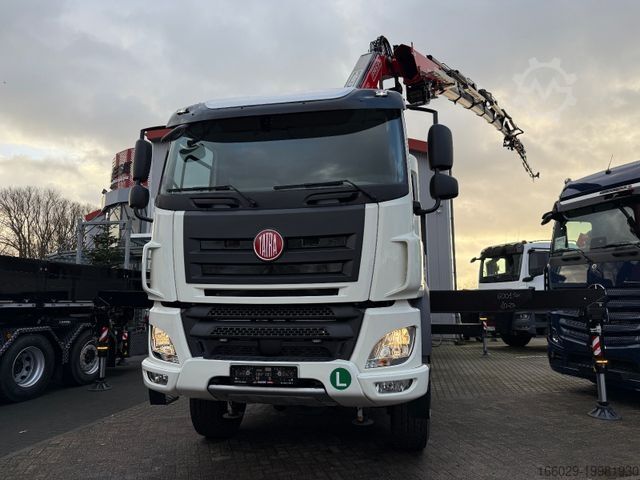

Кран-манипулятор на шасси грузовика TATRA 41.500 8x8 Phoenix Fassi F710 Kran

Описание

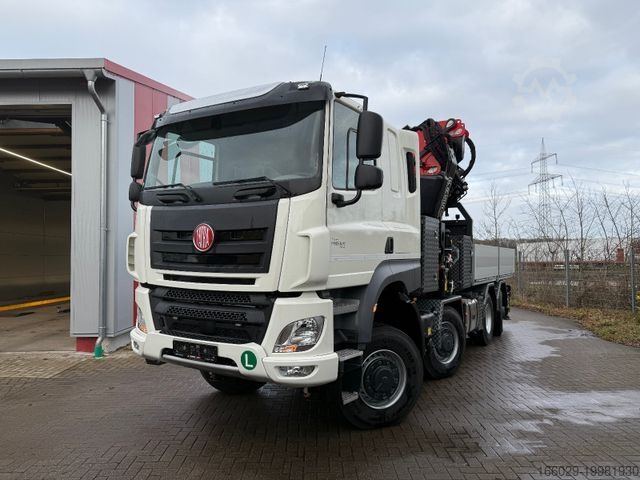

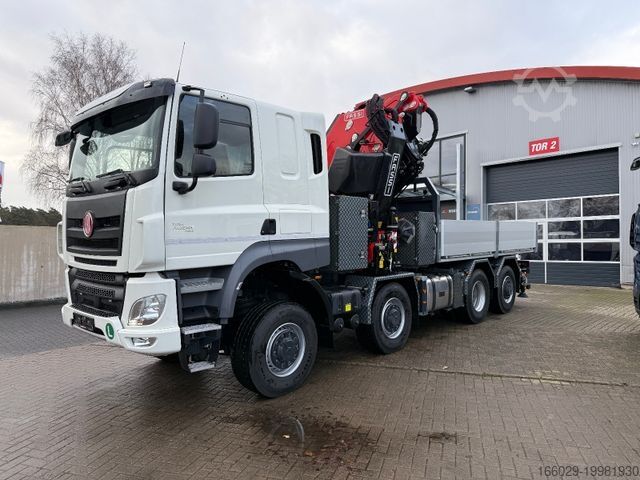

Tatra Phoenix 41.500 8x8 All-Wheel Drive with Fassi Crane including Jib and Winch
New vehicle with day registration 06/2025
Long-haul driver cab

Removable flatbed body
Can be used as a tractor unit

*
* Model: TATRA PHOENIX
* Drive: 8X8/6, last axle driven and steered, AP axles
* Engine: MX13, 390 kW (530 Hp) at 1675 rpm, 2500 Nm
* 1000 - 1425 rpm range
* Transmission: Automated ZF TraXon 16TX2640, 16 speeds
* Steering: Left-hand drive
* Cab: Sleeper cab, H3279WHTE
* Gross vehicle weight: 41,500 kg
* Sleeper cab
* Side fenders
* External sun visor (green, translucent)
* Non-heated windscreen
* Non-glazed side / non-glazed rear
* Electrically adjustable mirrors
* Convex mirrors
* With curb view mirror, front
* Central locking with remote control, 2 keys
Cabin – interior:
Hjcoxb Hxms Ed Ddcjfl
* Luxury Air
* Storage compartment below dashboard, long
* Lower sleep mattress, standard
* Lower bunk raised 250 mm (sleeper cab, storage space 260 liters)
* No upper bunk (long driver cab)
* Trailer couplings without center section
* Cool box or refrigerator (sleeper cab)
* Manual aluminum roof hatch
* Controls for cab climate system
* Dashboard – Black Rock
* Textile wall covering in driver cab
* Interior trim color "DARK SAND"
* Immobilizer 5-minute SCM BV03-B1
* Standard auxiliary power supply
Communication and driving management:
* ALPINE communication system with camera
* Antennas: AM/FM + 2x GSM + GPS
* Digital tachograph
* With cruise control
* Pre-installation for toll system (Germany only)
Wheels:
* Continental 385/65R22.5 HSC1 XL TL [4] (10t) +315/80R22.5 HDC1 ED TL [9], mixed operation
* Spare wheel mounted on frame in transport position
Powertrain:
* MX13, 390 kW (530 Hp) at 1675 rpm, 2500 Nm
* 1000 - 1425 rpm range
* ZF 16TX2640TO TraXon, engine MX13 (355 kW, 390 kW)
* 2-stage gear reduction 2.30 TRK 0.61/1.44 H8, downshift, shiftable at standstill
Chassis:
* Driven axle, axle load capacity 10t, small wheels
* 8X8/6

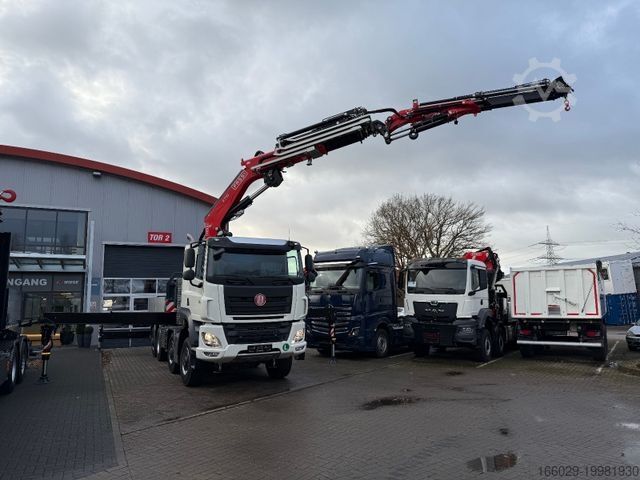

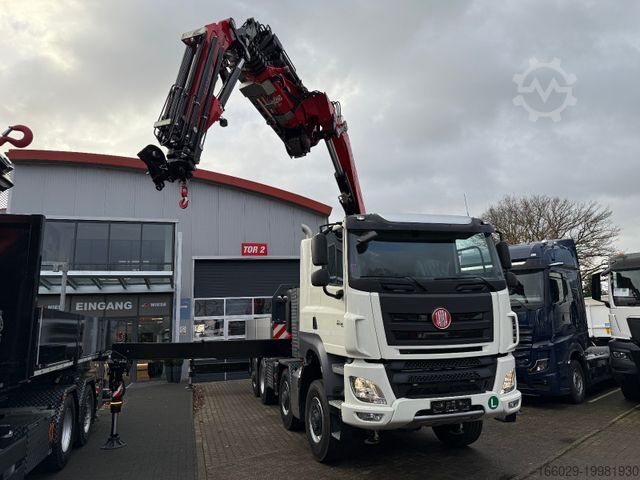

Crane:

- Type: F710RA.2 xhe-dynamic
- Continuous slewing range
- All hydraulic cylinders double-acting
- Piston rods hard-chromed
- Double linkage system with PROLINK (articulating arm can be extended up to 10 degrees)
- Electronic overload protection with FX900
- FASSI Stability Control FSC-SII incl. LMB II
- Emergency stop as well as optical alarm (90% and 100%)
- Pressure relief and load retaining valves
- XF (Extra Fast) + XP (Extra Power) + FL (Full Lift) systems
- RCH or RCS FASSI remote control with linear levers and display of
- Pressure values (in bar and %) and 90% + 100% warning on display
- Danfoss D900 control block with 4 control valves mounted on crane column
- Emergency control for crane operation
- High-pressure filter delivered pre-piped
- Separate hydraulic tank (260 l) with filter and
oil cooler mounted at crane base

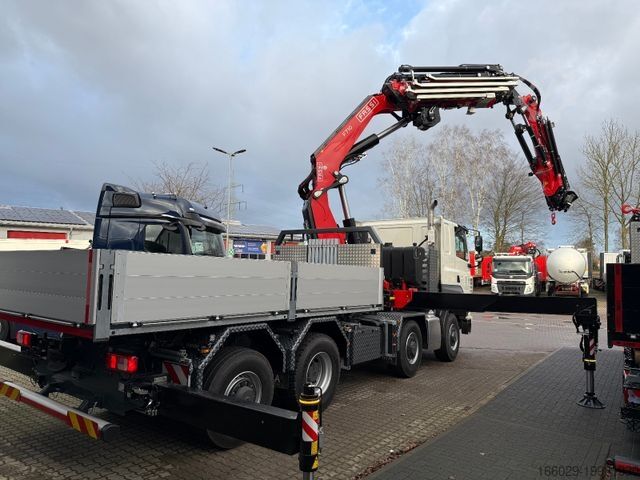

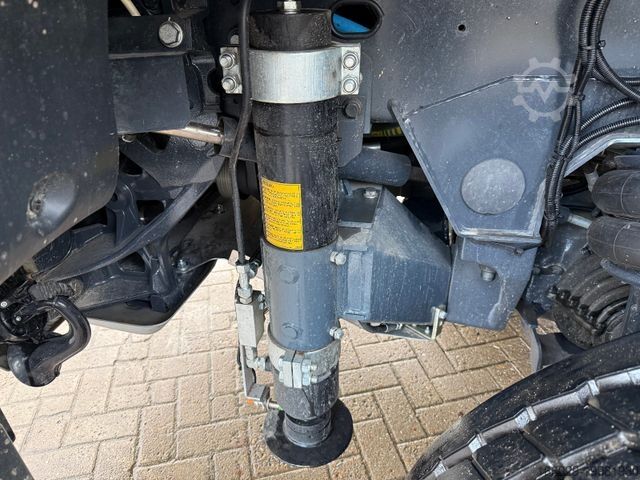

- Hydraulic outriggers, extendable on both sides, support width 8.29 m
- Outriggers can be operated via radio control (black/white)
- IMC (Integral Machine Control) system and
ADC (Automatic Dynamic Control) = load-dependent speed control
- Standard color RAL 3020 traffic red – all cylinders painted black
- Load hook and fixing brackets (short/500 mm)
- Transport position: folded crosswise to direction of travel
- Note: Observe on-board voltage / 12V or 24V, standard is 24V
- FASSI Stability Control FSC-S/II
- IE742 connection box
- Pre-installation for operation with variable displacement pump (LS)
- Prop
