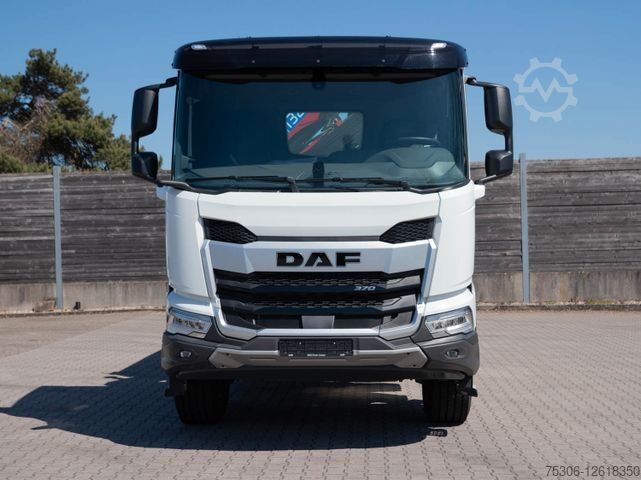

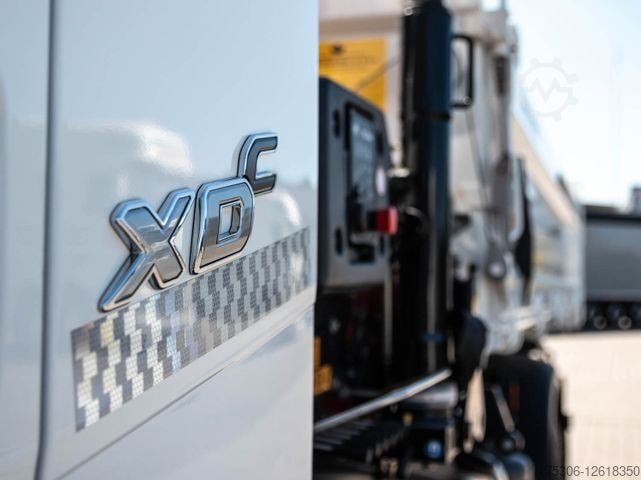

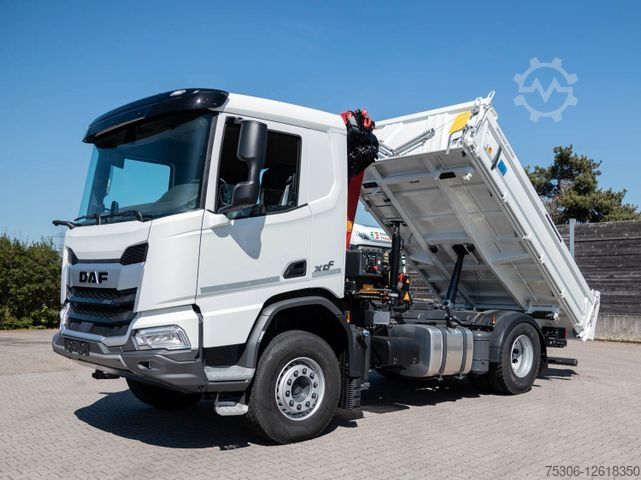

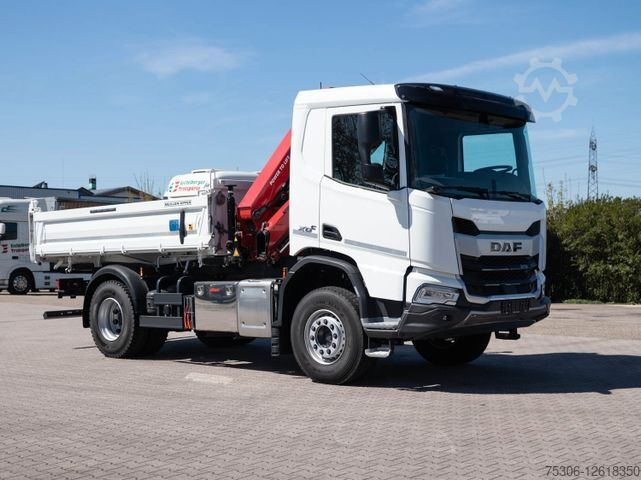

Кран-манипулятор на шасси грузовика DAF XDC 370 FA Meiller Krankipper HMF

Описание

STANDARD SPECIFICATION
* Day Cab
* Cab suspension mechanical

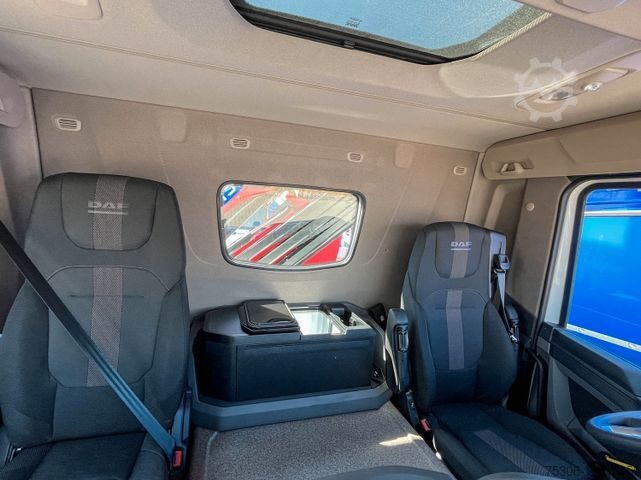

* Passenger seat: Cinema with fabric cover
* Adaptive Cruise Control with FCW and AEBS-3
* Lane change warning system
* Goodyear

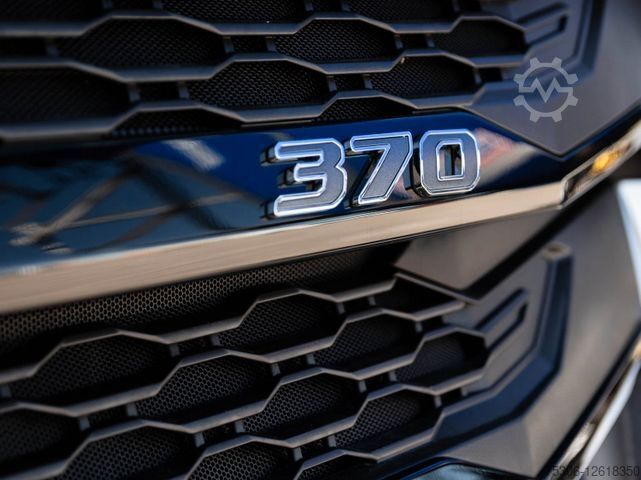

* MX-11 engine, 270 kW/367 hp Cab badge: 370
* Emission class Euro 6
* Automated gearbox, TraXon, 12 gears
* Wheelbase 4.00 m / rear overhang 1.70 m
* Standard component layout
* Fuel tank on the left
* DAF Connect
* Warranty Plus drivetrain-3 years-500,000 km
* Options
Dwoc Ed Ddopbcxrocjb
* Sun visor outside
* Flexible cab step
* Two LED headlights for cab rear wall
* Beacon lights on cab front, prepared
* Rear window: Double glazed
* Central locking, 3 keys, 2 remote controls

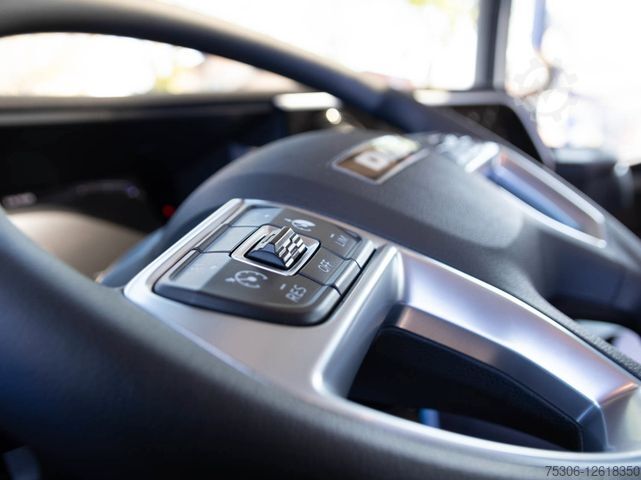

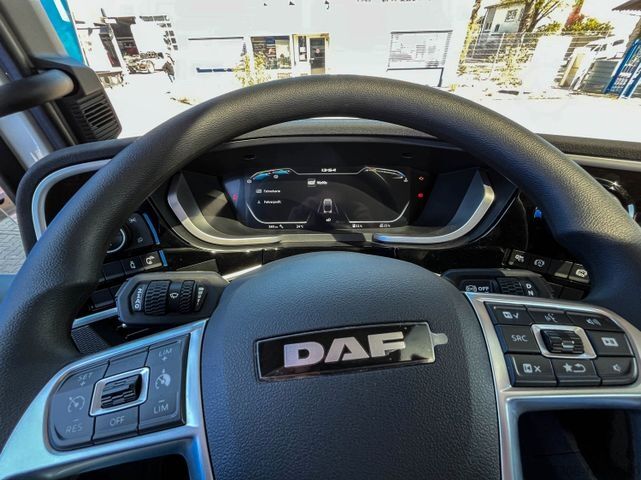

* Steering wheel with silver accents
* Door trim: Loosely woven fabric

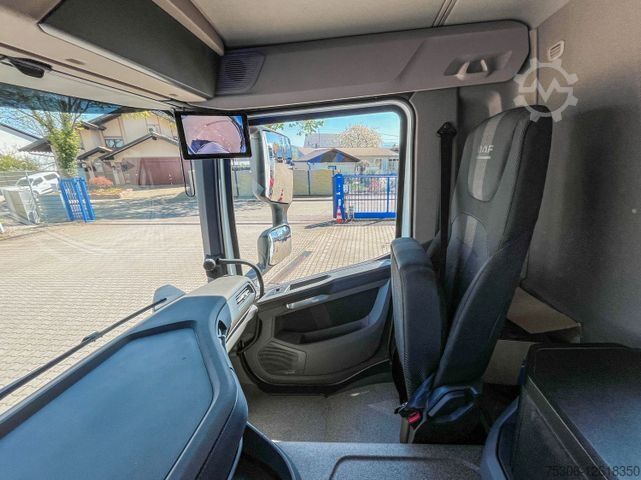

* Driver's seat: Luxury Air
* Armrests on both sides of the driver's seat
* Dashboard table
* Cool box or refrigerator
* Automatic cab climate control
* Waste heat pump
* Roller blind on driver's side

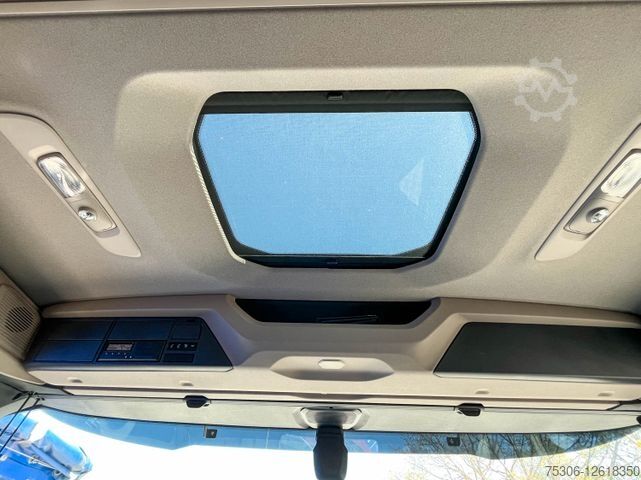

* Roof hatch with electric operation
* ECAS remote control with extended functions
* FMS connector, extended and prepared
* Preparation for toll

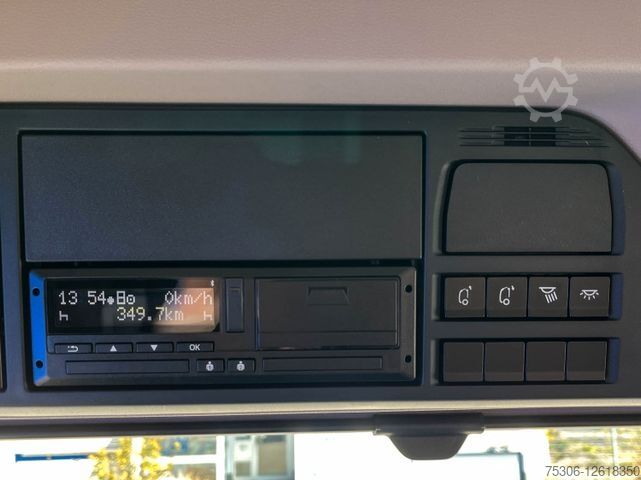

* Digital tachograph, VDO 1C, version G2V2
* Speed limit setting 90 km/h
* DAF Infotainment Luxury Plus, Luxury loudspeakers
* Antennas: DAB-prepared, 2x mobile. GNSS extra: CB
* Wireless charger
* Reverse alarm
* Front: 9.00 t, parabolic, 187N
* Front axle 1, 9,000 kg, load index 160
* Rear axle 1, 11,600 kg, load index 145
* Front axle(s): 385/65R22.5
* F1,385/65R22.5GO OMTSHL 164/000 K Steering CBB 3P
* R1,315/80R22.5GO OMTD 156/150 K Traction DBB
* ECO performance
* Off-road use with rocking function
* Rear axle ratio 3.08
* MX engine brake
* Spring brake cylinder first front axle
* Parking brake assistant
* Exhaust pipe right
* Tail light holder with license plate holder
* Use with drawbar, type plate, up to max. GVW

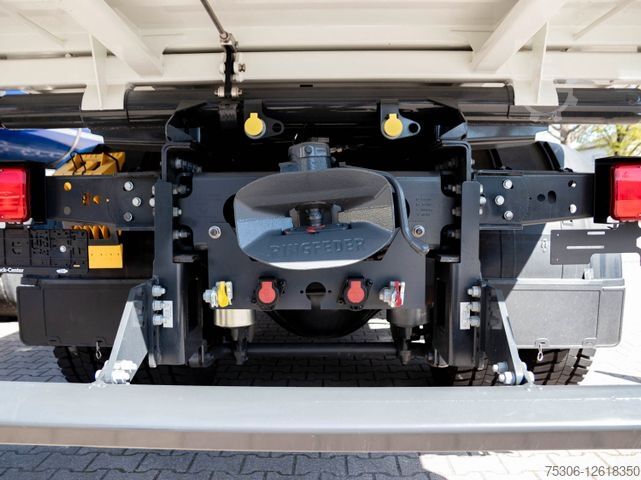

* Cross member D137 + ring spring coupling D137
* Pneumatic connection for trailer, rotary coupling

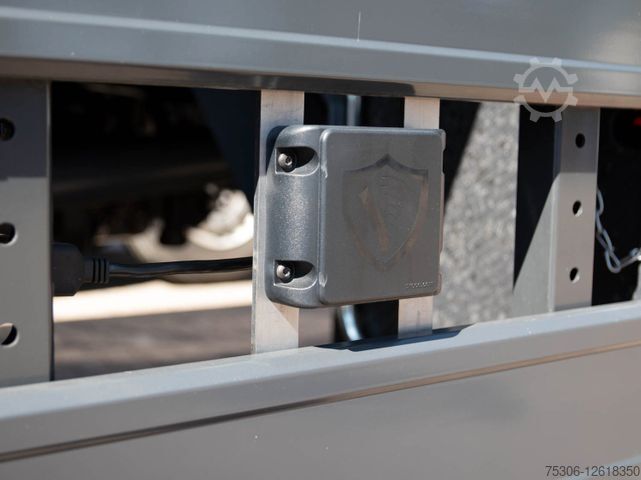

* Electrical connection for trailer, 24 V/15-pin
* Analogue body signals and warnings
* Chassis with analogue connection for engine speed control
* ECAS control
* Preparation for aftermarket switch
* CAN J1939 functions in the body plug
* Additional replacement cable
* Application connector for the BB remote control
* Preparation of the air control for tipper use
* Side marker lights
* Body attachment BAM 2, plate profile
* First gearbox auxiliary drive NH/4c-R-32/25
* Generator 110 A, batteries 2x 230 Ah
* Max. GVW drawbar/coupling 57000 kg
* Max. total train weight drive unit 40,000 kg class 3
* Dust protection shield

Structure:

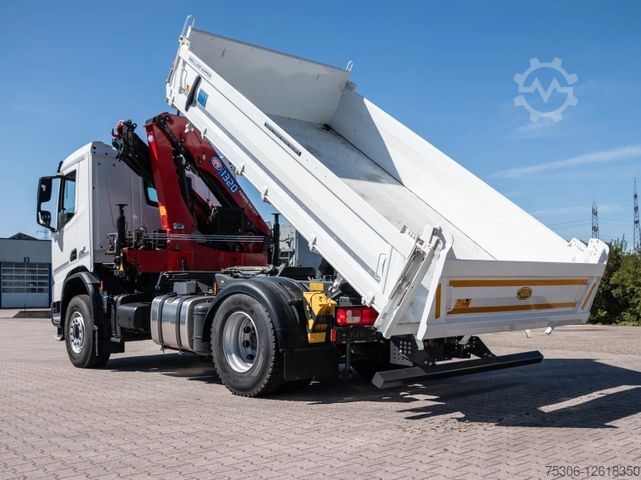

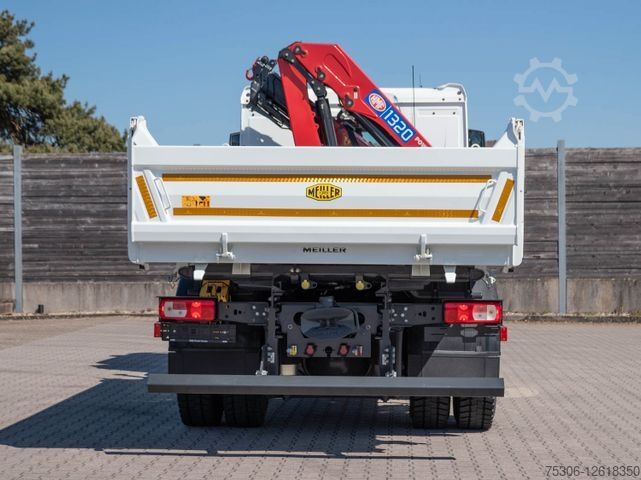

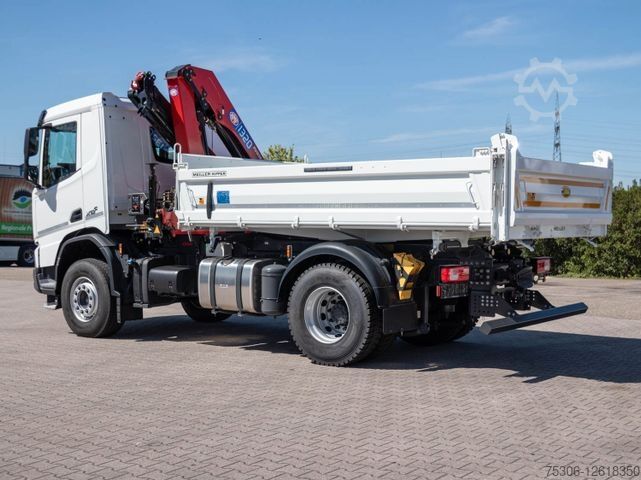

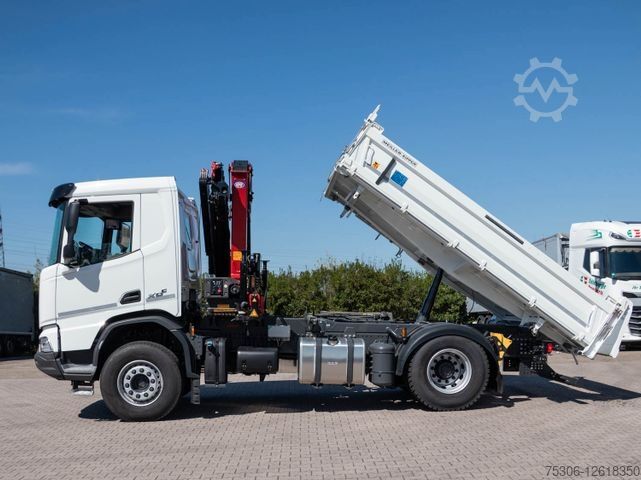

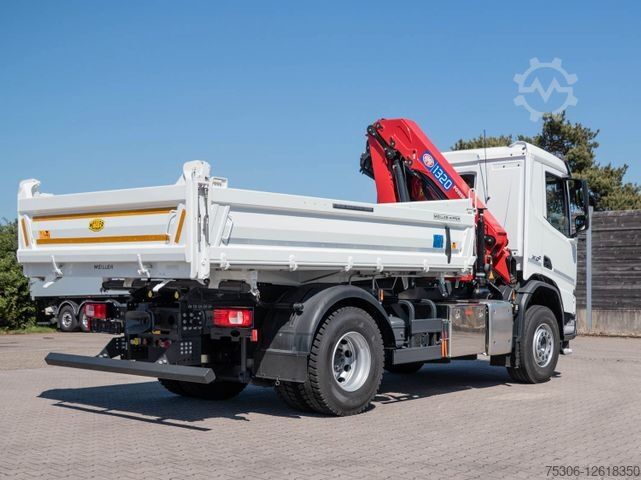

* Meiller crane tipper model 26
* Trailer hydraulic lines
* Comfort package
* Lashing eyes
* Basic crane HMF 1320-KS-RCS
* Properties of the basic crane
* Foldable, fully hydraulic 13 mt-
* Loading crane of lifting class H1 / crane group
* B3 / lifting movement HD5

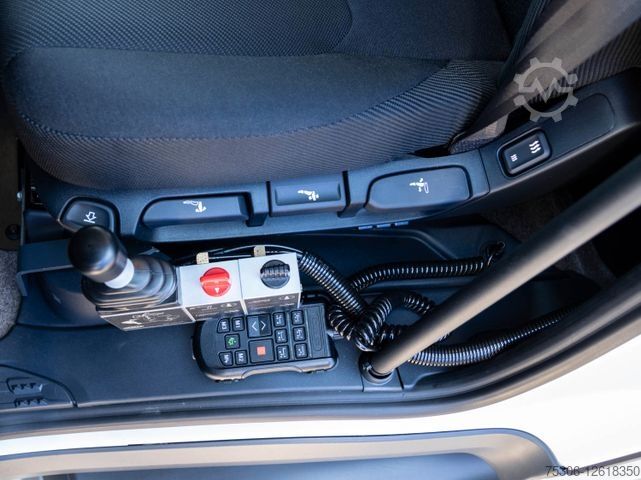

* Basic version with radio remote control (RC-d)
* Single-circuit proportional control valve (RC-d) for
* Radio remote control for high
* speed, intensive use and
* very precise operation.
* Including control levers on the
* control valve. For emergency operation only.
* Manufactured and equipped in accordance with EN 12999.
* Power Plus double toggle lever.
* Over-bend to 15° between the inner
* boom and articulated arm.

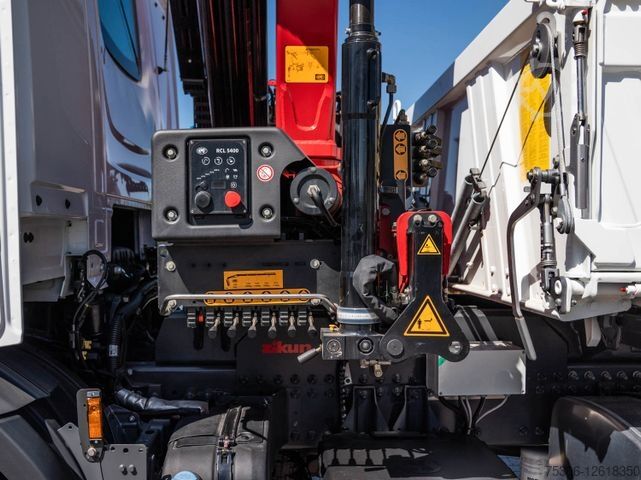

* RCL - CE safety system
* Foundation with double cross beam.
* HDL-d cruise control
* Spirit level for tilt angle at the
* control points.
* Load holding valves on all load carriers
