Aвтокран Unimog 4023, HIAB 092 Seilwinde

Описание

Your advantages if you read on:
Available at short notice, new and inexpensive, as a special model

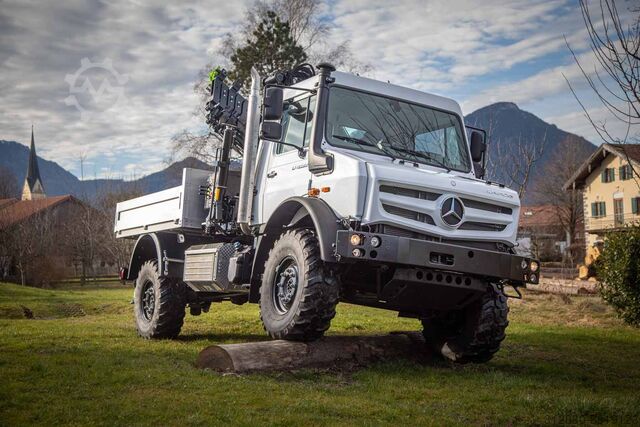

This all-terrain Unimog 4023 takes you to any job site and, with its optimally dimensioned loading crane, is a tireless helper on board that actively supports you in your lifting and assembly work and brings you forward economically.
Its particularly long service life also makes the Unimog very stable in value and therefore very economical for you.

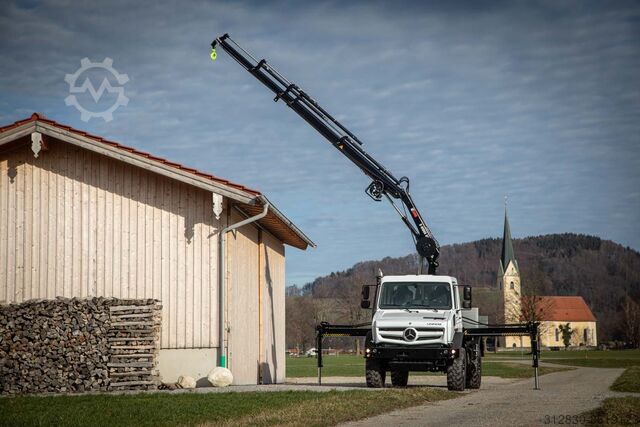

The crane has 4 extensions and a cable winch to facilitate and support assembly work. Please find attached the lifting capacity diagram for this crane.
The support at the rear remains in the contour of the vehicle so that you can set up and work in a very space-saving manner.
Where trucks no longer have room, the Unimog still has a chance.
Another major advantage is the Scharmüller carriage in conjunction with the cross member and struts. Its use increases the towing capacity and makes a drawbar load for central axle trailers possible in the first place!
This makes the Kranimog a short and multifunctional towing vehicle that can also tow particularly long trailers.
trailers.

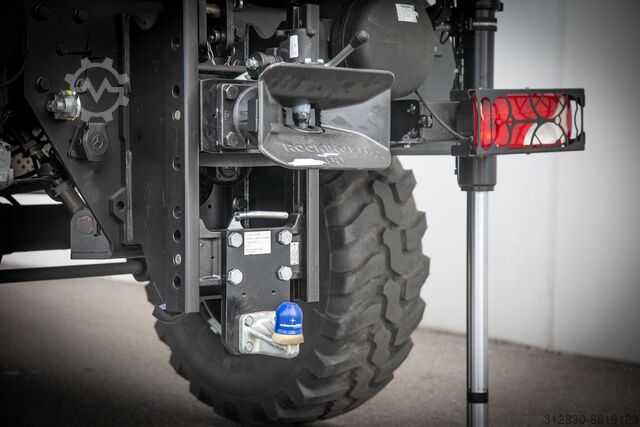

Height-adjustable trailer coupling
Another unique selling point of this unique overall concept is the height-adjustable trailer coupling.
height-adjustable trailer coupling with which you can tow a wide variety of trailers.
The following trailer loads apply:
Maximum towing capacity for turntable trailers: 14,700 kg
Maximum towing capacity for center-axle trailers: 13,000kg
Maximum drawbar load: 1,000kg
Maximum trailer load for braked car trailers: 3,500kg
All values are explicitly approved by the vehicle manufacturer for truck registration and are entered in the vehicle documents for your Unimog.

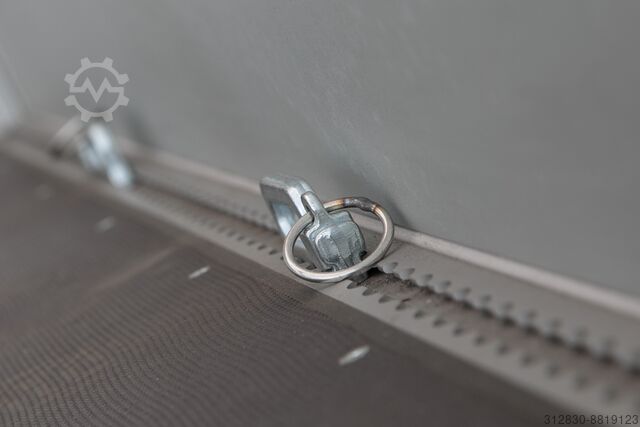

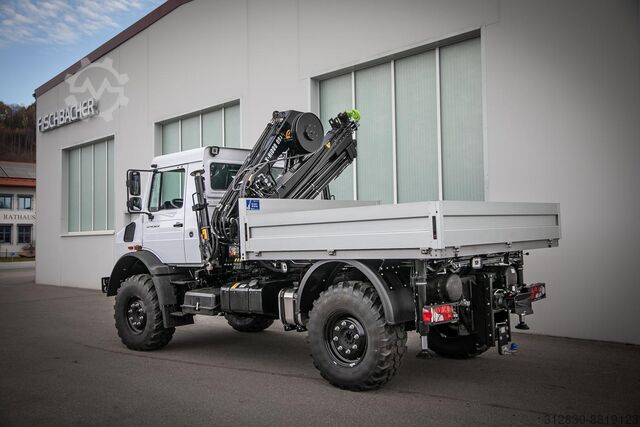

Flatbed:
Cqgwo0zcnq
Clear length inside: approx. 2550 mm
Clear width so that 2 pallets can be loaded crosswise and visually matches the crane width.
Wooden floor
Side wall aluminum height approx. 400mm
End wall aluminum height approx. 600mm
Corner stanchions : None! perfect for unloading
Drop sides detachable
We are here for you; please arrange a callback and we will check whether we can help you.
Unimog equipment:
(excerpts!)
RT2 Dunlop SP9 405/70 R20 on 11x20 drop center rims
B1V Holding brake on front axle
B5B Trailer brake, 2 lines
D6F Air conditioning
DE4 Electric windows
DF3 Swivel seat with air suspension and seat heating for driver
E2J Circuit breakers
E40 ABS trailer socket 24V
E41 Trailer socket 24V, 12-pin
E83 Acoustic differential lock signal
EF3 Reversing chambera
EM5 Monitor for chamber
F3W Cab tilting device
F64 Tilt fittings for cab
G22 Off-road group
G48 EAS
G50 Transmission oil cooler
JV5 Radio pre-installation, radio DAB with navigation function - installation of short DAB Shark antenna
K7A Tailpipe upwards
L32 Stone guard for blinker lights
LH6 Stone guard for rear lights
N16 Gearbox PTO fast
Q32 Cross member for increased trailer load
TF7 Weight variant 9.8T (4.6/5.5)
Nec R Nc Iskqfqxsfnowh
- Promotional price - offer only while stocks last and subject to change
