Эвакуатор VOLVO Arbeitsbühnen Baumaschinentransporter mit Rampen

Описание

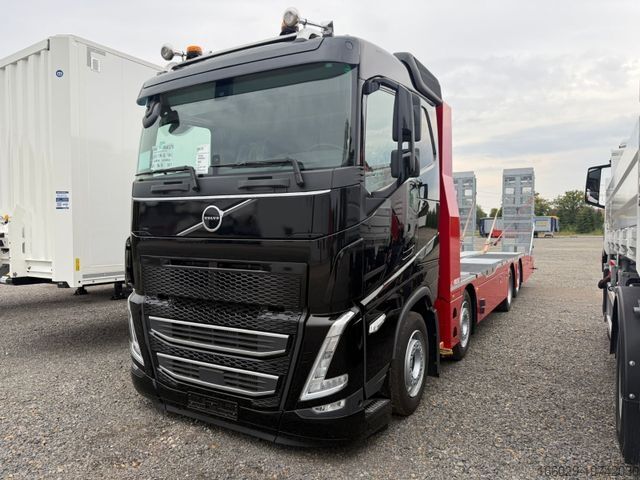

4-axle Volvo machine carrier/working platform transporter
– FH 500 8x2R

– Trailing axle, electro-hydraulically steered, single tires
– Rear axle suspension with air suspension: 1 drive axle, 1 trailing axle
– Safety long-distance driver's cab FH
– Cab heater, 2 kW
– 33 l refrigerator with freezer compartment under the bunk
– Air suspension on front axle(s)
– Gearbox/I-Shift operation from the driver's seat control unit
– I-Shift driving modes: Standard, Performance and Economy
– I-See with map-based topography and traffic information
– Eco cruise control (cruise control), including brake cruise control
– Manual shifting in automatic mode possible (incl. kickdown) Adaptive traction control
– Distance-regulating cruise control (ACC) with collision warning and emergency braking function
– Lane keeping assistant
– Side collision avoidance and turn assist (both sides)
– Driver alertness system, warns of fatigue
* VEB Volvo Engine Brake
* etc.

WIESE body for platform and construction machine transport with hydraulic loading ramps

with 2 pairs of wheel recesses incl. covers

Body dimensions:
- Length approx. 9,050 mm usable length
- External width 2,550 mm
- Loading height approx. 1,050 mm unladen (top of floor)
- Stable, weight-optimized steel welded construction, space-efficient design
- Short cross member spacing for high point loads
- Chamfered rear for low ramp angle
- Outer frame profile 90°
- Bulkhead in reinforced design
- Storage box inside, below the bulkhead

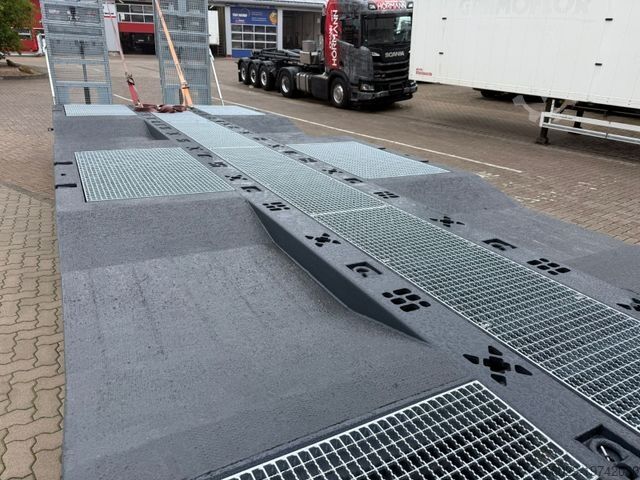

- Grating floor
- Designed for 5,000 daN wheel load
- Steel toolboxes above the axles and anti-slip coating on outer frame

Load securing:
- 9 pairs of heavy-duty lashing rings, 8 t, recessed into outer frame
- Longitudinal beams with Multi-X contour full length with numerous 2.5 t lashing points
- 4 lashing eyes 8 t at rear (left/right/center/center)
- 4 lashing eyes 8 t in front of bulkhead (left/right/center/center)
- Outer frame profile 90°

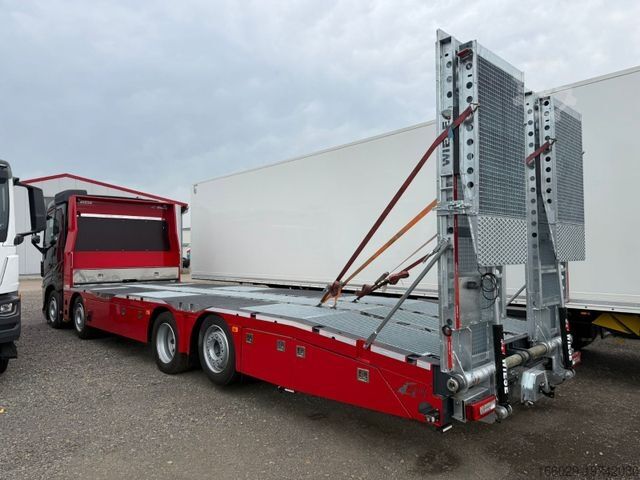

Ramps:
Type: WFB 20 S-2
Load capacity: 18,000 kg per pair
Platform length approx.: 4,360 mm (2,725 mm + 1,635 mm)
Platform width approx.: 850 mm per ramp

- Ramps designed as 2 single/extended ramps, both ramps laterally adjustable
- Ramp can be used as a loading ramp or crossover ramp for warehouse equipment (extension remains closed); the fixed part is placed on the warehouse ramp
- Sturdy tension bar for transport security (optionally with strap tensioning)
- 2 hydraulic rear supports with plates, warning sound and indicator in cab
- Ramp and support driven by electro-hydraulic system
- Control via radio remote as well as emergency operation at control block
- Control block mounted in stainless toolbox mounted laterally on frame
- Superwinch 8.2 t with approx. 20 m steel cable
- Access with handrails right and left for loading area access
- 5 stainless steel toolboxes in drawer design, incl. lighting

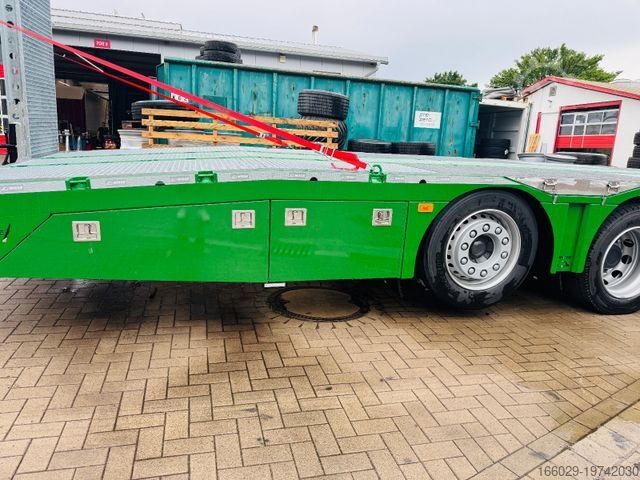

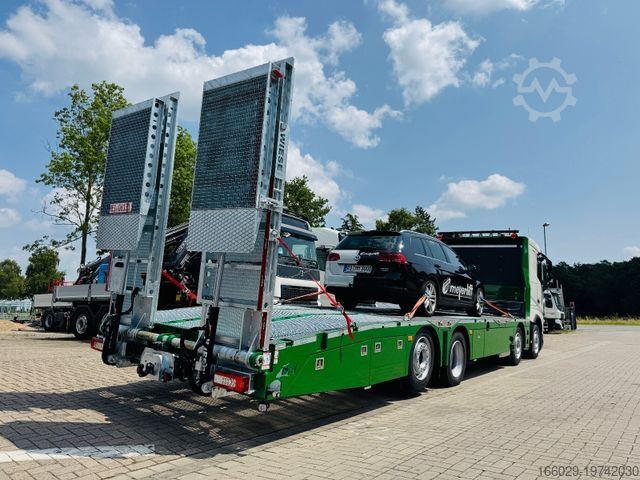

- Side panels as per sample images (green vehicle)
- Body coating KTL
- Tow coupling with ball head at rear, 3.3 t
- 4 LED work lights
- 2 LED rear lights mounted at top of bulkhead
- 4 LED work lights outside on frame for area illumination
Djc Ed Ddsw Itmrocswb
- 2 LED work lights at rear
- 1 removable beacon at rear

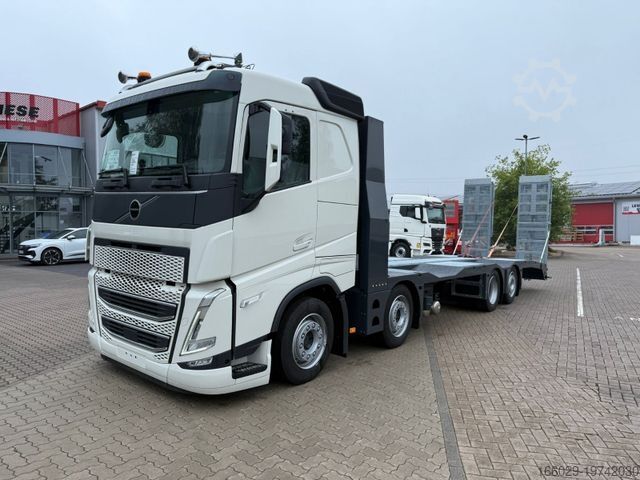

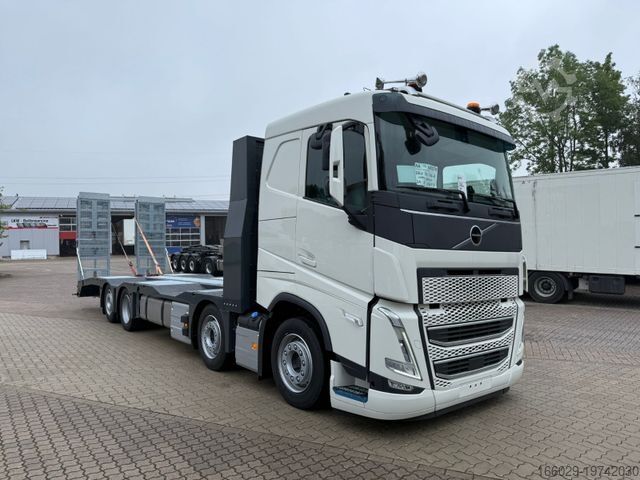

The stock vehicle is supplied with a white cab and superstructure in nova gray (external frame lacquered in RAL color of choice on request)

Further information upon request.
