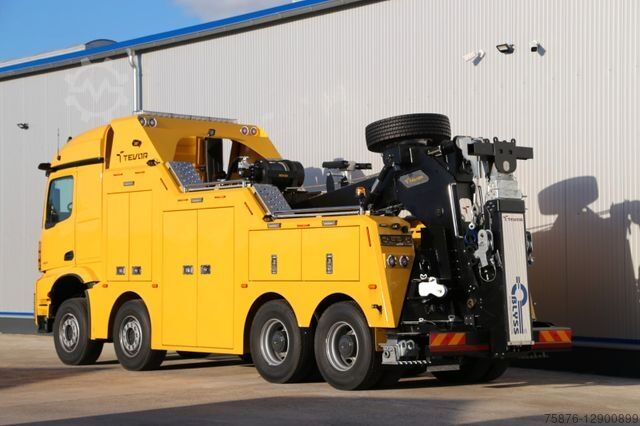

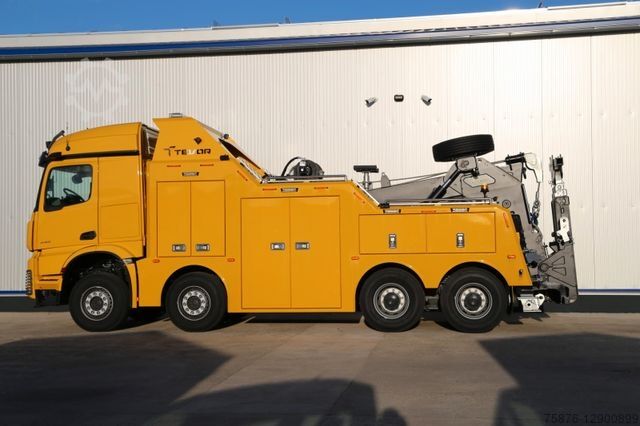

Эвакуатор MERCEDES-BENZ Arocs 4153 8x4 Heavy

Описание

Available from August 2025!!!

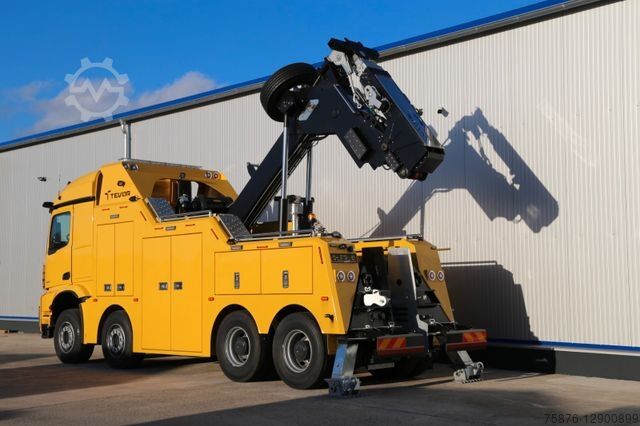

Specially designed recovery arm with lifting frame for recovering and towing damaged vehicles, trucks, tractor units, buses, trailers, etc. Full hydraulic system. 3. Paint finish HDRV (STANDARD)
STORAGE BOXES (interior): yellow RAL 1032
STORAGE BOXES (exterior): yellow RAL 1032
LIFTING BRACKET: black, U-TEXT RAL 9005

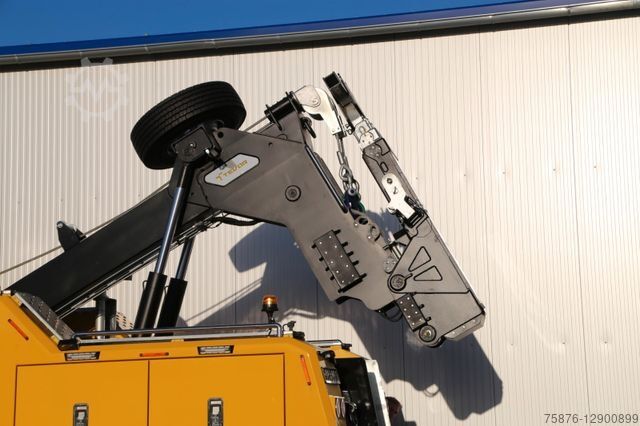

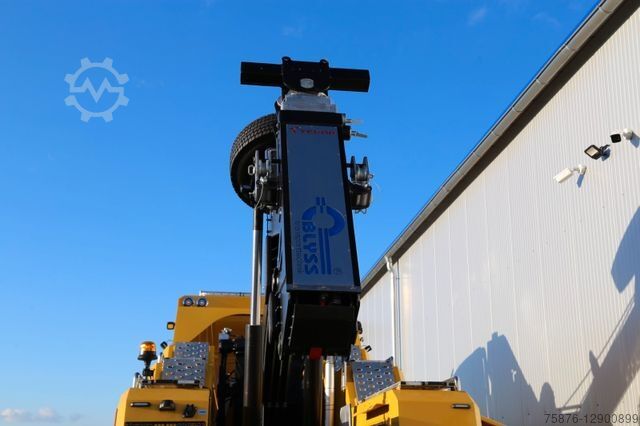

RECOVERY ARM: black, U-TEXT RAL 9005
REAR OUTRIGGERS: black, U-TEXT RAL 9005
COUNTERWEIGHT (front, under cab, if applicable): black, U-TEXT RAL 9005, front smooth frame (STANDARD)
- Hot-dip galvanized
- For mounting the counterweight at the front
- Rear part in the body color (STANDARD)
- Lifting angle 40° (Fig. HDRV 1013)
- Mounting plates for main and auxiliary winches - 2x15,000 kg shackles
- Left and right sides in the rear part of the boom
- Space for spare wheel holder on the recovery boom. 6. Lifting frame (STANDARD)
- Range position relative to the horizontal axis -5° / +10°
- Load capacity when retracted: 20,000 kg
- Load capacity when extended: 10,000 kg
- Extension 3,800 mm
- Range up to rear outriggers (STANDARD)
- Independently controlled
- Maximum width -3,000 mm
- Rotating outriggers for working on asphalt and extendable boom (No. HDRV 1013)
Nsc Ropl Avds Nc Ifnewh
Individual extension 0 - 3,000 mm
Maximum payload 2,000 kg - Tank storage behind the cab
- Air tank relocation behind Driver's cab
- Battery relocation behind the driver's cab
- AdBlue tank relocation
- Counterweight behind the driver's cab on the front frame (weight 100 kg)
- Main winch COME UP Bison 50, mounted on the recovery arm, pulling force 22 kg
- Hydraulic system (STANDARD)
- Dual hydraulic pump (STANDARD)
- Hydraulic control block on the right side (STANDARD)
- On the right side, in the rear connections for supplying the braking systems, transferred from the chassis
- Quick-release fastener with 20-meter cable
- Air pressure roller, on the left side of the body, above the rear axles
- Electrical plug-in connection for trailer + trailer coupling, from the chassis
- 12V/24V starter cable, cable, lever, mounted on the right side
- 12V/24V jump starter cable, cable, lever, mounted on the left side
- Camera + LCD screen in Driver's cab
- Camera above cable winches + LCD screen in control box
SCREEN:
? Vibration resistance: 10G
? Impact resistance: 100G
? Operating temperature: -30 to +70°C
? CE marking
? EMC approval: activation of emergency stop switch
- Radio remote control - 1 function
- Made of aluminum
- Holder for tools and accessories
- Floor with rubber mats
- Small ladder
- Auxiliary ladder in box opening - Doors
- Railings on storage boxes - stainless steel
- Perforated aluminum platform, mounted on the upper part of the storage boxes
- Stainless steel holder in the large storage box, behind the driver's cab, for forks, hooks, and open storage box edges with stainless steel profile. The lighting package in the storage box complies with the German Road Traffic Regulations
- LED lighting in storage boxes
- LED lighting, exterior
- GAMET DE LUX LED light bar, 1800 mm
- Mounting of the light bar on the upper part of the body
- Warning light ORANGE FLASH, 2 pieces - front mounting
- Warning light ORANGE FLASH, 2 pieces - rear mounting
- Warning light ORANGE FLASH, 2 pieces - mounting on the edge of the last storage box door - switch for all beams
