Эвакуатор MAN Baumaschinen- Arbeitsbühnentransporter Rampen

Описание

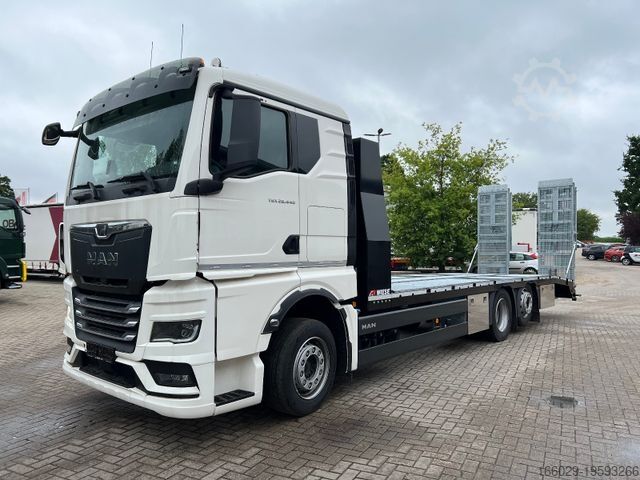

Brand new MAN 26.440 TGX 6x2-4 LL as a construction machinery and aerial work platform transporter.

Truck Equipment:
- Long-distance driver’s cab
- Auxiliary heater
- Safety package
- Driver comfort package
- Storage package
- Trailer package
- Steered trailing axle
- LED rear lights
- Euro 6e
- Automatic transmission
- Sun visor
- Beacon lights
- Reversing camera
- Multifunction steering wheel
- 1 sleeper berth
- Refrigerator
- Media system with navigation
- Flatbed – 100 km – 324 kW (441 hp)
- Internal combustion engine
- Diesel, automatic
- Euro 6e – 4 (green sticker)
- 26,000 kg permissible GVW
- Automatic climate control
- White – long-distance – etc.

Body
- Superstructure made of laser-cut and folded special profiles in low-bed design
- Superstructure length approx. 8,850 mm
- Frame height (unladen) approx. 1,060 mm
- Frame width approx. 2,550 mm
Dwocswz Tbwe Ed Ddcjb

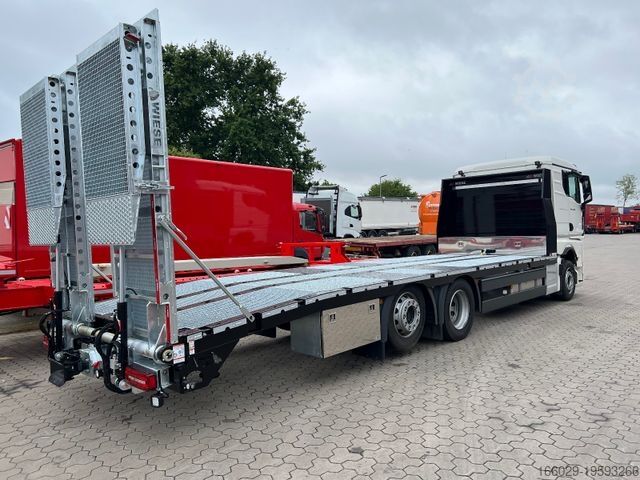

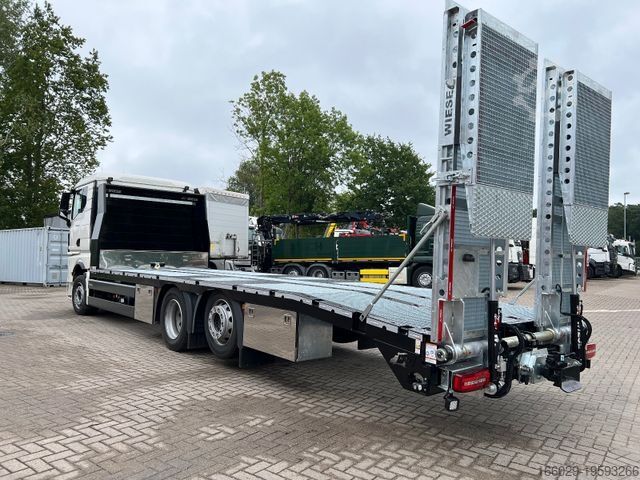

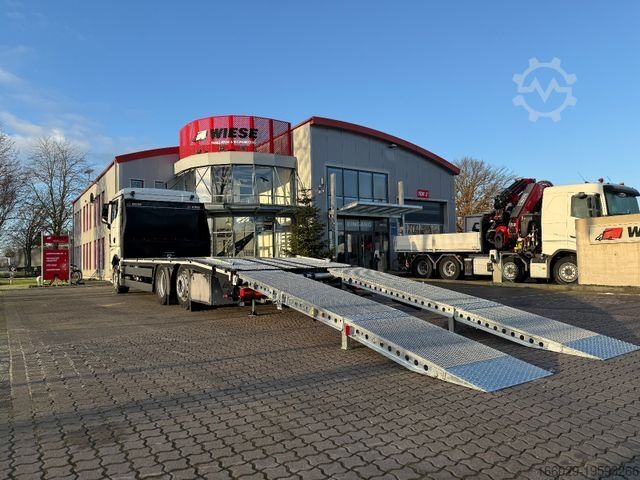

- 2 stretch ramps, each ramp with 1 fixed section and 1 extendable section, ramps laterally adjustable. Ramp flooring made of grating, mechanical ramp locking incl. bracket on outer frame when not in use (optionally secured with straps)
- Ramps operated by electro-hydraulic unit, including emergency controls on the control block and hand pump in case of total failure
- Hydraulic rear stabilizers
- All hydraulic functions controllable by remote control

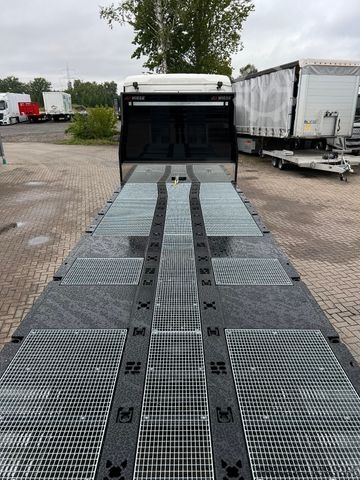

- High load capacity grating floor
- Rear with bevel – front wall approx. 2,000 mm high with inward-bent profiles

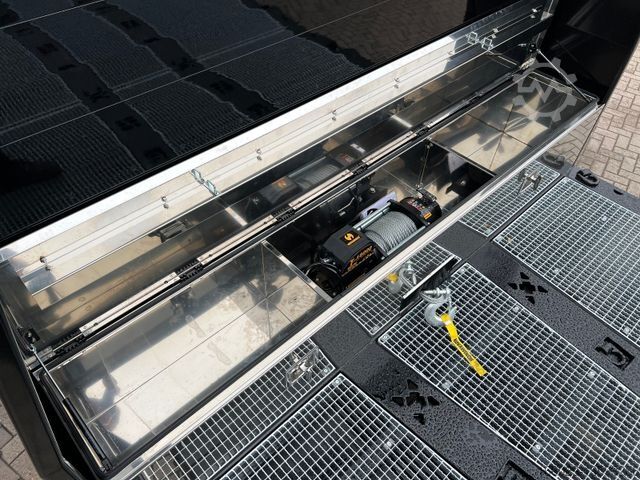

- Interior stainless steel toolbox in front of the front wall
- 2 stainless steel side toolboxes on the frame for lashing equipment (1 left, 1 right)
- 1 stainless steel toolbox at rear right (for hydraulic unit and control block)
- Work lights: 1 pair on cab rear wall, 2 pairs on the sides of the frame, 2 pairs at the rear
- 2 access steps for loading area walkability

Load securing:
- Longitudinal beams incl. Multi-X profile with 2.5 t lashing points
- 6 pairs of 6 t lashing points integrated into longitudinal members
- Perforated outer frame with 2.5 t lashing points
- 6 pairs of 6 t lashing points integrated into the outer frame
- 4 pcs. 6 t lashing points at the rear
- 4 pcs. 6 t lashing points below in front of the front wall toolbox

Paintwork
- Superstructure powder-coated in RAL 9005 black (cathodic dip coating)
- Front wall painted RAL 9005 black
- Ramps and gratings hot-dip galvanized

Signage:
- Reflective tape on sides and rear in accordance with EC regulations.

Further information available on request.
