Эвакуатор MAN Baumaschinen- Arbeitsbühnentransporter Rampen

Описание

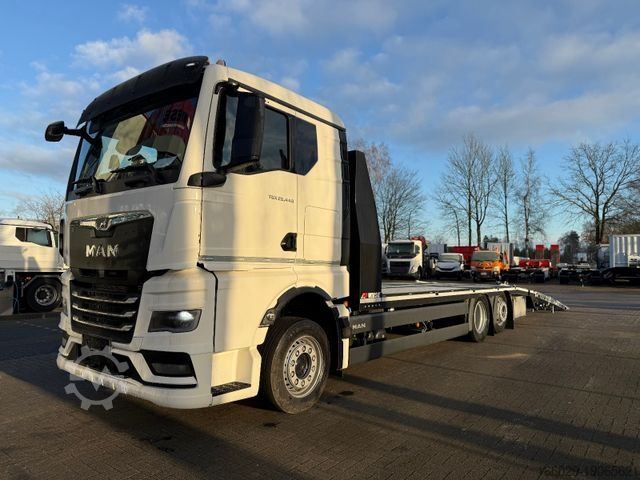

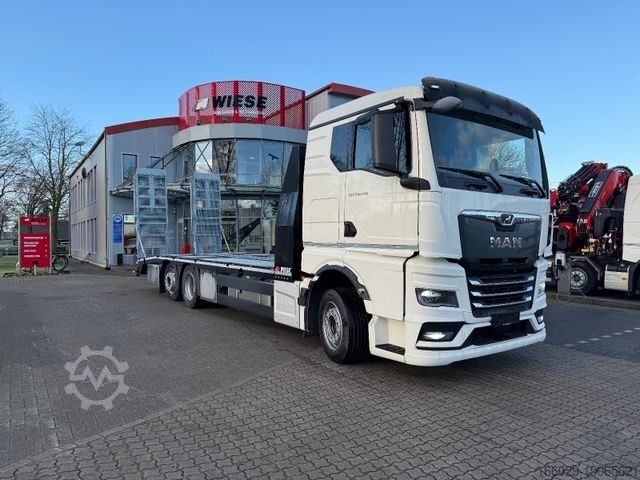

Brand-new MAN 26.440 TGX 6x2-4 LL, suitable as a construction machinery and access platform transporter.

Truck Equipment:
- Long-distance driver cab
- Auxiliary heater
- Safety package
- Driver comfort package
- Storage package
- Trailer package
- Steered trailing axle
- LED tail lights
- Euro 6e
- Automatic transmission
- Sun visor
- Rotating beacons
- Rear-view camera

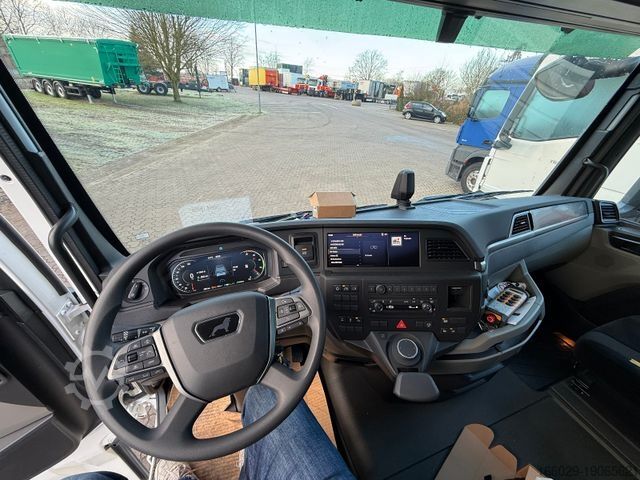

- Multifunction steering wheel
- 1 bunk
- Refrigerator
- Media system navigation
- Dropside flatbed - 100 km - 324 kW (441 HP)
- Internal combustion engine
- Diesel, automatic
- Euro 6e - 4 (Green)
- 26,000 kg gross vehicle weight
- Automatic climate control
- White - Long-distance - etc.

Bodywork:
- Body constructed from laser-cut and folded special profiles in a low-bed design
- Body length approx. 8,850 mm
- Frame height unladen approx. 1,060 mm
- Frame width approx. 2,550 mm

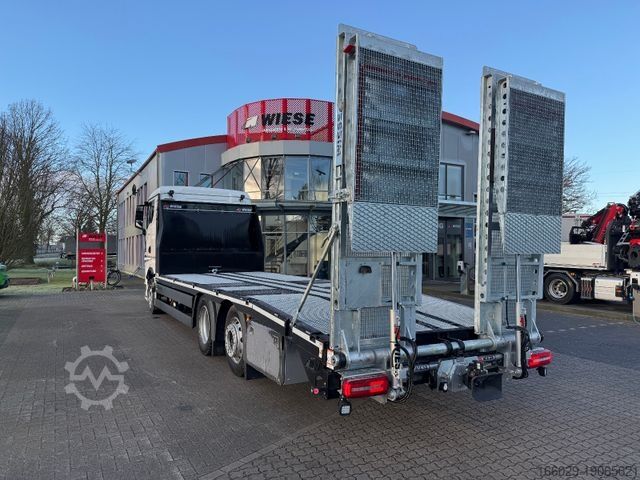

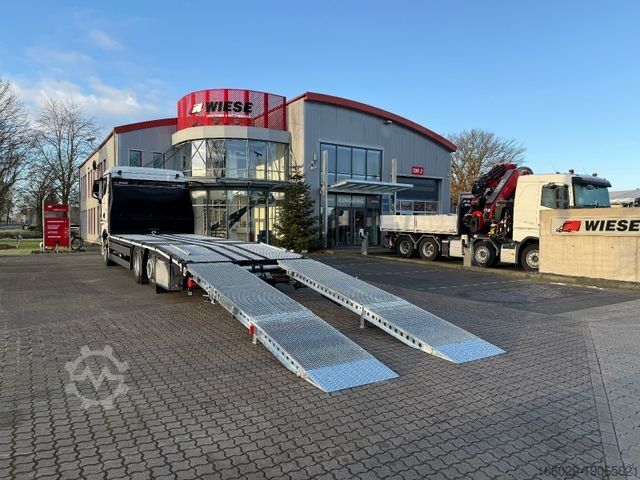

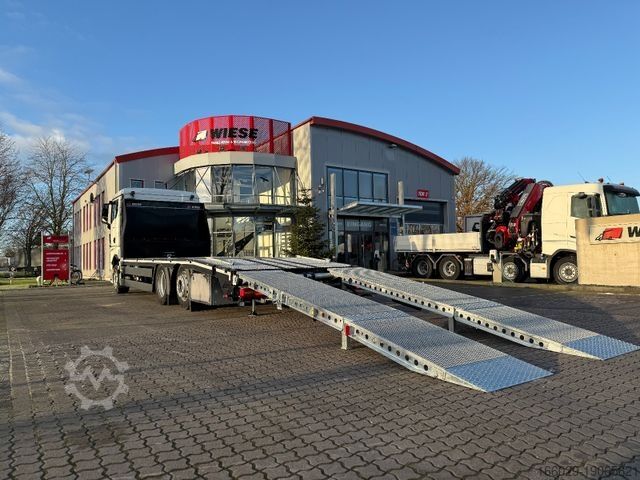

- 2 extension ramps, each with a fixed and an extendable section, ramps laterally adjustable
- Ramp surface from grating floor, mechanical ramp locking incl. bracket on external frame when not in use (optional strap securing)
- Ramp operation via electro-hydraulic power pack, incl. emergency control panel and hand pump in case of total failure
- Hydraulic rear supports
- All hydraulic functions controlled via remote control
- Grating floor with increased load capacity

Load securing:
- Longitudinal members incl. Multi-X contour with 2.5 t lashing points - 6 pairs of 6 t lashing points integrated in longitudinal member
- External frame perforated with 2.5 t lashing points
- 6 pairs of 6 t lashing points integrated in the outer frame
Doc Ed Dowg I Ezsdcswb
- 4 x 6 t lashing points at rear
- 4 x 6 t lashing points below, in front of front bulkhead toolbox
- Rear incl. chamfered edge
- Bulkhead approx. 2,000 mm high with inward-folded profiles

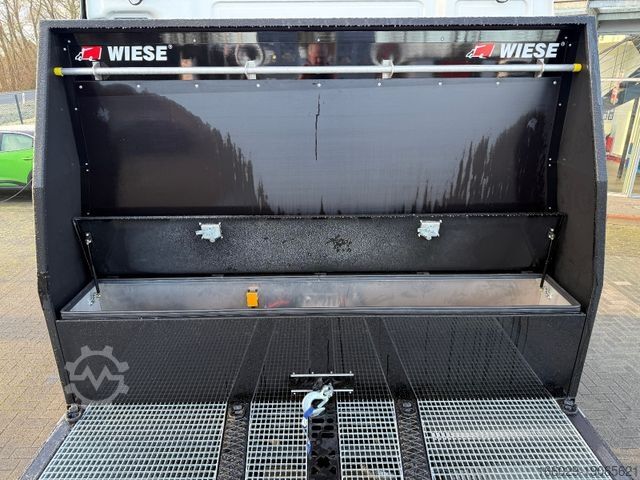

- Stainless steel toolbox in front of bulkhead, internal
- 2 stainless steel toolboxes on the frame sides for lashing equipment (1 left, 1 right)
- 1 stainless steel toolbox rear right (for hydraulic unit and control block)
- Work lights: 1 pair on rear cab wall, 2 pairs on frame sides, 2 pairs at rear
- 2 access steps for cargo area access

Paintwork:
- Body cathodic dip coated and powder coated in RAL 9005 black
- Bulkhead painted in RAL 9005 black
- Ramps and grating floor hot-dip galvanized

Adhesive markings:
- Reflective tape on sides and rear to EU standard.
