Вакуумная автоцистерна STS VR-2,0 Vakuum-Anhänger 3,5 to

Описание

++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++ BUY ++ RENT

Internal reference number: #565

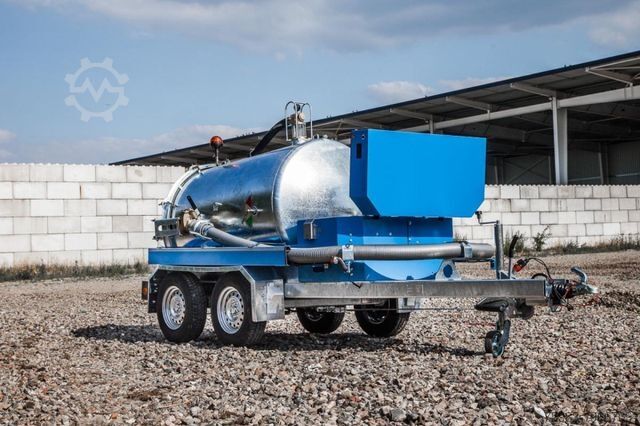

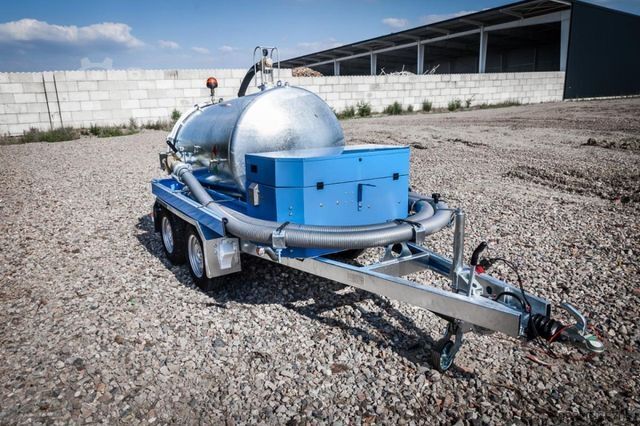

STS VR-2.0

Tank
? 2,000-liter tank capacity
? Tank hot-dip galvanized
? Tank inclined slightly to the rear for easier cleaning

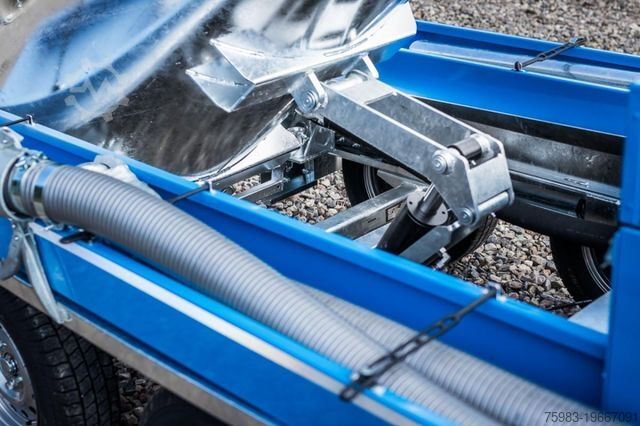

? Hydraulic rear tipping approx. 20° for emptying, operated via electrohydraulic unit
? Side cleaning port in the tank for removing impurities or blockages without opening the tank lid
? Tank lid opens completely to the passenger side and is secured with hook bolts
? Two-stage safety system standard to prevent compressor damage
? Syphon separator ? Overflow with 2 check balls and sight glass
? Manometer on the vacuum line with protective bracket

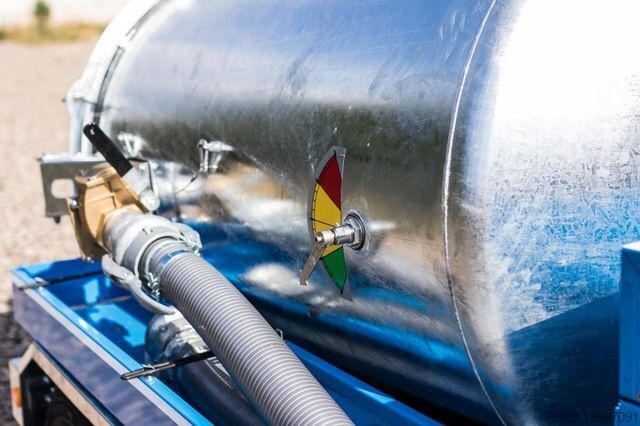

? Mechanical level indicator with color scale

Engine and Compressor
? MEC 3000 vacuum compressor with 3,500 l/min air output
? Maximum vacuum -0.8 bar (continuous operation at -0.5 bar)
? Maximum overpressure 0.49 bar
? Maintenance-free V-belt drive for vacuum compressor
? Honda industrial engine GX 390 ? electric starter, oil sensor, control panel with ignition lock, battery and fuel tank
? Internal intake hose to avoid damage inside the engine unit
? Silencer for vacuum compressor with oil trap
? Stainless steel heat shield above the exhaust
? 1-liter biodegradable compressor oil stored in oil bottle holder
? 5L fuel canister in holder
? Standard funnel with long neck for changing and refilling engine oil
? All engine components and accessories stored in lockable engine box
? Aluminum engine box, powder-coated in color of choice
Hec Ed Dew Ehfxjdcofl

Chassis
? Fully self-supporting chassis, hot-dip galvanized
? Electrohydraulics with wired remote control
? 3.5t tandem low-loader chassis
? Track width matches passenger cars and Sprinter for optimal driving
? Lowest possible center of gravity for the vacuum tank
? 2 axles, each with 1,750 kg load capacity and individual wheel suspension from a renowned manufacturer
? Continuous welded V-drawbar
? Robust metal mudguards with built-in lamp housings
? Stake holders for quick securing of suction hoses with rubber strap
? Storage for tools and accessories

Vacuum Tank
? Overrun brake with automatic reversing (Rückmatic)
? Automatically locking ball hitch
? Reinforced jockey wheel
? 13-pin cable connector

Connections and Hoses
? 2x suction hoses (3") 5m long with Perrot couplings
? 1x suction lance 3" (1,500mm long)
? 1x Perrot connection (3") at the bottom of the tank lid
? 1x Perrot connection (3") on the right side in direction of travel

For further detailed information and/or images, please contact us directly. You will find a wide selection of other vehicles to BUY or RENT at:

Subject to change, prior sale, and error. The buyer is obliged to verify the condition and equipment of the goods independently. Sale is made exclusively according to our General Terms and Conditions (GTC) and excludes any warranty whatsoever.
