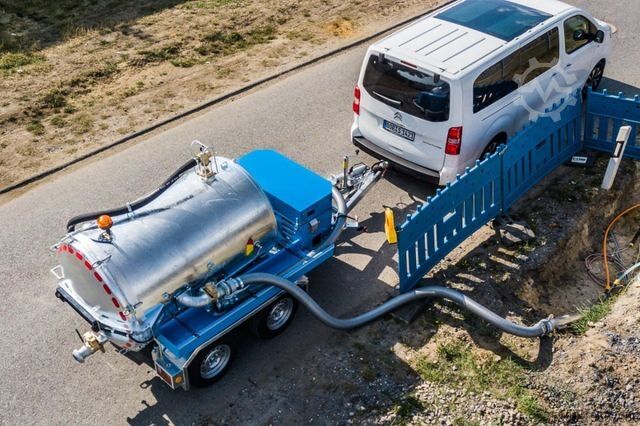

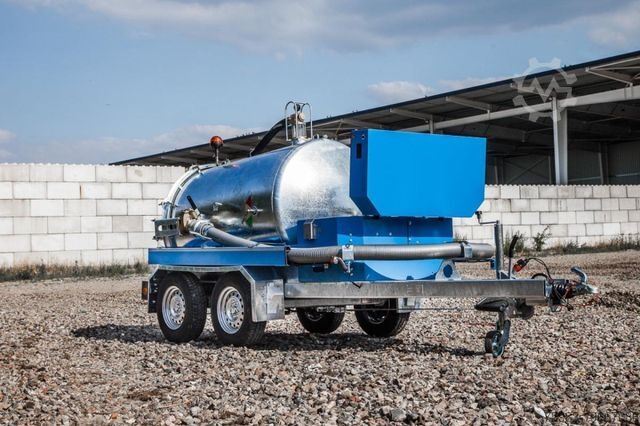

Вакуумная автоцистерна STS V-2,0 Vakuum-Anhänger 3,5 to

Описание

++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++ BUY ++ RENT

Internal reference number: #502

STS V-2.0

Tank
- 2,000-litre capacity tank
- Tank hot-dip galvanized
- Tank slightly inclined to the rear for improved cleaning
- Side flushing port in the tank to remove contaminants or blockages without opening the tank lid
- Tank lid can be fully opened to the passenger side and secured with hook bolts
- Two safety stages installed as standard to prevent compressor damage
- Syphon separator – overflow with two balls and sight glass
- Pressure gauge on suction assembly with protective bracket
- Mechanical level indicator with color scale

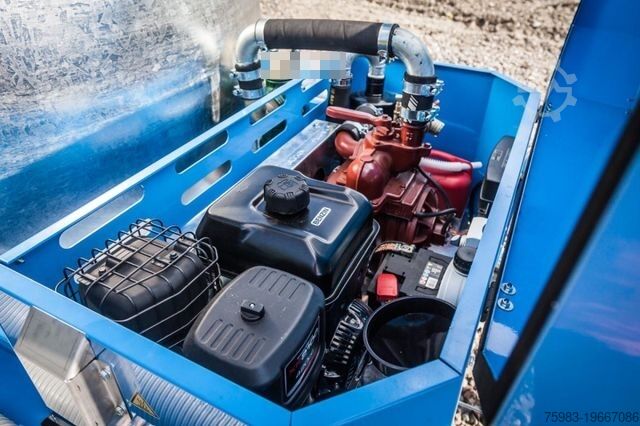

Engine and Compressor
- MEC 3000 vacuum compressor with 3,500 l air output
- Vacuum max. -0.8 bar (continuous operation at -0.5 bar)
- Overpressure max. 0.49 bar
- Maintenance-free V-belt drive for vacuum compressor
- Honda GX 390 industrial engine – electric starter, oil sensor, control panel with ignition switch, battery, and tank
- Internal suction hose to prevent exposure in the engine unit
- Silencer for vacuum compressor with oil catcher
- Stainless steel heat shield above the exhaust
- 1 litre of biodegradable compressor oil stored in oil bottle holder
- 5-litre petrol can in holder
- Standard: long-neck funnel for oil changes and refills
- All engine components and accessories housed in lockable motor box
- Motor box made of aluminium, powder-coated in custom color

Chassis
- Fully self-supporting, hot-dip galvanized chassis
- Tandem low-loader 3.5t chassis
- Track width identical to passenger vehicles and Sprinter for optimal handling
- Lowest possible center of gravity for the vacuum tank
- 2 axles, each with 1,750 kg load capacity and independent suspension by a renowned manufacturer
- Continuous welded V-drawbar
- Robust mudguards with metal lamp housings
- Stake brackets for quick securing of suction hoses with elastic bands
- Storage options for tools and accessories

Vacuum Tank
- Overrun brake with Reversematic
- Self-locking ball coupling
- Reinforced jockey wheel
- 13-pin electrical connector

Fittings and Hoses
- 2x suction hoses (3”) each 5m long with Perrot couplings
- 1x suction lance 3” (1,500mm long)
- 1x Perrot connection (3”) at lower part of tank lid
Hscjw Ehfre Ed Ddcsfl
- 1x Perrot connection (3”) on right-hand side in direction of travel

For further information and/or pictures, please contact us directly. A wide selection of other vehicles for RENT or PURCHASE can be found at:

Specifications subject to change, prior sale, and errors excepted. The buyer is obliged to independently verify the condition and equipment of the item. Sale exclusively according to our terms and conditions and without any warranty.
