Вакуумная автоцистерна MAN TGS 41.440 BB 8X4

Описание

++ BUY ++ BUY ++ BUY ++ BUY ++ BUY ++ BUY ++
1. Pump Unit
Suitable for vacuum and blowing operation with low wear: Vacu-Press 10,000, air-cooled, 3-lobed rotary blower.
Performance: 8,220 m³/hour (no load)
Vacuum: 0.95 bar (0.05 bar abs.) at 100°C
Overpressure: 1.20 bar (2.20 bar abs.) at 125°C
Power consumption: max. 190 kW.
2. Soundproofing
The Vacu-Press 10,000 pump is installed in a sound-insulated housing with intake, cooling air, and exhaust dampers. The doors of the sound-insulated housing and the inside of the sound dampers are made of stainless steel. The noise level of the suction system is about 80 dB(A).

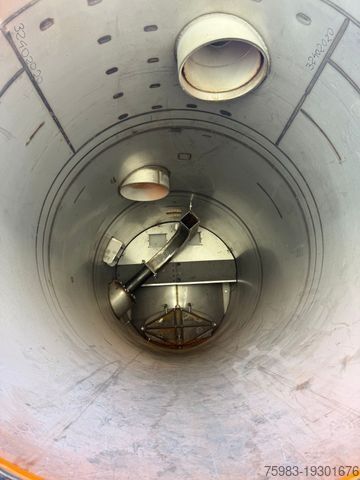

3. Stainless Steel Tank
Net volume: loading space 13.0 m³ (stainless steel tank)
Filter space: 2.0 m³
Total: 15.0 m³
Wall thickness: 6 mm
Design pressure: Full vacuum up to 2 bar overpressure
Design temperature: -20°C/+50°C
Filter chamber: At the front of the tank with fully openable top cover.
Filter chamber emptying: By large oval hatch. Watertight and pressure-resistant.

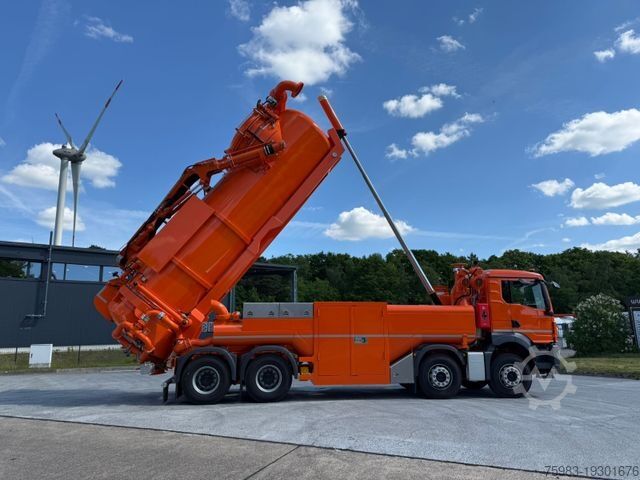

4. HI-LIFT Version
Intermediate axle and additionally liftable tank at the rear, allowing tipping or bagging into big bags, skips, or containers.
Discharge height (under slider): approx. 1,600 mm (with tank raised and tilted)
Lifting cylinder: hydraulic, double-acting
Stroke: 1,070 mm
Slider: DN300 pneumatically operated
5. Filter System
Filter chamber: cylindrical, diameter 1,800 mm, built into the front of the tank with large oval hatch for emptying into the loading compartment.
Separation efficiency: 99.95%
Class: BIA Class C for the filter material
6. Suction and Blowing Connections
Suction connection: on the left side inside the tank, redirected with a large bend and replaceable wear plate. Connection DN150 with hose coupling of your choice.
Blowing connection: DN125 connection with hose coupling of your choice

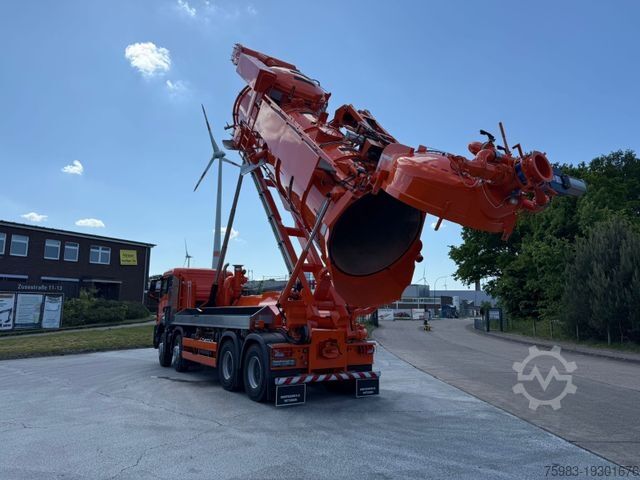

7. Rear Door
Hydraulically operated, with internal cone and discharge connection.
Locking: Hydraulically with self-adjusting wedge lock, ensuring each wedge applies equal force and the seal remains optimal regardless of gasket thickness.
Chassis manufacturer: MAN TGS 41.440 BB
Nlecewqblps R Nc Ifnoc
Toolbox: rear left with 2 lockable covers, stainless steel
Storage box: rear left, open design V2A
Mudguards: galvanized with rubber strips
Side underrun protection: according to legal regulations
Axle: continuous tipping axle, mounted in cast steel.
Transfer case
The OMSI transfer case interrupts the drive line and transfers the engine power to the pump. The engine can be loaded at optimum constant speed; different pump speeds are possible. This is beneficial for service life and reduces engine consumption.

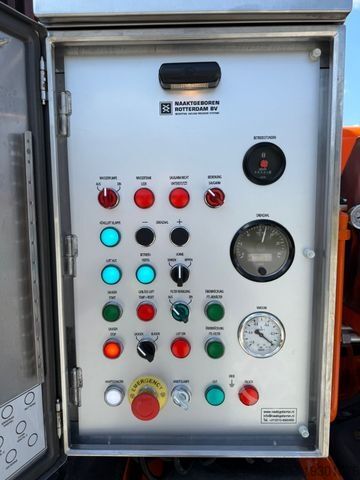

8. Control System
Operation: electric, relay control
Control functions: main switch, work light on/off, revolving beacon on/off, vacuum/blow selection, start/stop suction, start blowing with separate switch on the right
Indicators: main switch, blower oil pressure, blower oil temperature, work lamp, revolving beacon, cooling air flap, free suction flap, blowing flap
Measuring instruments: vacuum manometer
Accessories (included):
1. Speck water pump 701/140B with a water tank of about 1,000 liters and a 40-meter spray hose reel
2. Color RAL 2004
3. IFM level sensor for liquids (information provided by customer)
4. 6 work lights (2 left, 2 right, 2 rear on advertising boards), switched fr...
