Claas Disco C 9300 Auto Swather
Demo unit in operation
Year of manufacture: 2025
Large-area mower for rear tractor mounting, Cat. III
- Working width: 9.10 m (8.90 m)
- Main frame with center of gravity optimized by rearward-angled outriggers
- Low-speed concept with speed reduction to 850 rpm
- Tine conditioner with V-shaped, rubber-mounted steel tines
Swath belts:
- Belt units can be hydraulically folded up individually above the mower unit or completely removed
- Belt dimensions: 0.90 x 2.80 m
- BELT BOOST, automatic adjustment of belt speed at headlands
- Closed tray for transition between mower and belt unit
Equipment:
Wear skids
Three-point hitch
Swath belt cover
Driveshaft 1 3/8", 6-spline
ISOBUS cable
Cable for hectare counter
Outer protective curtains, hydraulically foldable
Optional available:

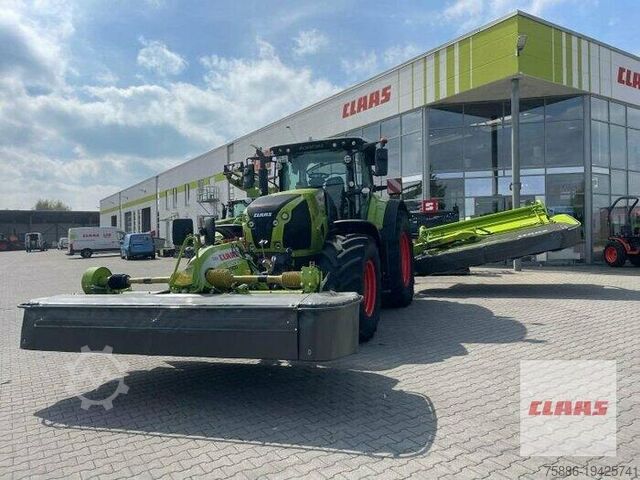

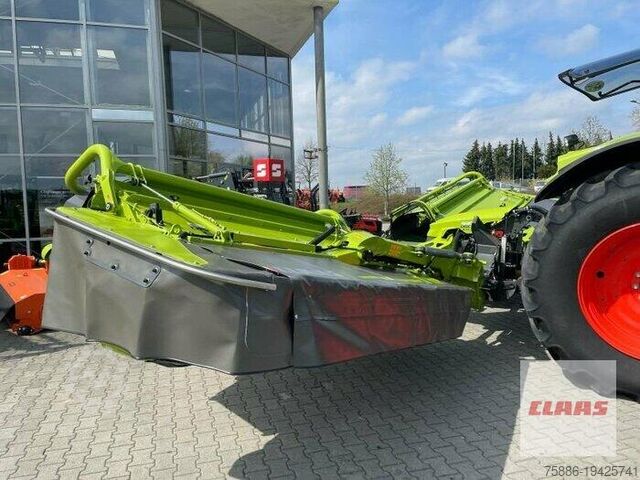

Claas Disco 3200 FC Profil
Year of manufacture: 2025, in use
Wear skids
PROFIL three-point hitch
ACTIVE FLOAT system
Hydraulic protective curtain folding
Front mirror set | Internal No.: 11264117
