Наливной рукав Fiedler FGA 1200 Hybrid Gießarm
Состояние
новое
Цена без учета НДС
3496000.00
Отправить сообщение
Описание
Ladies and Gentlemen,

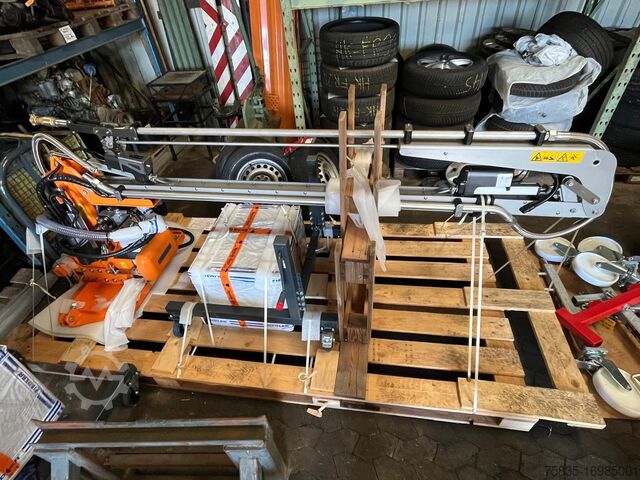

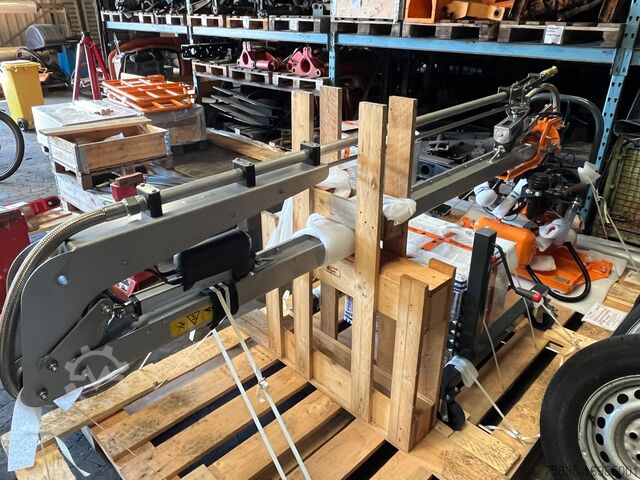

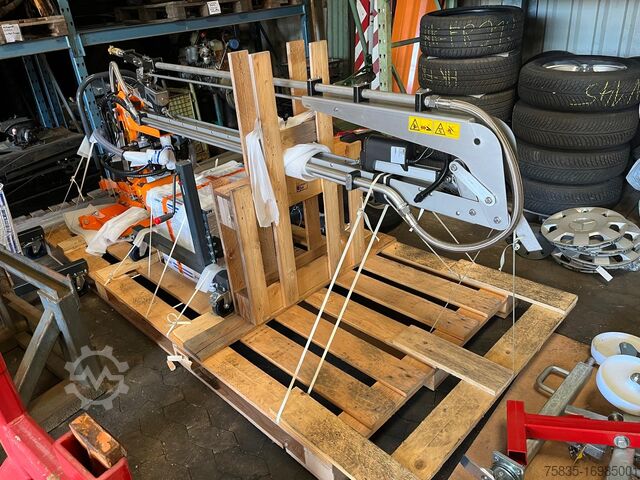

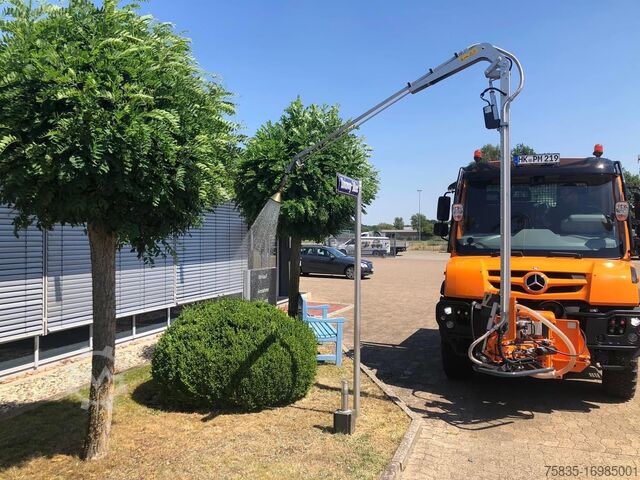

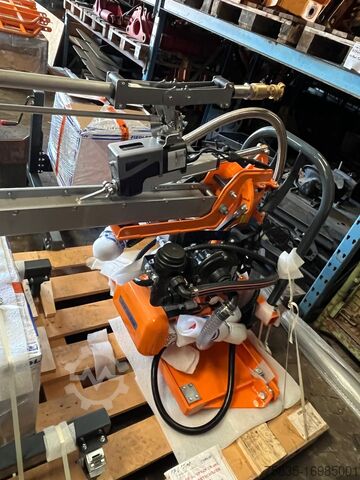

We offer you a Fiedler FGA 1200 Hybrid casting arm.
- Operation via joystick of the Fmc Multimatic-Control color display
- 12V electric drive with proportional CAN-BUS control; purely
electric drive - no hydraulics required on the vehicle
- Operation with absolute sensitivity
- Max. working range per side: 6.00 m plus water jet of the shower head
shower head
- Working height:0-6.00m
- Innovative swivel movement via special gear-joint
arrangement
- Swivel range: approx. 250°
Swivel right/left: 125° each
Pivoting angle of pouring head: 170°
- Main arm can be tilted by 55
- Secondary arm can be swiveled by 150
- all 4 cylinder movements can be controlled simultaneously
- main and secondary arm as well as tubes and gear components in
stainless steel

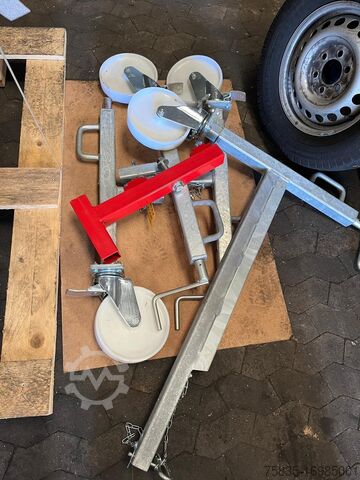

- Parking device with 2 crank supports and 4 wheels (2 of them braked)
braked)
- Attachment independent of the height of the
vehicle
- Attachment to any mounting device (vehicle plate, three-point hitch, etc.)
etc.) and to all vehicle and tractor types - No lifting gear required on the vehicle
vehicle required
- Can be attached and removed by one person
- Compact transport position due to small front boom dimensions
3000L Speidel water barrel available separately
Noc R Nc Ifeuhm Slonelc
Sale in existing condition and only to other trades!!!
Our business hours:
Mon-Thu: 07:00 a.m. - 3:30 p.m.
Fri: 07:00 am - 3:00 pm
Offer subject to our general terms and conditions!!!
Sale only to entrepreneurs!!!
Used vehicles / used equipment without liability for material defects according to our general terms and conditions!!!
I am at your disposal for further questions.
For viewings and/or test drives, please make an appointment in advance!!! Vehicles / equipment are not always available on site
