Другое MAN TGM 18.320 4x4 Euro6e Hiab X-HiDuo 138DS-3

Описание

X TO GO?EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES FROM OUR LOCATION IN PORTA WESTFALICA/GERMANY.
FOR ALL CUSTOMERS WHO ARE IN AN ACUTE NEED SITUATION. (SHORT-TERM CAPACITY EXPANSION OR REPLACEMENT INVESTMENT)Your advantages:
Complete vehicles ready for immediate use (concrete mixer/tipper)Immediate availability directly from the manufacturer
* Construction, assembly, commercial vehicle
* Best price/performance ratio
* Financing options
* Trade-in of your old vehicles

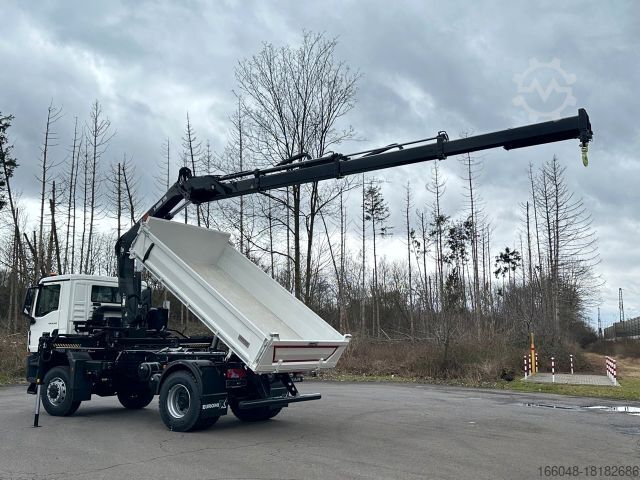

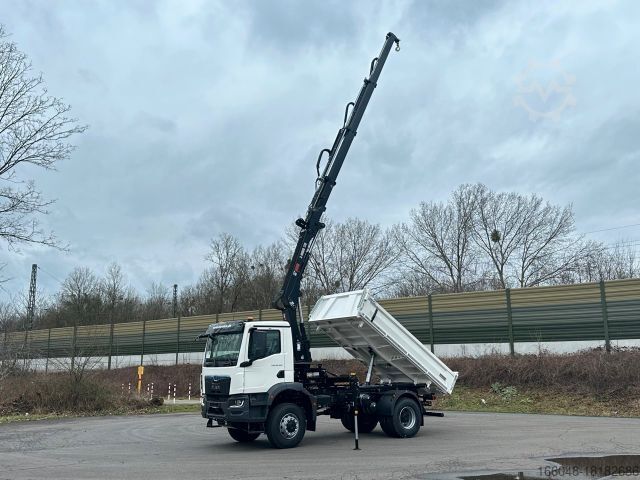

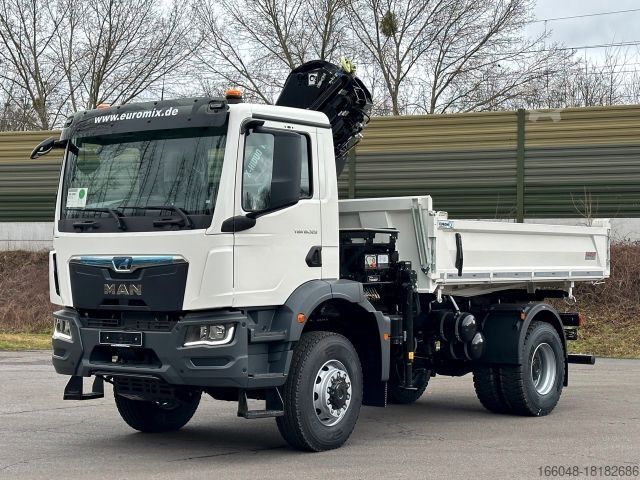

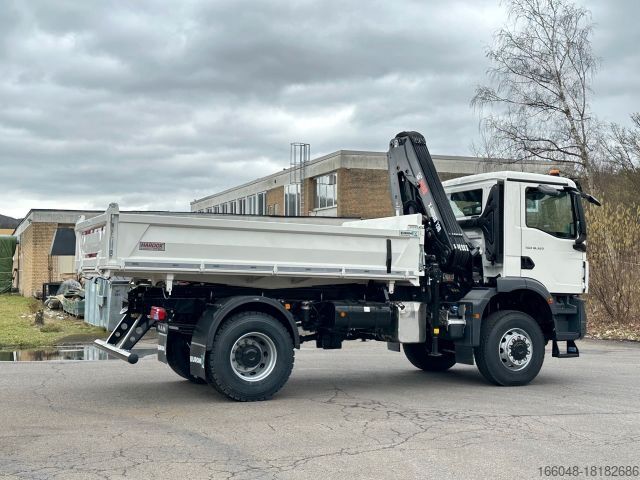

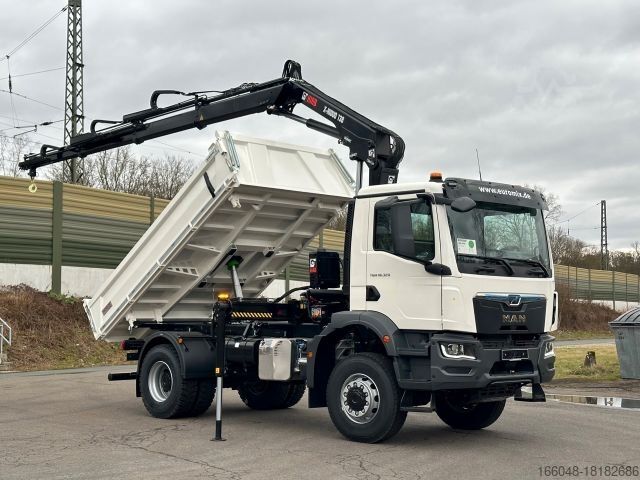

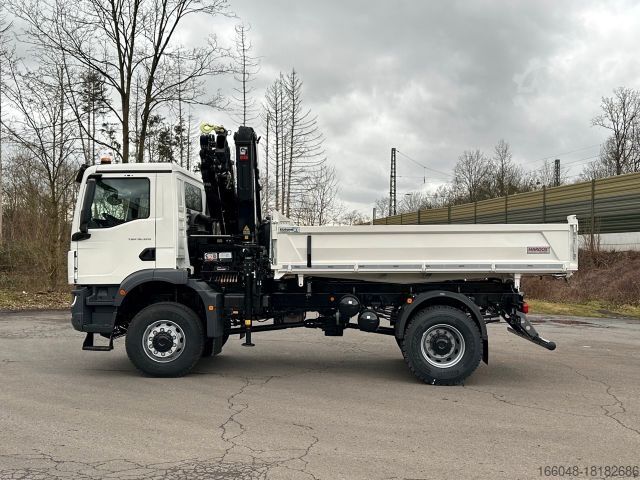

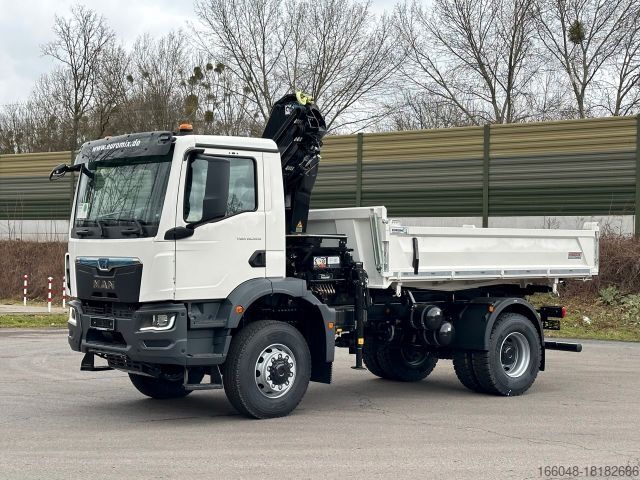

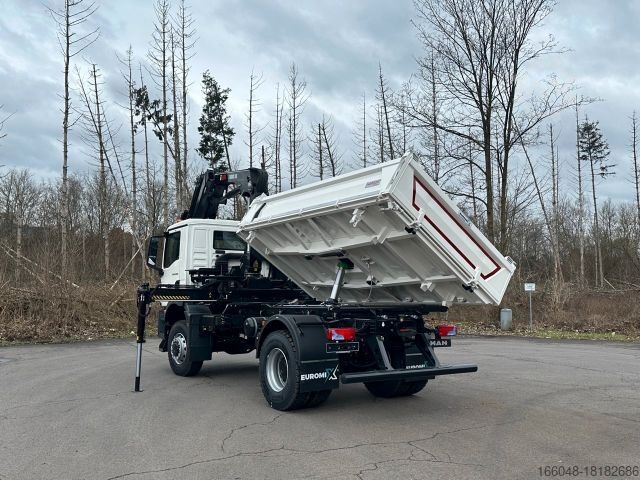

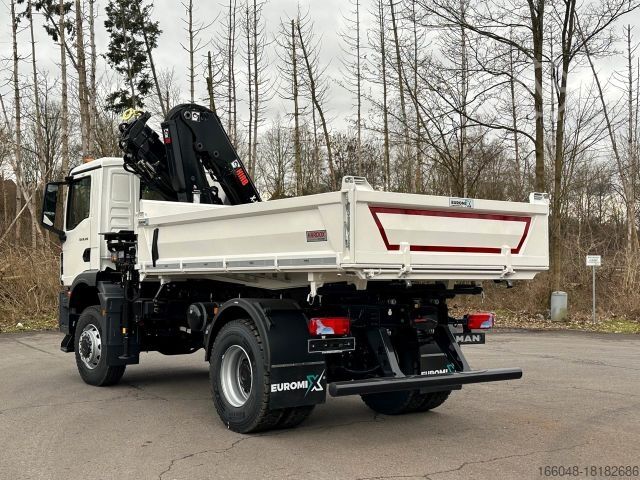

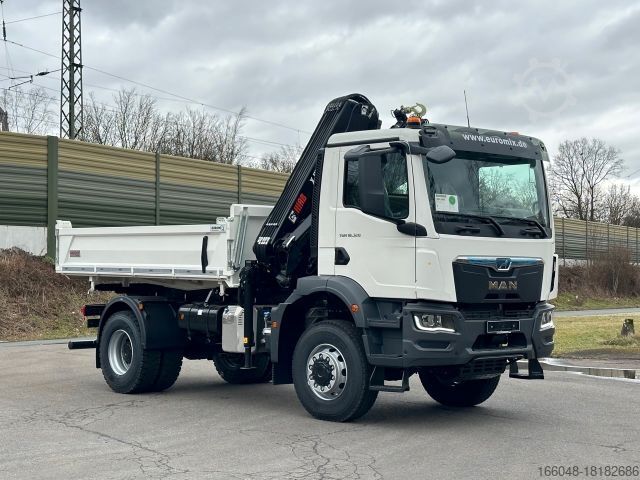

MAN TGM 18.320 4x4 BB Euro6e EuromixMTP three-way tipper
Crane Hiab X-HiDuo 138DS-3
Alternative cranes:
Hiab X-HiDuo 138DS-4
Total weight: approx. 18,000 kg
Empty weight: approx. 10,160 kg
Payload: approx. 7,840 kg
* Diesel engine MAN D1556 LF07, 294 kW (400 hp) power, 1,800 Nm torque, Euro 6e
* MAN TipMatic 12.26 OD Offroad, Efficiency Plus, Manoeuvre
* 3,900 mm main wheelbase
* 400 l tank volume fuel tank, right - 60 l tank volume AdBlue tank, left
* Electronic braking system (EBS) - Anti-lock braking system (ABS) Roll-off lock MAN EasyStart
* Tires front axle - 315/80R22.5 steering-S+G TL (156/150 K) behind axle 315/80R22.5 drive-S+G TL (154/150 K)
* Front axle, 9,200 kg, rear axle, 13,000 kg, HY axle axle ratio, i=3.36
* Leaf springs on rear axle, parabolic, 3-leaf, steel, reinforced axle stop
* Bumper, steel, 3-part - Daytime running light, LED - Exterior rear view mirror, electrically adjustable, heated

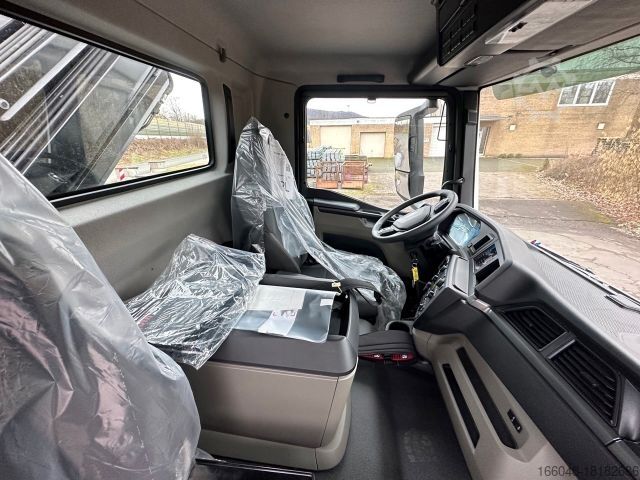

* Driver's comfort seat, air-suspended - Driver's seat armrests

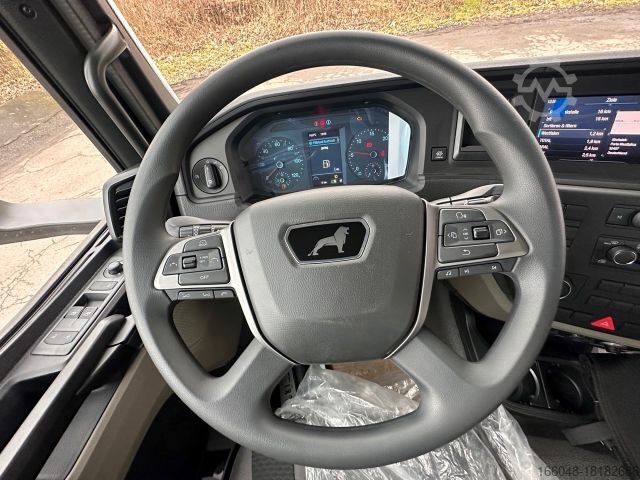

* Multifunction steering wheel, height and inclination adjustable
* Electronic stability program (ESP) Traction control (ASR) Cruise control (FGR)

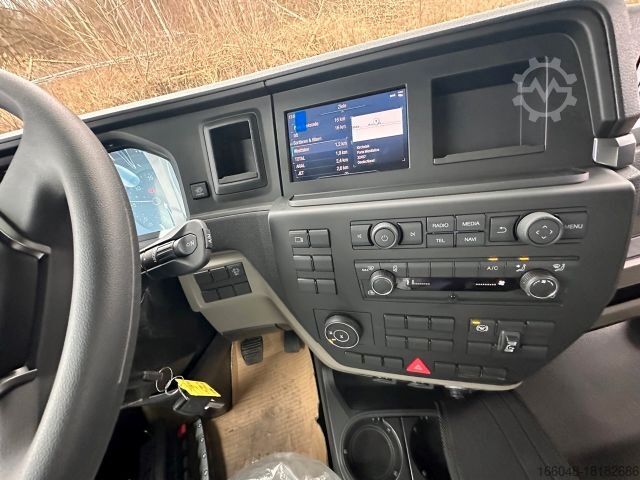

* MAN media system 7 inch - MAN loudspeaker system - Connectivity board module (RIO box)
* Navigation system
* Trailer coupling on end cross member, ROCKINGER type 400 G 150A
* Standard extended warranty for drive train for 3rd year of operation up to 450,000 km, see maintenance certificate

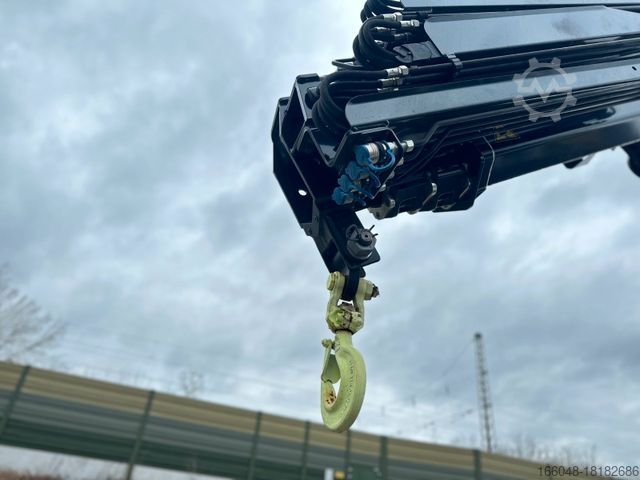

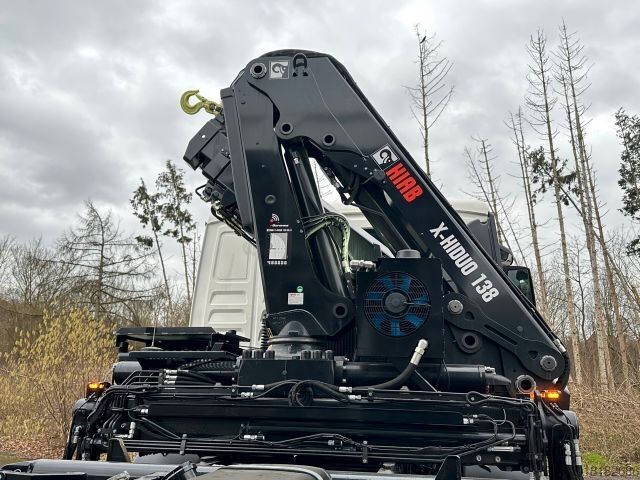

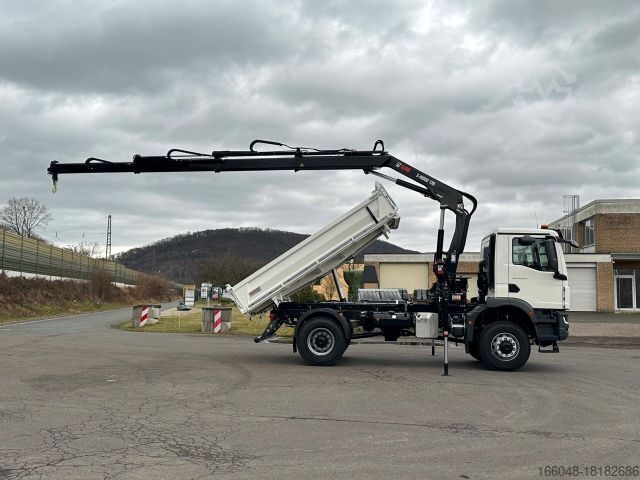

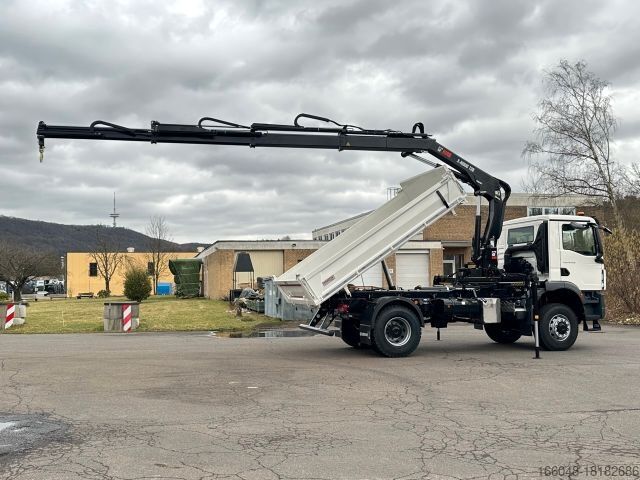

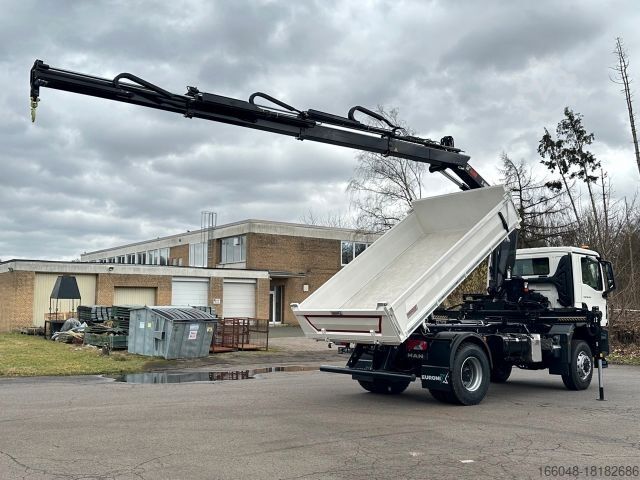

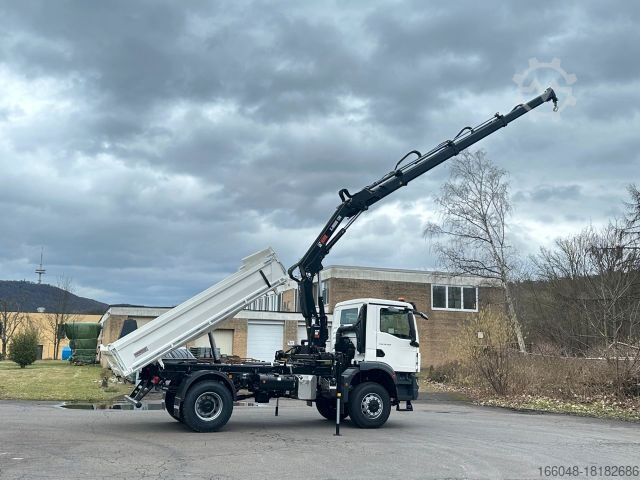

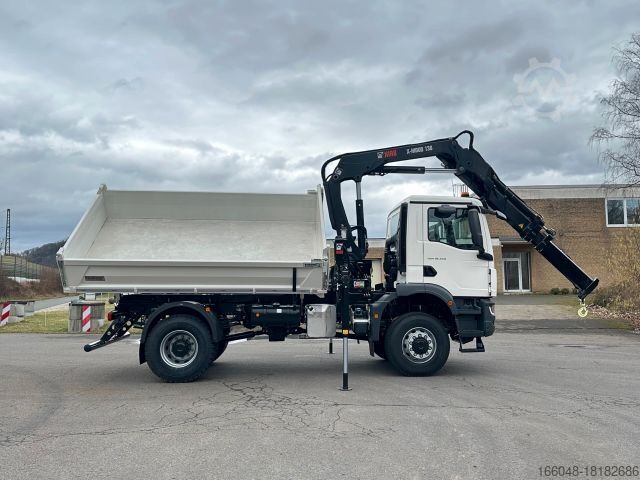

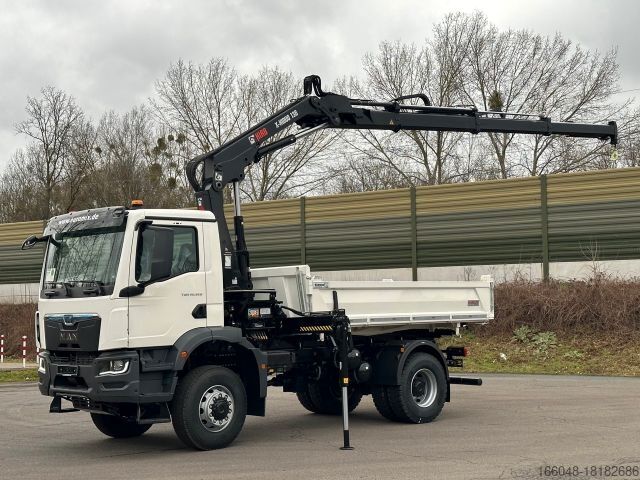

Crane Hiab X-HiDuo 138DS-3
* HIDUO - The intelligent pack mule
* Work lights - LED version
* CE basic safety equipment EU-compliant - with CE certificate
* Control system on 3 hydraulics
* High stand on the left, valve at the bottom of the crane base, for remote control
* Electronic system operating device on both sides - SPACE X4 - one interface each on the left and arranged on the right-hand side, 24V-DC
* The XSDrive piano remote control can be operated via radio or cable
* The invisible OPS safety cabin
* The D-joint has a lever connection between the articulated arm and the lifting arm (knee joint).
* 2m = 4700 kg
* 5m = 2600 kg
* 7m = 1800 kg
* 9m = 1340 kg
* 11m = 1060 kg

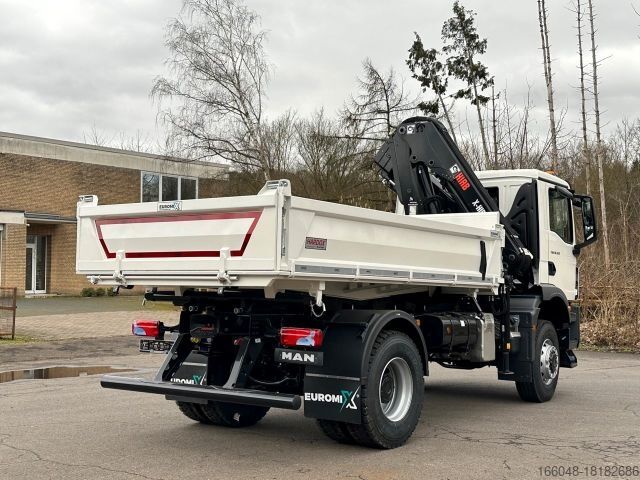

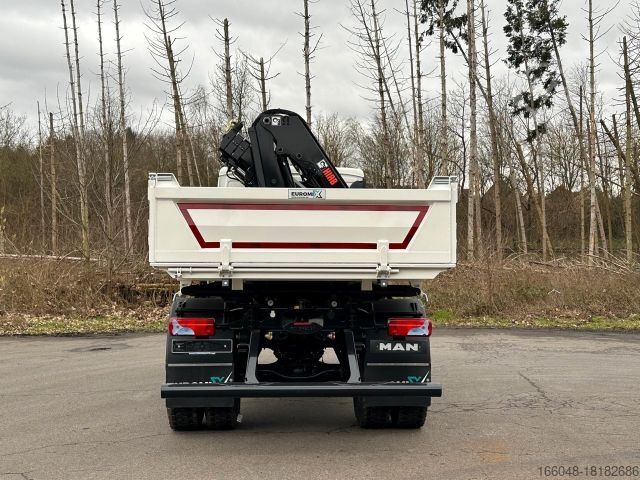

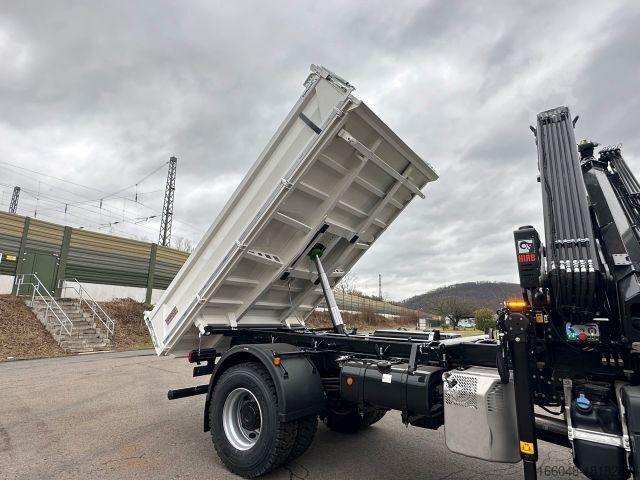

Tipper equipment:
EuomixMTP three-point tipper EMK3-K loading crane
Type: EuromixMTP EMK3-K
Tipper body description:
Length: 4,000 mm
Width: 2,410 mm
Side walls: 600 mm
Front wall: 800 mm
Floor: 5mm HARDOX 450
Side walls: 3mm S355
Right: manual swinging side wall
Left: manual swinging side wall
Rear wall: automatic swinging 3mm S355
Front wall: 3mm S355
Rear wall: 3mm S355 Lashing eyes in the Corners
Subframe: Welded construction made of high-quality steel
Hydraulics: - Penta tipping cylinder with limit switch, - Control block (main valve) - Pneumatic tipping sensor - Pneumatic switch tipper / crane - Valve on the subframe - Pump and oil tank
Noc R Nc Ijvm Ru Tsfnolc
Options:
Hydraulic connection tipping trailer
Broom and shovel with holder
Foldable underrun protection at ground level,
Foldable lashing eyes
EuromixMTP
