Другое Heatweed Sensor Series 2.0
Год выпуска
2015
Состояние
новое
Цена без учета НДС
7176000.00
Отправить сообщение
Описание

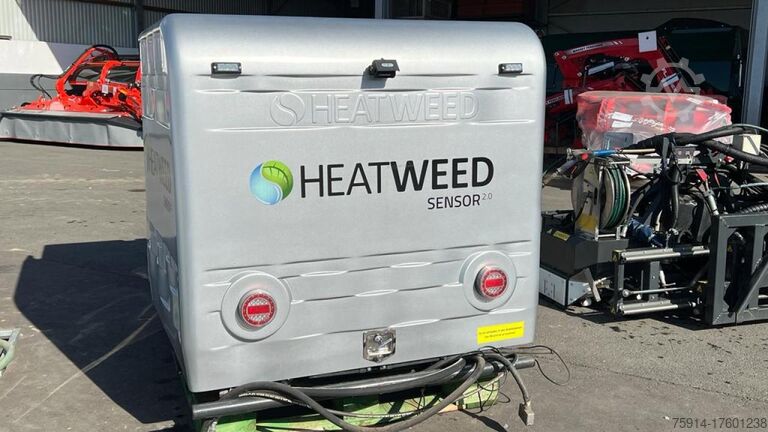

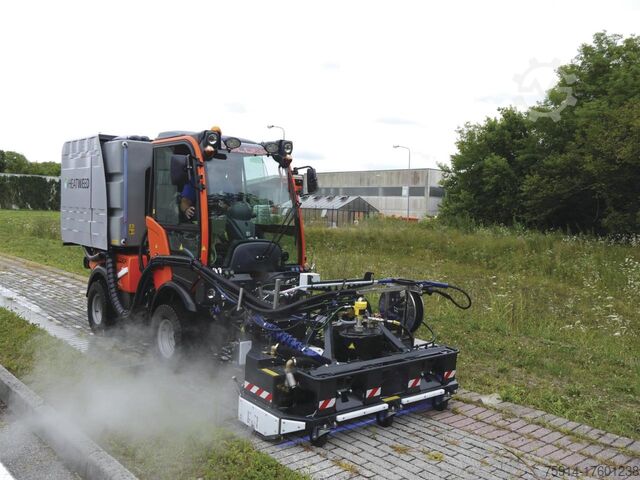

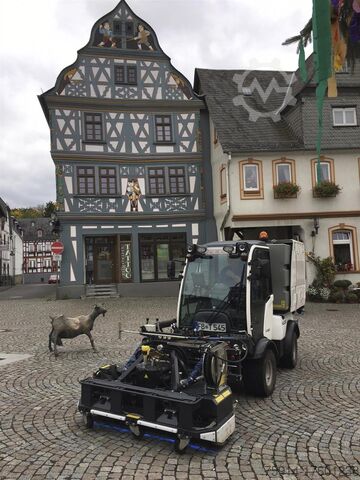

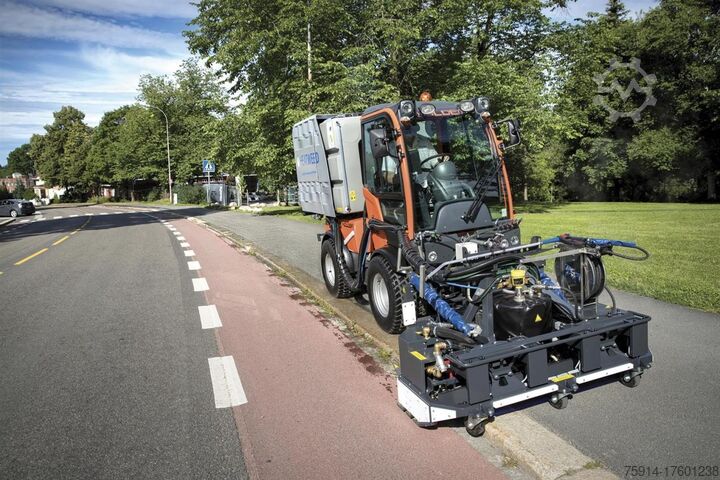

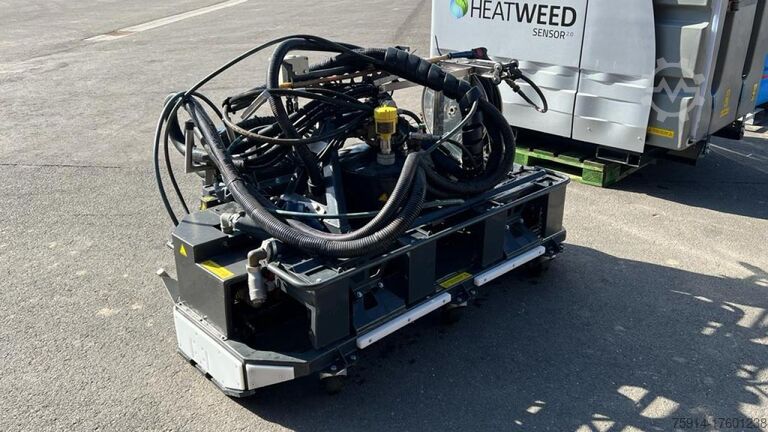

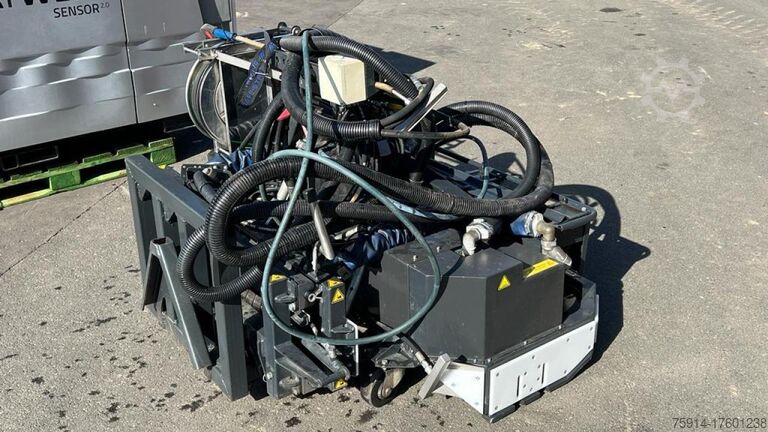

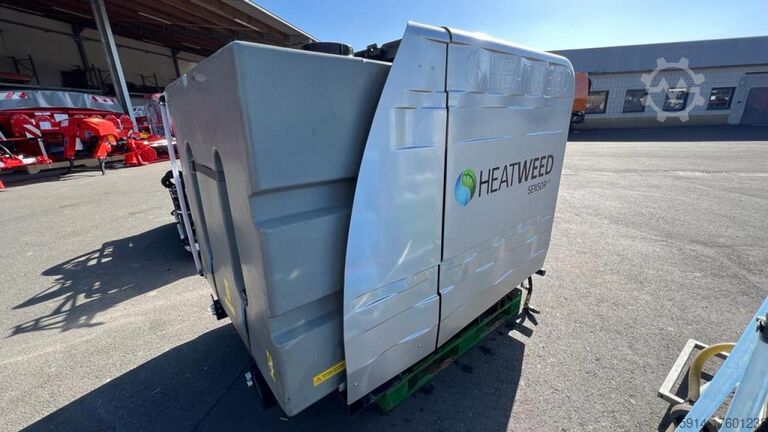

Operating hours: 3000_____Water tank 800 litresEquipped with: 160 cm dosing unit Side shift 60 cm to the right Prepared for GPS integrationOptional: Rear camera 120 cm dosing unit 500 or 1,150 litre water tank Surface water pump (leak and basket) High capacity side nozzles- Bracket for standpipe for hydrants Mounted on equipment carrier, e.g. B. Holder, Wille, Multihog Hand lance with 15 m water hose on the drumEquipment: Capacity per day: 17,000-35,000 m²/day* Operating speed with 100% weed coverage (min.): 0.5 km/h Average treatment speed: 3-5 km/h Operating speed with low weed coverage: min. 5 km/h Water consumption when controlling weeds (min.): 34 l/min Drive via hydraulic system of the carrier vehicle (min. 60l/min at 180 bar) 2 x high-tech burners 110 KW with at least 92% efficiency according to EN 303-2 Burner emission class: > EURO 6 Automatic water softening system with 5 L canister and level monitoring Control unit with touchscreen screen for controlling and monitoring the system in the carrier vehicle, data storage for 5 days and reading of the daily output via USB stick (Excel format) Preparation for GPS integration Water pressure at Weed control: 0.2 bar Water temperature on the plant during weed control: 98-99.6°C Active temperature control (software controlled - no bypass control) for a constant water temperature of 99.6°C (+/- 0.6°C) Burner drive: diesel or Aspen D biodiesel Burner tank capacity: 105 l Water tank capacity: 800 l Standpipe holder Rear view camera Sensor-based dosing unit with infrared sensors, application system: 2 rows with 20 valves in 4 independent sections Dosing unit: working width 160 cm, side working nozzles (2 left, 2 right), additional 2 high-performance nozzles left and right, with 60 cm side shift on the right Stainless steel hose reel with 15 meter hose and 20 cm hand lance Adapter and frame with support feet for mounting the unit on the carrier vehicle Water tank (plastic) 800 liters with C-pipe connection and level indicator, dry-run protection, water filter Standard color: RAL 9006 Weight heating unit (net): 560 kg (without water and fuel) Machine dimensions: (LxWxH) 3,500 x 1,750 x 1,600 mm Weight dosing unit: 340 kg,Storage location:null
