Подметальная машина Bucher - GMeiner

Описание

Operating hours: 900, First registration: 18.06.2024

Basic equipment:
Steering: Hydrostatic four-wheel steering with hydraulic power assistance
Axles: Rear axle as a steering drive axle with differential; front axle with coil springs and shock absorbers
Hydraulics: The latest electronic control system enables fuel- and noise-optimized regulation of the diesel engine for a hydrostatic drive system throughout the full speed range, without loss of performance. Diesel consumption and emissions are greatly reduced thanks to the electronic control system and Euro-6d diesel engine. Valuable resources and the entire vehicle system are preserved. Comparative tests have shown a 30% reduction in diesel consumption and a 20% reduction in noise emissions in transfer mode. The positive effect is also reflected in lower operating costs.

Brakes: Hydraulic dual-circuit brake system with hydraulic power assistance; disc brakes front and rear; hydraulically operated spring-applied parking brake on the rear axle; 4 front brake calipers and 2 rear
Hjc Ed Dsw Hlvksdcofl

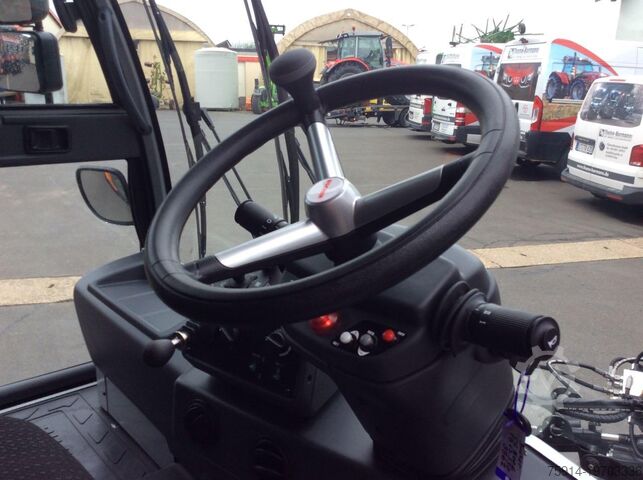

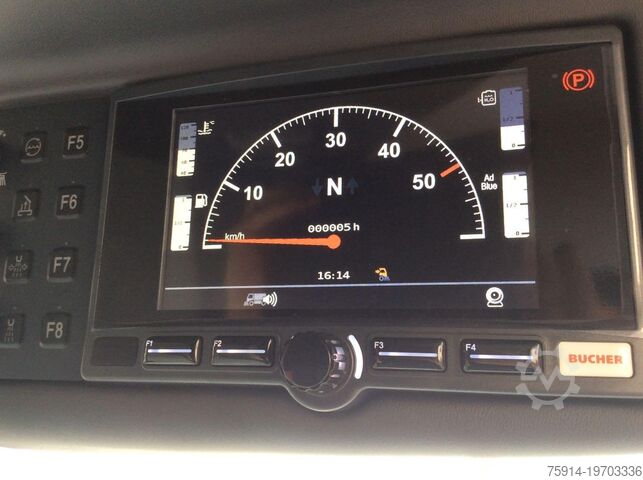

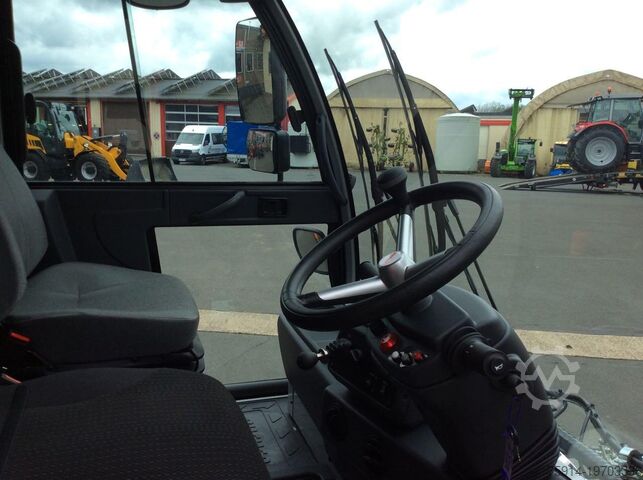

Cabin: Comfortable, hydro-mount suspended, sound-insulated cabin; front window made of heat-insulated, curved, low-reflection safety glass; 2 sliding windows in each door; multi-stage heating fan; sun visor; windshield wiper with washing system; air-suspended driver’s seat and suspended passenger seat, both individually adjustable; steering column adjustable for angle and height. Clearly arranged and ergonomically positioned controls and monitoring instruments with a 7'' color display. Visual and acoustic warning system for monitoring of temperature and fluid levels; visual diagnostic system with intuitive design.

Sweeping debris intake: Suction principle with towed, stainless steel suction nozzle in front of the axle, with side brooms hydraulically adjustable sideways by 400 mm. Infinitely variable high-performance suction fan.

Debris hopper: Container volume hydraulically tiltable and closable, 5.6 m³. Dumping height 930 mm; dumping height (high dump) 1550 mm; dump width 1700 mm; dump angle 51°.

Water system: Water tank approx. 880 l; a water pump for spray nozzles.

Brooms: 2 brooms left and right, Ø 900 mm; infinitely adjustable speed 0–150 rpm; anti-collision protection.

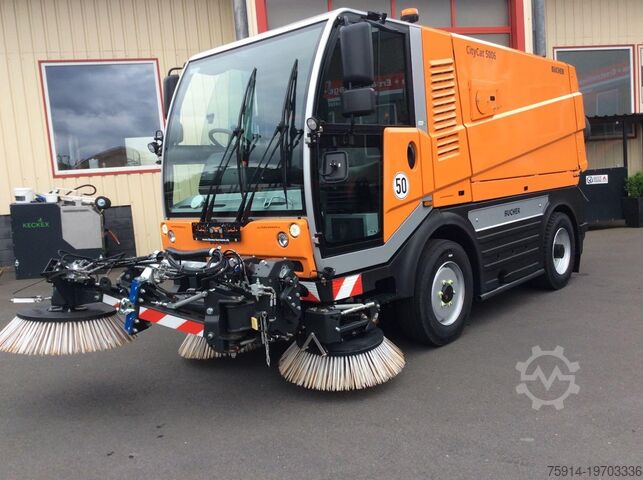

3 front brooms for a sweeping width up to max. 3768 mm and for sweeping corners and ramps, usable left, right, and on a second level.

Special equipment:
- RAL 2011 orange
- Suction pipe flap (hydraulic), for closing the intake tube
- Leaf grate lifting device for raising and lowering the leaf grille in the debris hopper using hydraulic hand pump
- Easyclean quick cleaning system for cleaning the hopper side walls, blower, reclaimer, and leaf grille
- 1 wild weed brush incl. special separator skirt / 2x without brush material, provided loose
- 3rd front broom in reinforced version (only SL). Front broom in reinforced version (standard fill), with linear adjustment, tilt adjustment in both directions, ground pressure regulation, extended reach, increased sweeping area

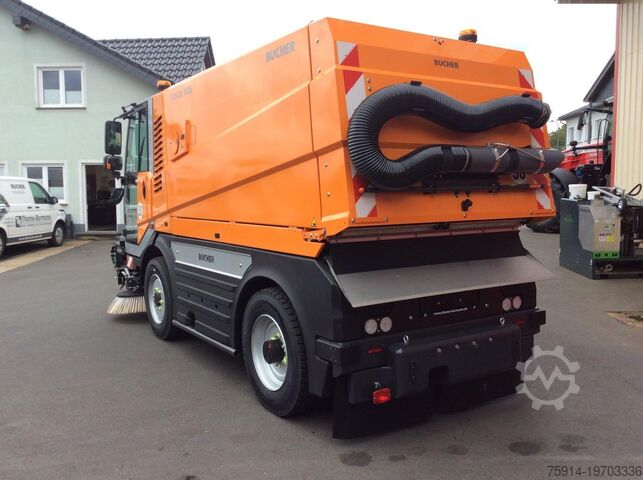

- Leaf suction hose mounted on the side – length 3.5 m, ø 160 mm, mountable on both sides
- Fully integrated, CFC-free air conditioning
