Делительный пильный станок

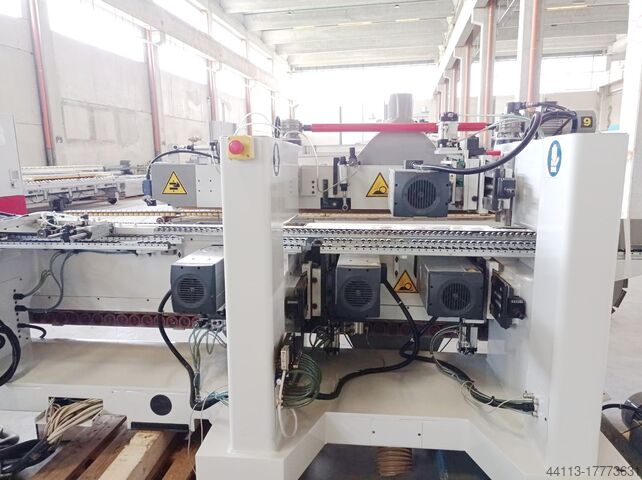

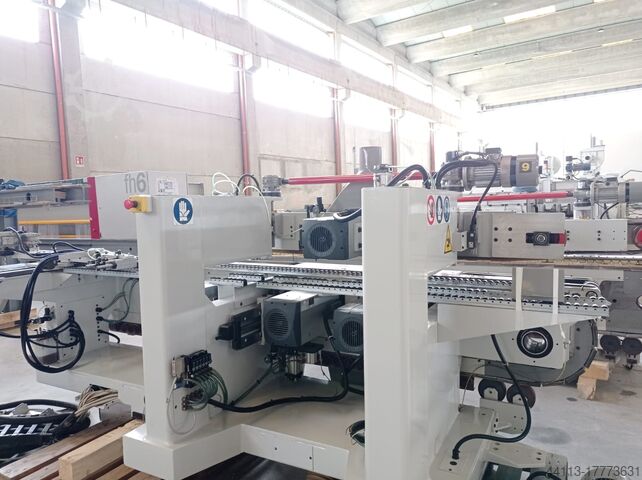

Делительный пильный станок BIESSE - GMC Spliter 4-84 L
Состояние
отличное состояние (б/у)
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
Splitting - Grooving Machine (used to groove and/or split in two parts the unique panel):
- Minimum length of the workpiece: mm 500
- Maximum length of the workpiece: mm 2700
- Minimum width of the workpiece: mm 300 ca.
- Maximum width of the workpiece: mm 700
- Thickness (min./max) of the workpiece: mm 10 / 30 ca.
- Max feeding speed: m/min 50
- Total installed power Kw 43.2
Along with the following groups:
POS. 1 Milling unit for execution of bottom slots/grooves (Kw 7,4) max. blade diameter mm 300
Ncsc R Neu Tqb Uec Ifnou
POS. 2 Lower scoring blade unit (Kw 7.4) max. blade diameter mm 350
POS. 3 Upper scoring blade unit (Kw 7.4) max. blade diameter mm 350
POS. 4 Lower main blade (sawing) unit (Kw 7.4) max. diameter mm 350
