ФОРМАТНО-КРОМКООБЛИЦОВОЧНЫЙ SOFTFORMING

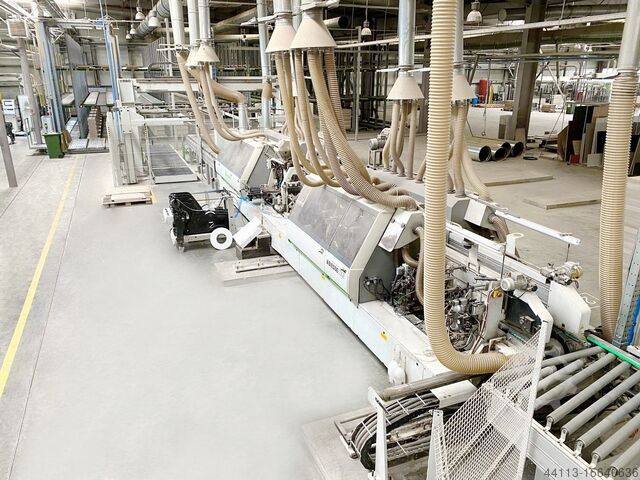

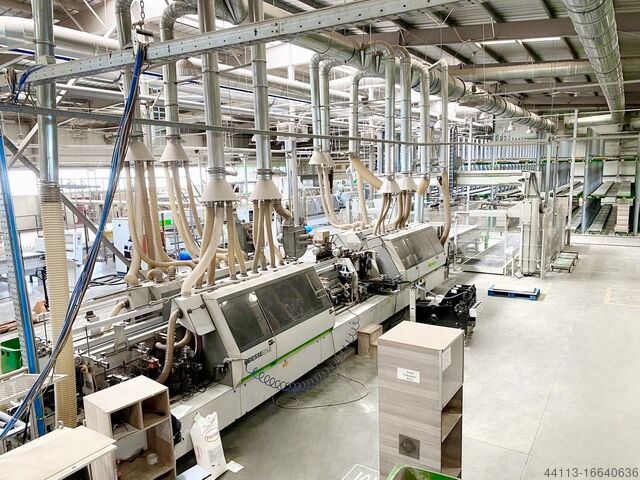

ФОРМАТНО-КРОМКООБЛИЦОВОЧНЫЙ SOFTFORMING BIESSE Stream SB1 11.0 SOFT
Состояние
отличное состояние (б/у)
Цена без учета НДС
Цена по запросу
Отправить сообщение
Описание
DOUBLE-SIDE SIZING & EDGE BANDING MACHINE - First (1st) machine in a line
Edges (tape) thickness in rolls (min/max) mm 0,3 - 3
Panels thickness (min/max) mm 10 - 60
Working width (min/max) mm 270 - 1200
Numerical Control /Software SINITRA
Adjustable feeding speed (m/min) 10 - 40 (INVERTER C.N.)
Safety and sound-proof enclosures/cabins
Working line (work units support tables), manual adjustment
SIZING PART (for each side):
No. 2 Hogging Units (1 Top + 1 Bottom) DT 10 (Kw 5.8 x 2)
Free space for Milling unit FS
Milling unit (vertical join trimming) ES30 + ER30 (Kw 5 x 2) 0° - 90°
Softforming Milling unit SF 10 (2 x Kw 2,4) 0° - 45°
Spraying unit (Anti-sticking liquid)
EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt + Quick Melt Unit) SP3/SF, SP40 (HighMelt + Edge Control EC 40)
Lamps to heat the workpieces side (infrared heater) RP 10
Nsc Rot N Ix Re Nc Ifnecu
Band Pressure zone (N.C. adjustment)
Pressing rollers (revolver) both for straight and shaped edges (softforming) Soft PF40 (4 positions) mm 800 (Cesoia CI10+CS10+RL10) + Edge coils supporting unit (No. of reels) 6
Rough Milling unit RS 10 (Kw 1,3 x 2)
Fine Milling unit Softforming RF 10 / SF (Kw 0,65 x 2)
Fine Milling unit (Multi-profile) RF 30 (Kw 0,65 x 2)
Milling grooving Unit FB 30 (Kw 4,5 x 2) 0 - 90°
Profile edge scraping unit (Multi-profile) RB 30
Glue scraping unit RC 05 / Soft
Spraying Unit (for polishing liquid) + Buffing unit SZ 30 (Kw 0,37 x 2)
